Fowler Full Warranty Xtra-Value Depth Gauge, 54-225-555-0, 0-16" Measuring Range, Inch Metric Fractions

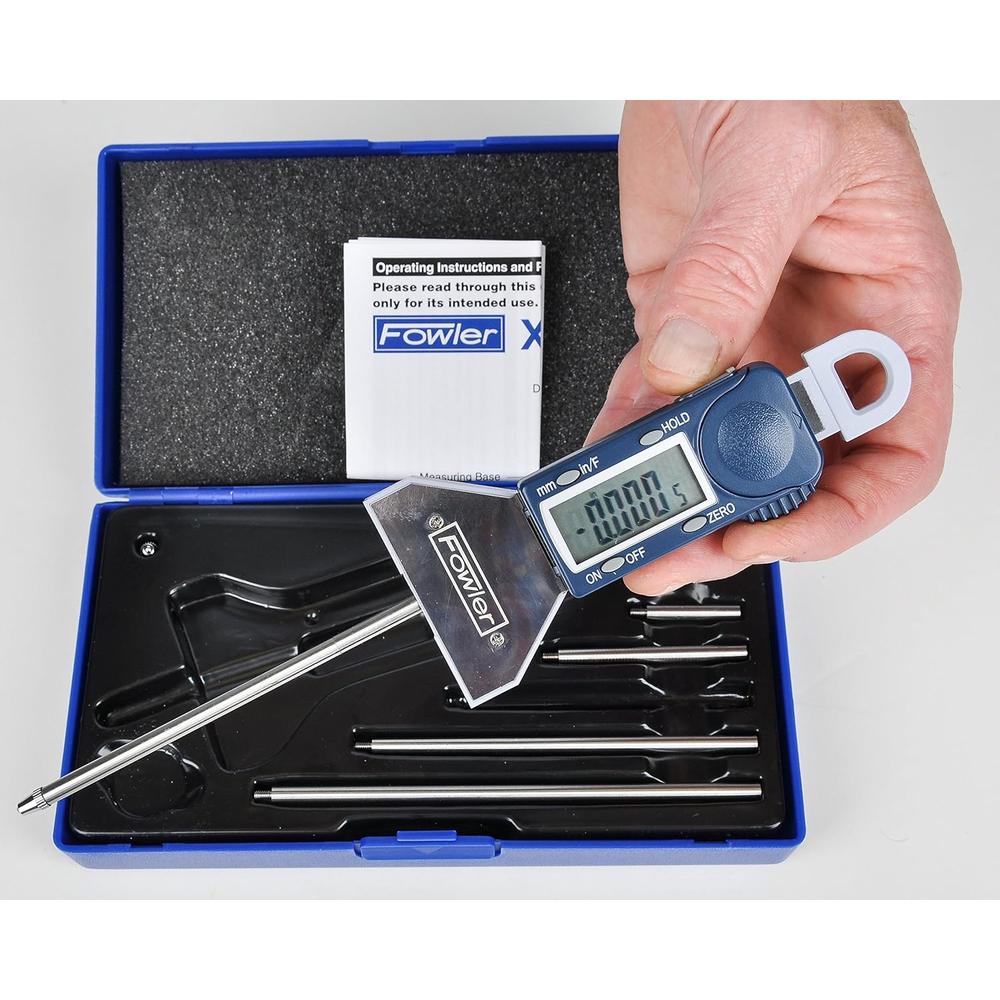

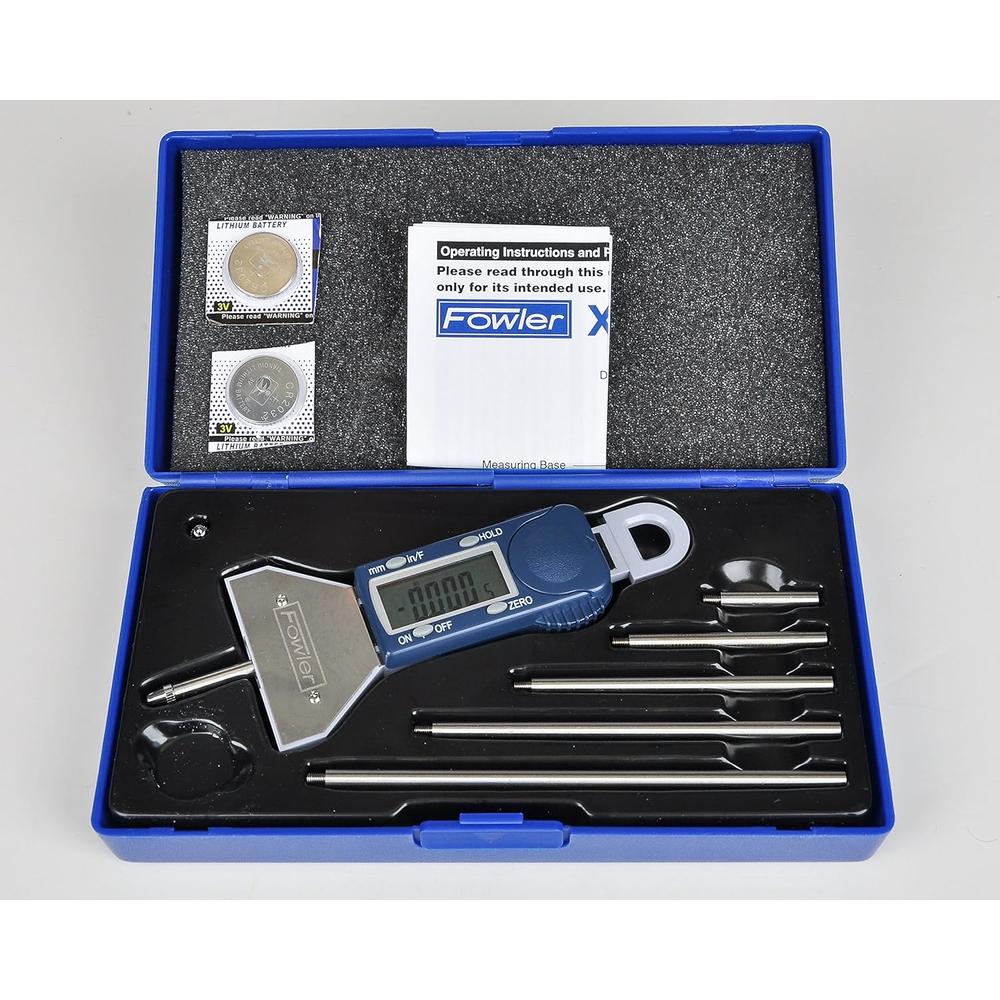

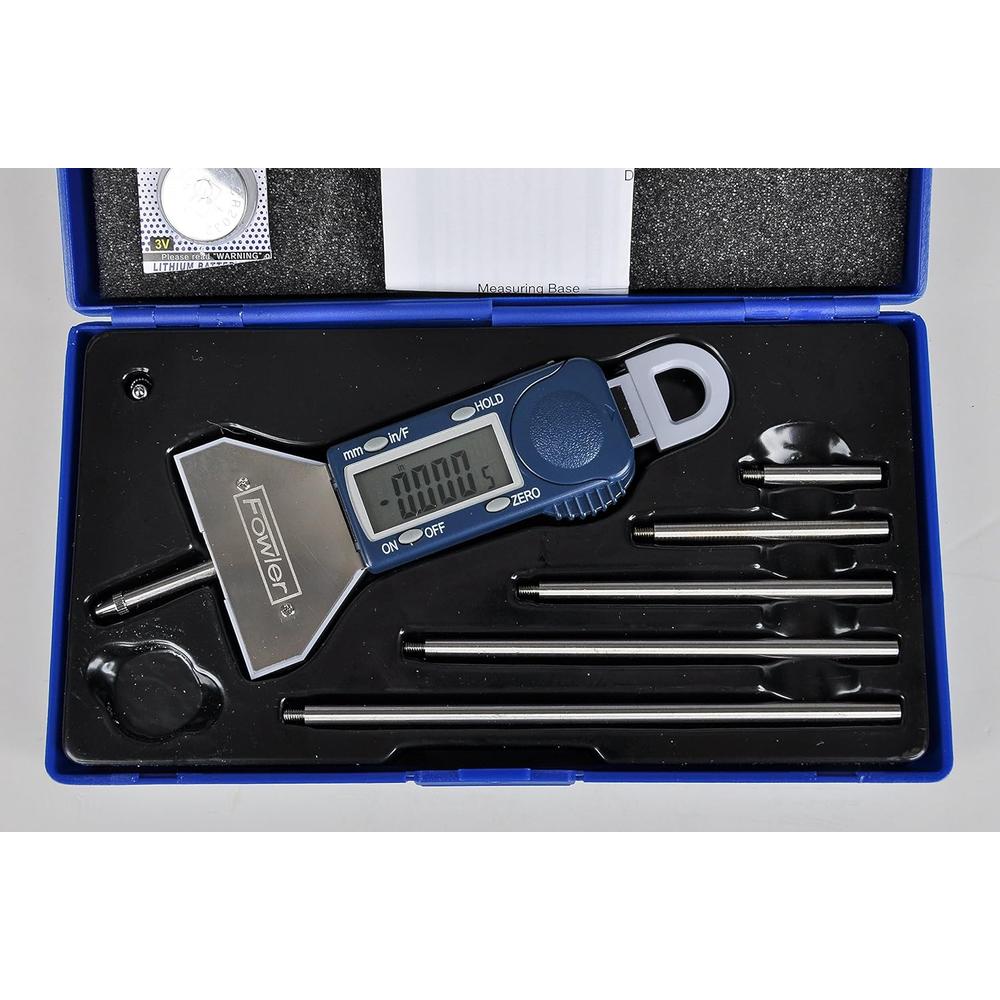

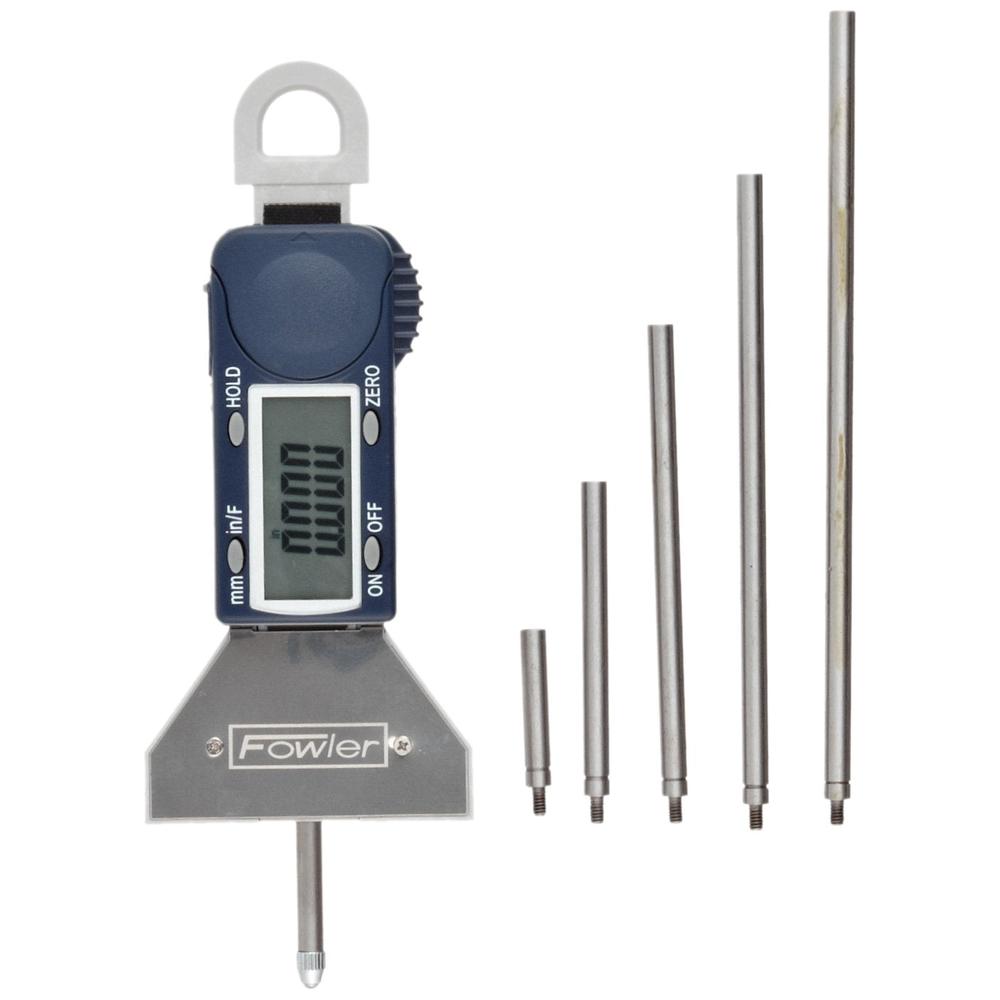

The Fowler 54-225-555 Xtra-Value Depth Gauge has a measurement range of 0 to 16" (0 to 405mm), and a resolution (or smallest graduation interval) of 0.0005" (0.01mm), with + or 0.001" (0.02mm) of accuracy. The LCD screen displays in inch/metric, and fractions (in 1/64" increments). The gauge includes five measuring rods and has a spring-loaded measurement button with a hold function for ease of use and accurate measurements. The shipping weight of this gauge is 0.7 lb. and it comes with a hardened case. Depth gauges are typically used in manufacturing, machining, and mechanical engineering. This product has a 1 year warranty offered by Fowler High Precision. If you experience any problem contact Fowler directly for warranty claims.Depth gauges are precision measuring instruments used to determine the depth of a shape that has a step, groove, or slot. These gauges often take the form of sliders that travel on a measuring beam or rods, are moved to position by hand, and then adjusted with a calibrated screw. The base of the gauge rests at the top of the shape whose recession is to be measured, while the beam or rods extend to the bottom of the recession to determine the measurement. Gauge position is read from a graduated scale, dial, counters, or an electronic display.Fowler, an American company, manufactures inspection and measurement instruments such as electronic indicators, calipers, bore gages, and digital scales. The company, founded in 1946, is headquartered in Newton, MA.· Fowler 54-225-555 depth gauge· (5) Measuring rods (1 through 5)· Hardened case

Features

• Measurement range of 0 to 6" (or 0 to 150mm), and resolution of 0.0005" (or 0.01mm)

• LCD screen displays in U.S./metric, and fractions

• Includes six measuring rods for flexibility

• Spring-loaded measurement button with a hold function for ease of use and accuracy

• Includes hardened case

Specifications

Is Discontinued By Manufacturer : No

Product Dimensions : 7.75 x 4.25 x 1.8 inches; 0.71 Ounces

Item model number : 54-225-555-0

Batteries : 2 Lithium Metal batteries required.

Date First Available : August 1, 2009

Manufacturer : Fred V. Fowler Company, Inc.

ASIN : B002QN658A

Domestic Shipping : Item can be shipped within U.S.

International Shipping : This item can be shipped to select countries outside of the U.S. Learn More

Best Sellers Rank : #89,310 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #42 in Depth Gauges

Customer Reviews : 4.3 out of 5 stars 23 ratings

Brand Name : Fowler

Ean : 0646795166851

Global Trade Identification Number : 00646795166851

Item Weight : 0.705 ounces

Maximum Measurement : 6"

Measurement Accuracy : +/- 0.001" /0.025mm

Model Number : 54-225-555-0

Number of Items : 1

Part Number : 54-225-555-0

Range : 0.1"(16"with rods joined together)

Resolution : 0.0005"/.01mm

Size : 2.5

UNSPSC Code : 41112401

UPC : 646795166851
