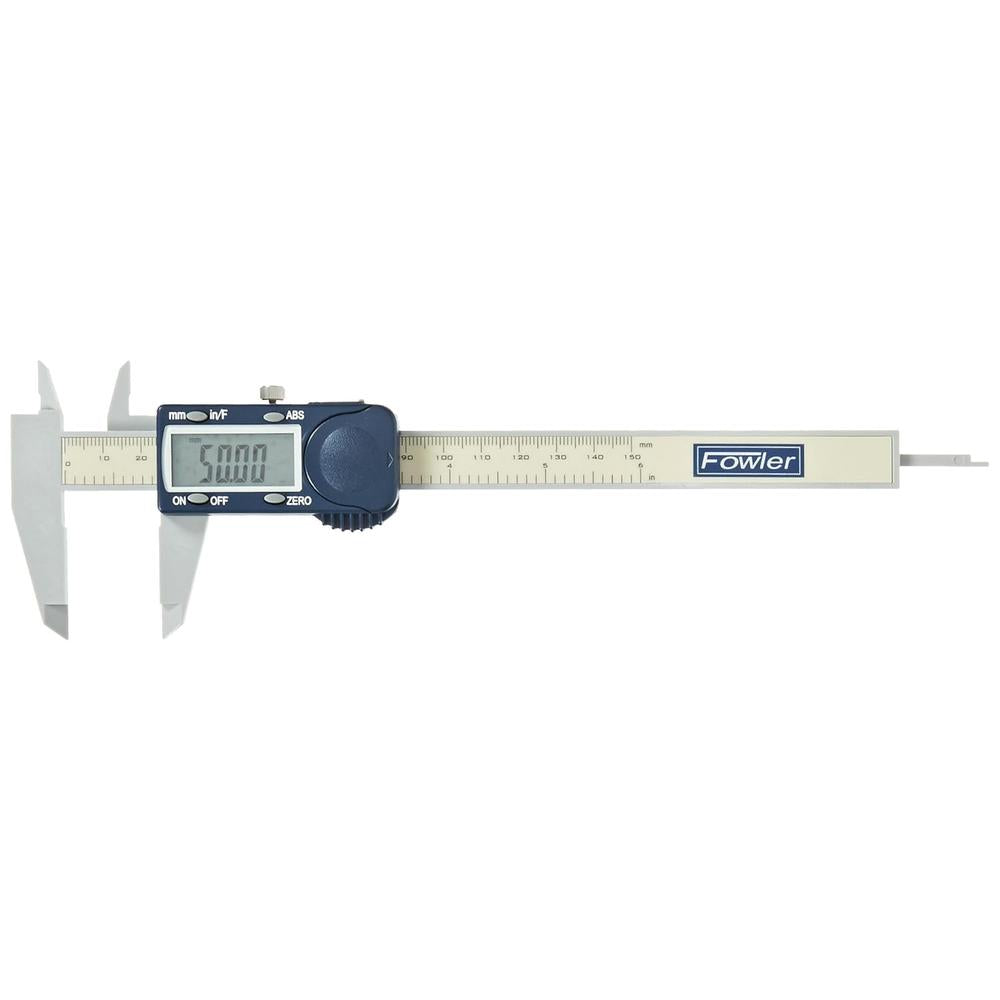

Fowler - 6" Poly-Cal Electronic Caliper (FOW-74-101-175-0)

Size:6" Maximum Measurement

The Fowler 54-101-175 Poly-Cal digital caliper measures a range of 0 to 6"/0 to 150mm, with 0.008"/0.2mm accuracy, and 0.0005"/0.01mm resolution, with fractions in 1/64" increments, and it has a polycarbonate frame. The digital, single-value readout LCD shows inch, metric, and fractional units for versatility when measuring. It has a zero setting and absolute and incremental modes for taking intermediate or differential measurements. This caliper has direct metric/inch/fractional conversion. The knurled lock screw holds the sliding jaw in position and helps ensure a consistent measurement. The lightweight polycarbonate frame provides durability and impact resistance. This caliper is used for measuring inside dimensions (ID), outside dimensions (OD), depth, and step. It comes with a vinyl pouch for storage.

Digital calipers are measuring instruments commonly used for inspection in manufacturing to provide the precise measurements of an object. A pair of jaws attached to a long beam with a marked scale is used to take inside, outside, and step measurements. An additional depth probe slides along the beam to take depth measurements. One jaw is fixed to the end of the scale, while the other jaw slides along it with gearless precision to take measurements. The reading is electronically generated and displayed on a digital, high-resolution screen as a single value. Digital calipers can take differential measurements that are used to determine the difference in measurements between two objects, by zeroing the display at any point along the scale. Some digital calipers can switch between standard and metric units, and some can output readings to a computer or printer for recording measurements. Compared to dial calipers, digital calipers provide measurements that are faster, easier, and more error-free, but they are more fragile mechanically and electronically, and do not resist coolant well. Vernier calipers are more durable than digital calipers because they do not have internal moving parts, but they can be more difficult to read. Digital calipers are commonly used in fields such as metalworking, mechanical engineering, machining, carpentry, and medicine.

The Fred V. Fowler Company manufactures inspection and measurement instruments such as electronic indicators, calipers, bore gages, and digital scales. The company, founded in 1946, is headquartered in Newton, MA.

What's in the Box?

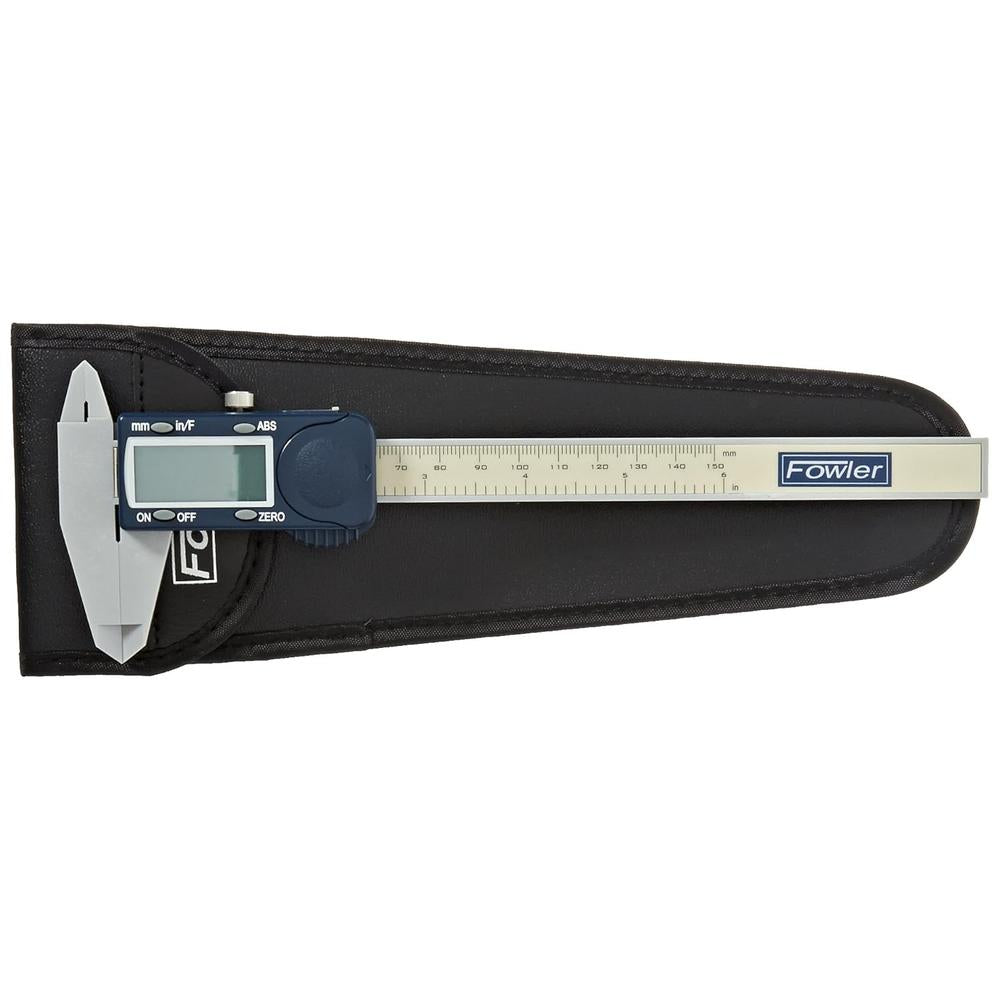

• Fowler 54-101-175 Poly-Cal digital caliper

• Vinyl case

Features

• Measures 0 to 6"/0 to 150mm with 0.008"/0.2mm accuracy, and 0.0005"/0.01mm resolution (fractions in 1/64" increments) for precise measurements

• Lightweight polycarbonate frame for durability and impact resistance

• Digital, single-value readout LCD shows inch, metric, and fractional units for versatility when measuring

• Absolute and incremental modes to take intermediate or differential measurements

• Four-way jaw for inside, outside, depth, and step measurements

Specifications

• Manufacturer: Fred V. Fowler Company, Inc.

• Part Number: 54-101-175-0

• Item Weight: 0.81 ounces

• Package Dimensions: 10.7 x 5 x 0.8 inches

• Item model number: 54-101-175-0

• Is Discontinued By Manufacturer: No

• Size: 6" Maximum Measurement

• Material: Polycarbonate

• Item Package Quantity: 1

• Measurement Accuracy: +/- 0.0008"

• Display Style: LCD

• Batteries Included?: No

• Batteries Required?: No
