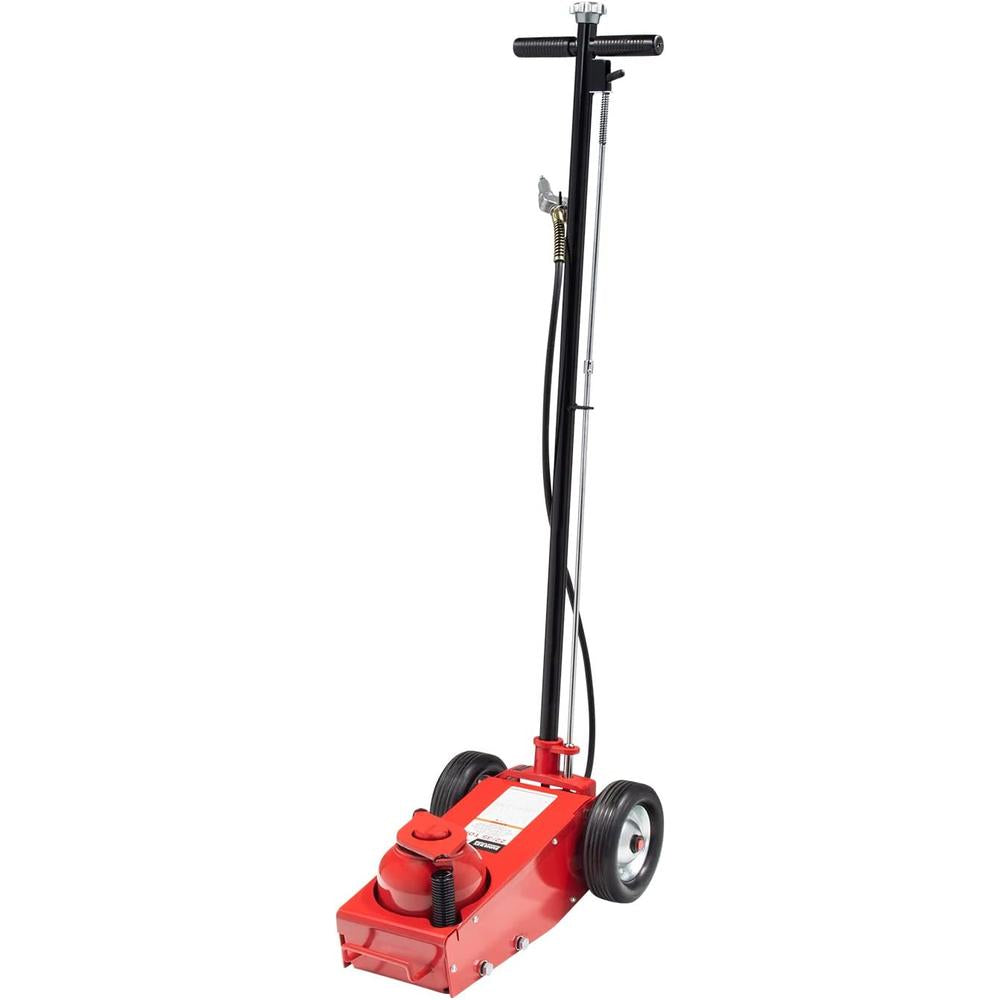

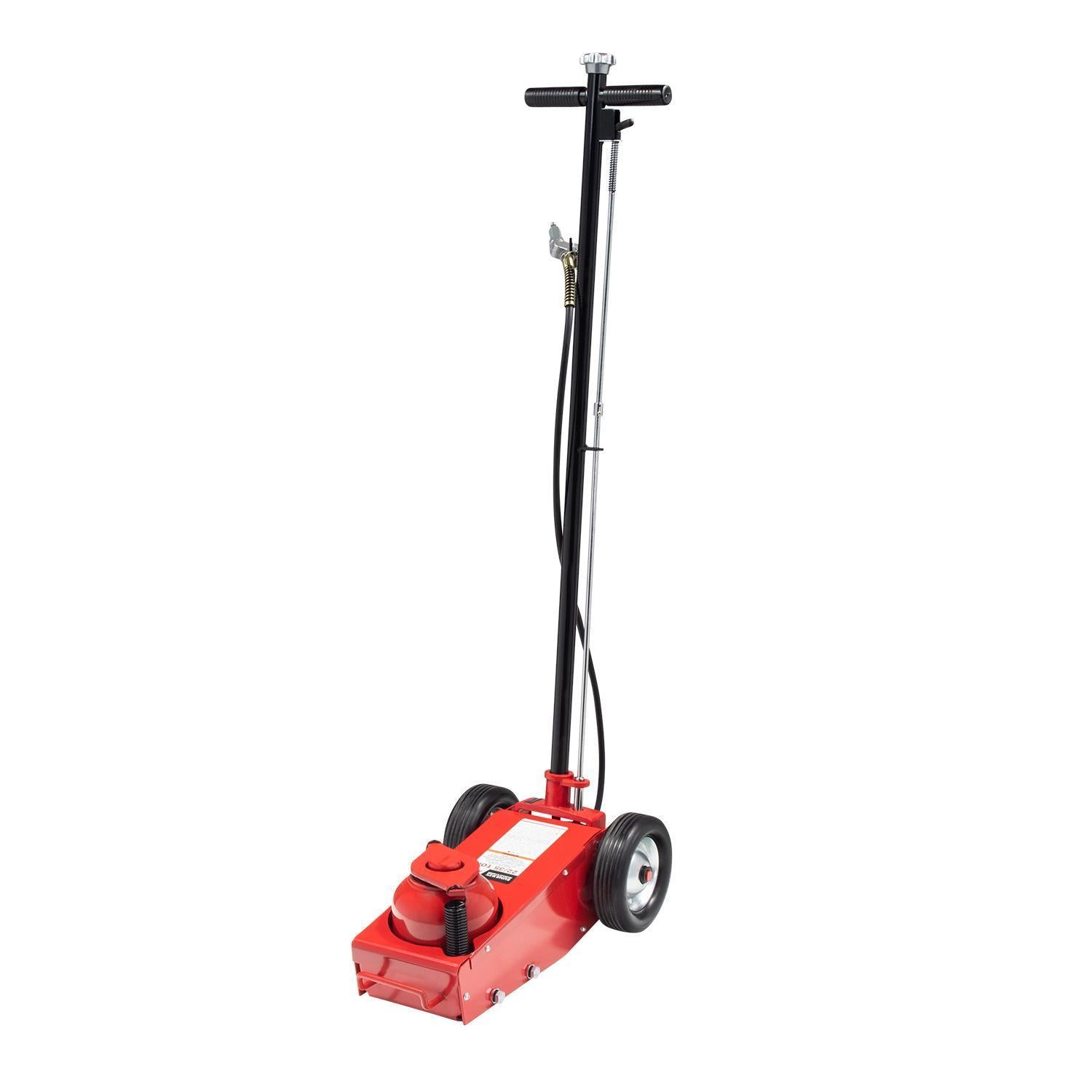

Sunex Tools 6635 22/35-Ton Two-Stage Air/Hydraulic Truck Jack

The Sunex Tools 22/35 Two Stage Truck Jack (Model 6635) is a heavy-duty air/hydraulic axle jack engineered for professional-grade truck and commercial vehicle service. Built with a two-stage telescoping ram system, it delivers 35 tons of lifting capacity at the first stage and 22 tons at the second stage, providing maximum versatility across a wide range of heavy lifting applications. Its low-profile, narrow chassis is purpose-built to fit between tandem wheels with ease, while the contoured chassis base and 8-inch pneumatic wheels ensure smooth maneuverability even in demanding shop environments. Constructed from carbon steel and designed to meet voluntary ASME PASE-2019 Safety Standards, this jack is built to perform reliably under repeat-duty conditions.

Features

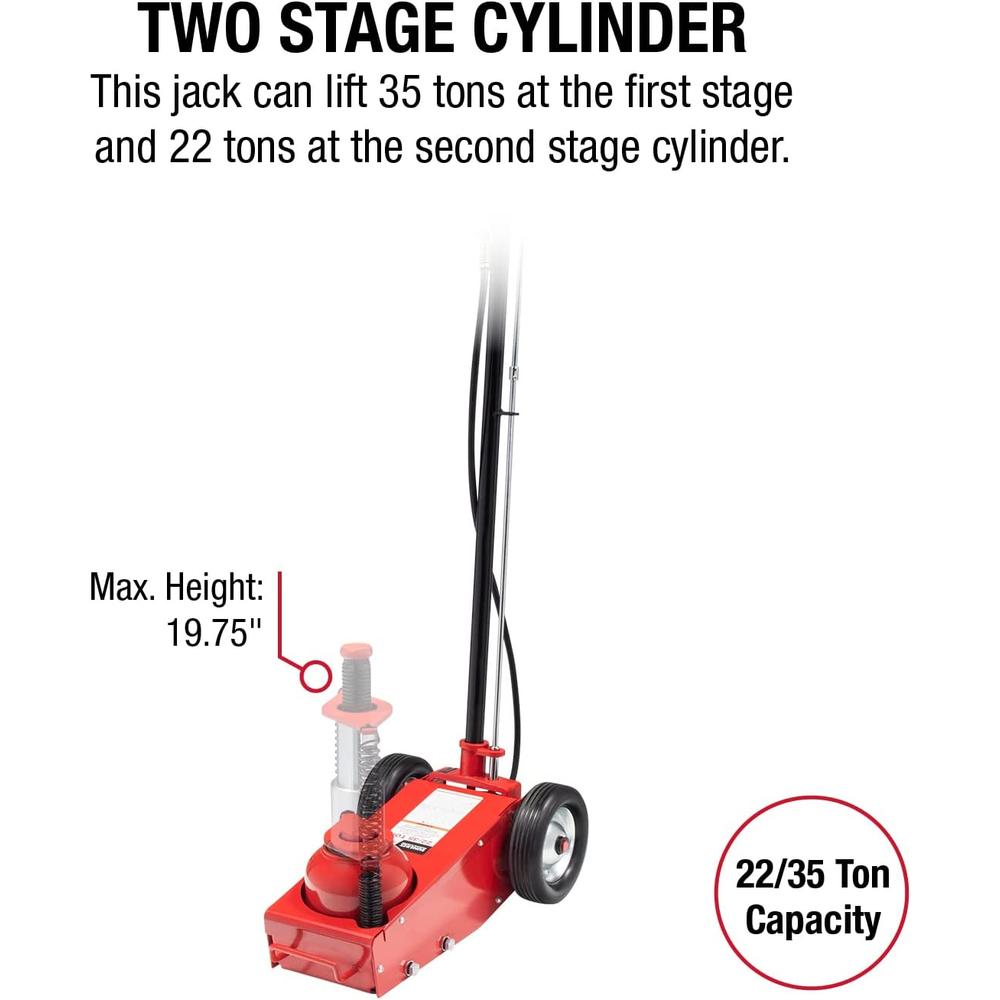

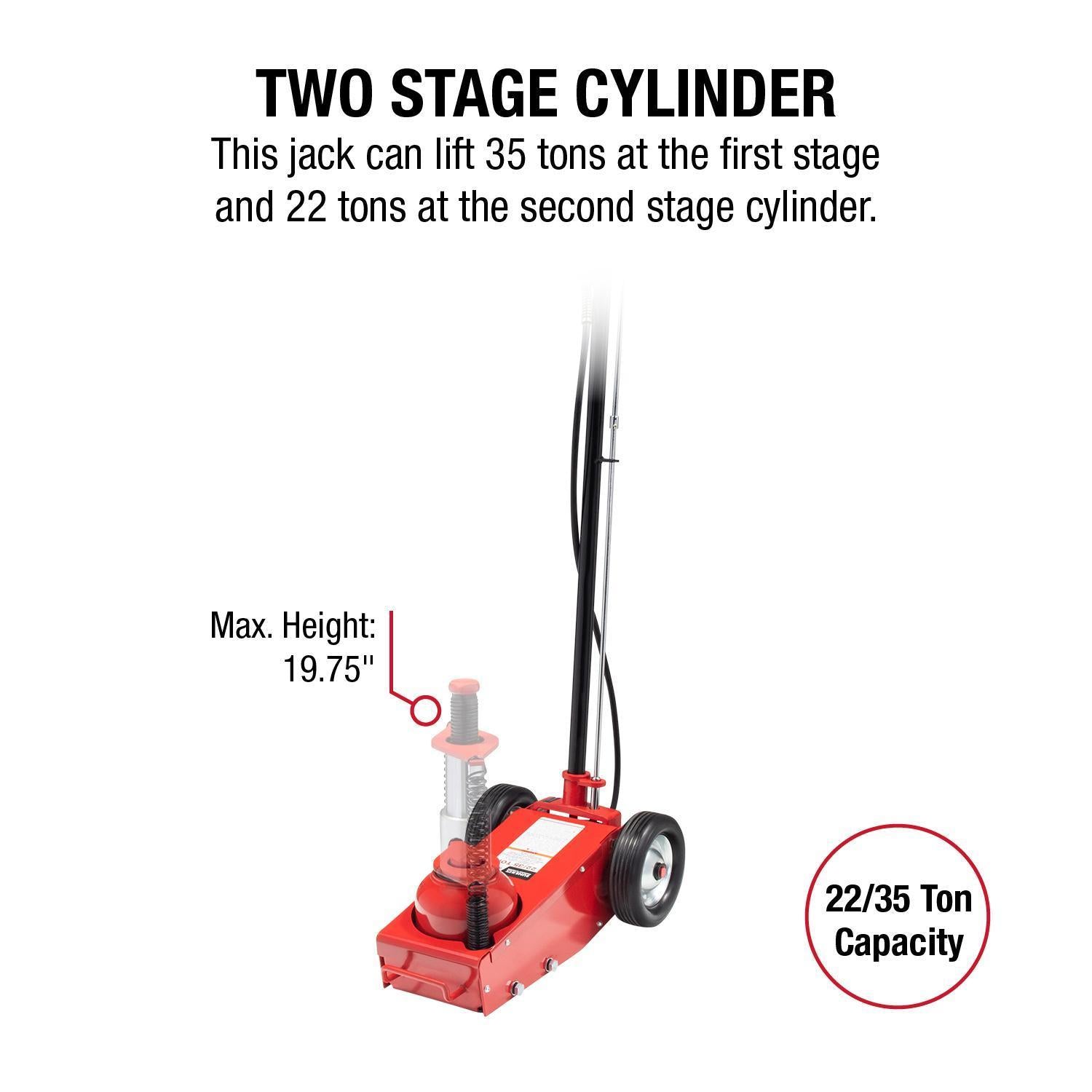

• Two-stage cylinder lifts 35 tons at the first stage and 22 tons at the second stage for versatile heavy-duty capacity

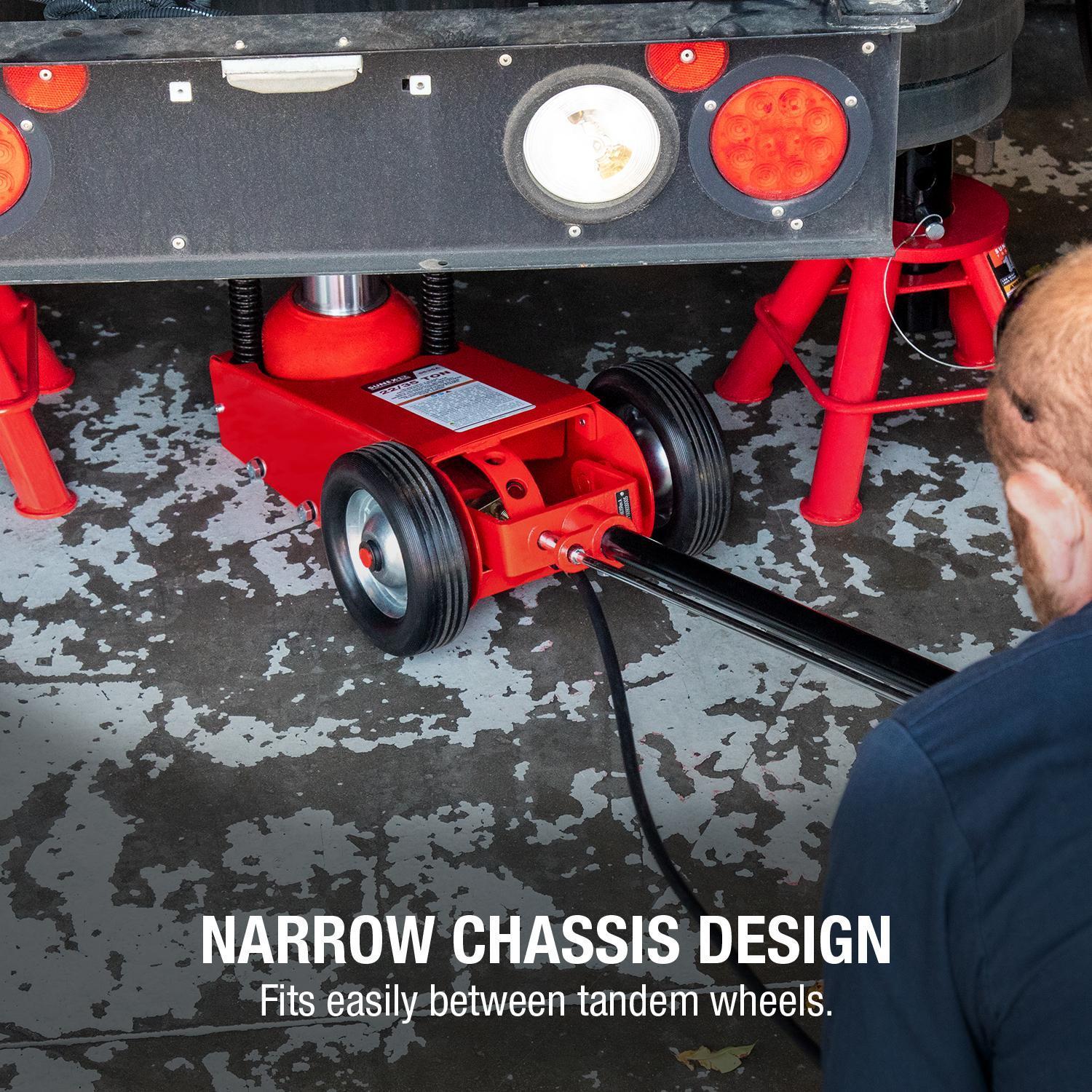

• Narrow chassis design fits easily between tandem wheels for access in tight undercarriage situations

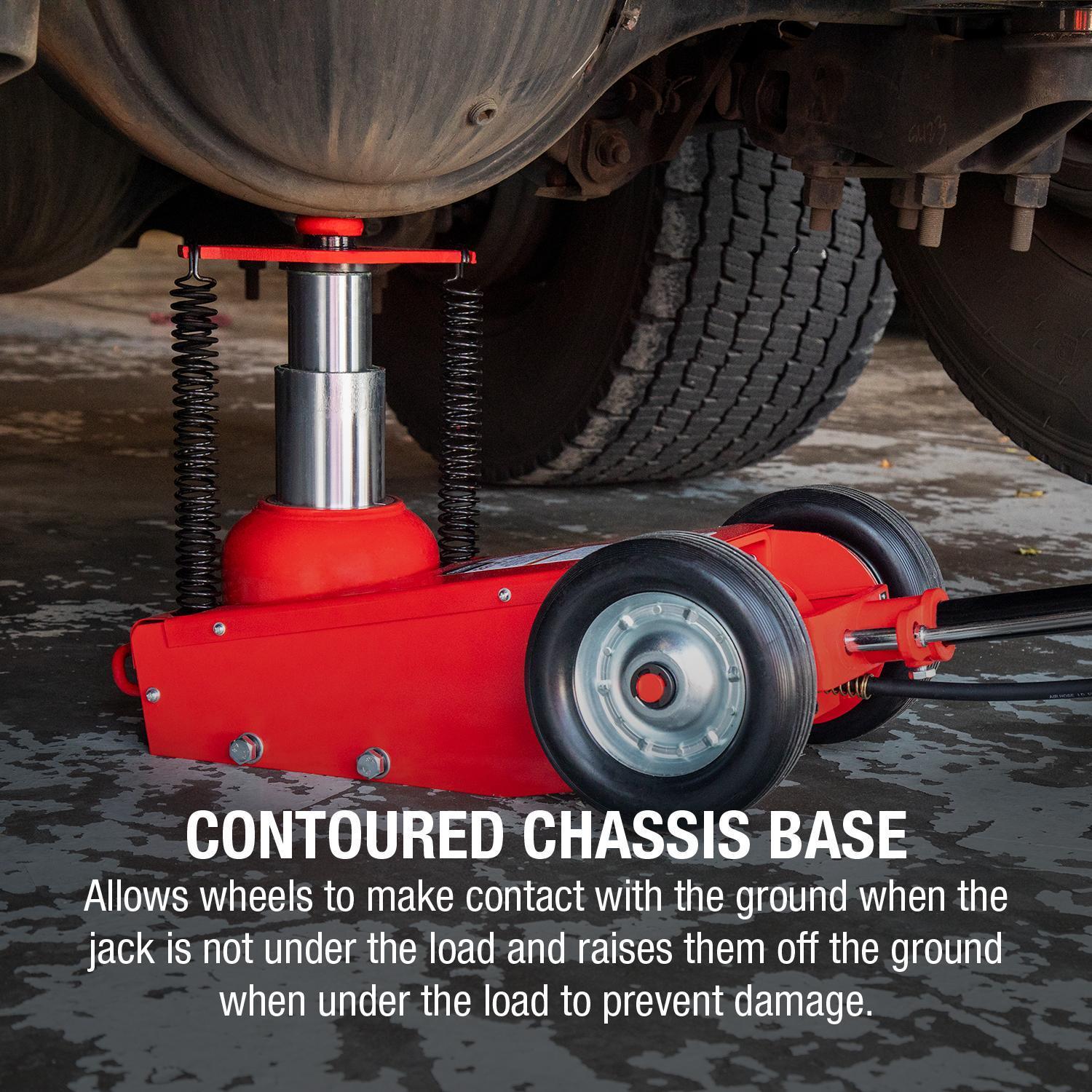

• Contoured chassis base allows wheels to contact the ground when unloaded and raises them off the ground under load to prevent damage

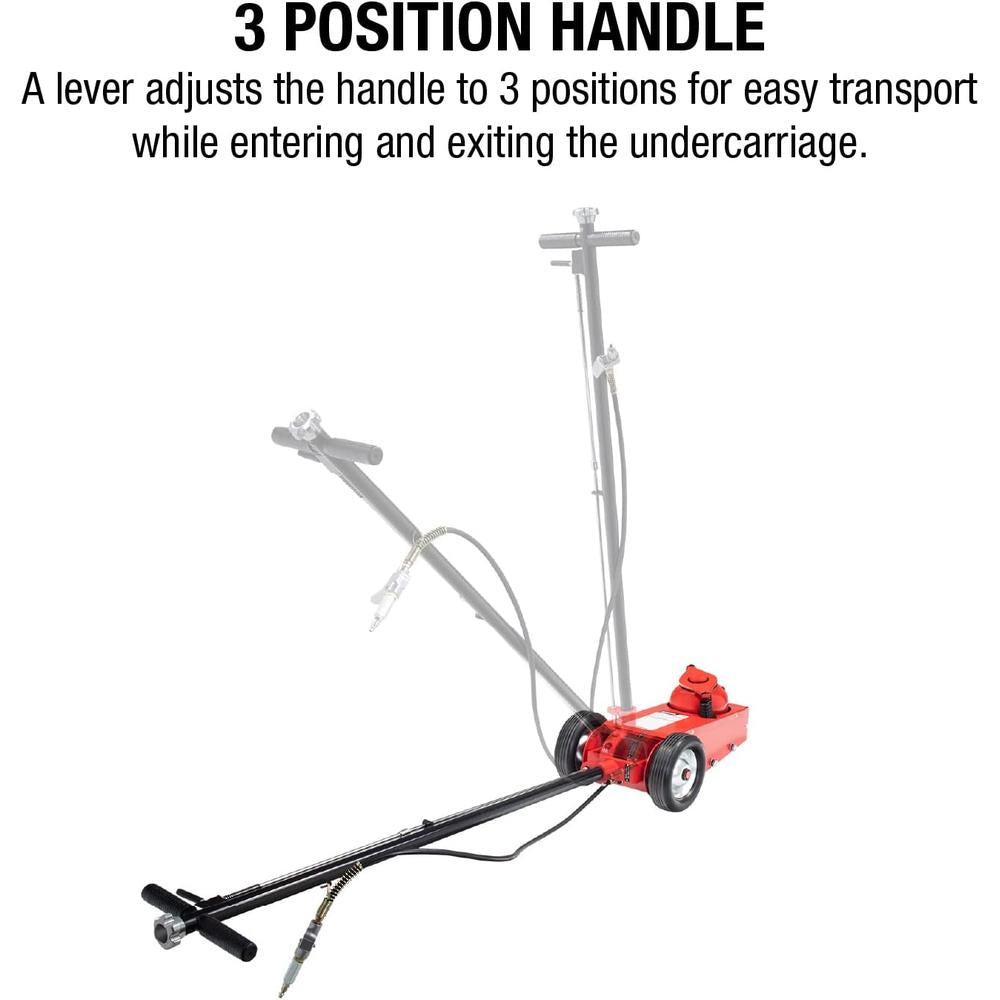

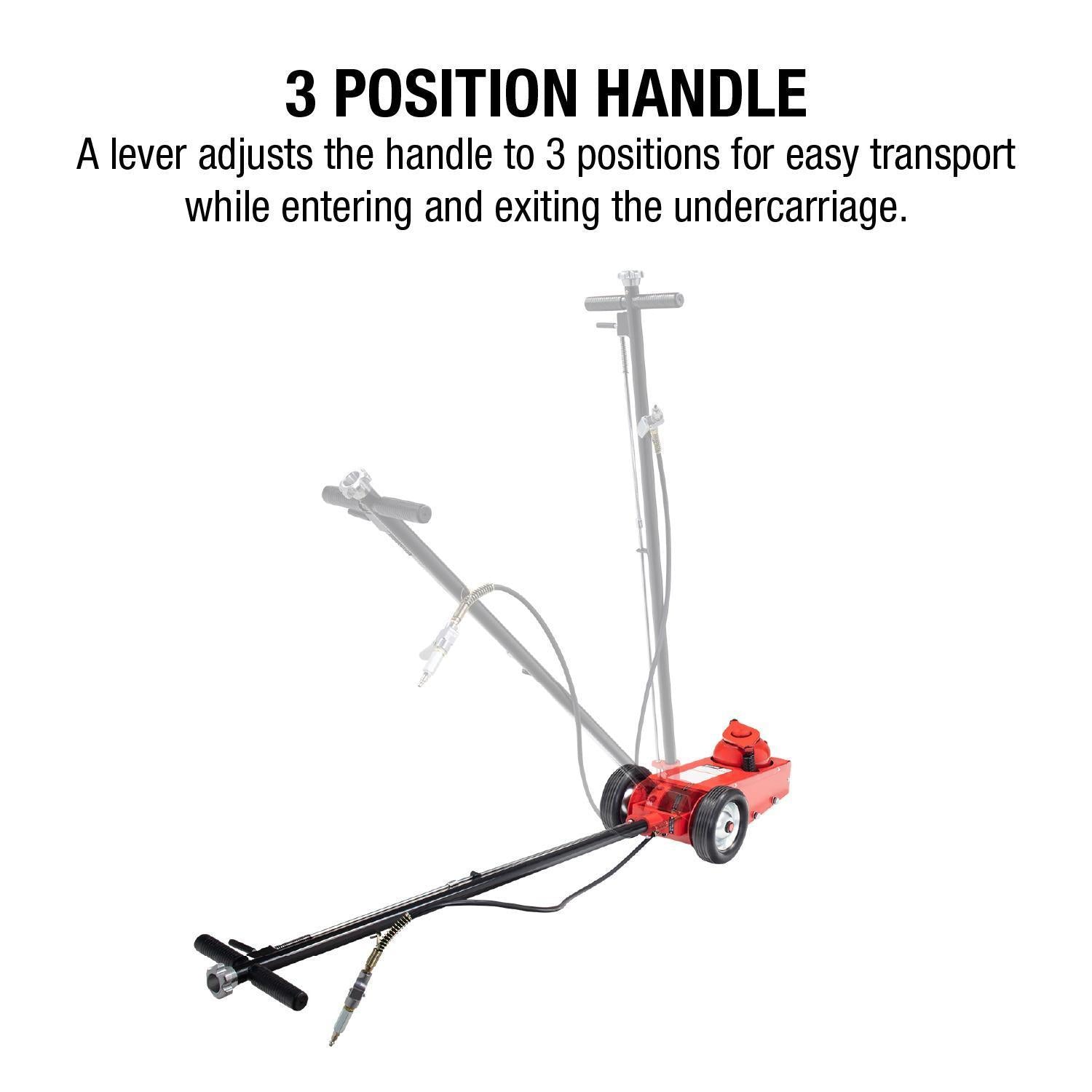

• 3-position adjustable handle with lever allows easy repositioning when entering and exiting the undercarriage

• Independent release knob on top of the handle operates separately from the handle locking lever for precise lowering control

• Self-retracting ram supports efficient repeat-duty lifting operations

• Integrated air filter helps protect the air motor during extended service use

• Overload and bypass safety valves provide critical protection during operation

• 8-inch pneumatic wheels deliver smooth maneuverability on shop floors

• Designed and tested in compliance with ASME PASE-2019 Safety Standard for Portable Automotive Service Equipment

Specifications

Brand: Sunex Tools
Model: 6635
Power Source: Air/Hydraulic
Product Type: Two-Stage Truck Jack (Axle Jack)
Lift Capacity (First Stage): 35 Tons
Lift Capacity (Second Stage): 22 Tons
Minimum Lift Height: 8.62 in
Maximum Lift Height: 19.75 in
Power Raise: 12 in
Lifting Handle Length: 49 in
Dimensions (L x W x H): 27.8 x 9.53 x 15.43 in
Product Weight: 110 lb
Material: Carbon Steel
Color: Red
Interchangeable Saddle: No
Low Profile: Yes
Safety Valve: Yes
Handle Included: Yes
UPC: 613364054376
