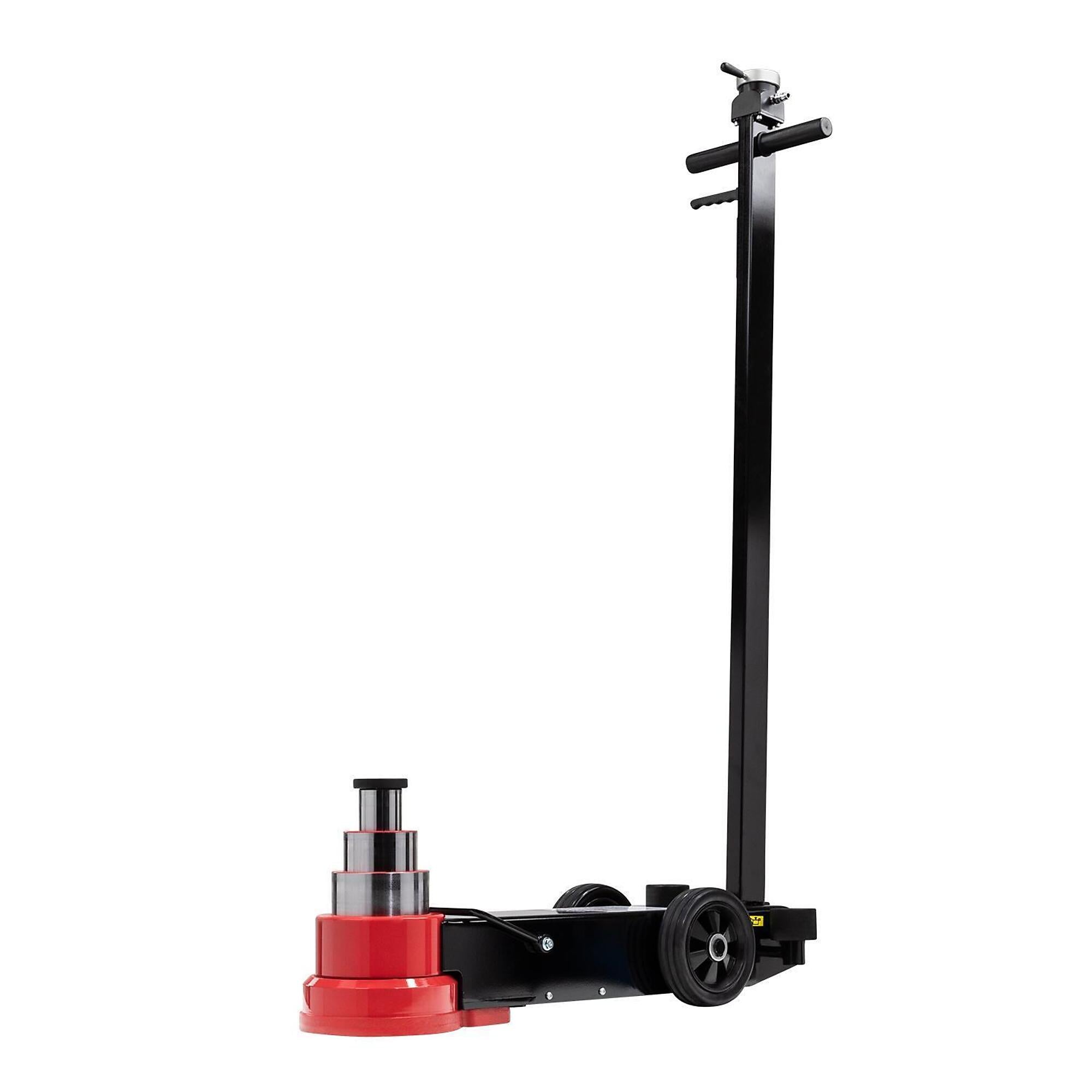

Sunex Tools 6855 55/33/16.5 Ton Air/Hydraulic Steel Truck Jack

I was hoping this Sunex 6855 55/33/16.5 Ton Air/Hydraulic Truck Jack would solve a couple of needs of ours, and it did not disappoint. My husband works in the oil and gas field with absolutely HUGE truck rigs. He was really happy we got this, as this has enough oomph to lift an axle enough to change a tire on the ginormous and super heavy duty rigs they use. (He has a Ford F250, and this obviously can handle that with ease, as well.) Not only that, but we're also restoring an old classic car at home, and it's a pretty low profile one - while this has more than enough strength to lift a car and is designed for much heavier-duty items, it does it SO much better than the other items we were trying to use, and we're able to get underneath the vehicle more easily to work on it. All in all, we're pleased that it helps my husband out at work, and we can also get use out of it at home, as it works really well in all situations for us.

This arrives in 2 boxes, and the shipping weight is somewhere around 150 lbs. Most people ordering this will most likely know that this is a heavy item, but I wanted to point that out, just in case - so be prepared.

Assembly was fairly straightforward for us - my husband and 14 year old son quickly put it together with no major issues. The instructions had an illustrative format to show you how it's supposed to be assembled properly, and I didn't hear any complaints or groans from them, so it must not have been too bad. :) Once put together, all you need to do from there is install the air nipple you'll need in the switch assembly, and use appropriate measures to seal it (with pipe dope tape)...and then get the adapters and the air line quick disconnect on. Obviously, you'll need to carefully look over the manual to make sure you're following the correct operating instructions for optimal safety, but all in all, it wasn't hard to follow to get it up and running.

Some nice features of this hydraulic truck jack that we like:

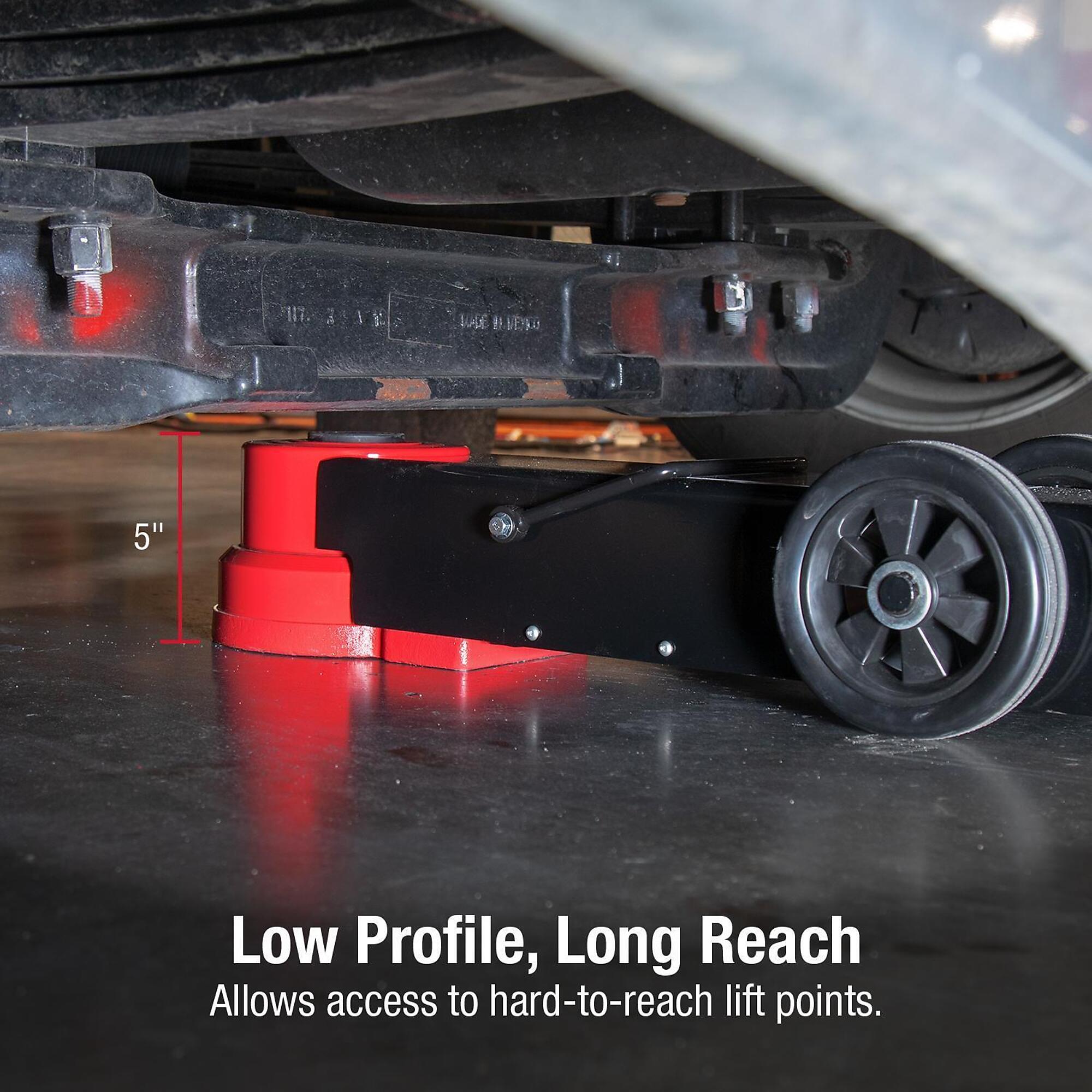

- Easier to get at more difficult and hard to reach lift spots (due to the low profile and longer reach design)

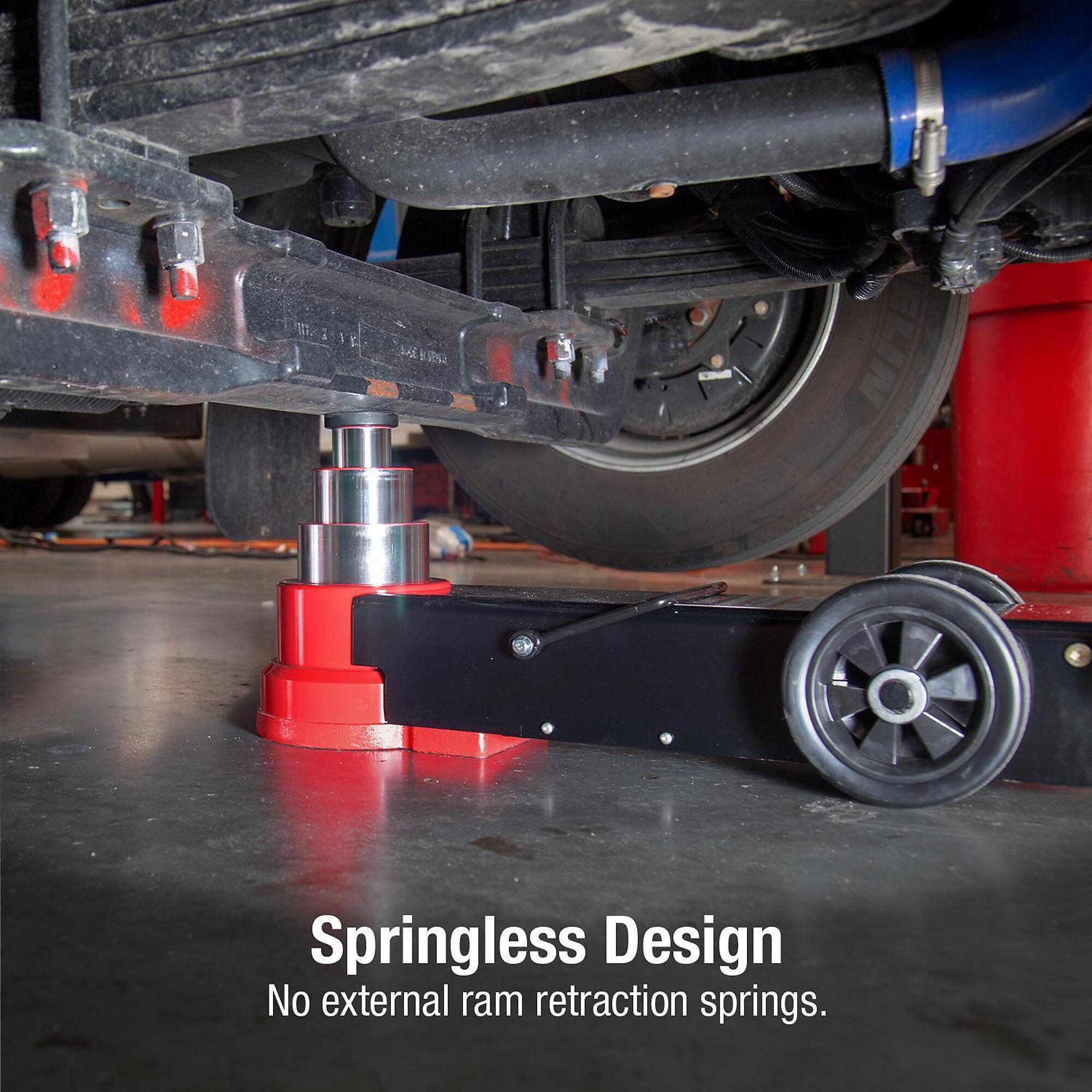

- This is springless, so you don't have to worry about springs rusting, degrading, breaking, etc. - something you DEFINITELY don't want to worry about happening when you're trying to lift up to 16.5 literal tons of weight!
- Handle is one piece, extra solid, and easy to use (reach of ~50")
- Everything is sturdy and steady during use - no wobbles

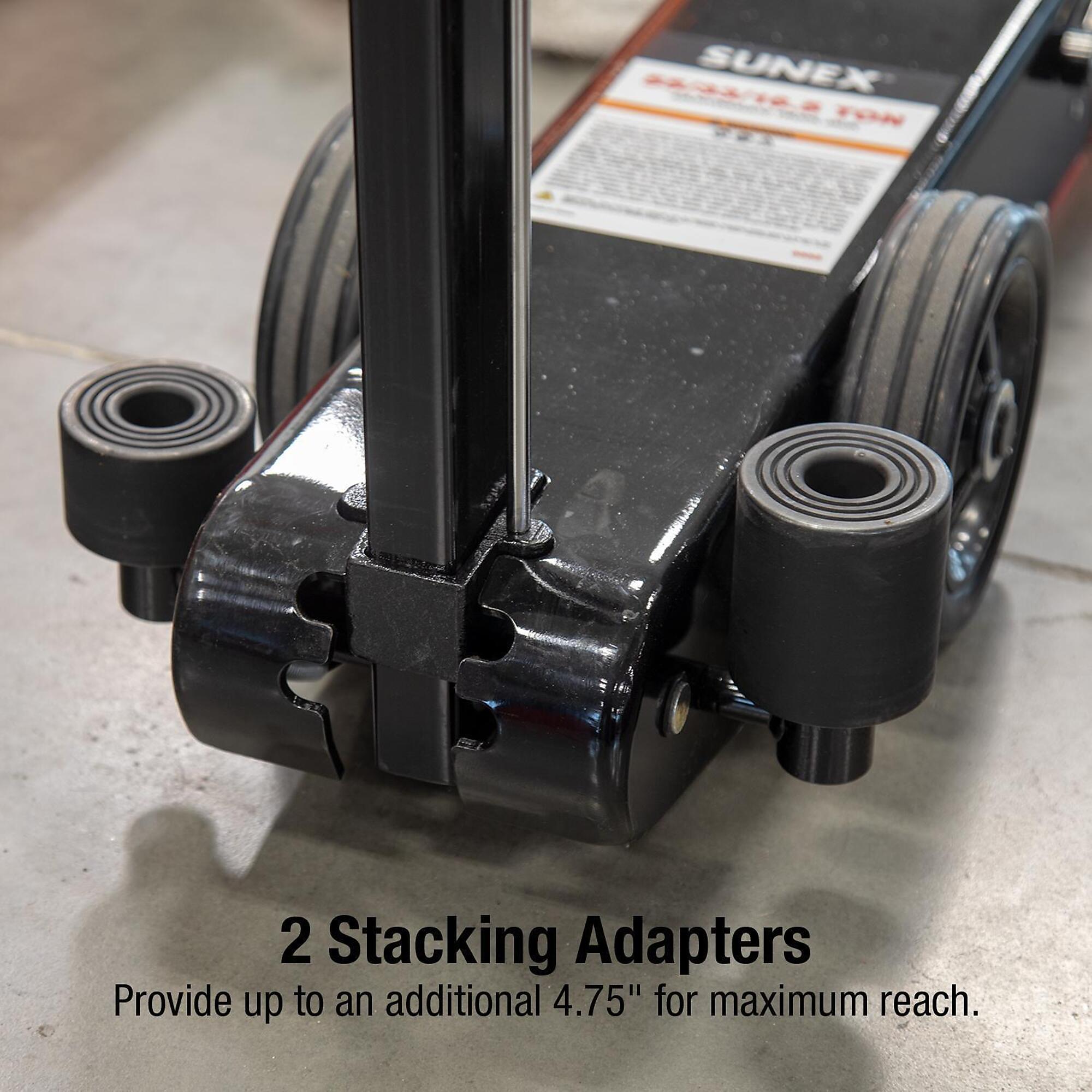

- Also has 2 stacking adapters to provide extra inches of reach (almost 5") for maximum of ~55" reach

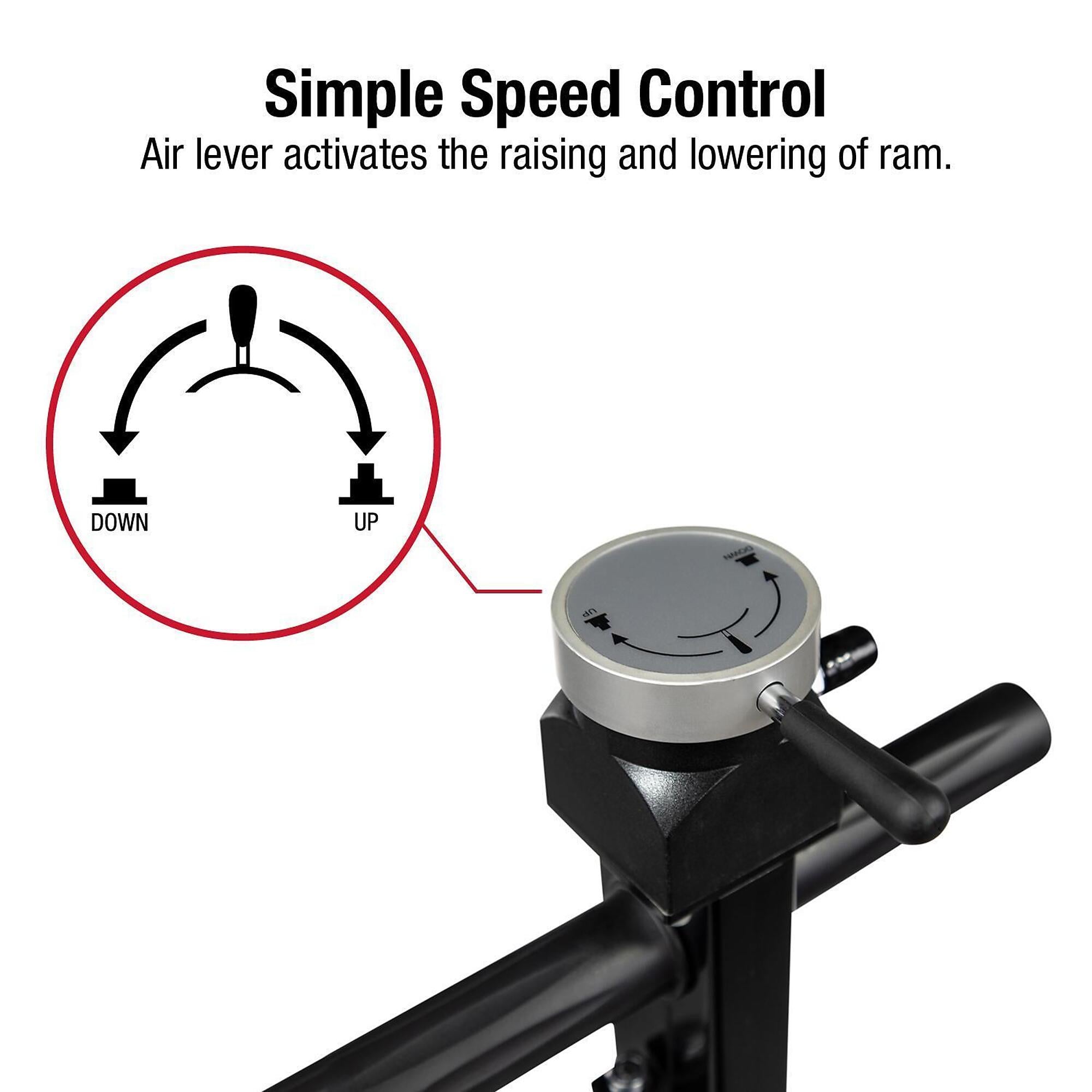

- Easy to use variable speed control knob to raise/lower it (with full air actuation)

Obviously, not everyone is going to need a hydraulic jack like this, but for people operating lower profile big rigs and heavy trucks, this is certainly handy to have alongside your tools and maintenance sets. It's sturdy and well-designed to get under and lift those really hard to reach lift spots with more ease for your maintenance needs. My husband has had several chances to test it out both at work and home, and he's really happy with its capabilities. Two thumbs up from us!

This is a heavy duty jack meant for a semi truck. I misunderstood when I ordered it. It works with an air pump and can be configured to work hydraulically. It’s very sturdy and very well made and definitely heavy duty. It lifted my Titan like it was nothing.

SPECS
Capacity 55ton/33ton/16.5 ton
It’s 3 stage which means at the lowest lifting point it will pickup 55ton then it goes from there.

Ram Travel 6”
Minimum Height 5,9”
Maximum Height 16.75”
Handle Length 50.75”
2 Adapters 1.77” & 2.95”

I’m a girl but I have a lot of love for trucks and respect for truckers. For 5 exciting years I acted as a dispatcher and a load finder and on call person for every possible issue a driver can get into. I never changed a tire though but I helped solving quite a few “broken trucks” or “flat tire” situations with my crew on the road. Even today my brother and my brother in law are owner operators and I still help with their loads or they call me when they’re at the port but don’t have the appointment. I guess my point is I know few things about the trucks and needless to say having this truck jack in our family is more than welcome. Now onto review:

This low profile long reach jack arrived in two heavy shipments and first needed to be put together. My husband and brother in law were out in the yard doing this and I heard no fuss other then when they got hungry. I reviewed instructions and in my opinion they are so straight forward that even inexperienced person would be able to do this.

Example from the manual:
“The ram is the shaft that comes out of the jack when you rotate the switch Air Lever (#78) to the right. Lowering the ram is accomplished by rotating the lever to the left”
There is also illustration with each part numbered.

We first tested it on my brothers Kenworth and operating this jack was a breeze. It’s designed for low trucks and must be used on the flat surface so if you have improvised shop on the yard with the rocky terrain this may not be for you.

It comes with 2 stackable adapters, 1.77” and 2.95 for extended reach. Anywhere between 116 - 174 psig shall lift the maximum capacity, exceeding 200psig is not recommended by the manufacturer. The ram is springless and therefore no parts to rust, I am sure you won’t leave this baby out in the rain but its design definitely helps preventing weathering. This jack is great because you have to find a good lift spot to lift the truck and depending on the truck those spots can be difficult to reach, this jack is low profile and long reach which helps getting to that special lift spot easily. Handle is single piece so no wobble. Manual also comes with troubleshooting instructions but we didn’t need to use those.

I hope this helps, I am also including illustrations from the manual.

In short this is fantastic and I would say commercial grade piece of equipment. We will enjoy using it for our small family fleet as well as our regular vehicles. My brother also says the truck shop he goes to uses a similar jack.

Stay safe on the road, take care of your logs and keep them miles coming! ????????

I salute you!
