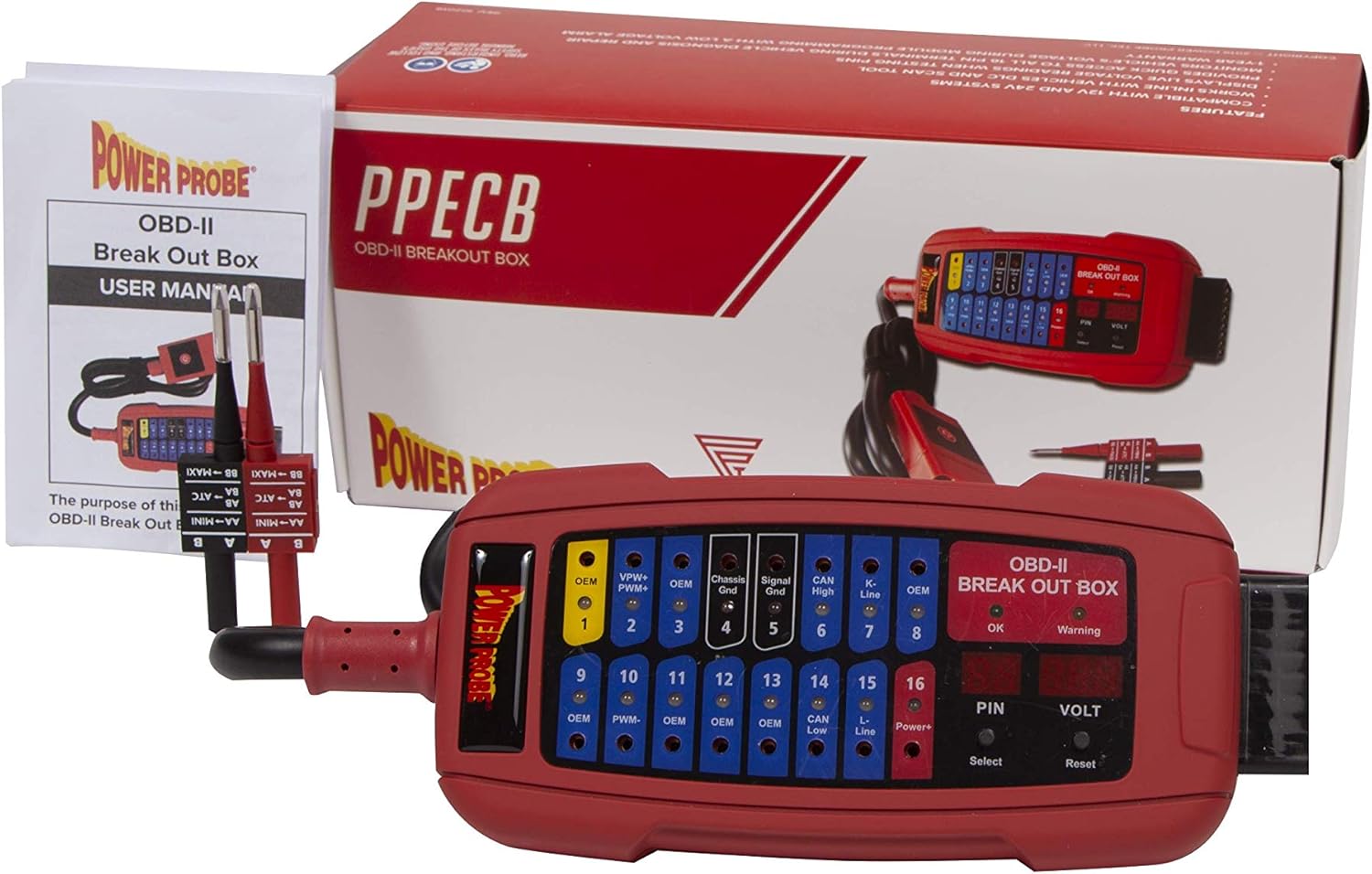

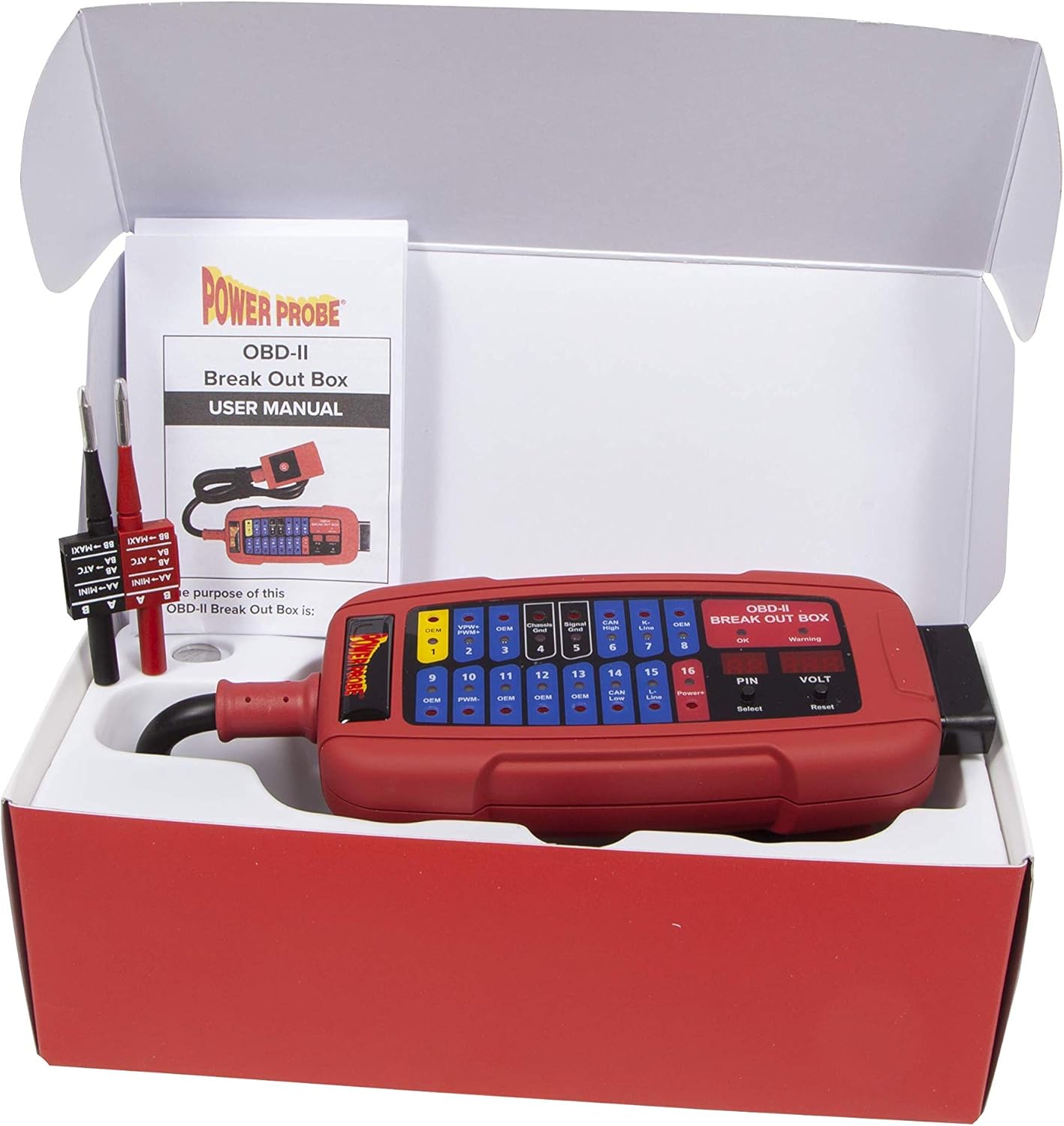

Power Probe PPECB OBD II Breakout Testing Box

SKU: PWP-PPECB
(0)
Sale price
$284.03 CAD
Regular price
$355.04 CAD
You save
$71.01 CAD (21%)

Only 5 left! Usually ships in 24 to 48 hours.

Frequently Bought Together

Pickup available at Edmonton Warehouse

Usually ready in 4 hours

Check availability at other locations

Order over the phone? Call us now.

1-800-905-0410

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

FREE TOOL WITH $400+ ORDER

1-YEAR PRICE MATCH GUARANTEE

FREE SHIPPING ON $150+ ORDER

30-DAY MONEY-BACK GUARANTEE

The Power Probe OBD-II Breakout Box is a CAN Bus circuit tester compatible with 12 and 24 Volt systems. The tool connects directly into the Vehicle’s Data Link Connector (DLC) testing for any abnormalities such as shorting and reverse polarity at the pins. If shorting or reverse polarity is present, connecting the PPECB first will prevent harm before connecting a Diagnostic Scan Tool. The Breakout Box provides a live display of present communicating signals without having to use a Digital Multimeter. Additionally, you can quickly test the voltages at all 16 pins.

Features

  • Test DLC (OBD port) for any abnormalities, such as shorting and reverse polarity at the pins before connecting other diagnostic equipment to DLC.

  • Provides a live display of communicating signals (eg. communication protocol signals) on assigned pins for quick pointing of faults without having to bring out a measurement tool (digital volt ohmmeter)

  • Quickly access all 16 pin connections during repair and diagnosis of the vehicle

  • Monitor the input voltage of the OBD during module programming with the low voltage alarm

  • 2 pin adapter included

Specifications

Operating range: 7.0 - 30.0VDC Input

Maximum load: Up to 3.0 Amps Output

Overload protection: Yes, PTC Fuse (Self-healing)

Volt displays: 3 Digits LEDs (Resolution: 0.1V)

Banana sockets: 16 outputs x 1.0mm diameter with LED lamp indications

Protocols detected: PWM (J1850), VPW (J1850), ISO 9141-2, DIS/ISO 14230-4, CAN bus (J-2284)

Operating temperature: 32°F - 122°F(0°C - 50°C)

Permitted humidity: Less than 70%

OBD cable length: 30 inches (0.8 meter)

Reverse polarity protection: Yes, LED on pin 4 & 5 turns red

    Shipping

    • We will usually ship your order in 1 to 2 business days! Orders purchased before 2:00 pm EST may be shipped the same day.

    • Your order must have a subtotal of $150 or more to be eligible for free shipping.

    • The delay of your order will depend on your location and from which warehouse your order is shipped from. We will always ship your order from the closest available warehouse. Based on our experience, we estimate the transit time to be between 1 to 3 business days across Canada (excluding NWT, Yukon and Nunavut) and 2 to 5 business days to USA.

    • All orders will be shipped from Canada.

    • You may pick up your order at one of our warehouses, Monday to Friday, from 8 am to 5 pm. Pickup orders are usually ready within 4 hours.

    Returns

    We are offering a 30-day money-back guarantee!

    If you are not satisfied with your purchase within 30 days of receiving the product, you can ship it back to us for a refund or exchange.

    Before returning the item, kindly send us a request using the Self-Serve Return option or contact our customer support team to get your return authorization. You may contact us by email at support@mprtools.com, phone at 1-800-905-0410, or chat through our website. We are available Monday to Friday from 8 am to 5 pm ET.

    We want to guarantee your experience with us will be outstanding. Here are just a few of the reasons why mprtools.com is the go-to company to get your tools from:

    1-Year Price Match Guarantee

    We work very hard to ensure we offer the absolute best prices online. If you find it at a lower price somewhere else within 365 days of purchasing, please message us, and we’ll credit you back the difference right away.

    30-Day Money-Back Guarantee

    It's our duty to provide superior quality tools you can trust to get the job done. If you're not fully satisfied with your order, you can request a return for a complete reimbursement.

    Customer Reviews

    No reviews yet
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    Description

    The Power Probe OBD-II Breakout Box is a CAN Bus circuit tester compatible with 12 and 24 Volt systems. The tool connects directly into the Vehicle’s Data Link Connector (DLC) testing for any abnormalities such as shorting and reverse polarity at the pins. If shorting or reverse polarity is present, connecting the PPECB first will prevent harm before connecting a Diagnostic Scan Tool. The Breakout Box provides a live display of present communicating signals without having to use a Digital Multimeter. Additionally, you can quickly test the voltages at all 16 pins.

    Features

    • Test DLC (OBD port) for any abnormalities, such as shorting and reverse polarity at the pins before connecting other diagnostic equipment to DLC.

    • Provides a live display of communicating signals (eg. communication protocol signals) on assigned pins for quick pointing of faults without having to bring out a measurement tool (digital volt ohmmeter)

    • Quickly access all 16 pin connections during repair and diagnosis of the vehicle

    • Monitor the input voltage of the OBD during module programming with the low voltage alarm

    • 2 pin adapter included

    Specifications

    Operating range: 7.0 - 30.0VDC Input

    Maximum load: Up to 3.0 Amps Output

    Overload protection: Yes, PTC Fuse (Self-healing)

    Volt displays: 3 Digits LEDs (Resolution: 0.1V)

    Banana sockets: 16 outputs x 1.0mm diameter with LED lamp indications

    Protocols detected: PWM (J1850), VPW (J1850), ISO 9141-2, DIS/ISO 14230-4, CAN bus (J-2284)

    Operating temperature: 32°F - 122°F(0°C - 50°C)

    Permitted humidity: Less than 70%

    OBD cable length: 30 inches (0.8 meter)

    Reverse polarity protection: Yes, LED on pin 4 & 5 turns red
