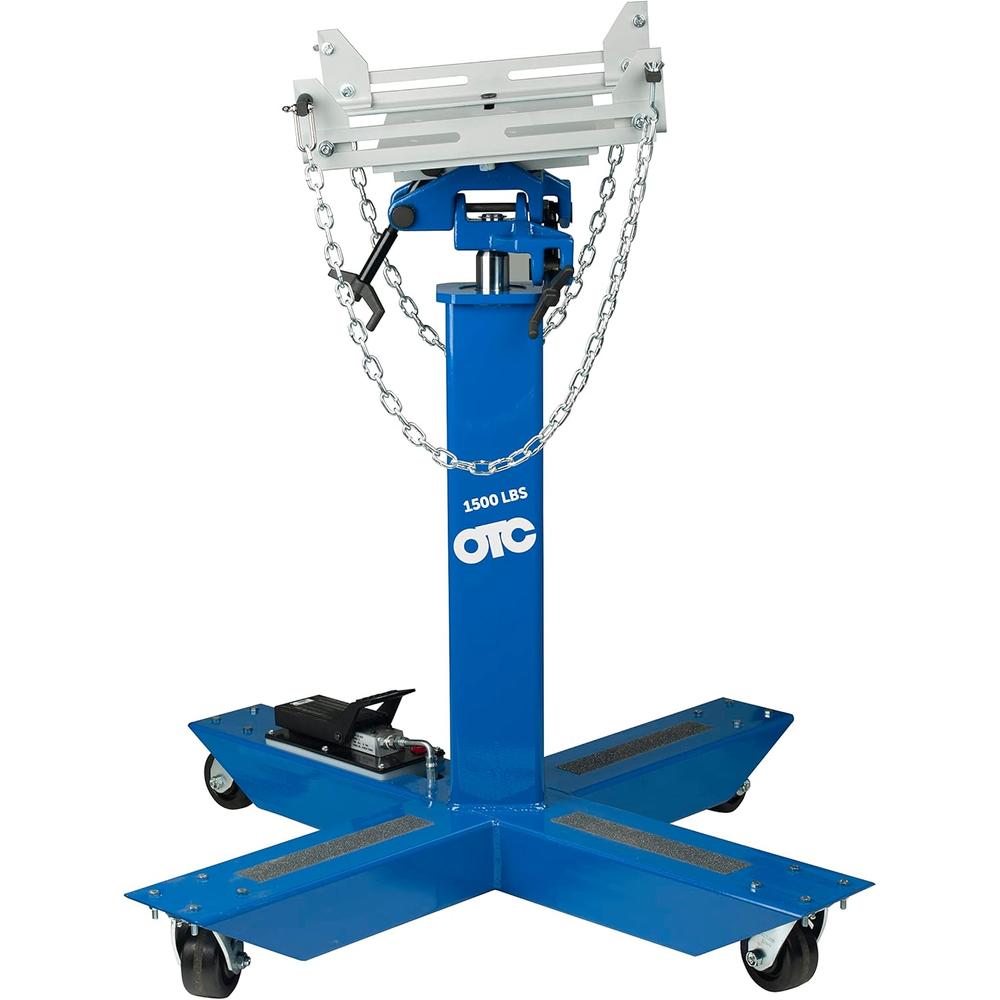

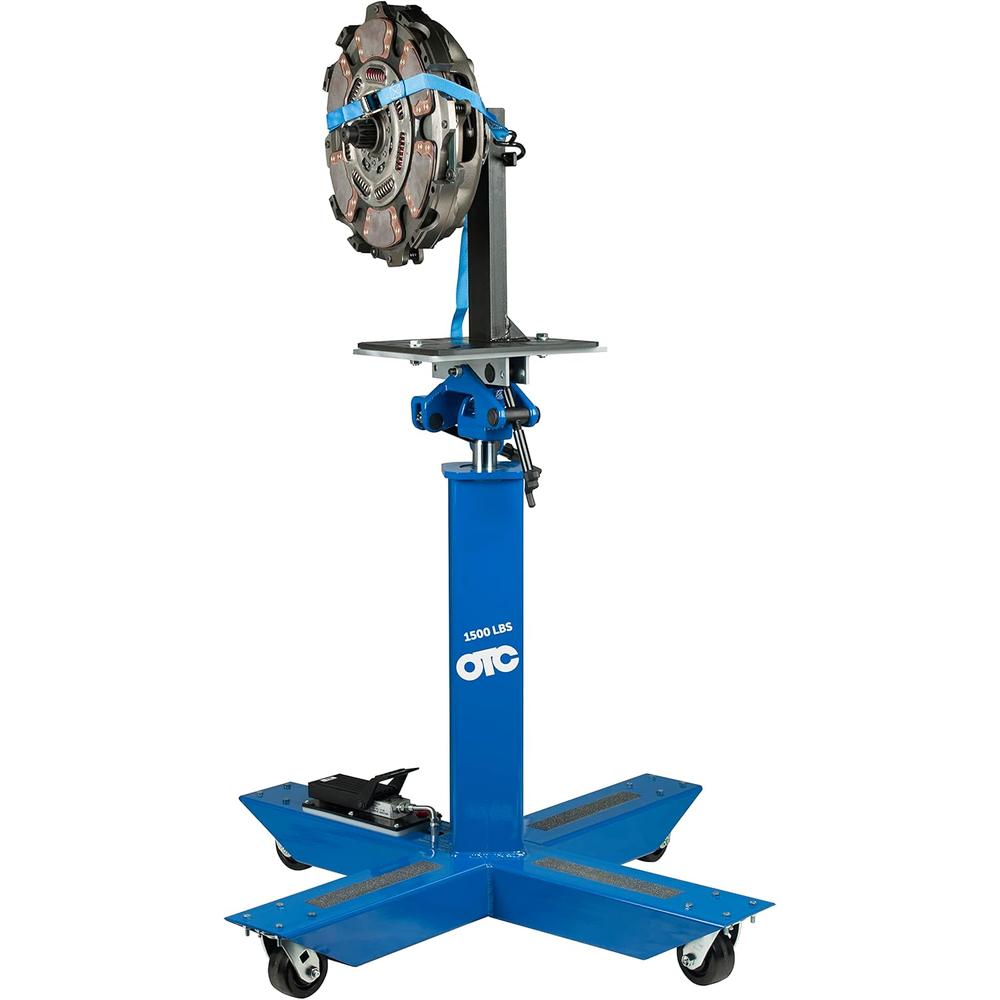

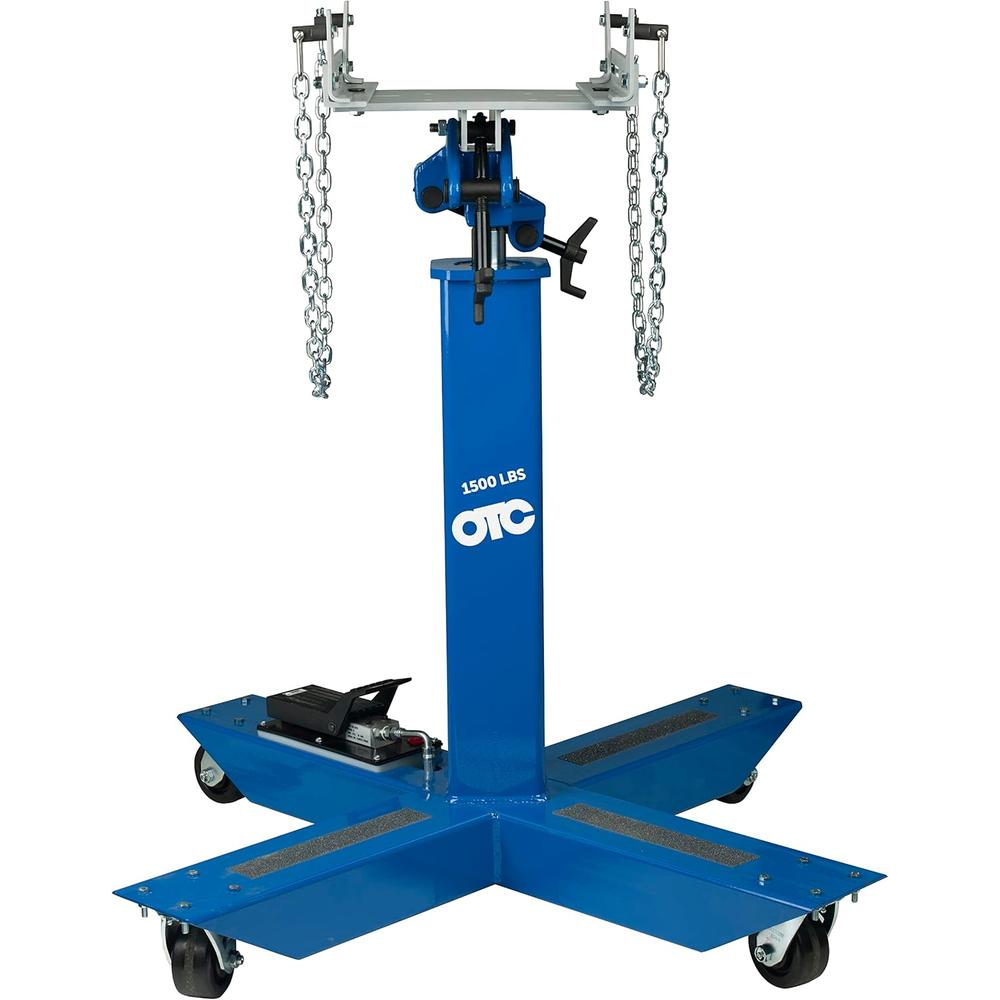

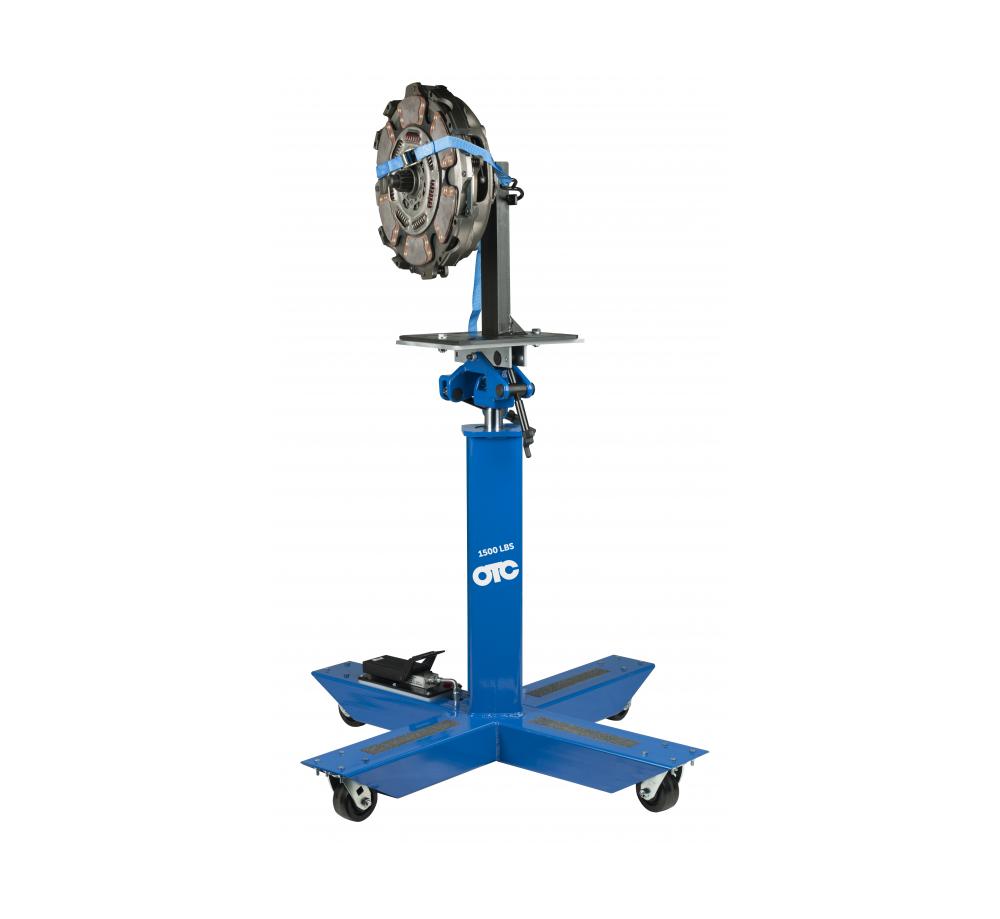

The OTC Tools TJHP15 is an air-assisted, 1,500-lb capacity high-lift transmission jack engineered for the professional removal and installation of truck, bus, and automobile transmissions. Its foot-operated air/hydraulic system lifts the head quickly and effortlessly to the work location, reducing operator fatigue on demanding drivetrain jobs. Built with rugged wall tubing, an oversized cross-base, and flash-chromed hydraulic rams, this jack is constructed for long-term durability in high-use shop environments. The low 41-1/2" retracted height allows the jack and transmission to roll out easily from beneath vehicles, and the unit meets all ASME PASE-2019 safety standards. Made in the USA with global and domestic components.
Features

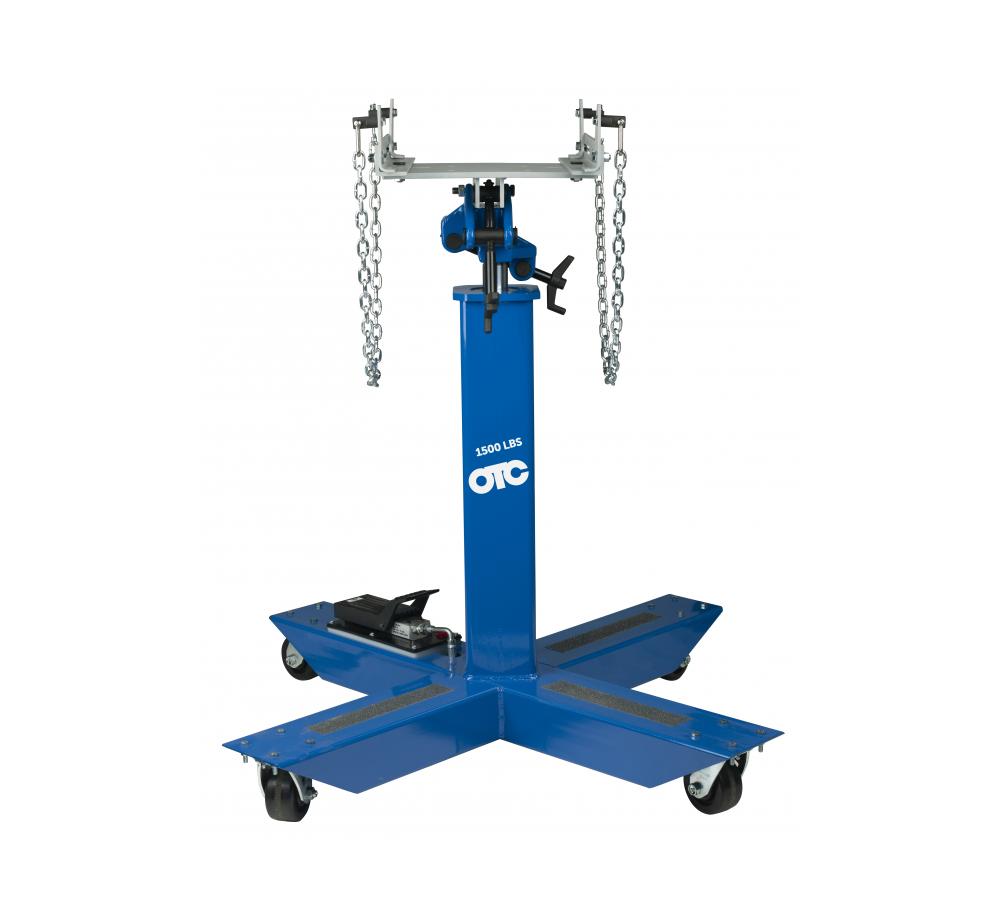

Universal saddle with adjustable corner brackets and safety chains provides optimum positioning and secure load retention during removal, transport, and installation

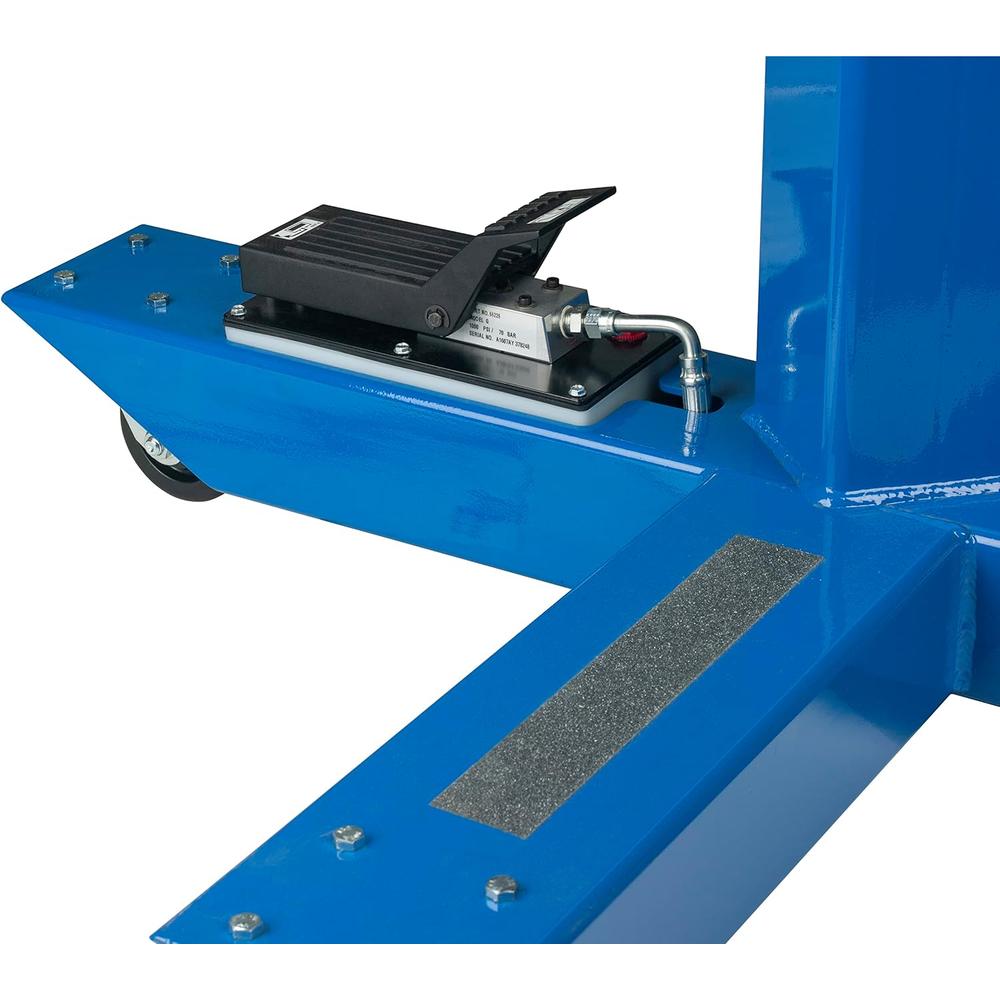

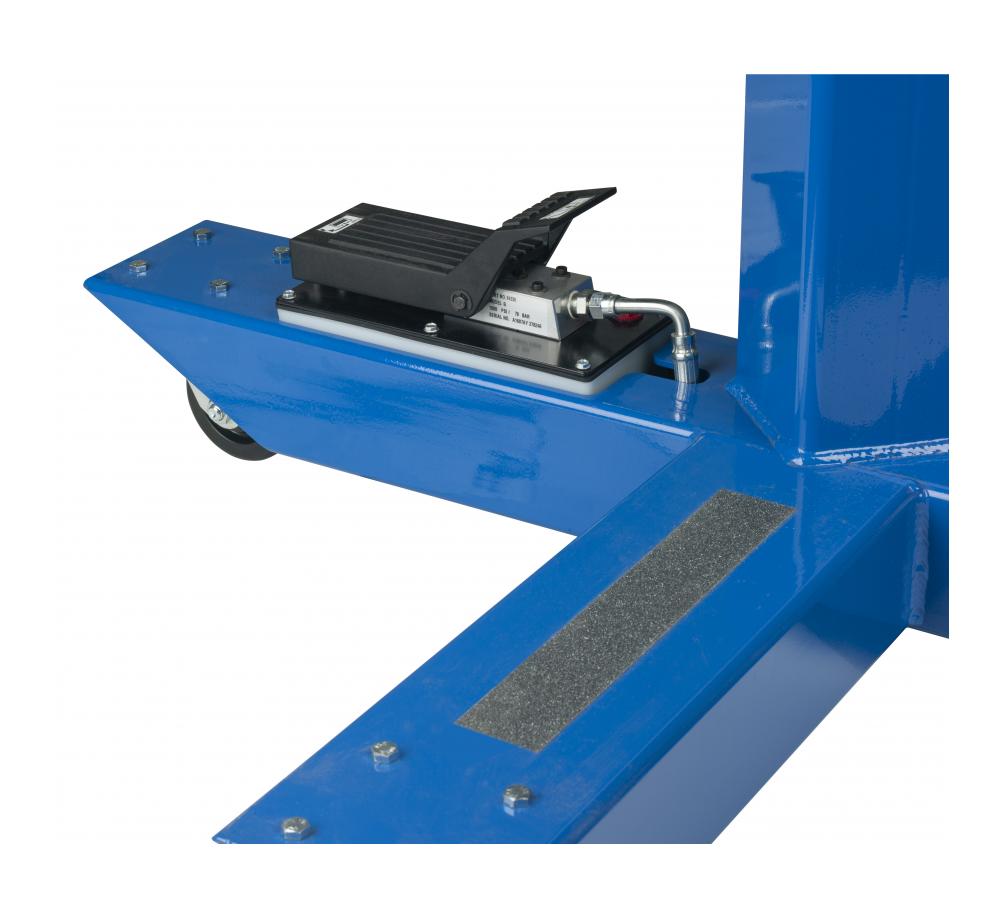

Foot-operated air pump controls air/hydraulic operation, lifting the head quickly and effortlessly to the work location

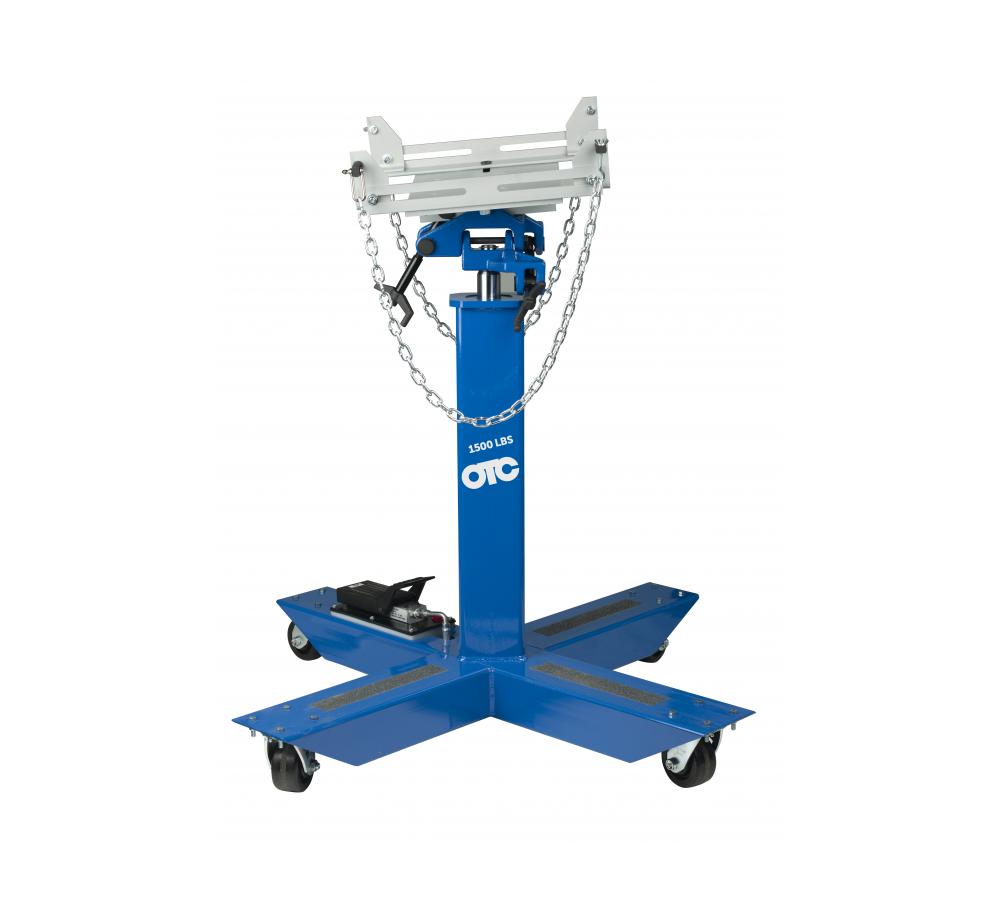

Multi-axis tilting head adjusts front-to-back and side-to-side to simplify alignment of transmission and driveline components
Big, easy-to-grip knobs allow simple head angle adjustments without additional tools
Flash-chromed hydraulic rams resist rust contamination, prolonging jack service life
Wide leg base with 4" polyurethane swivel wheels ensures stability and easy maneuvering throughout the shop
Built-in safety overload system prevents operation beyond the rated capacity
Two locking casters keep the jack securely positioned during use
Low 41-1/2" retracted height allows the loaded jack to roll out freely from underneath vehicles
Meets all ASME PASE-2019 safety standards
Made in the USA with global and domestic components
Specifications
Capacity: 1,500 lbs
Air Pressure: 80-140 PSI
Min Height, Retracted: 41-1/2"
Max Height: 65"
Forward Tilt (Max): 50°
Backward Tilt (Max): 38°
Side Tilt (Max, Side/Side): 14°
Leg Width: 46"
Wheel Size: 4"
Product Dimensions (L x W x D): 48" x 36" x 45"
Product Weight: 312 lbs
Country of Origin: USA
Warranty: Lifetime
Compliance: ASME PASE-2019
Part Number: TJHP15
Includes
1x Air-Assisted High-Lift Transmission Jack with Universal Saddle, Adjustable Corner Brackets, and Safety Chains (TJHP15)
