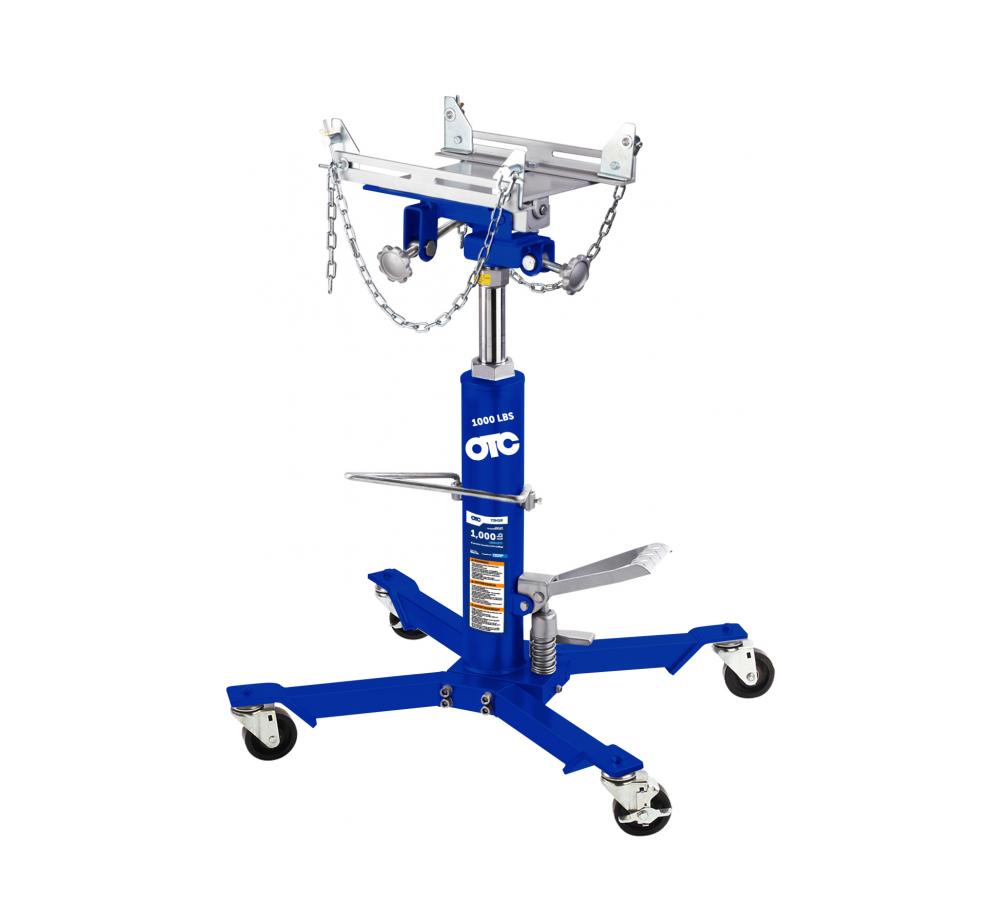

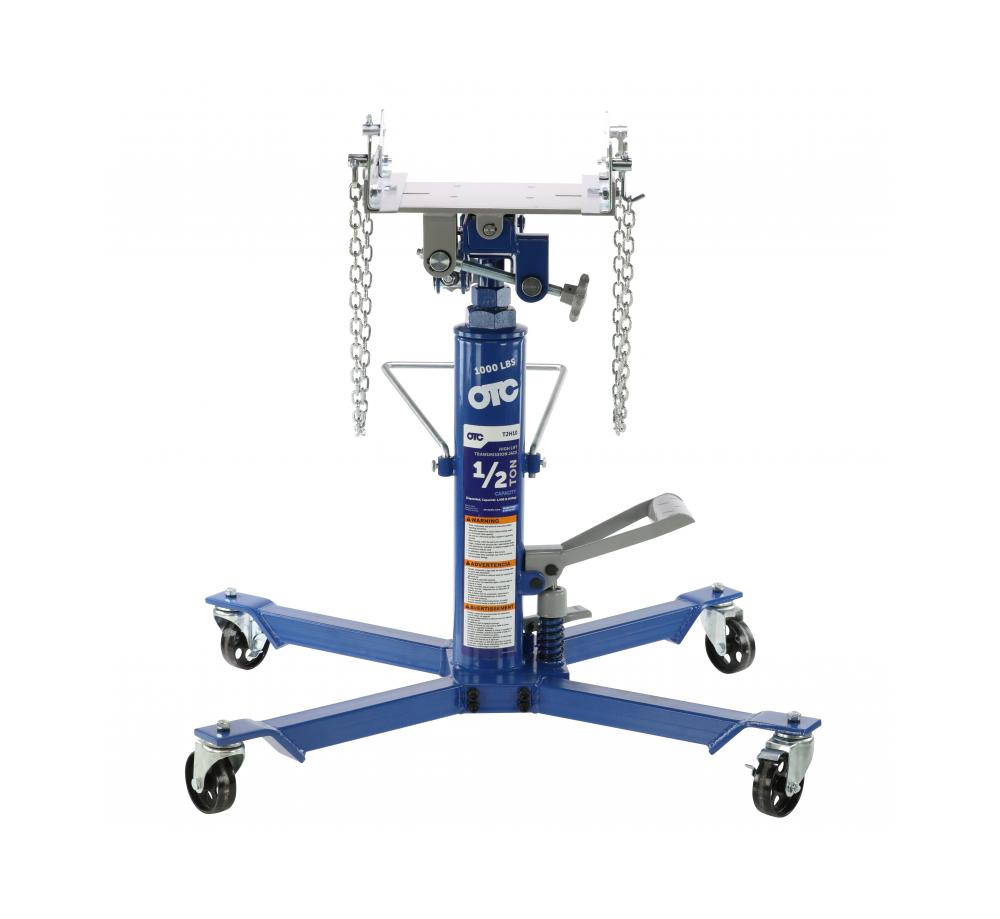

The OTC Tools TJH10 is a 1,000-lb capacity high-lift transmission jack engineered for the professional removal and installation of automobile transmissions and driveline components. Its universal saddle, adjustable corner brackets, and integrated safety chains provide optimum load positioning and secure handling throughout every stage of service. The multi-directional tilting head moves front to back and side to side, enabling precise alignment with virtually any transmission configuration. Compliant with ASME PASE-2019 safety standards, this jack is built to deliver reliable performance in demanding shop environments.
Features
Universal saddle with adjustable corner brackets and safety chains ensures optimum load positioning during removal, transport, and installation
Head tilts front to back and side to side for precise alignment with transmission and driveline components
Big, easy-to-grip knobs make mounting head adjustments simple and fast
Hydraulic system features flash-chromed rams to prevent rust from entering the system, extending jack service life
Foot-operated pump and lowering pedal provide hands-free control when positioning or removing a transmission
Wide leg base and 4" steel swivel casters provide stability and easy maneuvering on the shop floor
Built-in safety overload system prevents use beyond rated capacity
Two locking casters keep the jack securely in position during use
Meets all ASME PASE-2019 safety standards
Specifications
Capacity: 1,000 lbs
Min Height, Retracted: 35"
Max Height: 71-5/8"
Forward Tilt (Max): 24°
Backward Tilt (Max): 19°
Side Tilt (Max, Side/Side): 20°
Leg Width: 37-1/8"
Wheel Size: 4"
Product Dimensions: 37 x 22.5 x 7.7 in
Product Weight: 158 lb
Manufacturer Part Number: TJH10
Includes
1x Hydraulic Assembly
1x Saddle Assembly
2x Legs
4x Casters
1x Handle
1x Hardware Box
1x Operating Instructions
