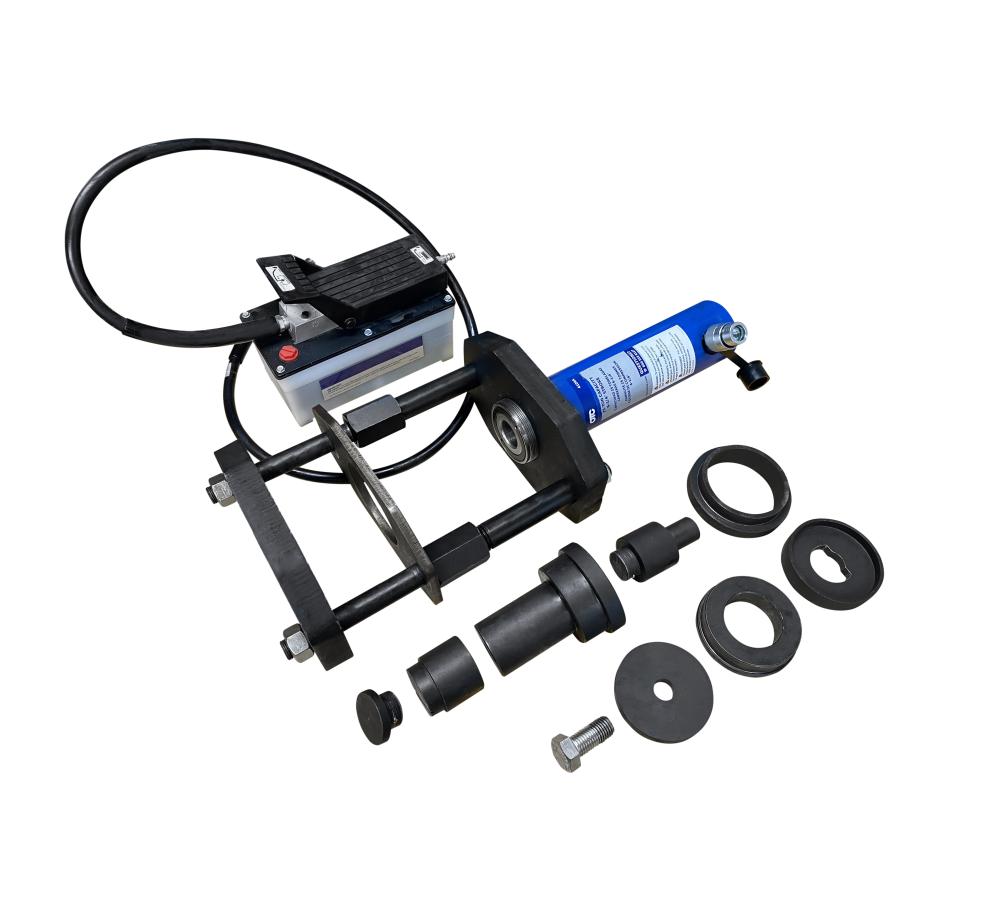

The OTC Tools 4247-FR Suspension Bushing Kit with Pump is a heavy-duty solution designed for removing and installing worn-out, rusted, and frozen double-wrap spring bushings without the need for heat or a shop press. Delivering a powerful 25-ton capacity, this kit dramatically reduces service time by allowing the tool to be assembled directly on the spring and bushing while the assembly remains on the vehicle. A patent-pending design enables unassisted tool assembly onto the spring, eliminating the need to support the tool's weight during operation. Precision-aligned press plates and adapters minimize the risk of misalignment and bushing damage throughout the removal and installation process. Compatible with select Hendrickson and Freightliner rear suspension systems, this kit is built for professional heavy-duty truck service environments.
Features
Removes single-wrap and double-wrap heavy-duty suspension bushings
Reduces service time on frozen, rusted, or seized suspension bushings without the use of heat
Tool can be assembled on the spring and bushing without removing the assembly from the vehicle
Patent-pending design allows for unassisted assembly of the tool onto the spring, eliminating the need to support tool weight during operation
Press plates and adapters are easily installed to perfectly align the bushing, reducing the chance of misalignment and bushing damage
Compatible with Hendrickson rear suspensions including Primaax EX, Comfort Air, and FCCC V-Ride Pivot and D-Pin suspension bushings
Compatible with Freightliner rear suspensions including double and single-wrapped FAS II Airliner rear suspension bushings
Specifications
Brand: OTC Tools
Part Number: 4247-FR
Capacity: 25 tons
Product Dimensions: 37 x 17 x 9 in
Product Weight: 131 lb
Hendrickson Applications: Primaax EX, Comfort Air, and FCCC V-Ride Pivot and D-Pin suspension bushings
Freightliner Applications: Double and single-wrapped FAS II Airliner rear suspension bushings
Includes
1x Air/Hydraulic Pump
1x Hydraulic Hose
1x 25 Ton Hydraulic Cylinder
1x Cylinder Mounting Plate
2x Mounting Plate Studs
1x Clamping Plate, Thin
1x Clamping Plate, Thick
2x Clamping Nuts
4x Hex Nuts
1x Cylinder Saddle
1x Cylinder Adapter Pin
1x D-Pin Adapter
1x Bushing Support
1x Bushing Support, Small
1x Alignment Adapter
1x Bushing Alignment Adapter Plate
1x Hex Bolt
1x Instruction Booklet
