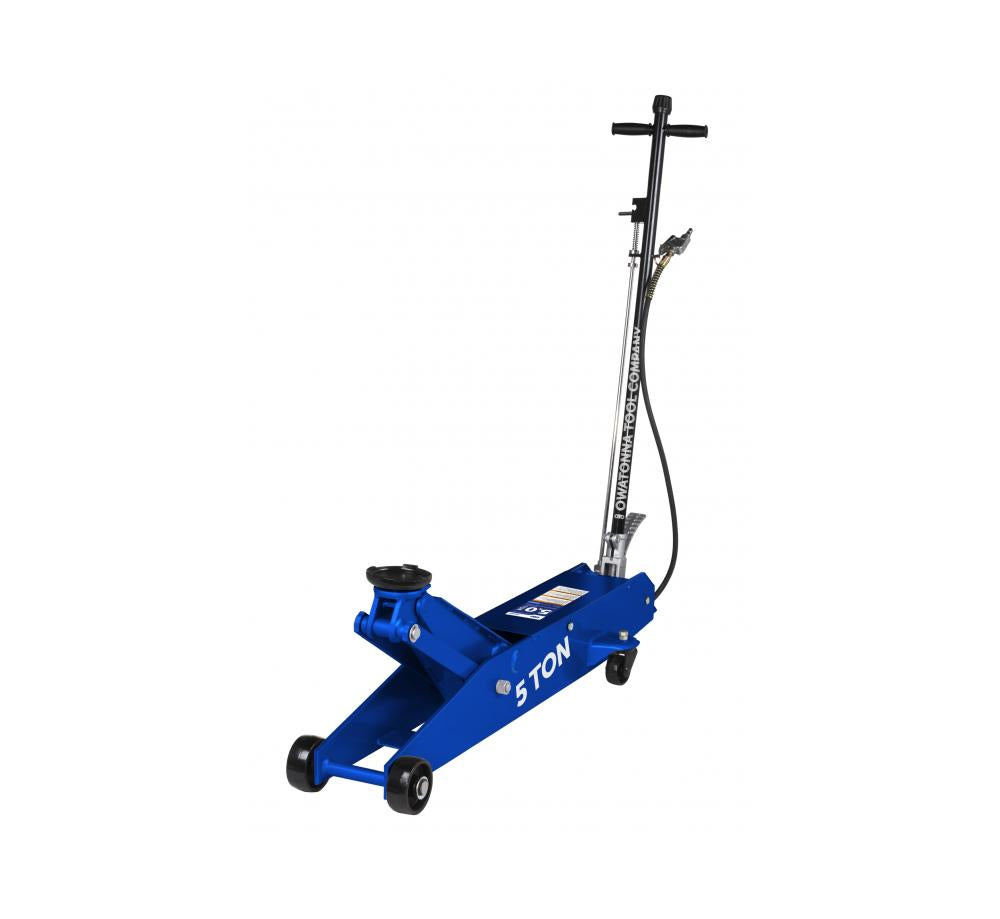

OTC Tools HDJ5P 5 Ton Air/Hydraulic Service Jack

The OTC HDJ5P is a long-chassis, heavy-duty 5-ton air-assisted hydraulic service jack engineered for professional shop environments. Designed to handle step vans, bucket trucks, and comparable heavy vehicles, it delivers reliable and controlled lifting performance across a wide range of applications. Rugged steel frame members ensure confident, stable lifting, while a cycle-tested design provides a long service life under professional-duty conditions. The versatility of air-assist operation streamlines lifting tasks, reducing operator effort without sacrificing control or safety. The HDJ5P meets all five ASME PASE-2019 safety standards for service jacks and is backed by a Limited Lifetime Warranty.

Features

• 5-ton lifting capacity ideal for step vans, bucket trucks, and smaller commercial vehicles

• Air-assisted hydraulic operation for efficient and controlled lifting with reduced manual effort

• Rugged steel frame construction ensures durability under heavy professional-duty use

• Bearing-mounted rear swivel casters and front wheels with roller bearings for smooth, precise maneuvering and positioning

• Spring-loaded handle lockable in three positions, ranging from horizontal to vertical, with integrated lock and release controls

• Wide lifting range from 5-7/8" to 22" accommodates a broad variety of vehicle clearance heights

• Meets all 5 ASME PASE-2019 safety standards for service jacks

• Cycle-tested design engineered for long-lasting professional performance

• Limited Lifetime Warranty

Specifications

Capacity: 5 Ton
Air Pressure: 80-120 PSI
Lifting Range: 5-7/8" to 22"
Reach: 87"
Saddle: 5.1" dia., round
Frame Height: 7.5"
Handle Length: 45.4", 3-position with lock and release controls
Floor Space: 14.2" x 55.5"
Casters: 4 total; 4.4" fixed front (2), 2.8" mid-body swivel (2)
Material: Steel
Color: Blue
Weight: 196 lbs
Supersedes P/N: 1507B
