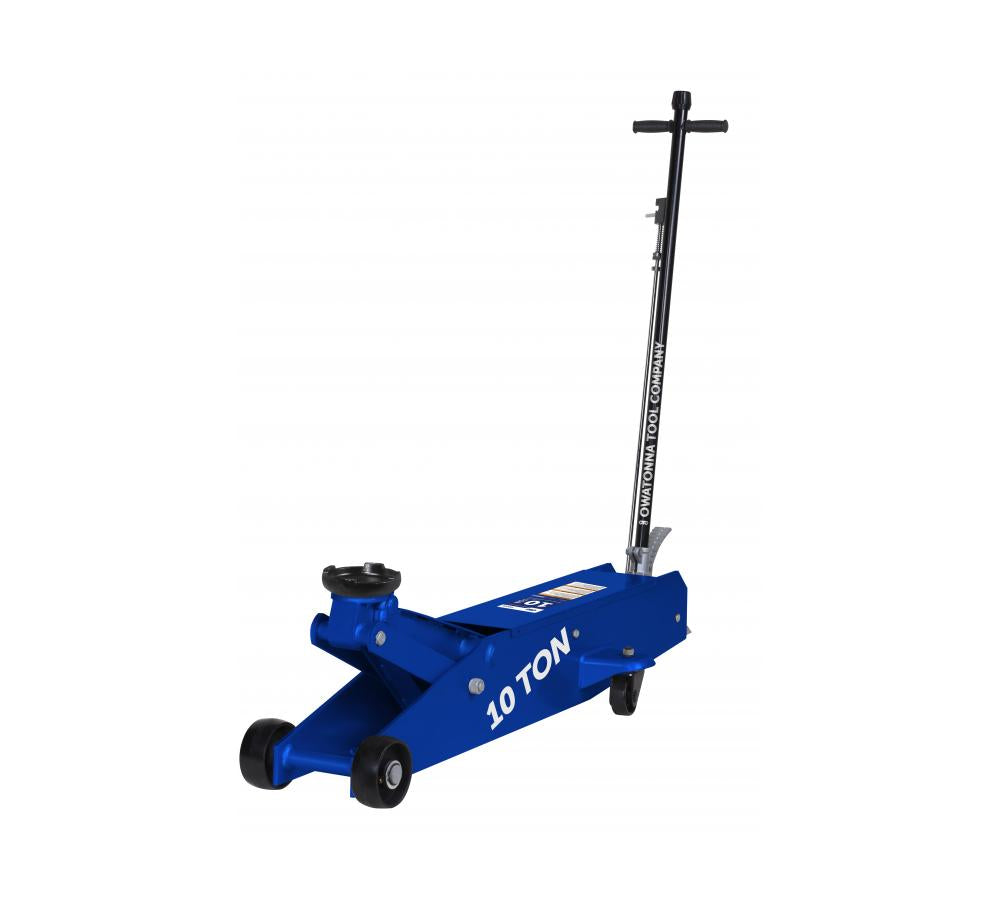

OTC Tools HDJ10 10-Ton Service Jack

The OTC HDJ10 is a professional-grade 10-ton hydraulic service jack engineered for demanding commercial applications including vocational vehicles, bucket trucks, school buses, and other heavy-duty equipment. Built with a cycle-tested, welded steel construction, this floor jack is designed to deliver a long service life under continuous professional use. A built-in safety overload valve prevents use beyond the jack's rated capacity, while bypass protection guards against over-extension of the ram. The HDJ10 meets all 5 ASME PASE-2019 safety standards for service jacks and is backed by a Limited Lifetime Warranty.

Features

• Built-in safety overload valve prevents over utilization beyond the jack's rated capacity

• Bypass valve prevents over-extension of the ram for added operator protection

• Convenient foot pedal speeds lifting operation during no-load lifts

• Spring-loaded 43.25" handle locks into any position from vertical to horizontal with 3-position lock and release controls located on top of the handle

• Chrome-plated ram provides superior rust resistance for long-term reliability in demanding shop environments

• Wiper seals protect the hydraulic system from contaminants

• Welded hydraulic pump and cylinder construction increases strength and prevents leaks

• Four heavy-duty casters with roller-bearing front wheels and ball-bearing rear swivel casters for smooth, precise maneuverability

• Meets all 5 ASME PASE-2019 safety standards for service jacks

• Limited Lifetime Warranty

Specifications

Capacity: 10 Ton
Lifting Range: 6.3" to 22"
Reach: 51"
Saddle: 6" dia., round
Frame Height: 9.8"
Handle Length: 43.25" (3-position with lock and release controls)
Floor Space: 18" x 60"
Casters: 4 total; 5.6" fixed front (2), 3.6" mid-body swivel (2)
Supersedes P/N: 1510B

Includes

1x 10 Ton Service Jack (HDJ10)
1x Handle with spring locking mechanism
1x OTC Owners Manual for Service Jacks
