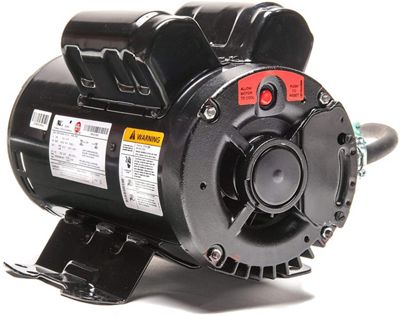

Ingersoll Rand 47669474001 5HP 230V Single Phase Air Compressor Motor - Front View

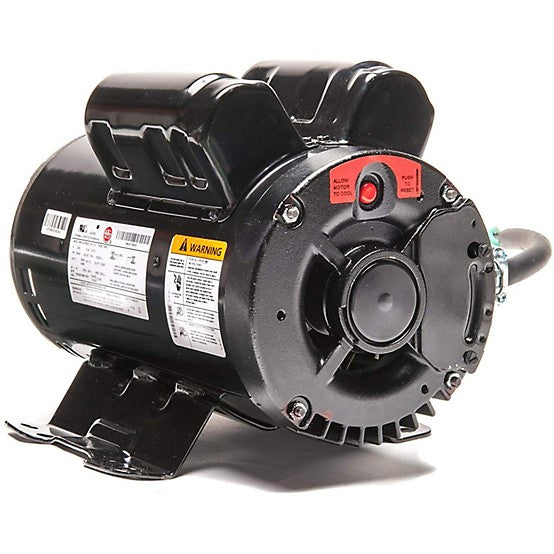

Ingersoll Rand 47669474001 5HP 230V Single Phase Air Compressor Motor - Angle View
Ingersoll Rand 47669474001 5HP 230V Single Phase Air Compressor Motor - Front View
Ingersoll Rand 47669474001 5HP 230V Single Phase Air Compressor Motor - Angle View

Ingersoll Rand 47669474001 5HP 1PH 230V Air Compressor Motor

SKU: IRC-47669474001
(0)
Sale price
$1,522.04 CAD
Regular price
$2,202.15 CAD
You save
$680.11 CAD (31%)

Out of stock!
Get Free
Notify Me When Available

Order over the phone? Call us now.

1-800-905-0410
Found a better price elsewhere? Request Price Match
END-TO-END CUSTOMER SUPPORT
1-YEAR PRICE MATCH GUARANTEE
FREE SHIPPING WITH $199+ ORDERS
30-DAY MONEY-BACK GUARANTEE

The Ingersoll Rand 5 HP Air Compressor Motor (Part# 47669474001 / 47733923001) is an OEM-grade replacement motor engineered for demanding compressor-duty applications. Designed as a direct-fit replacement for Ingersoll Rand SS5L5 and 2340L5-1 piston air compressors, it delivers reliable single-phase power at 230V and 3450 RPM. Built with pre-lubricated ball bearings and a Class F insulation rating, this motor is constructed for extended service life in tough shop environments. Thermal protection with a manual overload reset safeguards the motor against overheating during demanding operation cycles.

Features

  • Compressor-duty rated for heavy-use industrial and shop applications

  • Pre-lubricated ball bearings for reduced maintenance and long service life

  • Thermally protected with manual overload reset for added motor protection

  • Direct OEM replacement for Ingersoll Rand SS5L5 and 2340L5-1 piston compressors

  • Compatible with legacy part numbers 23220064, 24469652, and 23378805 - no installation changes required

  • Note: Pulley is not included; existing pulley must be transferred from the old motor

Specifications

Brand: Ingersoll Rand
Part Number: 47669474001 (superseded to 47733923001)
Horsepower: 5 HP
Voltage: 230V
Phase: Single Phase (1PH)
RPM: 3450
Service Factor: 1.15
Insulation Class: Class F
Frame Size: 182/4Y
Shaft Size: 7/8"
