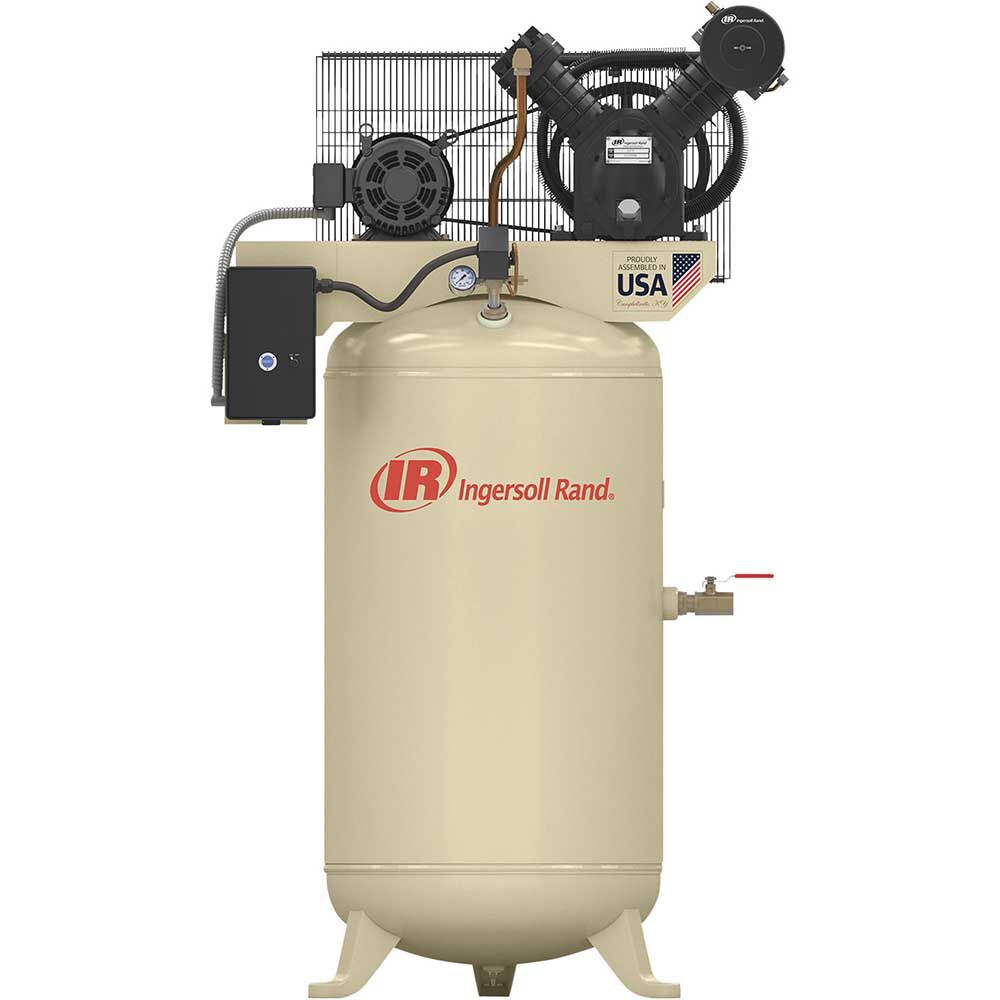

The Ingersoll Rand 7.5 HP 80 Gallon Vertical Air Compressor (Model 2475N7.5-P) is a heavy-duty, oil-lubricated reciprocating compressor engineered for continuous-duty air generation in demanding industrial environments. Built around a 100% cast-iron pump and cylinder head, this unit delivers reliable, high-volume compressed air at up to 175 PSI from a 3-phase, 230V power supply. Its vertical 80-gallon tank minimizes floor space while providing substantial air storage capacity, making it well suited for automotive service shops, fleet maintenance, machine shops, manufacturing lines, and woodworking facilities. Proudly assembled in the USA, this compressor combines precision-engineered components with a robust cast-iron construction for long service life and consistent performance.
Features
100% cast-iron pump and cylinder head with deep-groove directional cooling fins to reduce operating temperatures
High-efficiency stainless steel valves for improved airflow and extended service intervals
Oversized industrial-grade bearings for extended pump life under continuous-duty conditions
Balanced pistons that minimize vibration and maximize operational efficiency
Oversized cast-iron balanced belt wheel designed for continuous-duty operation
High-efficiency intercooler for improved thermal management between compression stages
Air-cooled after cooler to remove excess moisture from discharged air
High-efficiency inlet air filter with sound attenuation baffles for quieter operation
Electronic drain valve that automatically removes accumulated condensate from the air tank
Low oil protection switch prevents the pump from running dry and sustaining damage
Oil sight glass provides convenient, at-a-glance coolant level monitoring
Magnetic motor starter enables fast, reliable motor starting
Pre-wired power connection compatible with 3-phase 230V electrical supplies
Vertical tank configuration reduces physical footprint on the shop floor
Proudly assembled in the United States
Specifications
Brand: Ingersoll Rand
Model: 2475N7.5-P
Part Number: 45465523
Horsepower: 7.5 HP
Tank Capacity: 80 Gallons
Tank Configuration: Single, Vertical
Tank Material: Cast Iron
Pump Design: Oil Lubricated, 100% Cast Iron
Maximum Pressure: 175 PSI
Air Delivery: 24 CFM at 175 PSI
Voltage: 230V
Phase: 3-Phase
Amperage: 22 A
Switch Type: Magnetic Motor Starter
Operating Position: Vertical
Decibel Rating: 85 dB
Height: 76 in
Weight: 611 lbs
Color: Tan
Country of Origin: United States
Warranty: 1 Year Limited
Includes
1 x Ingersoll Rand 7.5 HP 80 Gallon Vertical Air Compressor (45465523) with premium package including magnetic starter, electronic drain valve, automatic start/stop control with pressure switch, air-cooled after cooler, and low oil level switch
