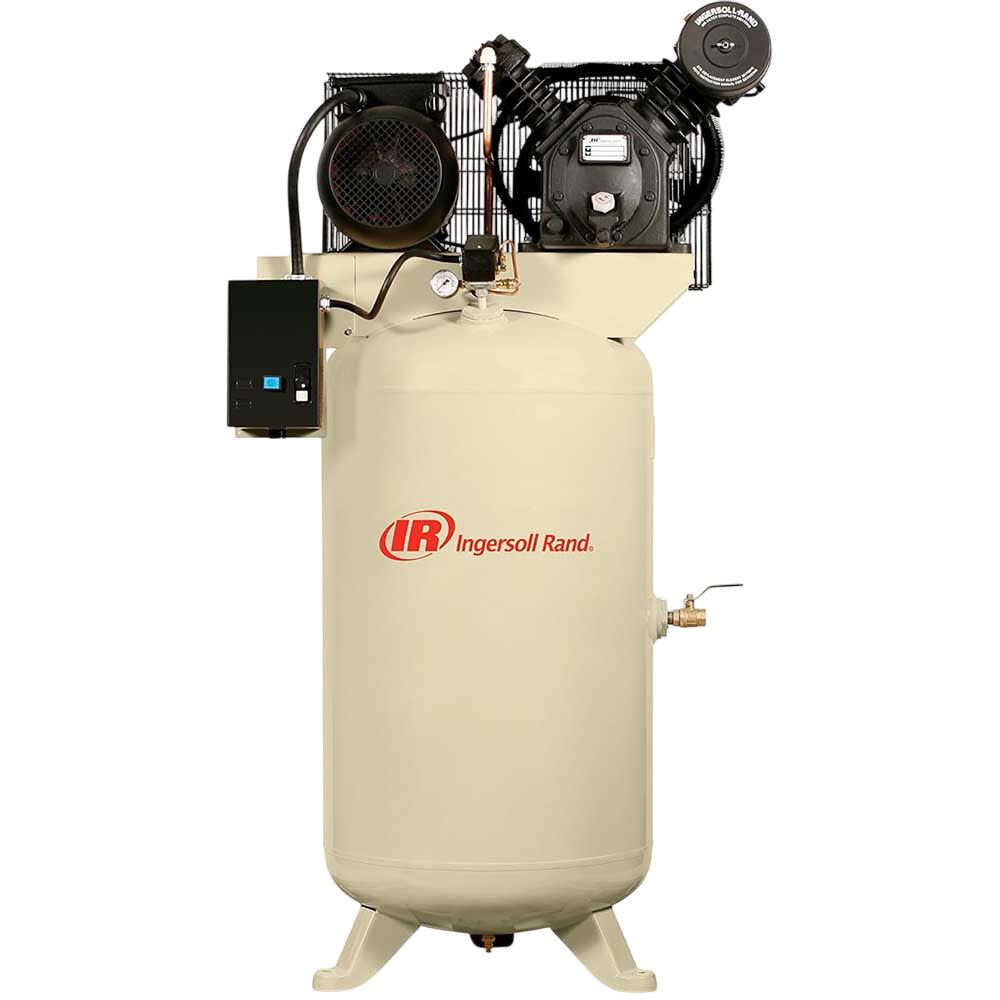

The Ingersoll Rand 5 HP 80-Gallon 230V Single-Phase Vertical Air Compressor (Model 2340N5-V) is a heavy-duty, industrial-grade unit engineered for demanding applications in automotive service shops, fleet maintenance, machine shops, woodworking facilities, and general manufacturing environments. Powered by a 230V single-phase supply commonly found in homes and small commercial buildings, it delivers up to 175 PSI of maximum air pressure with a 14 CFM flow rate. The two-stage compression process provides superior energy efficiency and the ability to reach higher pressures compared to single-stage designs. Built on a 100% cast-iron pump with an expected service life exceeding 15,000 hours, this compressor is manufactured in the United States and backed by a 1-Year Limited Warranty.
Features
100% cast-iron cylinder head with deep-groove directional cooling fins for optimal thermal management
100% cast-iron pump construction for maximum durability and long service life exceeding 15,000 hours
Oversized industrial-grade bearings for extended pump life and reliable continuous operation
High-efficiency stainless steel valves for consistent performance and corrosion resistance
Finned copper intercooler cools compressed air between stages for two-stage efficiency
High-efficiency inlet air filter with sound attenuation baffles reduces operating noise
Balanced pistons maximize efficiency and minimize vibration during operation
Oversized cast-iron balanced belt wheel enables continuous-duty operation
Automatic start/stop control with pressure switch for hands-free operation
Manual tank drain for convenient moisture removal and tank maintenance
Specifications
Brand: Ingersoll Rand
Model: 2340N5-V
Part Number: 45464989
Horsepower: 5 HP
Tank Capacity: 80 Gallons
Voltage: 230V
Phase: Single Phase (1 Ph)
Amperage: 28 A
Maximum Pressure: 175 PSI
Flow Rate: 14 CFM
Compressor Design: Vertical, Two-Stage
Pump Type: Oil Lubricated, 100% Cast Iron
Tank Material: Cast Iron
Tank Configuration: Single, Vertical
Color: Tan
Decibel Rating: 85 dB
Dimensions (L x W x H): 24" x 33" x 67"
Weight: 505 lbs
Country of Origin: United States
Warranty: 1 Year Limited
California Proposition 65 Warning: Required
Includes
1 x Vertical Air Compressor (45464989)
1 x Manual Drain
1 x Automatic Start/Stop Control with Pressure Switch
