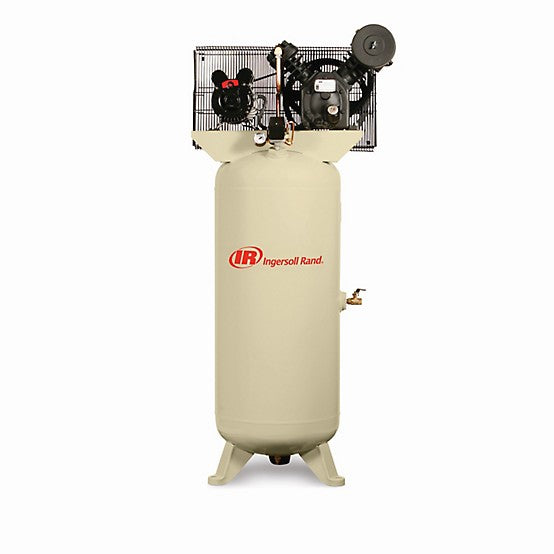

The Ingersoll Rand 2340L5-V is a 5 HP, 60-gallon, 2-stage vertical air compressor engineered for commercial, automotive, and light industrial applications with intermittent load demands. Powered by an ODP electric motor operating at 230V, 3-phase, it delivers 14.7 CFM at 175 PSI to keep high-demand air tools running without interruption. The oil-lubricated, cast-iron pump is built for heavy-duty durability and designed to run at high volumes and high pressures. An ASME-rated coated vertical tank and automatic stop control with a NEMA 1 pressure switch round out this compressor's dependable, safe operation.
Features
Oil-lubricated cast-iron pump designed for heavy-duty, high-volume, high-pressure applications
Classic twin piston V-style pump design for cool, efficient operation
ASME-coated 60-gallon vertical tank for greater air storage capability
ODP electric motor provides reliable, consistent power
Automatic stop control with NEMA 1 pressure switch for safe, worry-free use
Suitable for commercial, automotive, and light industrial applications with intermittent load demands
1-year limited warranty; 2-year limited pump warranty with use of IR synthetic lubricant
Nationwide service coverage available
Specifications
Model: 2340L5-V
Horsepower: 5 HP
Tank Capacity: 60 gal
Tank Orientation: Vertical
Maximum Pressure: 175 PSI
CFM @ 175 PSI: 14.7
Voltage: 230V
Phase: 3-Phase
Motor Type: ODP (Open Drip-Proof) Induction
Pump Material: Cast Iron
Lubrication: Oil-Lubricated (Splash)
Pump RPM: 1,575
Stages: 2
Number of Cylinders: 2
Compressor Type: Reciprocating
Air Compressor Series: Type 30
Height: 76 in
Width: 40 in
Length/Depth: 33.1 in
Weight: 435 lb
Tank Certification: ASME
Pressure Switch: NEMA 1
Power Type: Electric
Mount Type: Fixed
Thermal Overload Protection: Yes
