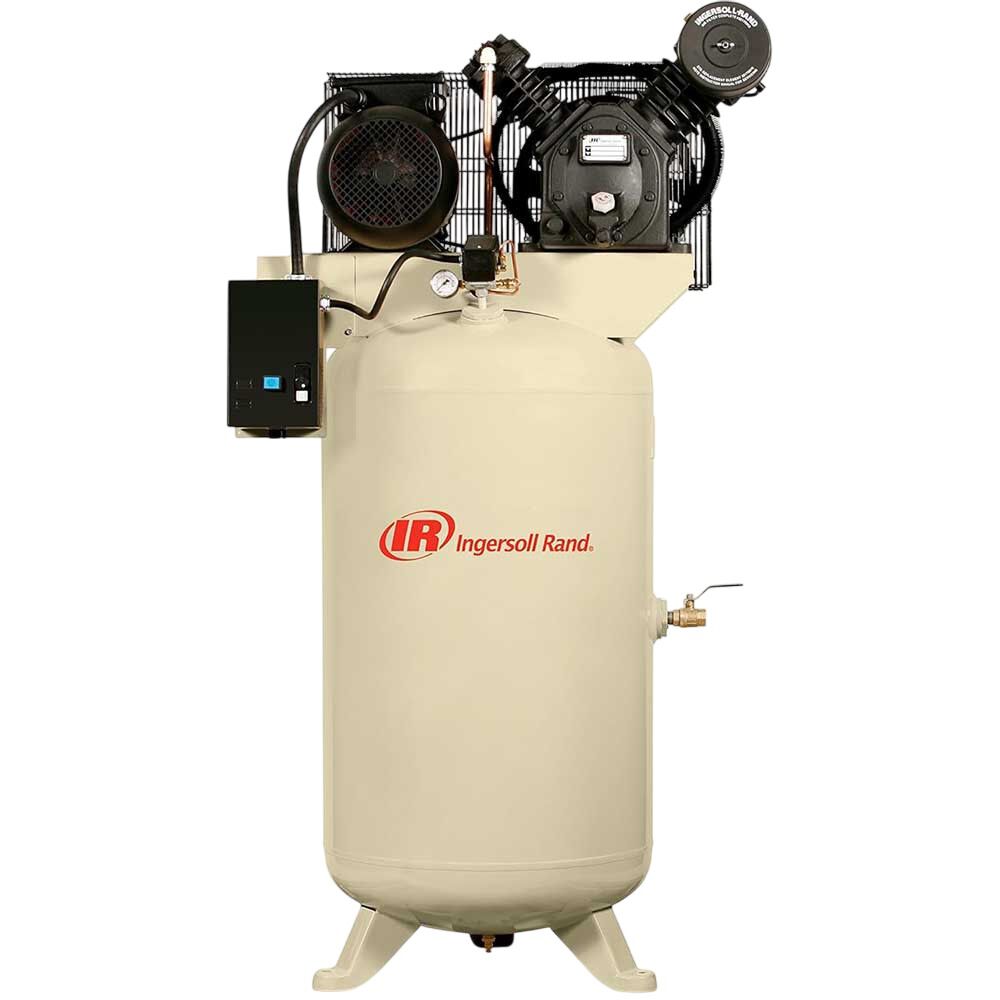

The Ingersoll Rand 5 HP 60 Gallon 230V 1-Phase Vertical Air Compressor (Model 45464922) is a heavy-duty, 2-stage stationary compressor engineered for continuous-duty air production in commercial, automotive, and light industrial environments. Built around a 100% cast-iron pump and cylinder head, this unit delivers consistent performance at up to 175 PSI and 14 CFM to power a wide range of demanding pneumatic applications. A 5-horsepower ODP motor paired with a balanced cast-iron belt wheel ensures efficient, low-vibration operation, while the compact vertical footprint offers flexible installation in tight shop spaces. Prewired for 230V single-phase power, this compressor is ready to put to work right out of the box.
Features
100% cast-iron pump with individually cast cylinders and a one-piece connecting rod for simplified maintenance and long service life
100% cast-iron cylinder head with deep groove directional cooling fins for superior heat dissipation
High-efficiency stainless steel finger valves for dependable, long-lasting performance
Oversized industrial-grade bearings extend pump life under heavy-duty demand
High-efficiency inlet air filter with sound attenuation baffles reduces operating noise
Copper intercooler lowers output air temperature for improved efficiency and component longevity
Air-cooled dryer eliminates moisture from discharged air to protect downstream equipment
OSHA-compliant enclosure promotes a safer working environment
Overhung crankshaft design simplifies routine maintenance access
Oil sight glass enables quick and easy system monitoring without disassembly
Automatic start/stop control with NEMA-1 pressure switch for efficient, hands-free operation
ASME-rated 60-gallon vertical tank delivers stable output pressures and a small installation footprint
ASME-compatible fittings work with a broad range of pneumatic tools and accessories
Prewired for 230V single-phase power for quick, straightforward installation
Specifications
Brand: Ingersoll Rand
Model Number: 45464922
Horsepower: 5 HP
Tank Capacity: 60 Gallon
Compressor Stages: 2-Stage
Maximum Pressure: 175 PSI
Air Delivery (CFM): 14 CFM @ 175 PSI
Voltage: 230V
Phase: 1-Phase
Amperage: 28 A
Pump Design: Oil-Lubricated
Tank Material: Cast Iron (ASME Coated)
Tank Configuration: Single, Vertical
Noise Level: 85 dB
Height: 76 in
Weight: 435 lbs
Color: Tan
Country of Origin: United States
Warranty: 1-Year Limited (2-Year Limited Pump Warranty with use of IR Synthetic Lubricant)
Includes
1 x Ingersoll Rand 5 HP 60 Gallon Vertical Air Compressor (45464922)
1 x Magnetic Starter
1 x Manual Drain
1 x Automatic Start/Stop Control with NEMA-1 Pressure Switch
