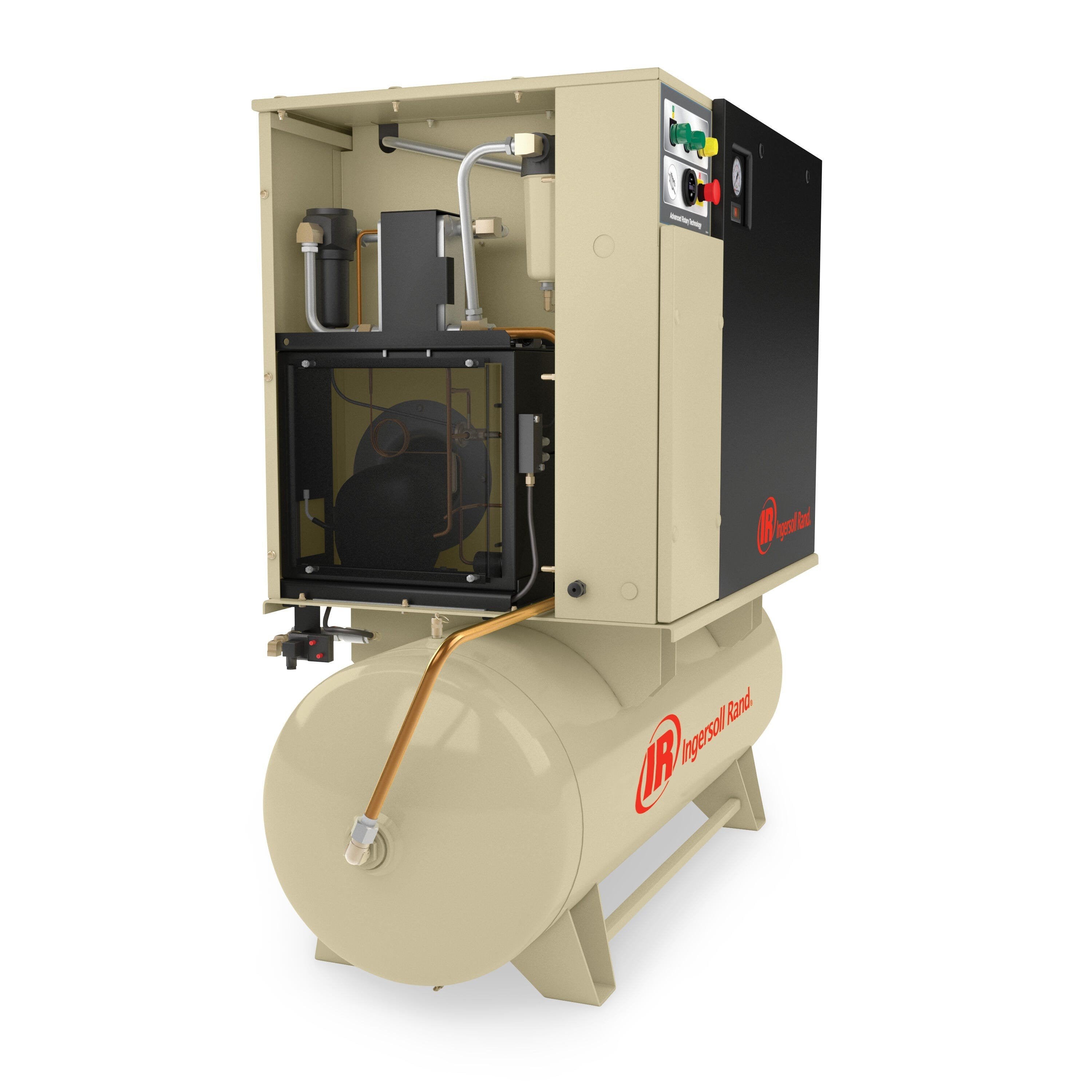

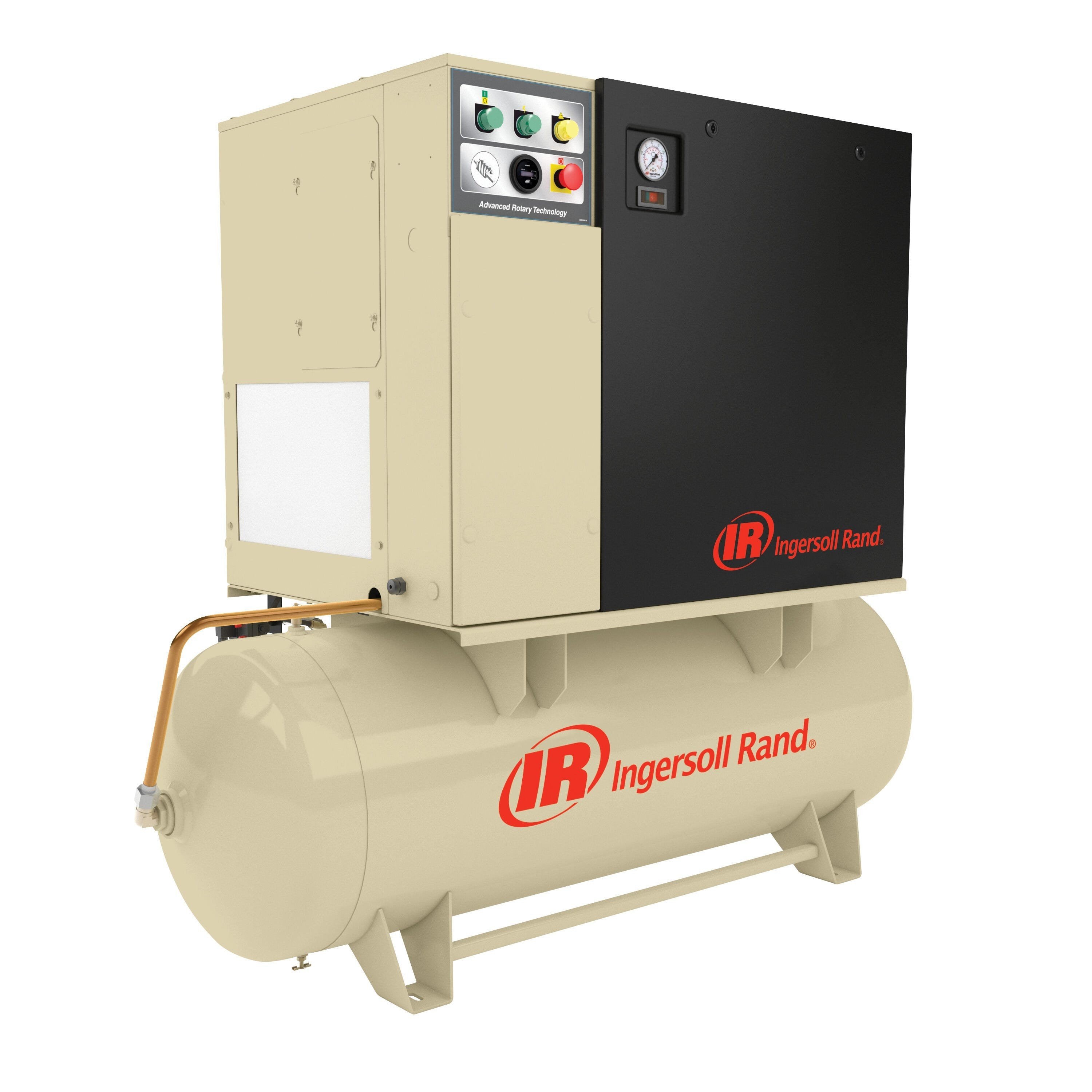

The Ingersoll Rand UP6-5TAS-125 is a 5 HP oil-flooded rotary screw air compressor designed to deliver reliable, efficient compressed air performance in demanding industrial environments. Mounted on an 80-gallon horizontal tank and equipped with the Total Air System (TAS) integrated dryer, this unit provides clean, dry air in a single, cost-effective package. Operating at up to 125 PSI with a rated flow of 14.9 CFM, it offers exceptional output for its class. Built with Ingersoll Rand's proven UP6 Series engineering, this compressor combines compact design with accessible service points and whisper-quiet operation for flexible, near-point-of-use installation.
Features
Enhanced reliability with a long-life TEFC Tri-Voltage (208-230/460V) motor, NEMA 4 enclosure, and Power Outage Restart Option (PORO) for safe operation in harsh conditions
Poly-V belt premium drive system with patented automatic tensioning eliminates belt stretch and maximizes air output efficiency
V-Shield Technology provides a fully integrated, leak-free design featuring PTFE stainless steel braided oil hoses and O-ring face seals
Xe-70M programmable controller delivers advanced control functionality through an intuitive user interface with large navigation buttons
Whisper-quiet operation as low as 67 dBA enables installation closer to the point of use, reducing costs and improving the work environment

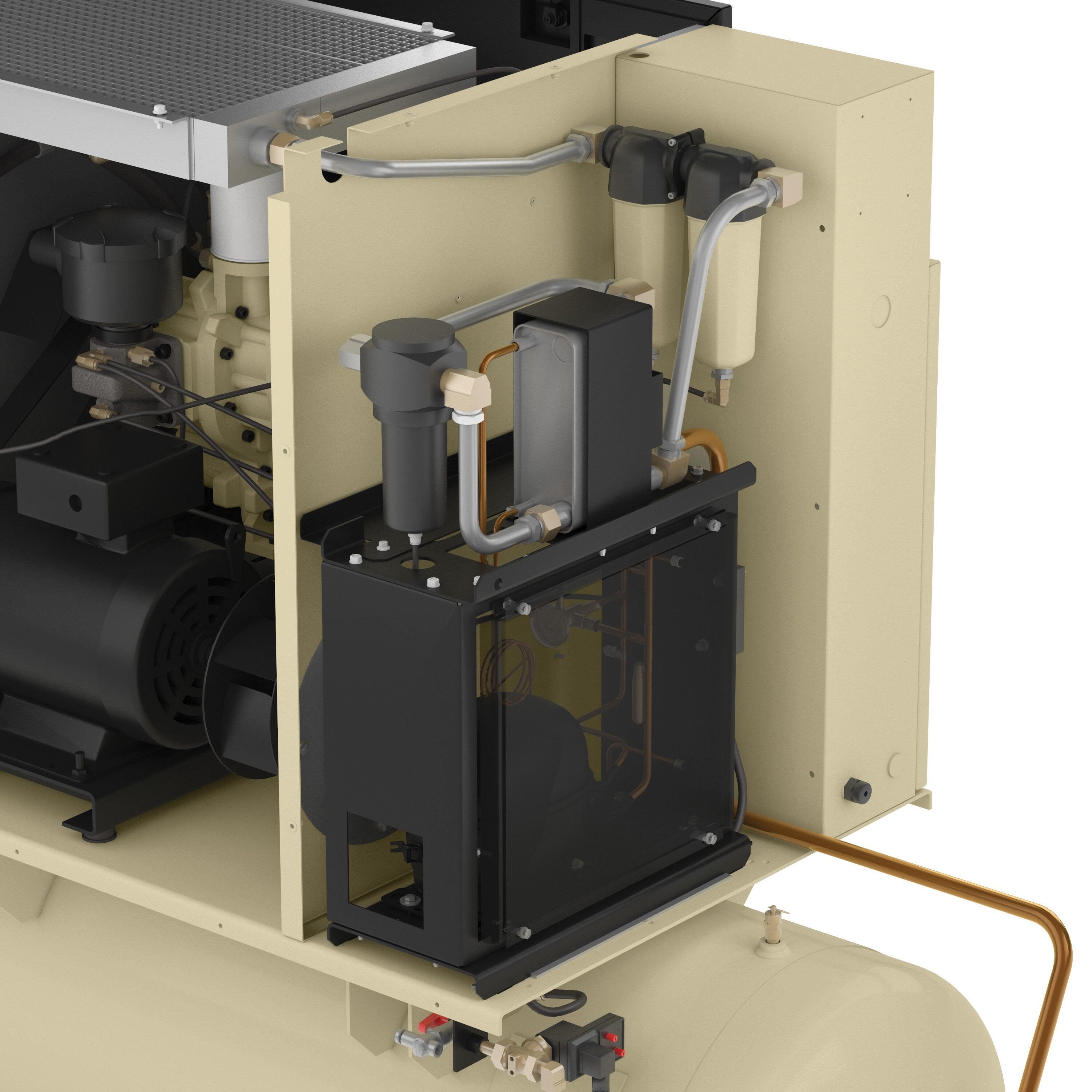

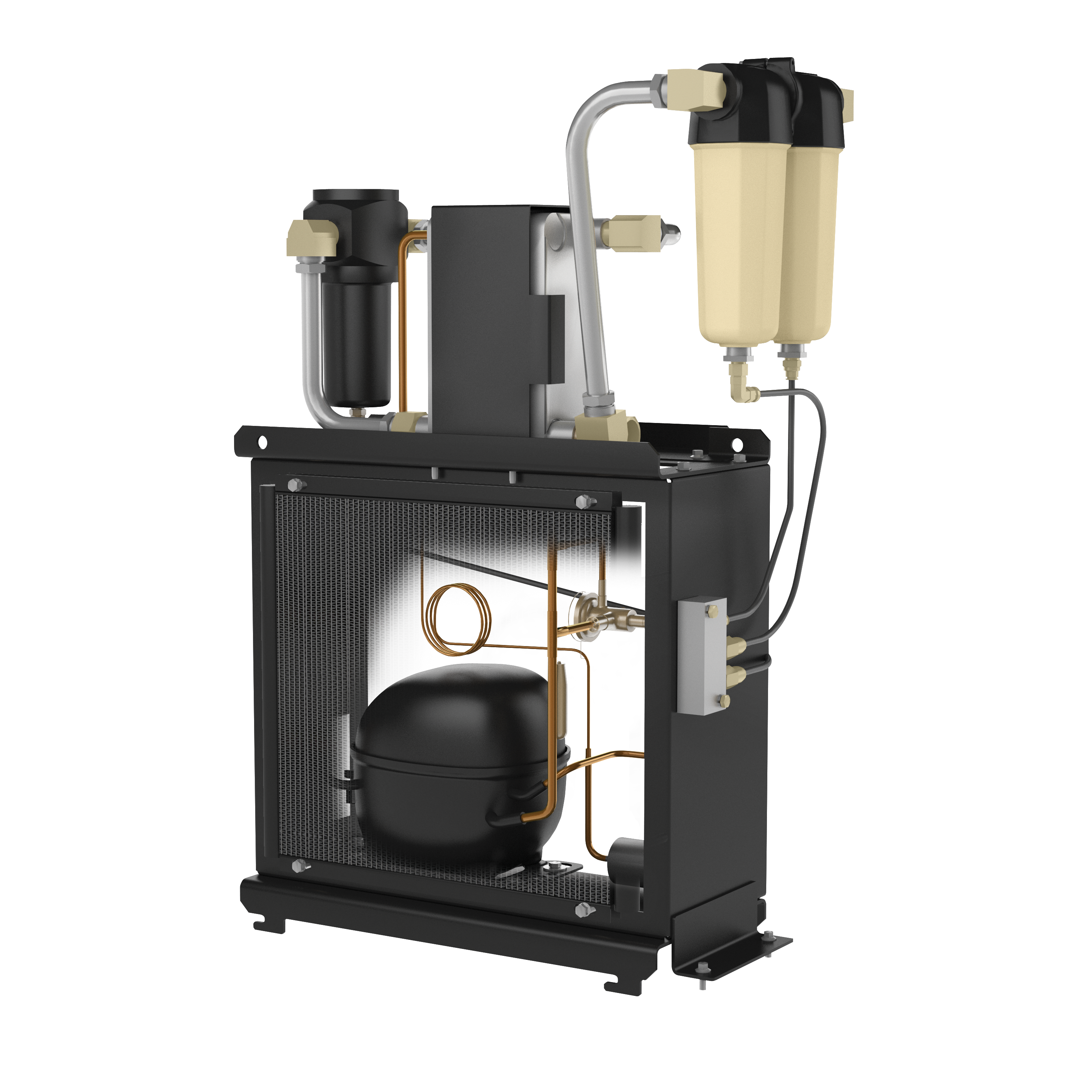

Integrated Total Air System (TAS) dryer delivers clean, dry air in a single compact package
Specifications
Brand: Ingersoll Rand
Model: UP6-5TAS-125
SKU: 18003996
Power: 5 HP
Rated Flow: 14.9 CFM
Max Pressure: 125 PSI
Voltage: 230V
Phase: 1
Frequency: 60 Hz
Tank Size: 80 gal
Tank Style: Horizontal
Compressor Dimensions (L x W x H): 68.4" x 29" x 59.6"
Compressor Weight: 1,005 lbs
