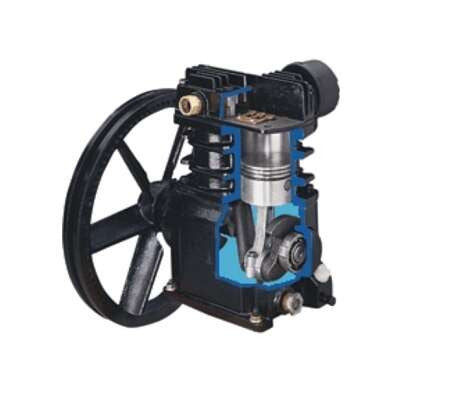

Ingersoll Rand 18002386 SS5 Single-Stage Bare Pump cutaway view showing cast-iron cylinder, piston, flywheel, and internal components
Ingersoll Rand 18002386 SS5 Single-Stage Bare Pump cutaway view showing cast-iron cylinder, piston, flywheel, and internal components

Ingersoll Rand 18002386 SS5 Single-Stage Bare Pump

SKU: IRC-18002386
(0)
Sale price
$2,576.57 CAD
Regular price
$3,495.85 CAD
You save
$919.28 CAD (27%)

Out of stock!
Get Free
Notify Me When Available

Order over the phone? Call us now.

1-800-905-0410
Found a better price elsewhere? Request Price Match
END-TO-END CUSTOMER SUPPORT
1-YEAR PRICE MATCH GUARANTEE
FREE SHIPPING WITH $199+ ORDERS
30-DAY MONEY-BACK GUARANTEE

The Ingersoll Rand Type 30 Model SS5 is a rugged, single-stage bare compressor pump engineered for demanding shop environments that require dependable air delivery with minimal maintenance. Built from 100% cast iron throughout the crankcase and cylinders, the SS5 is designed to withstand the rigors of frequent start-stop cycles while delivering strong CFM output in a compact footprint. Its two-cylinder, single-stage configuration makes it an ideal power source for automotive bays, fabrication benches, and maintenance crews running air tools daily. The straightforward design, generous cooling fins, and easy-access service points ensure a long service life and reduced downtime.

Features

  • 100% cast-iron crankcase and cylinders provide exceptional durability and heat stability under continuous operation

  • Two-cylinder, single-stage configuration delivers strong low-to-mid-pressure output for common shop and production tasks

  • Deep-finned cylinder heads with integral aftercooling paths reduce discharge temperature and improve efficiency

  • Splash-lubricated system with a sight glass and easy-fill access simplifies routine maintenance

  • Balanced rotating assembly reduces vibration and noise during operation

  • Compact footprint allows easy integration into existing stationary compressor stations or custom builds

Specifications

Brand: Ingersoll Rand
Model: SS5
Part Number (CCN): 18002386
Compressor Type: Single-Stage Bare Pump
Operating Pressure: Up to 135 PSI
Air Delivery: ~18 CFM @ 90 PSI (5 HP typical configuration)
Speed Range: 800 - 1300 RPM
Horsepower Range: 3 - 5 HP recommended
Number of Cylinders: 2
Lubrication: Splash-lubricated
Construction Material: Cast iron
Dimensions (L x W x H): 18" x 16" x 15" (approx.)
Weight: ~110 lb
Frequency: 60 Hz

Includes

1 x Single-Stage Bare Compressor Pump
1 x Air Filter
1 x Flywheel
