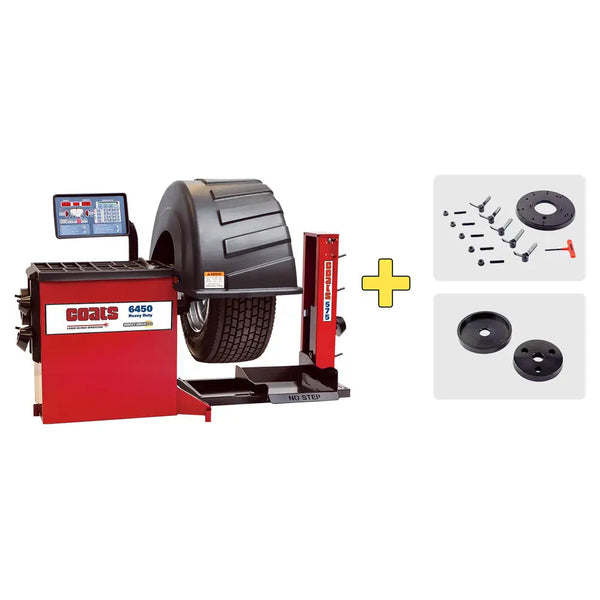

The Coats 6450-3DK is a high-volume, heavy-duty truck wheel balancer kit engineered for front-line commercial shop environments servicing everything from delivery vehicles to tractor-trailers. Featuring a powerful 1.5 HP direct-drive motor paired with Dynamic Compensation System (DCS) technology, the 6450-3DK delivers unmatched balancing accuracy across both heavy-duty and passenger car/light truck modes - effectively functioning as two independent balancers in one machine. With a 500 lb UL-certified wheel capacity, 52-inch tire diameter clearance, and an air-operated heavy-duty wheel lift included, this kit is purpose-built for the demands of high-throughput commercial tire service operations. The 6450-3DK is sold as a complete kit including the 575 Heavy Duty Wheel Lift and Budd adapter kits, ready for immediate deployment.
Features
Powerful 1.5 HP direct-drive motor shaves 20 seconds off a typical 22.5" wheel spin for faster cycle times
DCS technology makes the 6450 the most accurate heavy-duty balancer in car/light truck mode on the market, functioning like two balancers in one
3 Parameter auto data entry with one-touch operation - simply drop the hood and go
Auto indexing automatically moves the wheel to required weight positions
Stop and Lock feature locks the spindle firmly in place for easier, more accurate weight placement
Laser-guided direct Tape-A-Weight placement for precise weight application
Static on-screen display provides simultaneous display of static and dynamic data, identifying any excess residual static imbalance
500 lb capacity Met Lab / UL approved with 52" wheel diameter and 20" rim width capability
11 balancing modes with ounce/gram selectable readout and .01 oz. resolution and accuracy
LED monitor with text instruction box for easy operator guidance and self-calibration with on-screen directions
575 Wheel Lift is air-operated with a wide platform, full-frame base, and front-mounted controls for minimal operator travel
Carriage design mirrors a two-post vehicle lift for long-term durability and superior stability
Side peg adapter storage and extra adapter storage on the lift keep accessories within reach

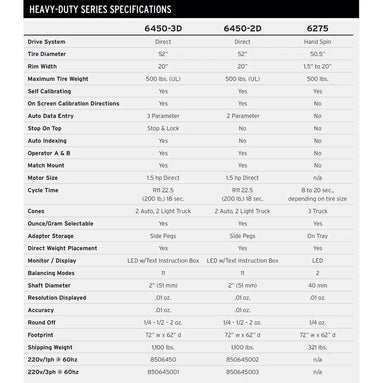

Specifications
Model: 6450-3D
Drive System: Direct
Tire Diameter: 52"
Rim Width: 20"
Maximum Tire Weight: 500 lbs (UL)
Motor Size: 1.5 hp Direct
Cycle Time: R11 22.5 (200 lb) 18 sec.
Balancing Modes: 11
Shaft Diameter: 2" (51 mm)
Resolution Displayed: .01 oz.
Accuracy: .01 oz.
Round Off: 1/4 - 1/2 - 2 oz.
Monitor/Display: LED w/ Text Instruction Box
Auto Data Entry: 3 Parameter
Stop On Top: Stop & Lock
Auto Indexing: Yes
Self Calibrating: Yes
On-Screen Calibration Directions: Yes
Match Mount: Yes
Operator A & B: Yes
Cones: 2 Auto, 2 Light Truck
Ounce/Gram Selectable: Yes
Direct Weight Placement: Yes
Adapter Storage: Side Pegs
Footprint: 72" W x 62" D
Shipping Weight: 1,100 lbs
Power (220V/3Ph @ 60Hz): 850645001
Warranty: 1 Year Parts / 6 Months Labor & Onsite Charges
Includes
1 x 6450-3D High Volume Heavy Duty Truck Wheel Balancer
1 x 575 Heavy Duty Wheel Lift
1 x Budd Wheel Adapter Kit (143935)
1 x Budd Cone and Backing Plate Kit, 2" (109877)
