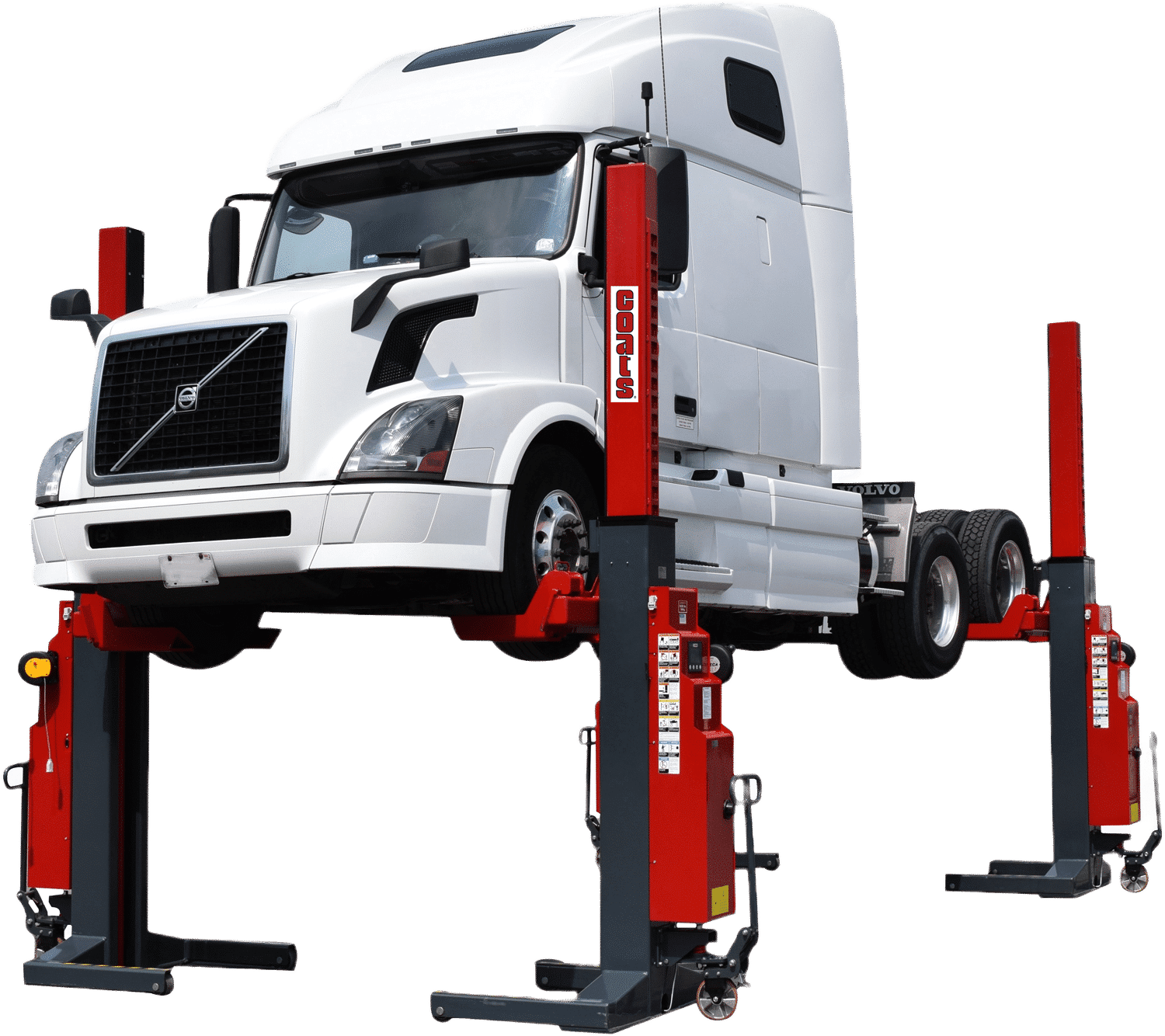

Coats 4TM19C4B 19,000 lb Mobile Column Lift elevating a Volvo semi truck

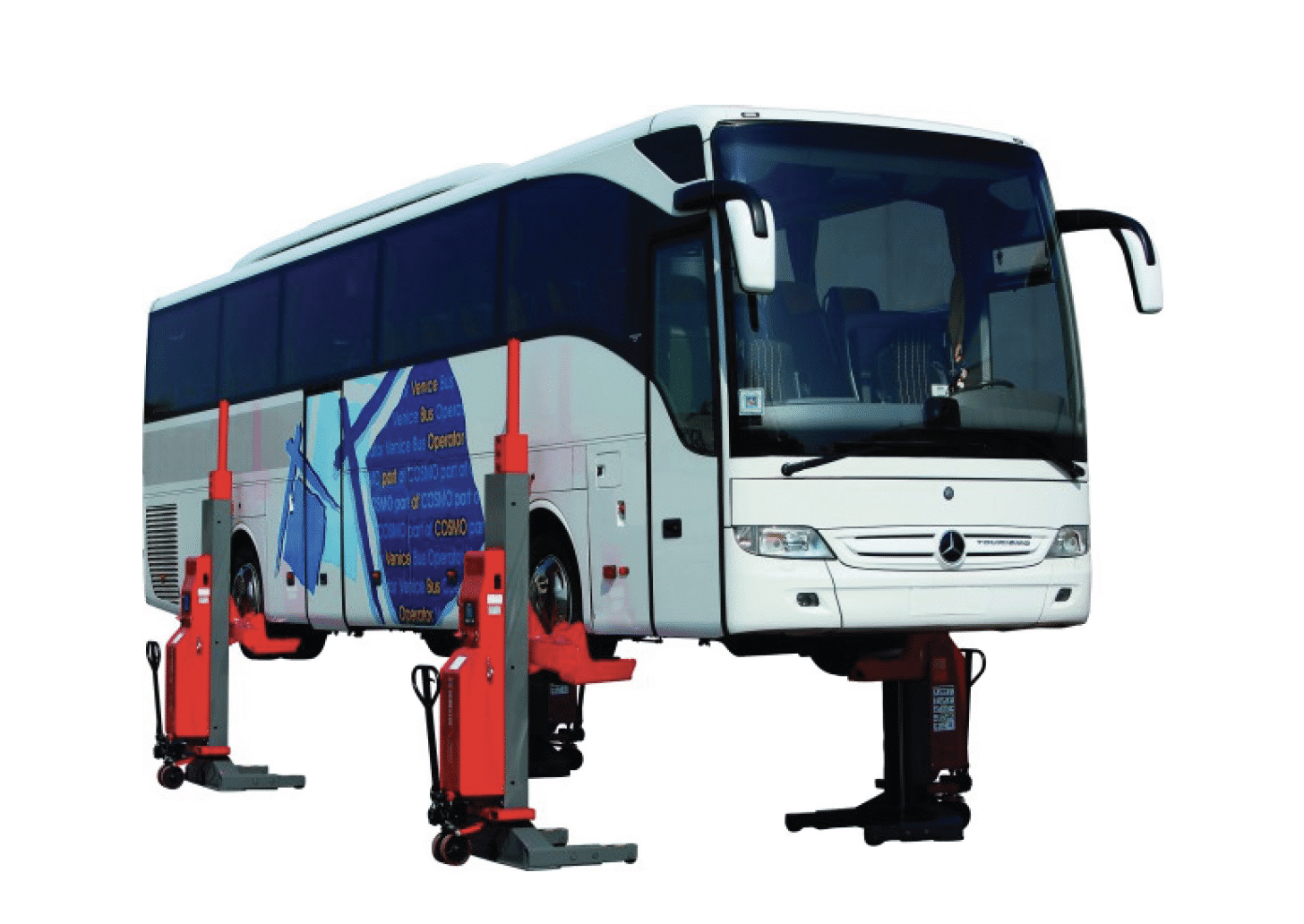

Coats Mobile Column Lift supporting a full-size Mercedes-Benz touring bus

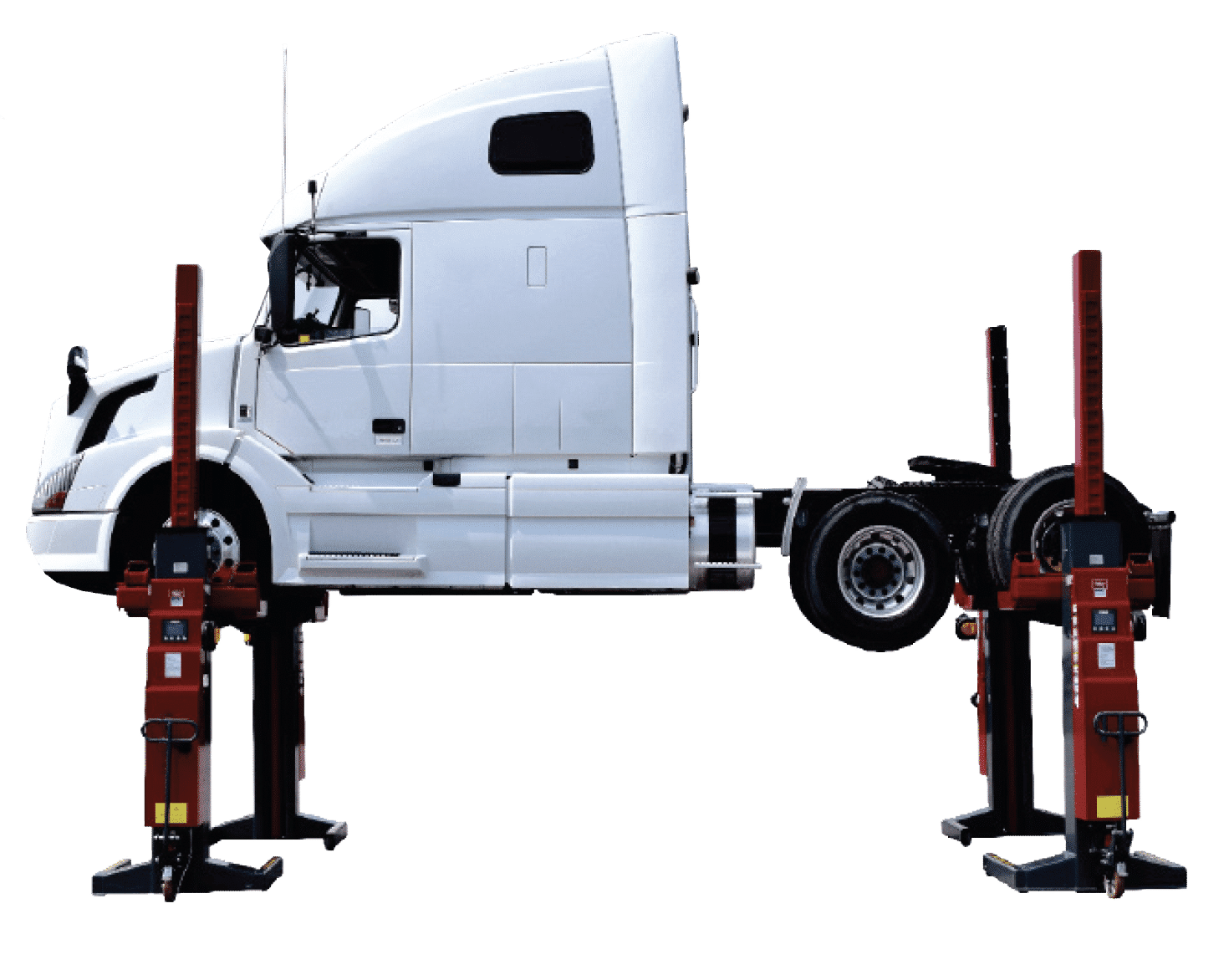

Side view of Coats 19K Mobile Column Lift with semi truck raised on four columns

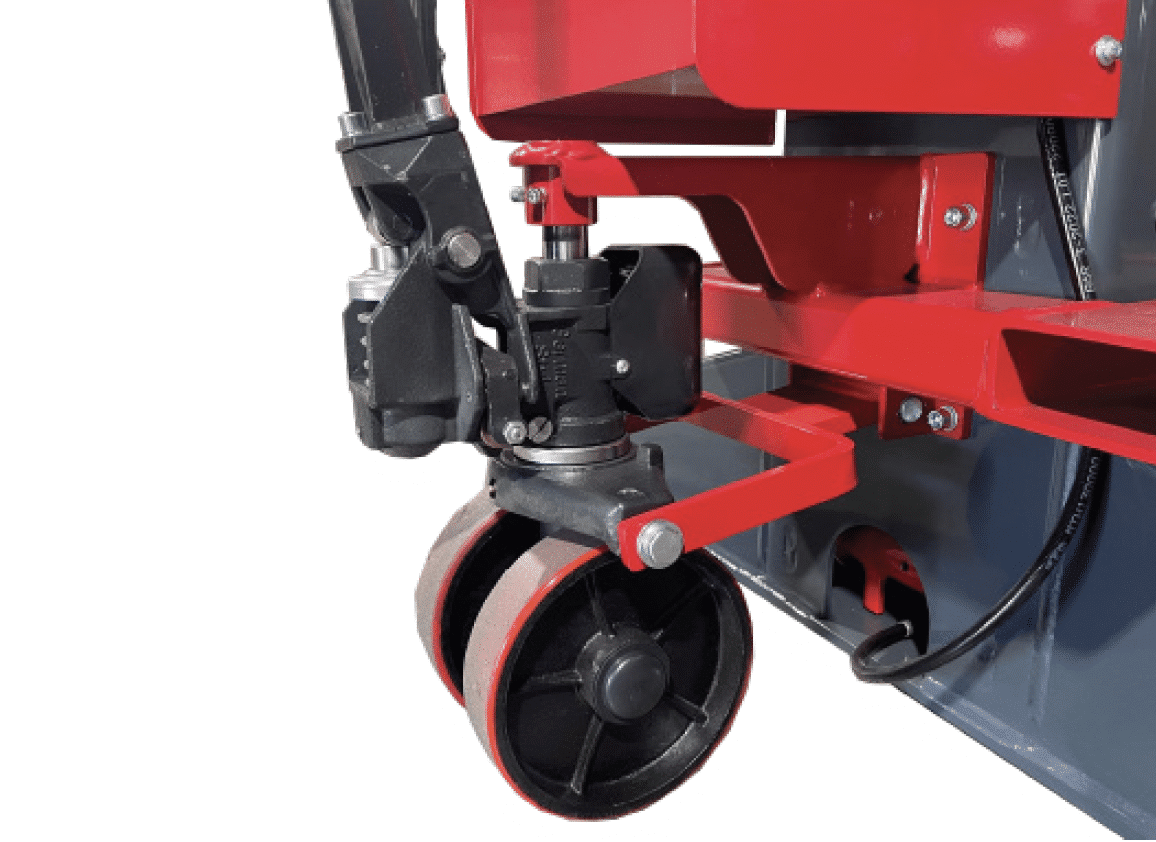

Close-up of Coats Mobile Column Lift heavy-duty steering caster wheel assembly

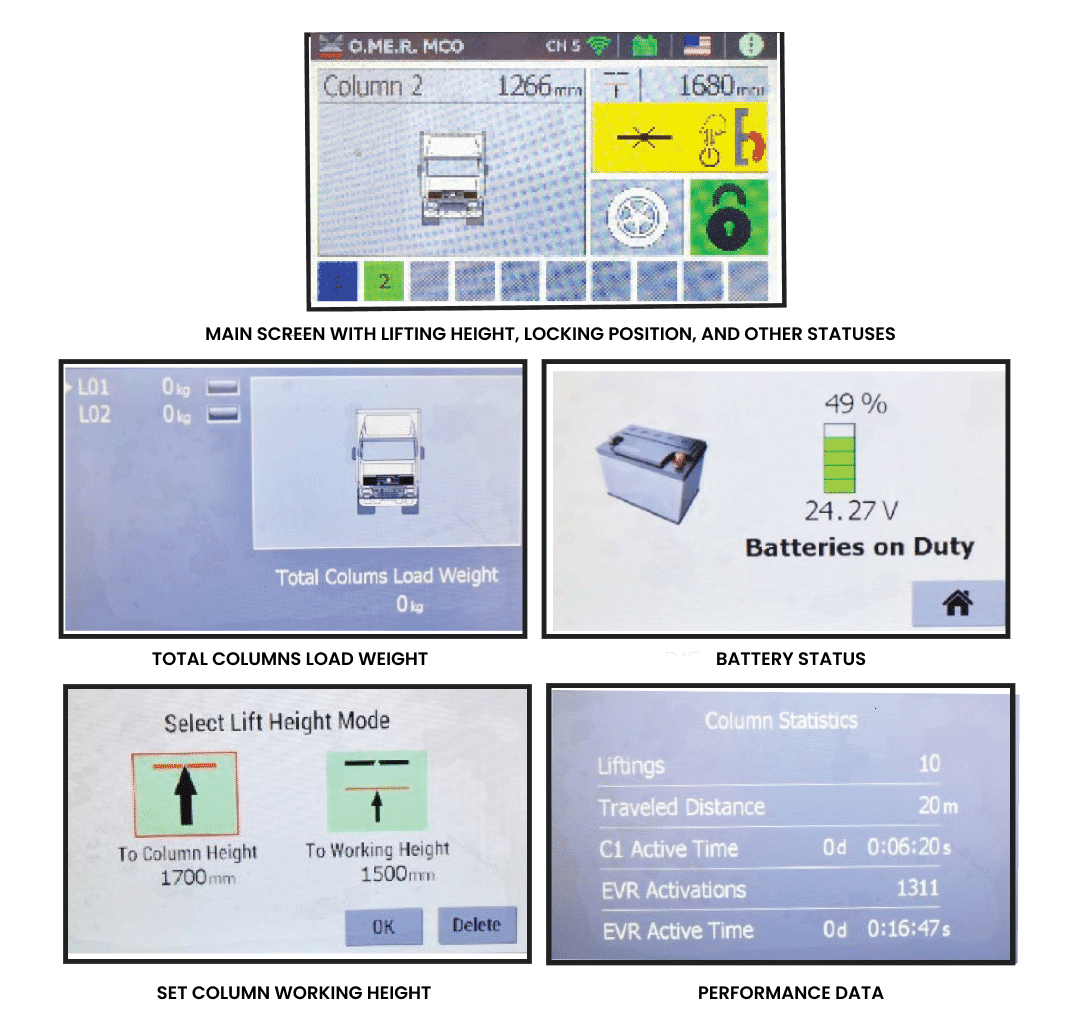

Coats 4TM19C4B 4.3-inch LCD display screens showing lift height, load weight, battery status, and performance data
Coats 4TM19C4B 19,000 lb Mobile Column Lift, 24V Wired
Coats 4TM19C4B 19,000 lb Mobile Column Lift elevating a Volvo semi truck
Coats Mobile Column Lift supporting a full-size Mercedes-Benz touring bus
Side view of Coats 19K Mobile Column Lift with semi truck raised on four columns
Close-up of Coats Mobile Column Lift heavy-duty steering caster wheel assembly
Coats 4TM19C4B 4.3-inch LCD display screens showing lift height, load weight, battery status, and performance data
Coats 4TM19C4B 19,000 lb Mobile Column Lift, 24V Wired

Coats 4TM19C4B 19,000 lb Mobile Column Lift, 24V Wired

SKU: HEN-4TM19C4B
(0)
Sale price
$133,177.08 CAD
Regular price
$166,471.35 CAD
You save
$33,294.27 CAD (20%)

Out of stock!
Get Free
Notify Me When Available

Order over the phone? Call us now.

1-800-905-0410
Found a better price elsewhere? Request Price Match
END-TO-END CUSTOMER SUPPORT
1-YEAR PRICE MATCH GUARANTEE
FREE SHIPPING WITH $199+ ORDERS
30-DAY MONEY-BACK GUARANTEE

The Coats 19,000 lb Mobile Columns Lift (4TM19C4B) is a professional-grade, four-column lifting system engineered for heavy-duty vehicle service including semi-trucks, buses, and other large commercial vehicles. Each column delivers up to 19,000 lbs of lifting capacity, providing the strength and stability needed for demanding fleet maintenance environments. Powered by a 24V battery with an onboard 110V charger, this wired configuration offers flexible shop placement without permanent installation requirements. A 4.3" full-color LCD display on each column provides real-time operational feedback, and the rugged mobile caster design allows effortless repositioning between jobs.

Features

  • Four-column mobile design eliminates the need for pits or fixed floor installations, enabling versatile shop floor deployment

  • 24V battery-powered operation with onboard 110V charger keeps columns ready for use with a convenient single-phase connection

  • 4.3" LCD display on each column shows lifting height, locking position, load weight, battery status, working height settings, and performance data

  • Heavy-duty steerable casters allow precise column positioning and easy transport across the shop floor

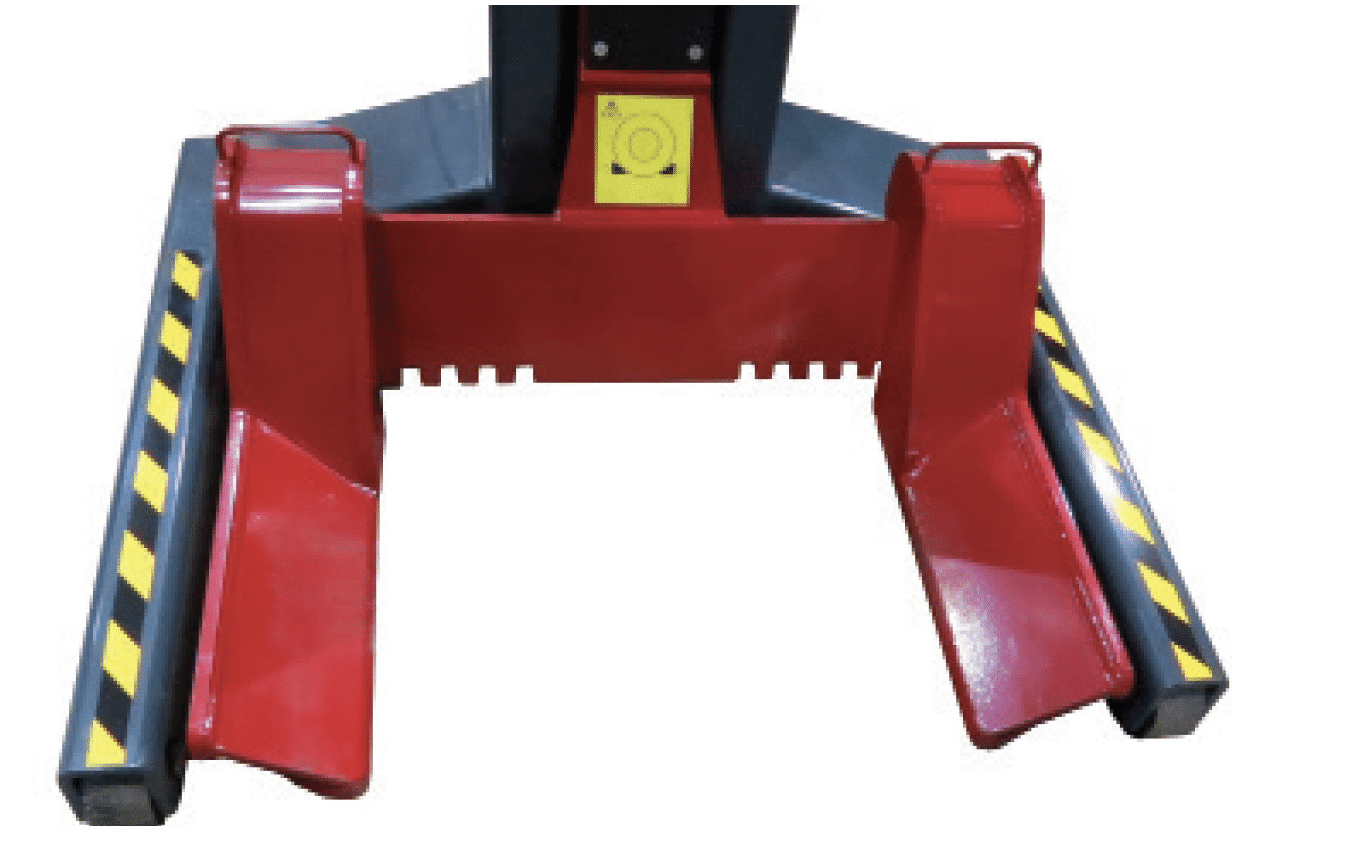

  • Adjustable forks accommodate a wide range of tire sizes from 23.6" to 53.1", supporting diverse vehicle types including semi-trucks and buses

  • Fast 85-second lift time minimizes downtime and increases technician throughput

  • Synchronized lifting across all four columns ensures safe, level elevation of the entire vehicle

Specifications

Part Number: 4TM19C4B
Configuration: 24V Battery Wired with onboard 110V charger and 4.3" LCD
Lift Capacity (per column): 19,000 lbs
Number of Columns: 4
Lift Time: 85 seconds
Compatible Tire Sizes: 23.6" - 53.1"
Adjustable Forks: 15.3"
Charging Requirements: 110V
Battery Voltage: 24V
Footprint (per column): 45.3"W x 45.5"D x 89.8"H
Display: 4.3" LCD
Brand: Coats Company (Hennessy Industries)
