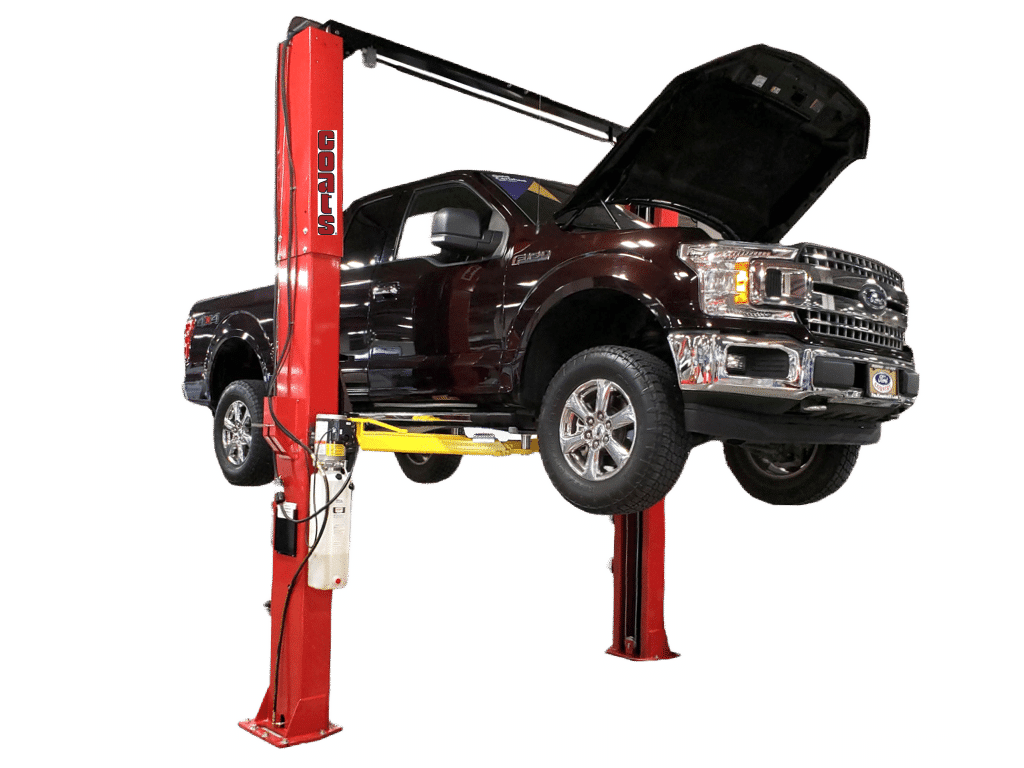

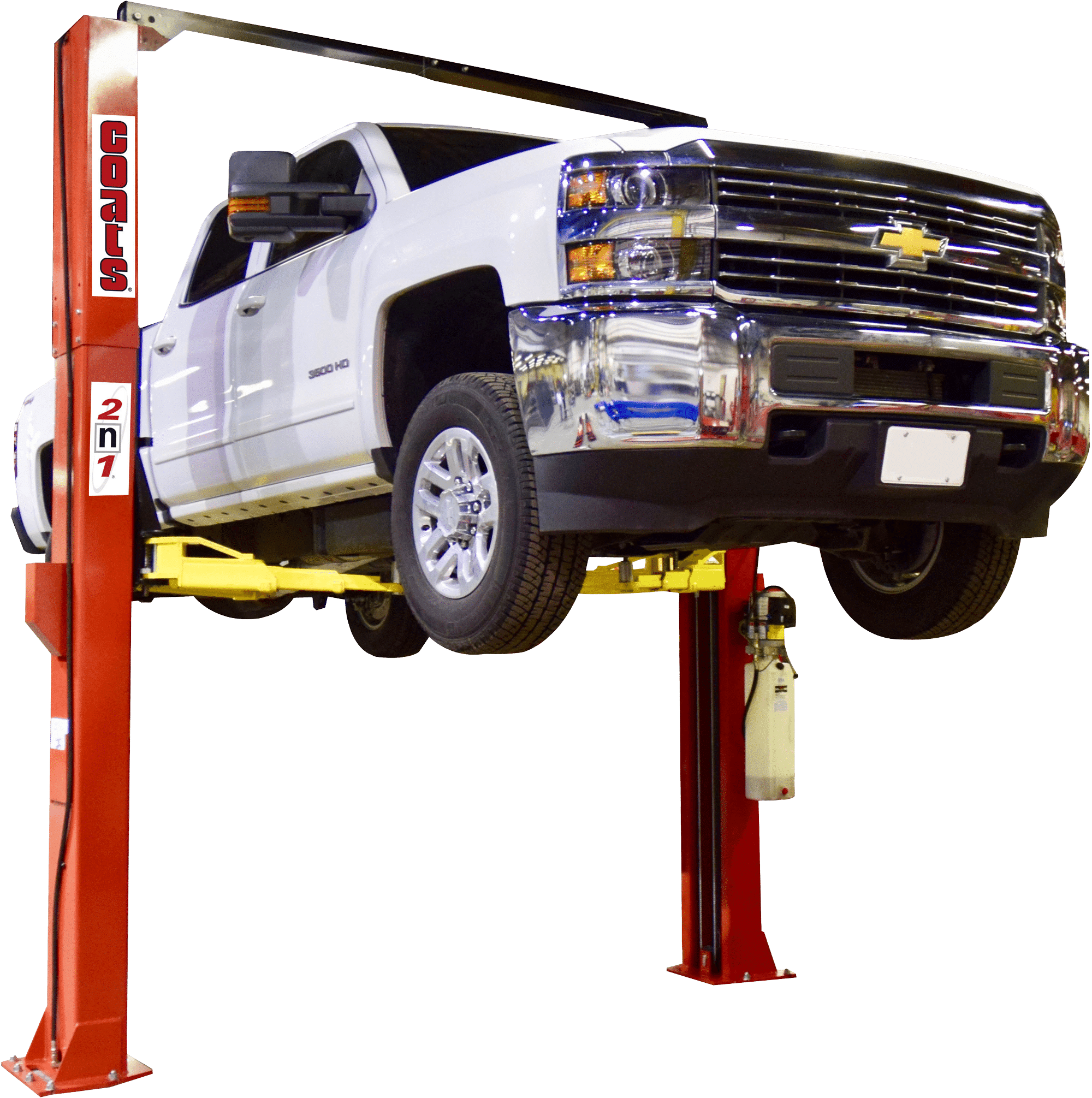

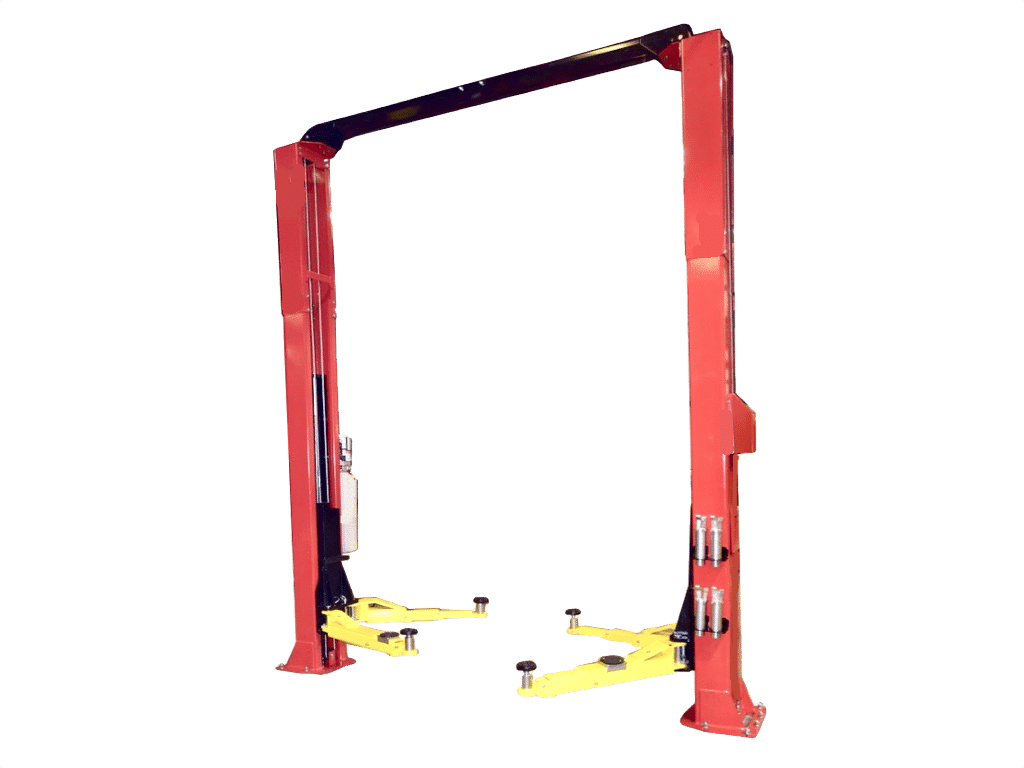

The Coats 4T212SSR1 is a professional-grade 12,000 lb symmetrical two-post vehicle lift engineered for automotive service and repair facilities. Designed for demanding shop environments, it delivers a raised height of 77 inches and a fast 75-second lift time, maximizing technician productivity. Built with a robust steel construction and a durable powder-coat finish, this lift is rated for continuous heavy-duty use. Its 3-piece offset front and rear lifting arms accommodate both asymmetric and symmetric vehicle loading, making it a versatile choice for a wide range of passenger vehicles and light trucks.
Features

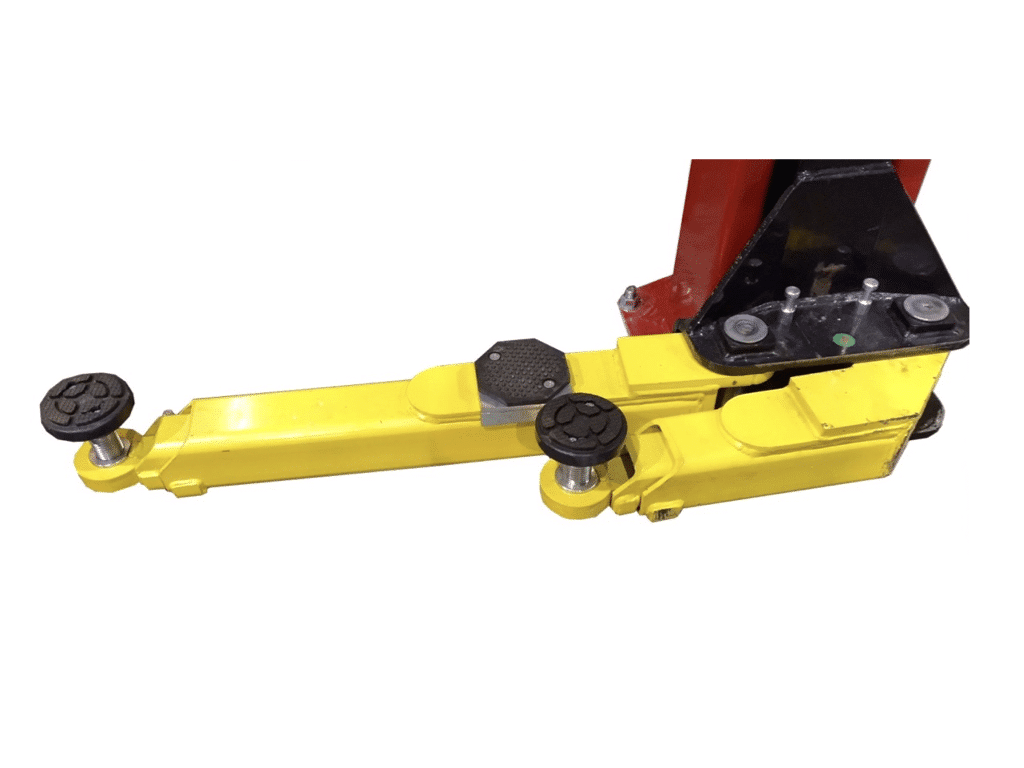

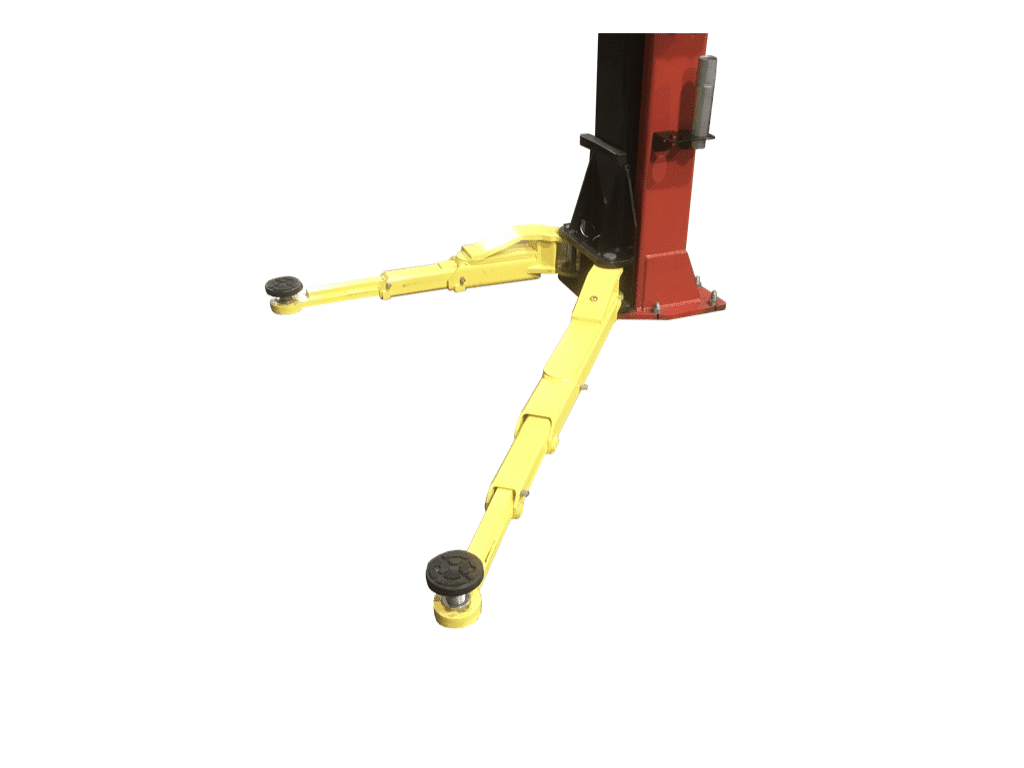

3-piece offset front and rear lifting arms provide easy access to approved lift points for both asymmetric and symmetric vehicle loading
Reinforced carriage arm pin holes deliver enhanced durability under repeated heavy-load cycles
Plated gear-style arm restraints ensure secure arm positioning throughout the lifting operation
Symmetrical loading configuration supports a wide range of passenger vehicles and light trucks
Selectable drive-thru width of 89 1/8" or 105 5/8" accommodates varying bay layouts and vehicle sizes

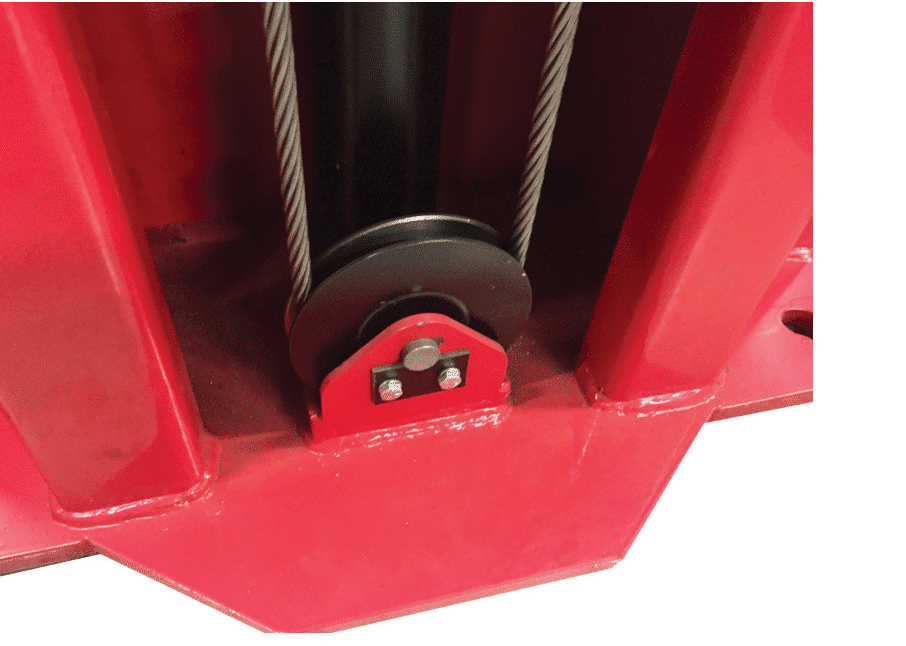

Heavy-duty cable and pulley synchronization system maintains consistent, balanced carriage travel between columns

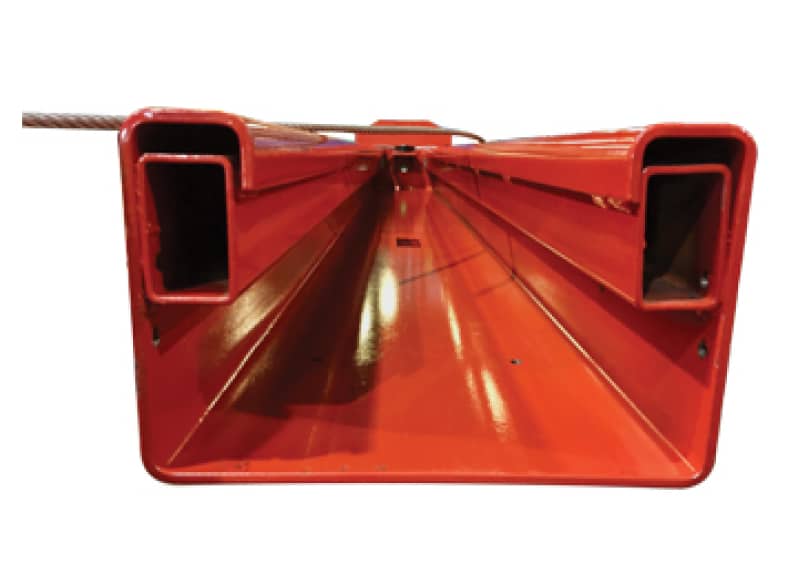

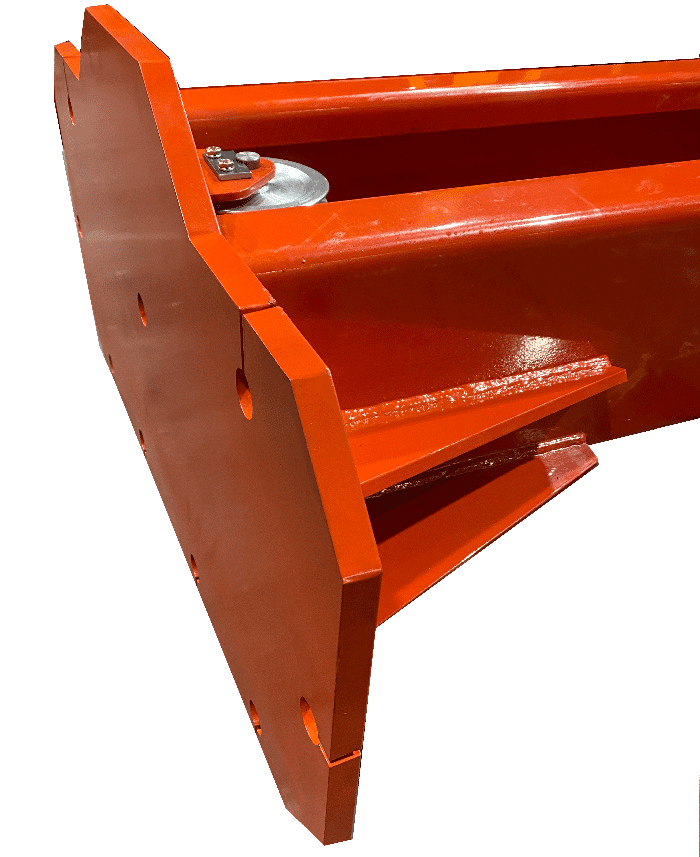

Wide, gusseted column base provides a stable, secure floor footprint for long-term installation
Specifications
Model: 4T212SSR1
Lift Type: Two-Post, Symmetrical
Lifting Capacity: 12,000 lbs (5,443 kg)
Overall Height: 158 7/8"
Raised Height: 77" (196 cm)
Lift Time: 75 seconds
Drive-Thru Width: 89 1/8" or 105 5/8"

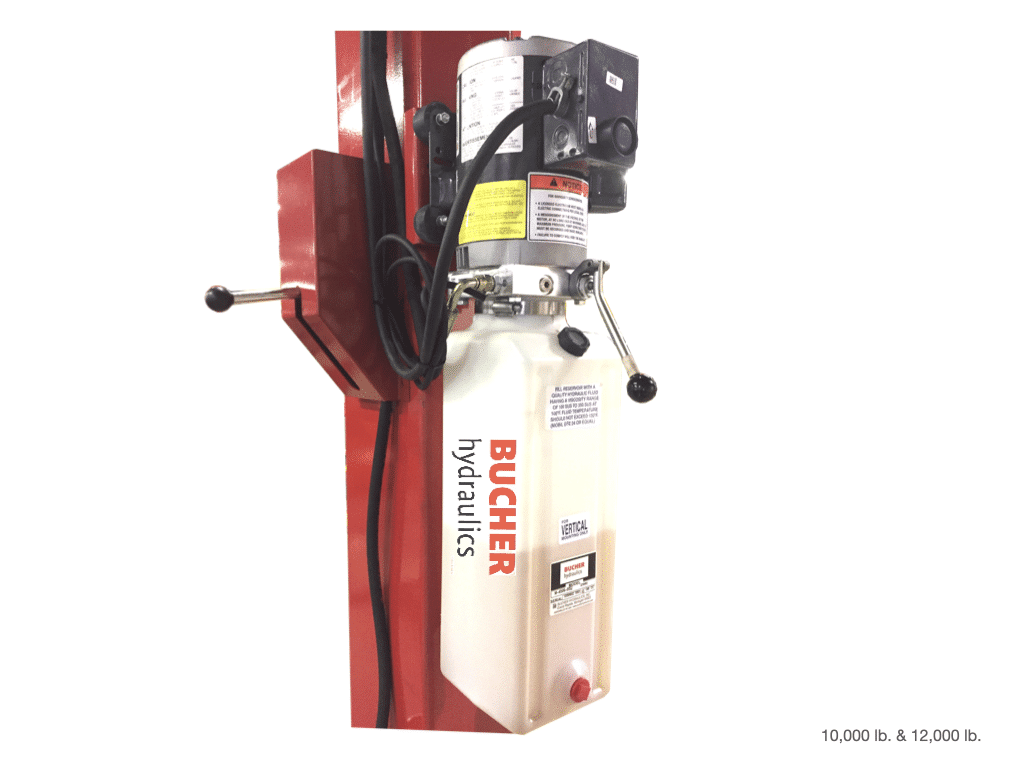

Power Requirements: 230V - 60 Hz - 1 Ph - 20 Amp
Footprint (Symmetric Model): 145 1/8"W x 20.5"D x 154 7/8"H
Brand: Coats (Hennessy Industries)
