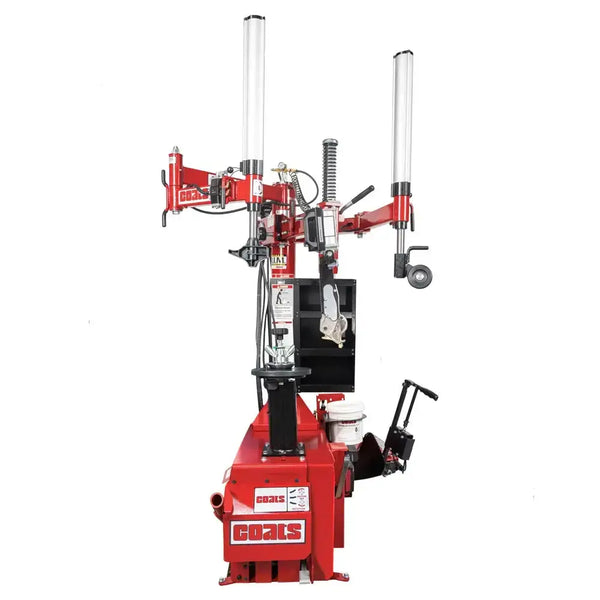

The Coats 90C Air Center-Clamp Tire Changer (Model 80090CAH3) is a professional-grade tire changing machine engineered for high-volume automotive and light truck service environments. Designed to handle alloy and steel wheels from 12 to 30 inches in rim diameter, this machine builds on the trusted legacy of Coats swing-arm tire changers while introducing advanced center-locking technology to minimize metal-to-metal contact and protect customer wheels. Powered by a 1.5 HP air motor and equipped with a leverless Duckhead mount/demount tool, RoboRoller powered assist, and an auxiliary bead sealer as standard features, the 90C delivers exceptional performance on even the most challenging tire applications. Its robust construction, comprehensive helper devices, and three-year parts warranty make it a dependable long-term investment for any professional tire shop.
Features

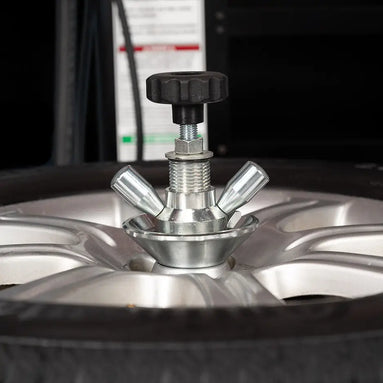

Center Locking Clamp Design: Easy-to-use center locking mechanism is fast, robust, and helps prevent metal-to-metal contact with customer wheels

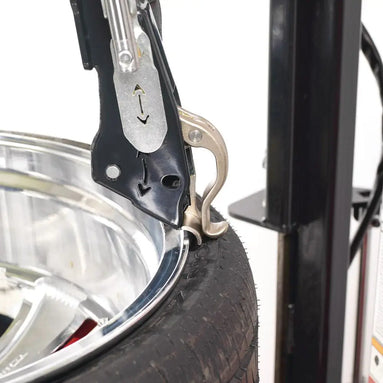

Leverless Duckhead Mount/Demount Tool: Acts as a helper device and eliminates traditional tire tools that can mar wheel surfaces due to application difficulty -- no tire bar necessary

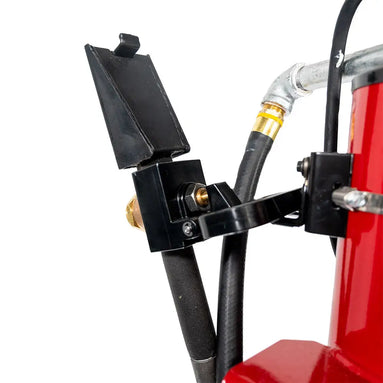

Auxiliary Bead Sealer (ABS): Taps into the tire changer's surge tank to provide additional bead seating volume, assisting with sealing difficult applications
RoboRoller Powered Assist: Provides additional power when mounting difficult tires by preventing the bead from rolling back over the mount tool
Robo-Arm Helper Device: Delivers 18 inches of automated vertical stroke for enhanced assist during challenging tire changes
Hand Control Bead Loosening System: Power In/Out and Freeze functionality for precise bead breaking control
5.4-Gallon Bead Seating Air Volume: Built-in surge tank in the tower provides ample air volume for reliable bead seating
Specifications
Type: Tire Changing Machine
Wheels Handled: Alloy and Steel for Car and Light Truck
Rim Diameter: 12in - 30in
Maximum Tire Diameter: 50in
Maximum Rim Width: 15in
Bead Loosening System: Hand Control - Power In/Out and Freeze
Wheel Clamping System: Center Clamp with Manual Lock
Mount/Demount Mechanism: Leverless Duckhead® Mount/Demount Tool - no tire bar necessary
Helper Devices: Robo-Arm (18in Automated Vertical Stroke), RoboRoller
Bead Seating Air Volume: 5.4 Gallons in Tower
Inflation Gauge: 0 - 60 psi
Air Supply Gauge: 0 - 300 psi
Air Drive System: 1.5 HP Air Motor, 110 - 175 psi, 15 scfm
Footprint: 74"W x 88"H x 65"D
Ship Weight: 700 lbs
Warranty: 3-Year Parts, 6 Months Labor
Includes
1 x Auxiliary Bead Sealer (ABS) (85606545)
2 x Bead Loosener Shoe Socks (8183606)
1 x Paste Lube Bracket & Brush (85009048)
2 x Protection Cone for Center Lock (83019057)
1 x Leverless Duckhead® Mount/Demount Tool Plastic Inserts (89233409)
1 x Paste Lube (8183710)
1 x Anti-Rotation Extension Pin (83031335)
1 x Light Truck Cone - 5.86in Center Bore (83032475)
2 x Rubber Protection Pad (89231517)
1 x Premium Storage Cabinet (85610105)
