Coats 4TS14OSSR1FM 14K Scissor Alignment Lift, Flush Mount, Red

SKU: HEN-4TS14OSSR1FM
(0)
Sale price
$39,519.79 CAD
Regular price
$49,399.74 CAD
You save
$9,879.95 CAD (21%)

Only 1 left! Usually ships in 24 to 48 hours.
Est. Arrival Jun 29 - Jul 01
Pickup available at Montreal Warehouse

Usually ready in 4 hours

Check availability at other locations
Get Free

Order over the phone? Call us now.

1-800-905-0410
Found a better price elsewhere? Request Price Match
END-TO-END CUSTOMER SUPPORT
1-YEAR PRICE MATCH GUARANTEE
FREE SHIPPING WITH $199+ ORDERS
30-DAY MONEY-BACK GUARANTEE

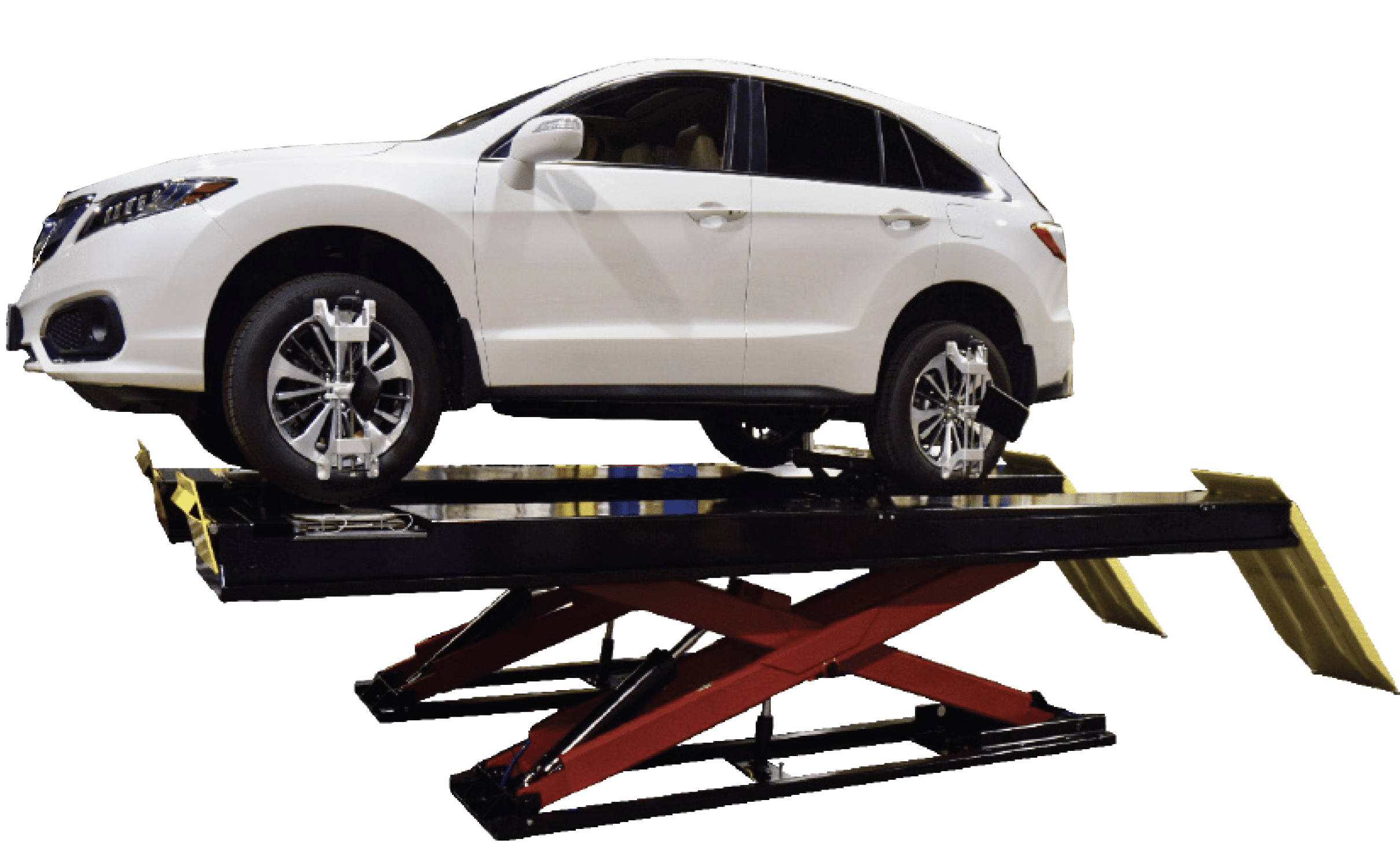

The Coats 14K Scissor Lift (Model 4TS14OSSR1FM) is a premium 14,000 lb capacity alignment lift engineered for professional automotive service environments. Designed in a flush mount configuration, this lift sits level with the shop floor for seamless vehicle drive-on access and an unobstructed work area. Built for high-throughput shops, the lift achieves full raised height in just 58 seconds, minimizing downtime between service jobs. Durable heavy-steel construction and dual hydraulic cylinders ensure reliable, long-term performance in demanding commercial settings.

Features

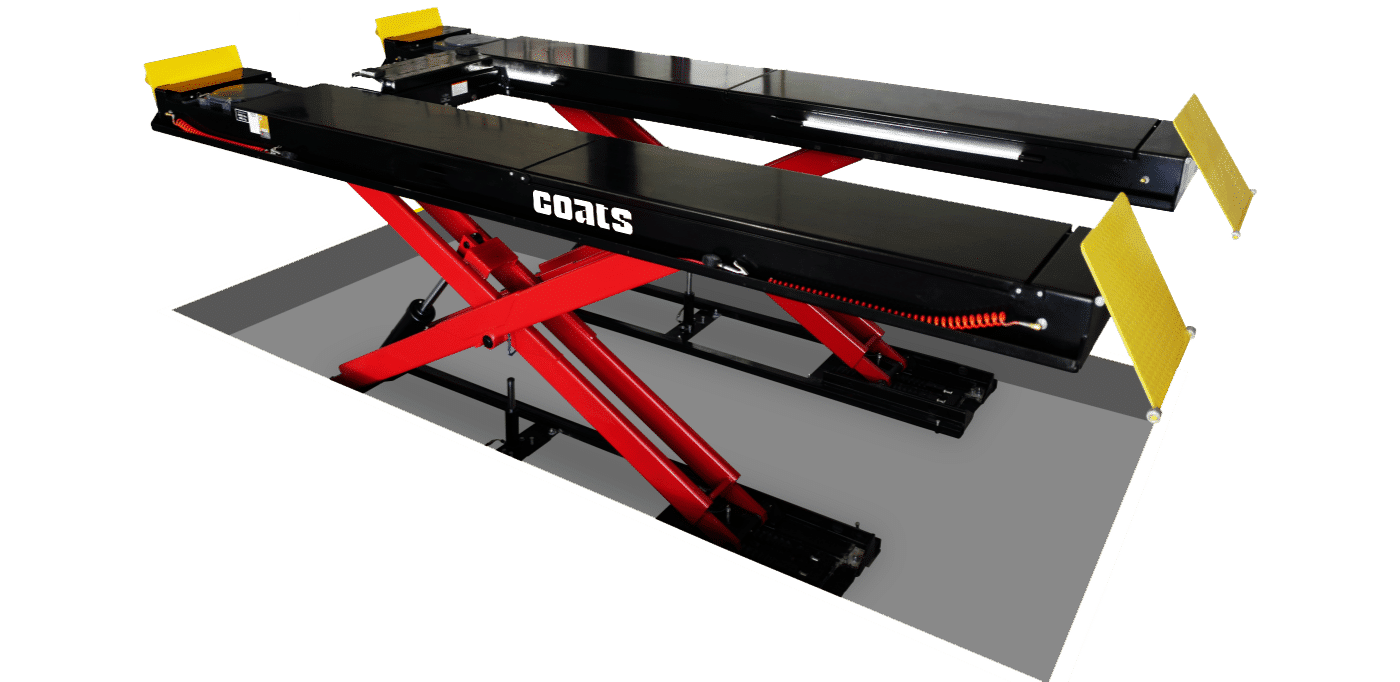

  • Flush mount design allows installation level with the shop floor for easy vehicle drive-on and a clean bay appearance

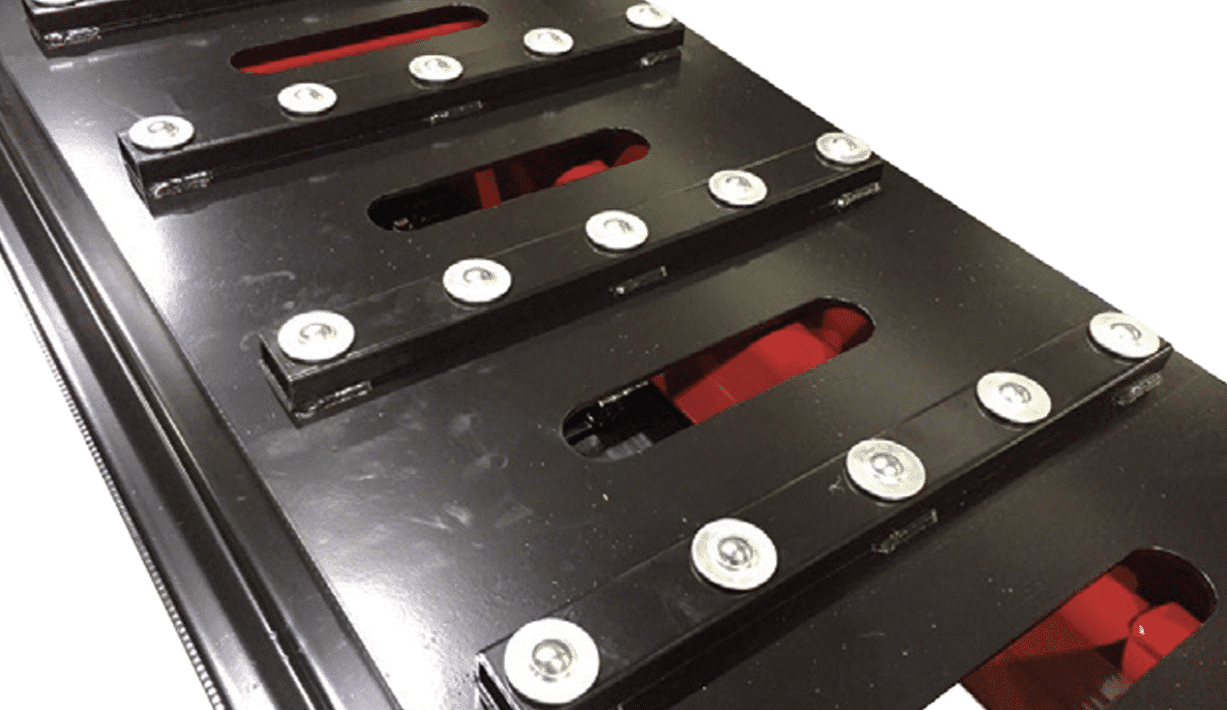

  • Open runway slots in the service deck provide clear access to the vehicle undercarriage for alignment and suspension work

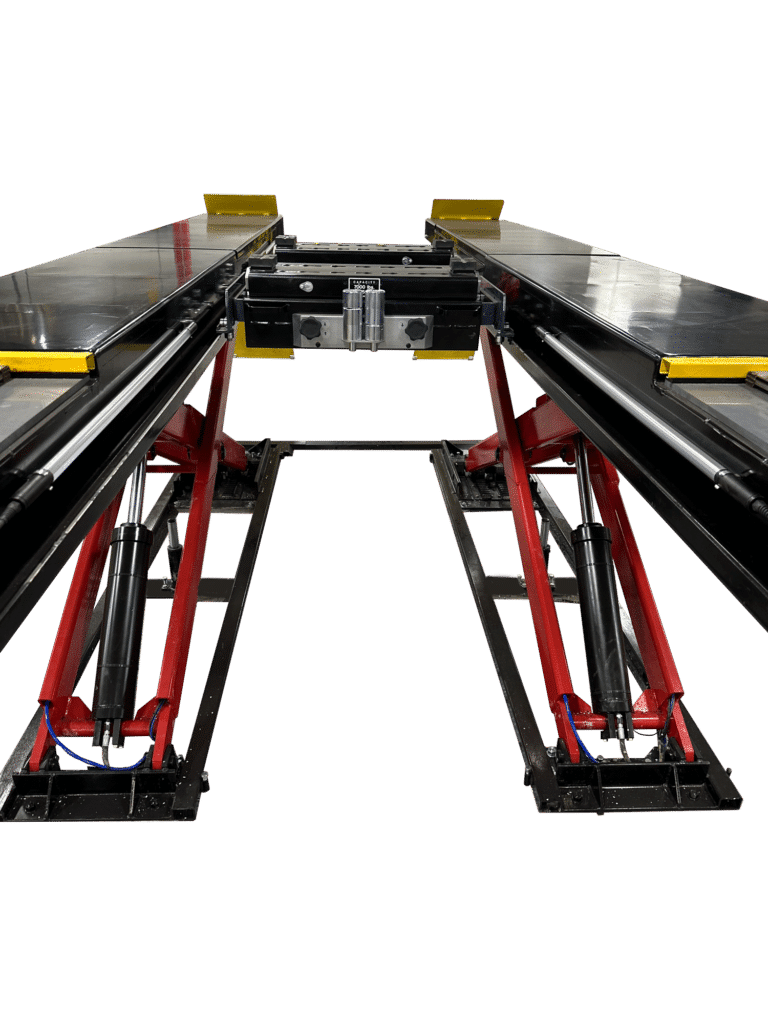

  • Dual hydraulic cylinders deliver powerful, synchronized lifting with consistent performance across the full 14,000 lb capacity

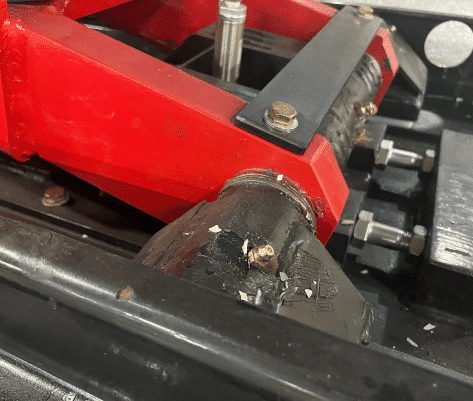

  • Zerk grease fittings at pivot points allow for straightforward routine maintenance and extended service life

  • Yellow-highlighted approach ramps and deck edge guards improve visibility and driver guidance during vehicle loading

  • Robust red-painted scissor mechanism and black powder-coated deck provide corrosion resistance and a professional finish

Specifications

Lift Capacity: 14,000 lbs
Model Type: Flush Mount
Deck Length: 203"
Overall Length: 260 3/4"
Raised Height: 74"
Footprint: 91.5"W x 260.75"D x 74"H
Lift Time: 58 seconds
Ceiling Height Requirement: 12'
Power Requirements: 230V
Shipping Weight: 6,230 lbs
Surface Mount Part Number: 4TS14OSSR1
Flush Mount Part Number: 4TS14OSSR1FM
