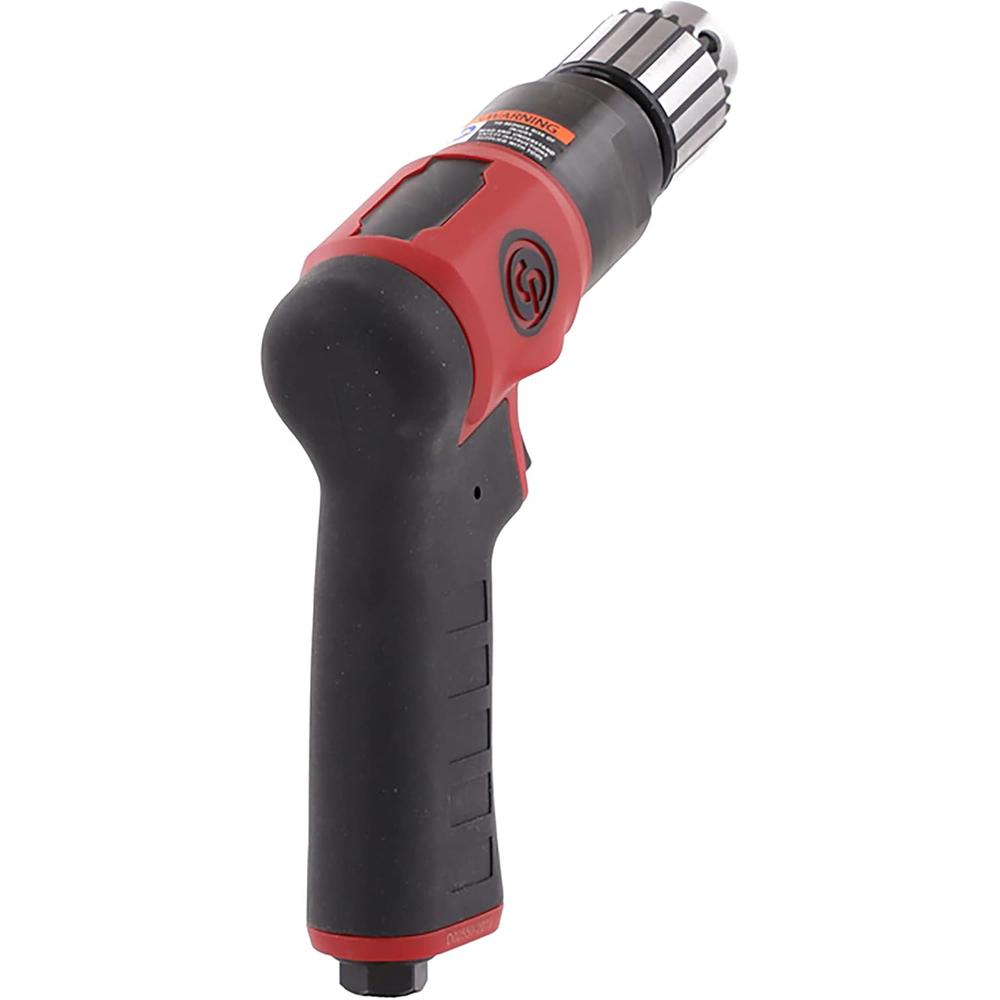

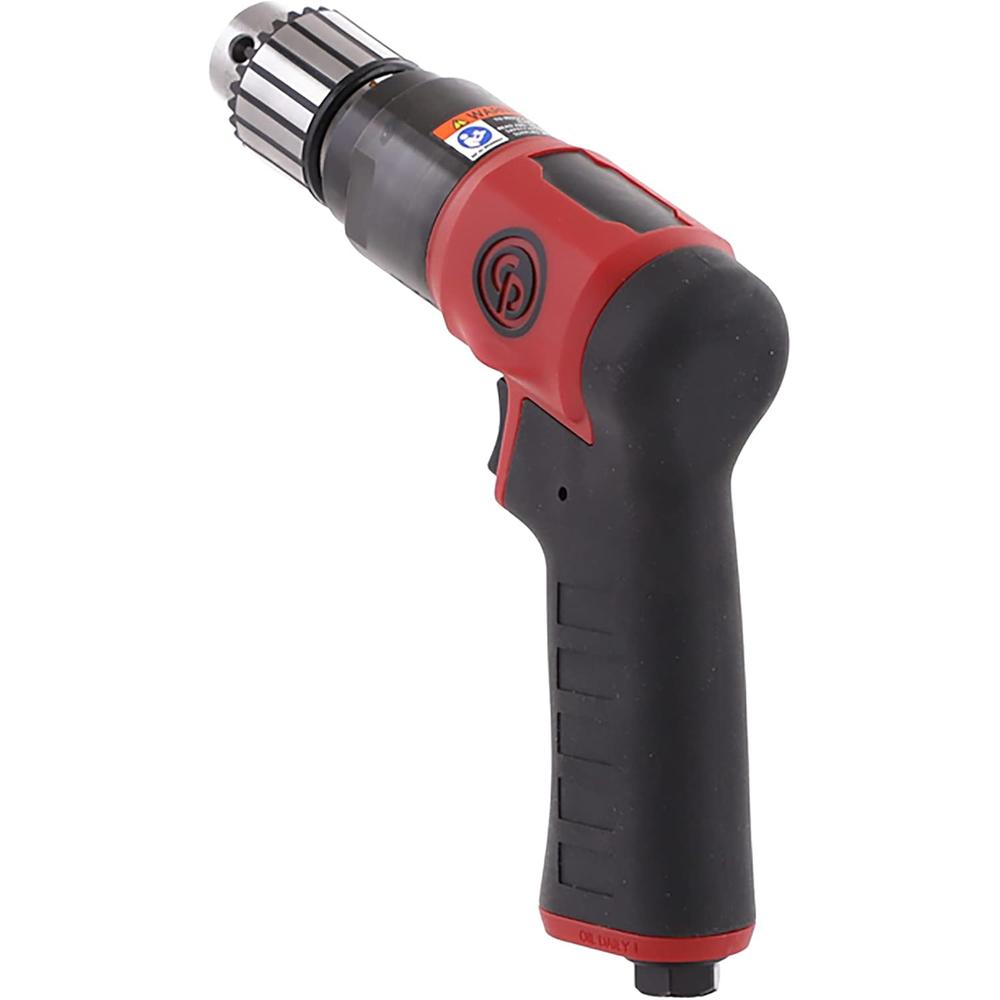

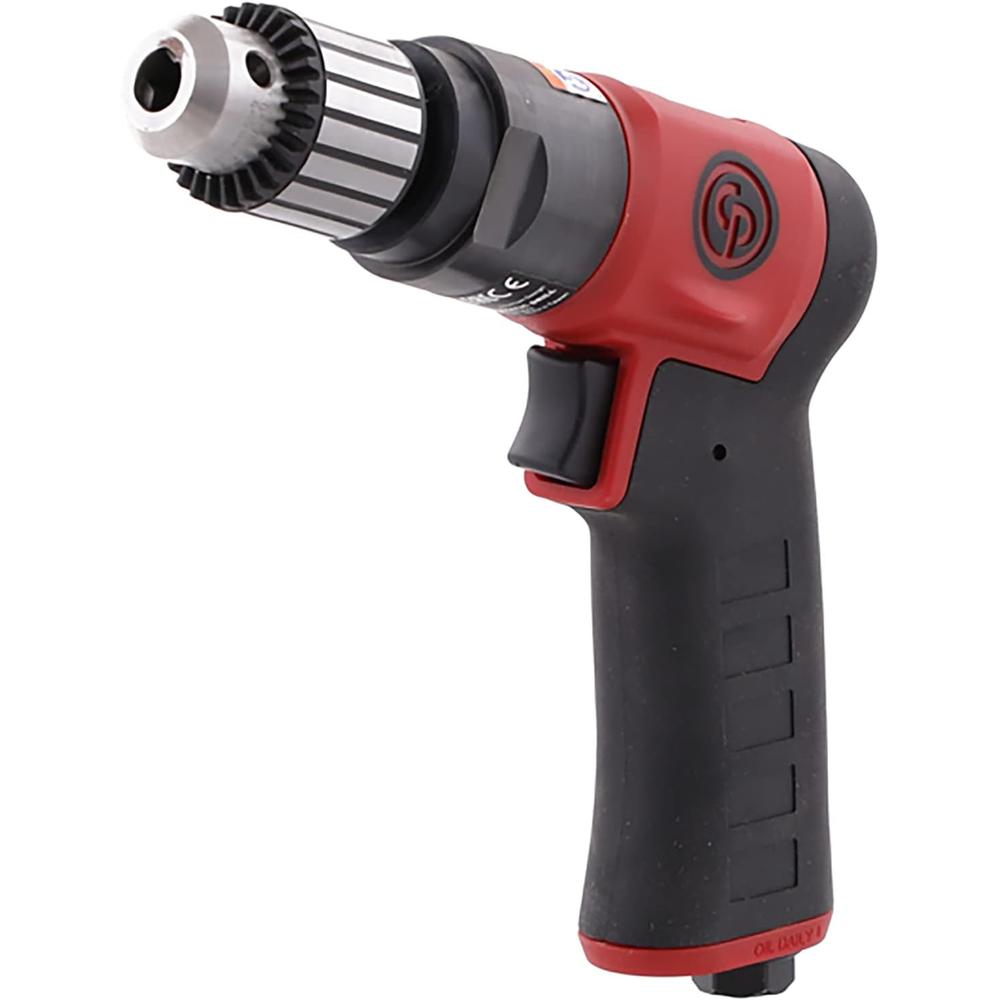

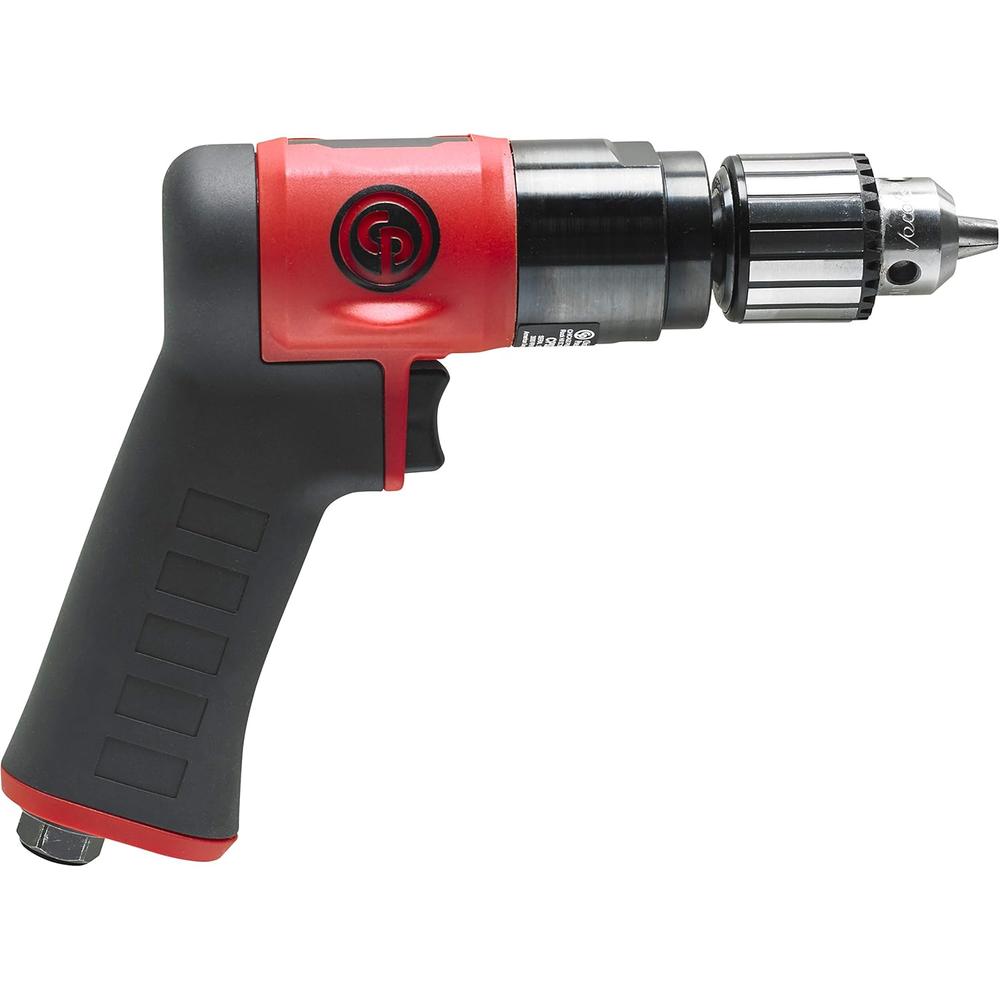

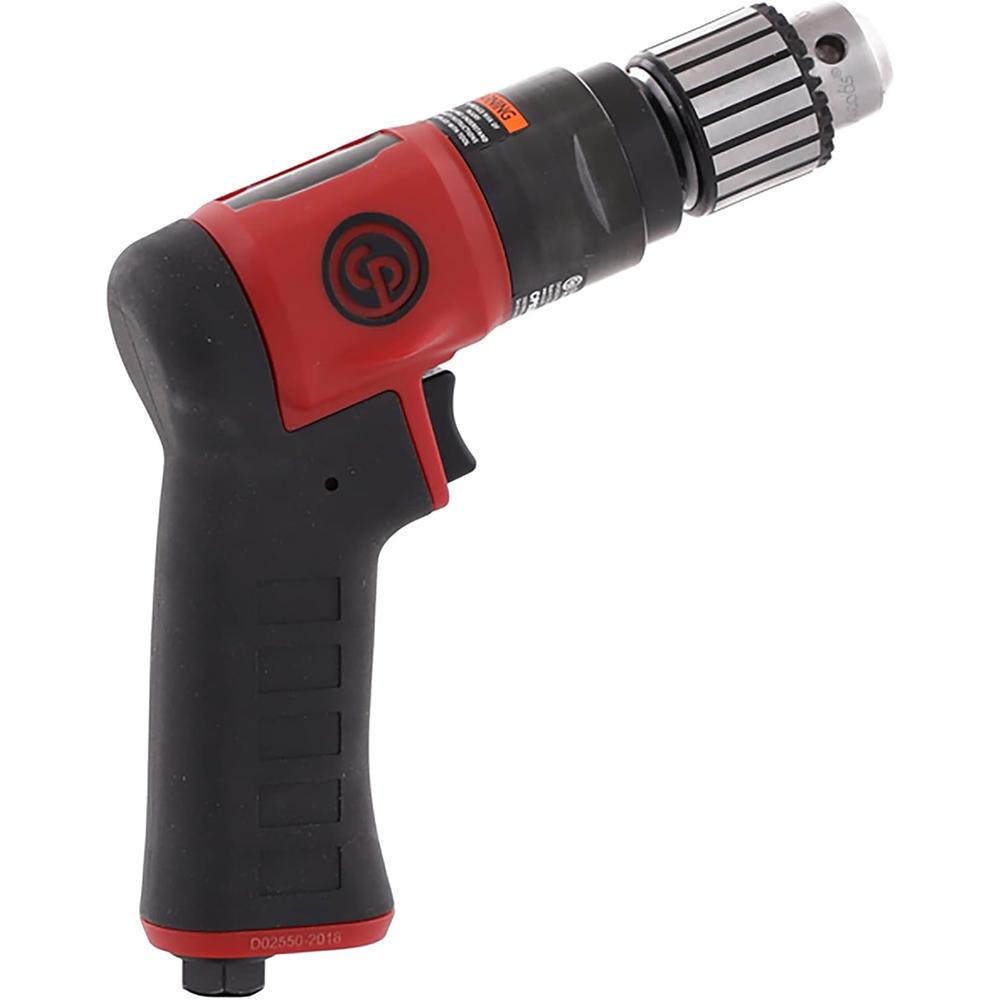

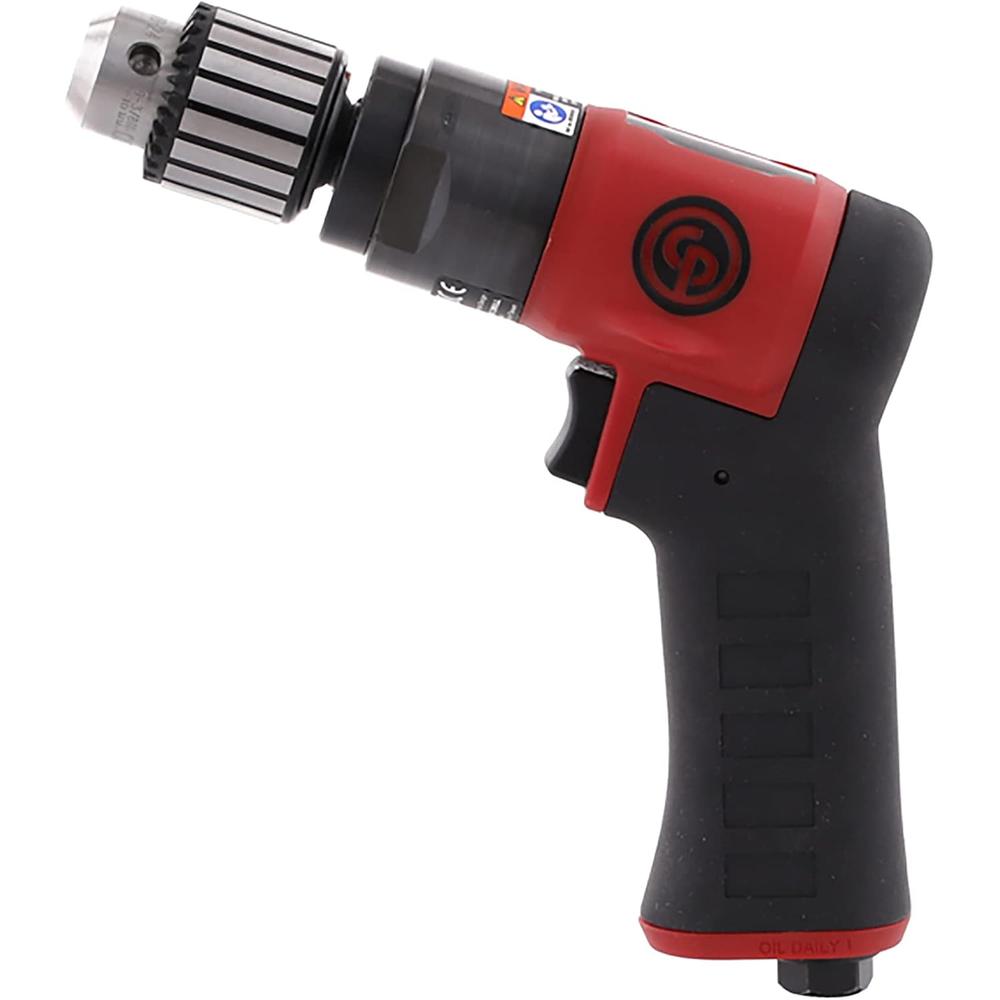

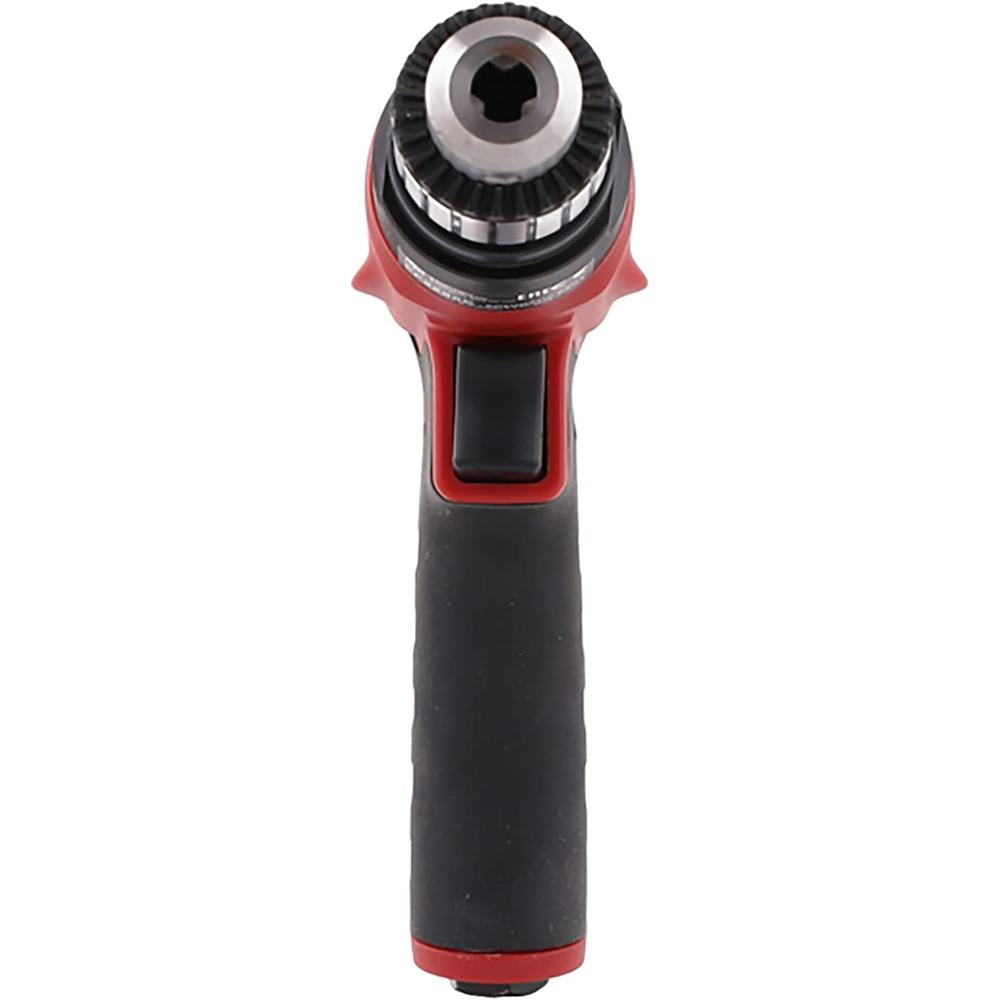

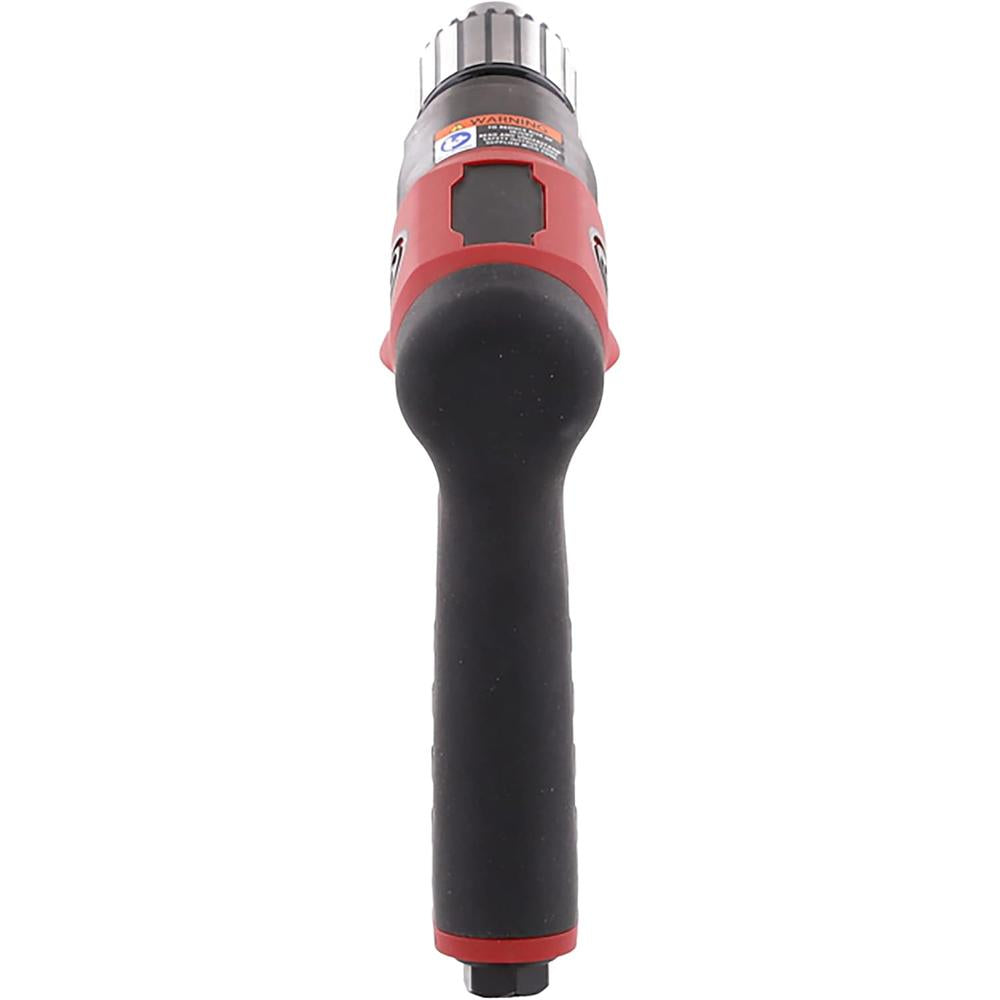

3/8 Composite Air Drill with Jacobs Chuck
Features
Composite housing with thermoplastic rubber handle grip
Wings on right & left sides to guide the forefinger
Large teasing trigger and progressive valve allowing more control to start holes
Low speed gear box
Flat back part for better pushing action while drilling and tapping
Handle exhaust allowing the air to flow away from the operator
Supplied with high quality industrial Jacobs® chucks for longer use-
Keyed Metal
Excellent for drilling, honing, reaming and hole sawing
Specifications
Model: CP9285C
Part number: 8941092850
Actual air consumption: 10 l/s (21 cfm)
Air inlet thread size: 1/4"
Average air consumption: 3.25 l/s (6.9 cfm)
Box dimensions: 242.5x172.5x53.5 mm (9.5x9.8x2.1")
Chuck capacity: 10 mm (3/8")
Collet / spindle size: 3/8-24 "
European Directives: 2006/42/EC (17/05/2006)
European Sound standard: ISO 15744
European Standards: EN ISO 11148-3:2012
Free speed: 3000 rpm
Free speed air consumption: 13 l/s (27.5 cfm)
Height: 150 mm (5.9")
Length: 209 mm (8.2")
Min. hose size: 10 mm (3/8")
Net weight: 1.09 kg (2.4 lbs)
Over carton: 1200x800x630 mm (47.2x31.5x24.8")
Power: 460 W (0.6 hp)
Side to center: 51 mm (2")
Sound Power: 94.7 db(A)
Sound pressure: 83.7 db(A)
Stall torque: 5 1/2 Nm (4.1 ft.lbs)
Vibration: <2.5 m/s²
Vibration ISO: ISO-28927-5
