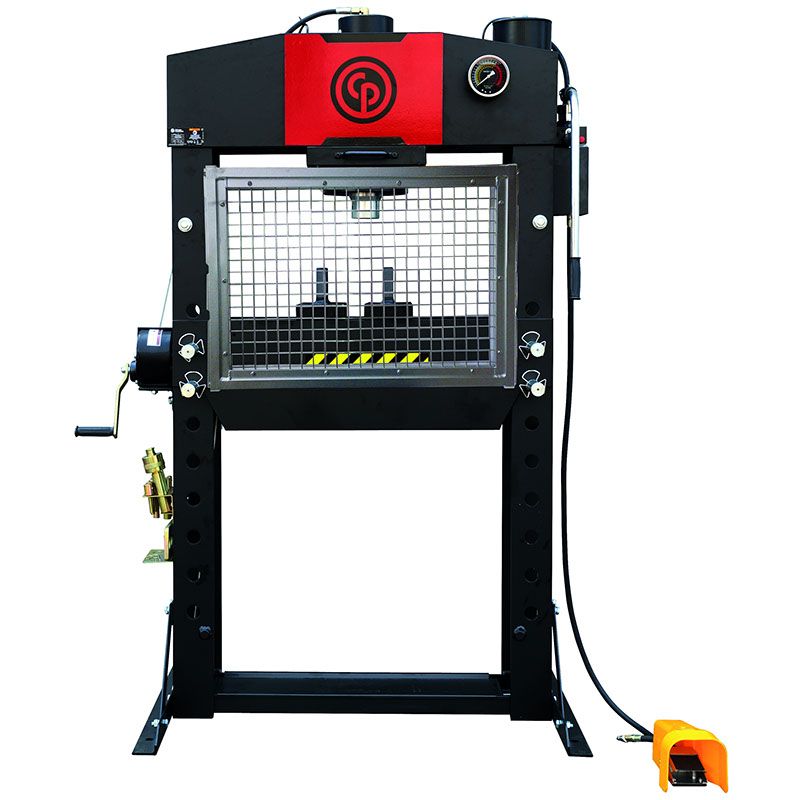

The Chicago Pneumatic CP86751 is a heavy-duty 75-ton pump-driven workshop press engineered for demanding industrial pressing, straightening, and assembly applications. Built from robust steel construction, this press delivers a maximum compression force of 165,000 lb, making it well suited for automotive, manufacturing, and general workshop environments. The moveable cylinder design provides exceptional operational flexibility, while the adjustable workbench and foot pedal control enable precise, efficient pressing cycles. Certified to CE, TUV, and ASME standards, the CP86751 is a reliable and safety-compliant solution for professional workshop use.
Features
Moveable cylinder design ensures flexibility for a wide range of pressing tasks
Easy-to-reach foot pedal enables quick cylinder descent for fast, controlled operation
Rubber grip handle for comfortable and secure manual operation
Adjustable workbench with 8 positions accommodates varying workpiece heights
Large gauge displays readings in both short and metric tons for straightforward pressing control
CE, TUV, and ASME certified for compliance with international safety and quality standards
Protection cage compatible (cage not included -- see accessories) for enhanced operator safety
Specifications
Model: CP86751
Compression Force: 165,000 lb (75 tons)
Hydraulic Stroke: 9.84 in
Oil Capacity: 0.3 in³
Dimensions (L x W x H): 212 x 110 x 41 cm
Weight: 1,090 lb (516.19 kg)
Main Material: Steel
Certifications: CE, TUV, ASME
Drive Type: Pump Driven
Includes
2 V Blocks
1 Quick Chuck
8 Punches
