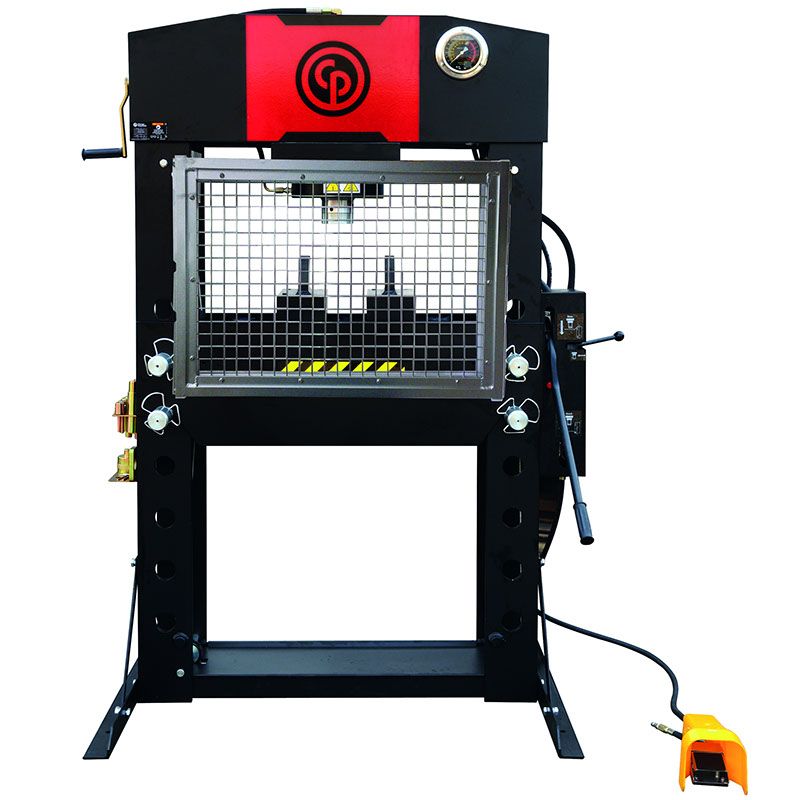

The Chicago Pneumatic CP86101 is a heavy-duty, 100-ton (110.24 short tons) pneumatic pump-driven workshop press engineered for demanding industrial pressing, straightening, and assembly operations. Powered by a foot-operated air pump, the press delivers fast, effortless force application with precise control over every stroke. Its robust, durable steel frame is built to withstand the rigors of professional workshop environments. CE and ASME certified, the CP86101 meets the highest standards of safety and performance for North American industrial applications.
Features
Pneumatic foot-driven pump enables fast, easy operation without manual hand pumping
2-step stroke system: closed position delivers a full stroke for quick approach; open position provides a small, high-precision stroke for fine load tuning
Durable, robust steel frame construction for long service life in heavy-duty applications
2 holes in each floor foot for secure anchoring to the ground, ensuring maximum stability during high-force operations
2 dismountable steel rods adjustable to the bench with a dedicated winch, allowing single-operator use
Large pressure gauge reads in both short tons and metric tons for versatile measurement
Easy-to-use handle with rubber grip for comfortable, controlled operation
CE and ASME certified for compliance with international and North American safety standards
Marketed exclusively in North America
Specifications
Model: CP86101 US
Part Number: 8941086101
Capacity: 100 metric tons (110.24 short tons)
Compression Force: 220,000 lb
Hydraulic Stroke: 11.81 in (300 mm)
Oil Capacity: 5.6 ml (0.3 in³)
Frame Material: Steel
Net Weight: 766 kg (1,688.8 lb)

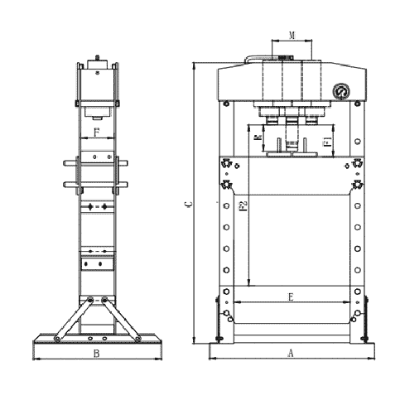

Dimension A (Width): 1,200 mm (47.3 in)
Dimension B (Depth): 900 mm (35.4 in)
Dimension C (Height): 1,830 mm (72 in)
Dimension E: 787 mm (30.9 in)
Dimension F: 300 mm (11.7 in)
Dimension F1: 114 mm (4.5 in)
Dimension F2: 814 mm (32.1 in)
Dimension M: 235 mm (9.2 in)
Dimension R: 300 mm (11.9 in)
Certifications: CE, ASME
Market: North America
Includes
2 V Blocks
1 Quick Chuck
8 Punches
