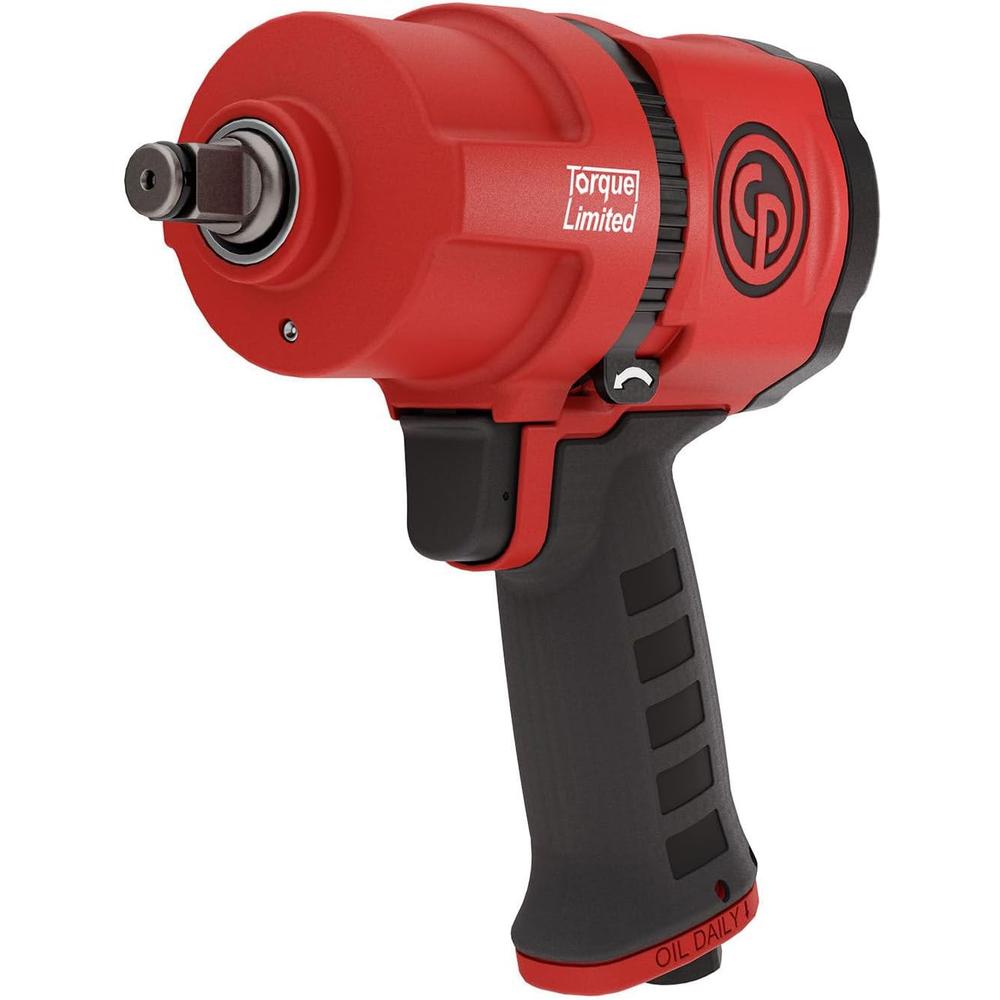

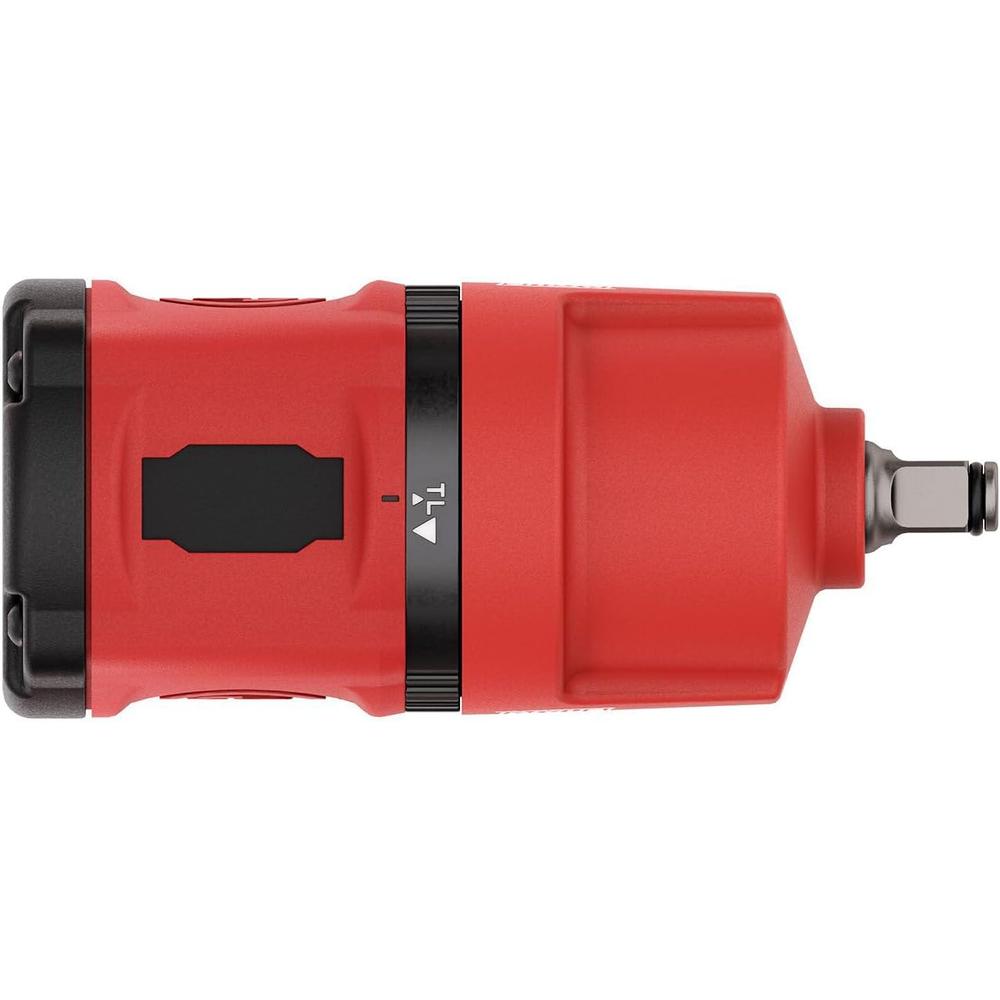

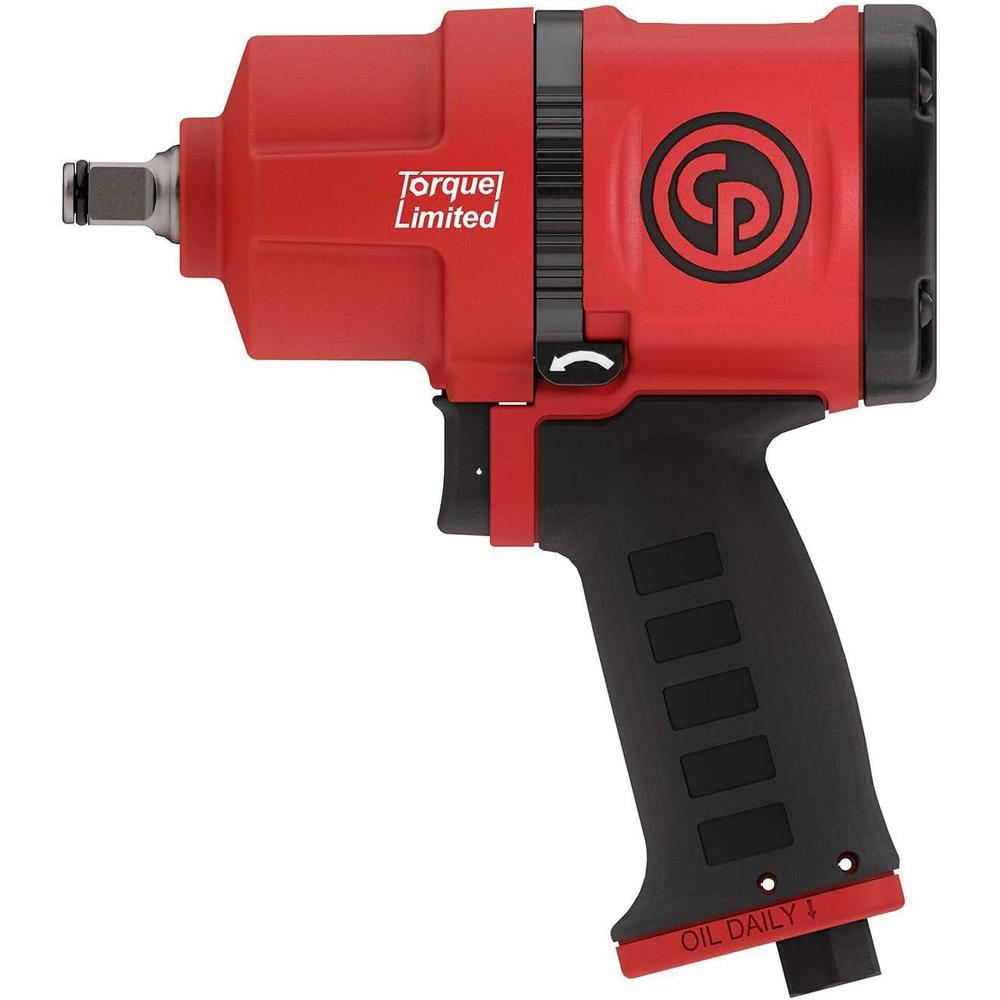

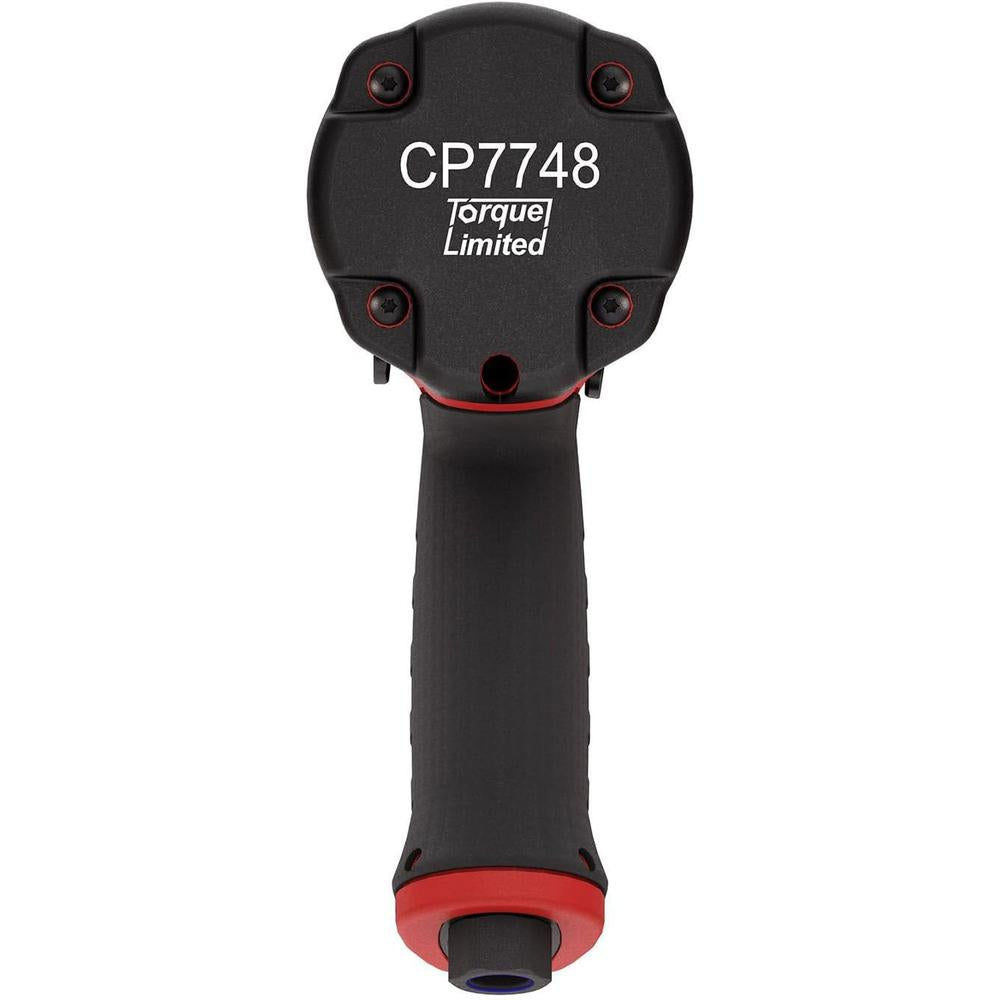

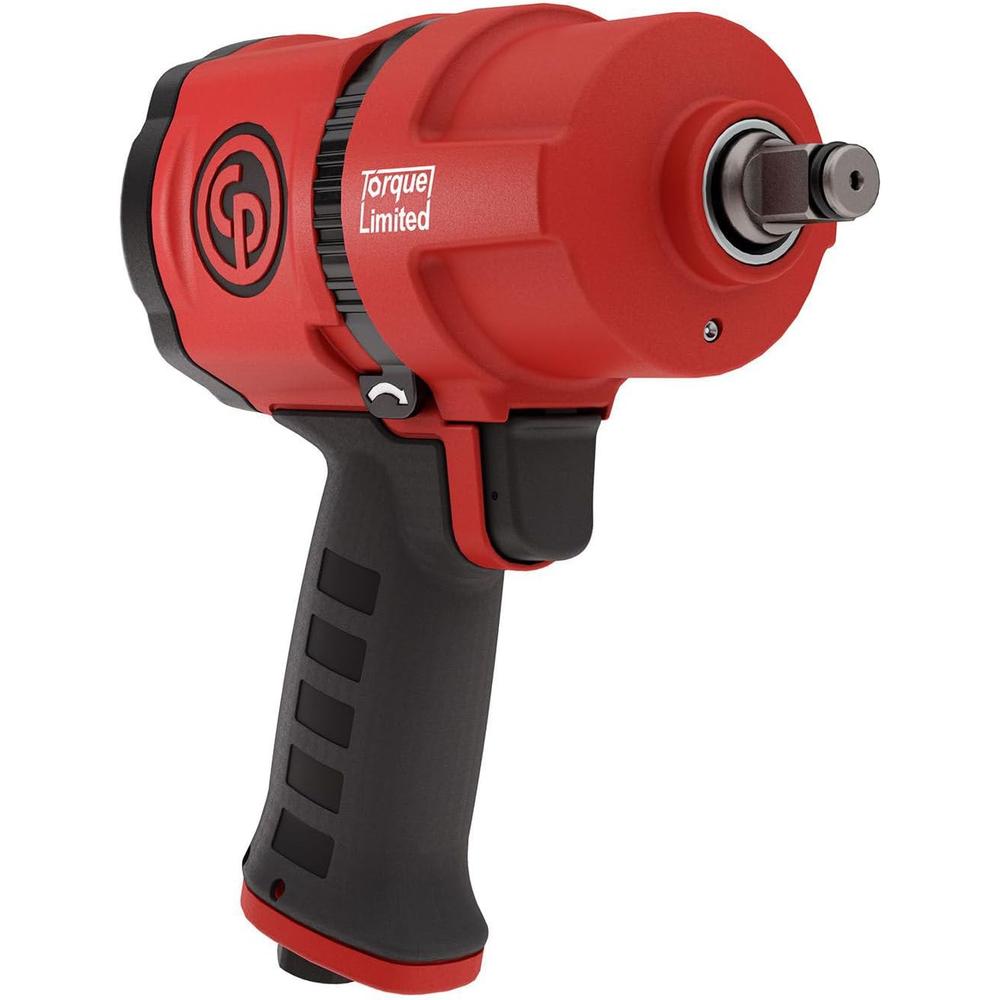

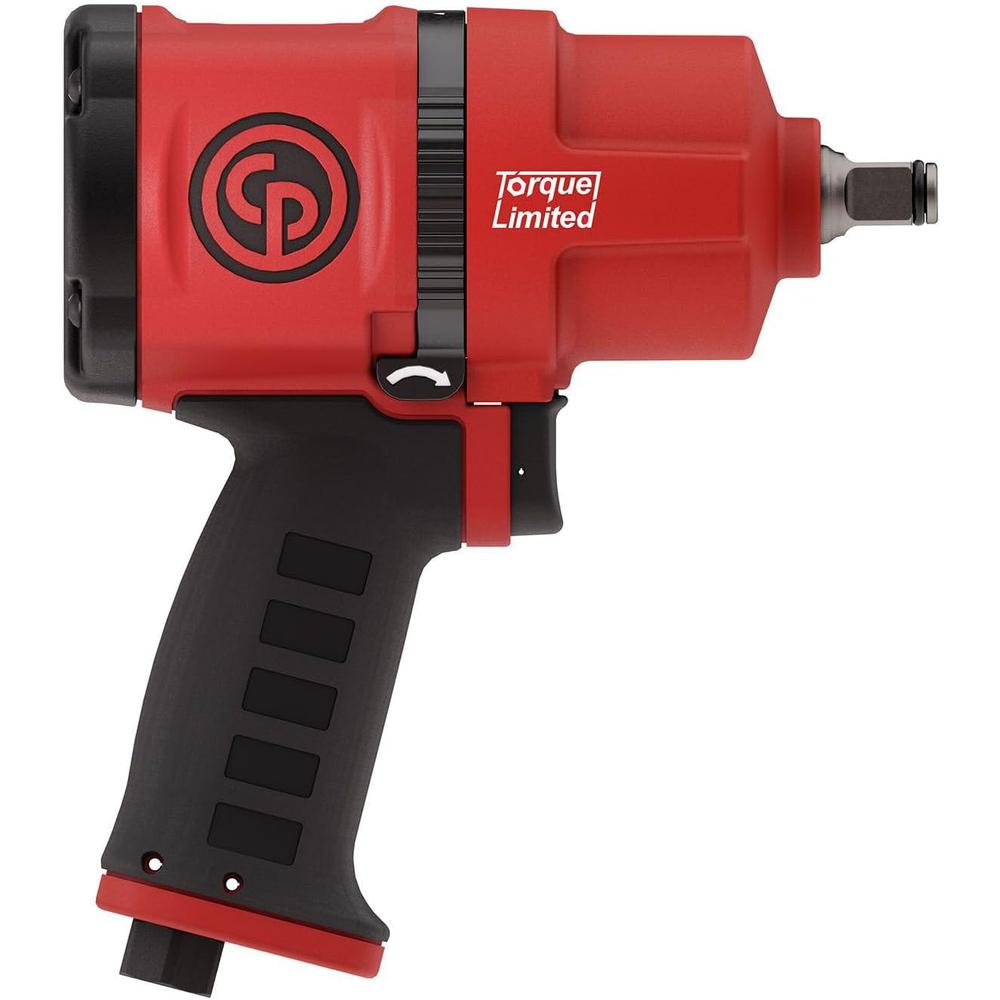

Chicago Pneumatic 7748TL 1/2" Torque Limited

SKU: CPT-7748TL
(0)
Sale price
$320.19 CAD
Regular price
$400.24 CAD
You save
$80.05 CAD (21%)

Only 2 left! Usually ships in 24 to 48 hours.
Est. Arrival Dec 02 - Dec 04
Pickup available at Mississauga Warehouse

Usually ready in 4 hours

Check availability at other locations
Get Free

Order over the phone? Call us now.

1-800-905-0410

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
FREE TOOL WITH $400+ ORDERS
1-YEAR PRICE MATCH GUARANTEE
FREE SHIPPING WITH $150+ ORDERS
30-DAY MONEY-BACK GUARANTEE

1/2" Torque Limited

  • Torque limited (in forward)

  • Full powerful (in reverse)

  • Ergonomic, Compact, Durable, Lightweight, Comfortable

Features

  • 1 position torque limited in forward around 66 ft.lbs / 90 Nm

  • 960 ft.lbs / 1,300 Nm of maximum torque

  • One-hand reverse system (Ring system)

  • 6.89 in. / 175 mm of length

  • Hard anodized end plates

  • Hard chromium aluminum cylinder

  • Twin hammer mechanism

  • 4.4 lbs 2.0 kg thanks to its composite motor housing

  • Curved handle with rubber material

  • Resistant to most chemicals used in workshops

  • Rubber grip at the back

  • Does not slip when it is in operators hand even if it is dirty or oily

Specifications

Model: CP7748TL
Part number: 8941077487
Actual air consumption: 12 l/s (25 cfm)
Air inlet thread size: 1/4 "
Average air consumption: 3 l/s (6.2 cfm)
Blows per minute: 1350
Box dimensions: 95x210x240 mm (3.75x8.25x9.45 ")
Clutch type: Twin Hammer
Dimension A: 65.4 mm (2.57 ")
Dimension B: 69.8 mm (2 3/4 ")
European Directives: 2006/42/EC (17/05/2006)
European Sound standard: ISO 15744
European Standards: EN ISO 11148-6:2013
Free speed: 7000 rpm
Free speed (fwd): 2400 rpm
Handle type: Pistol
Height: 200 mm (7.87 ")
Length: 175 mm (6.89 ")
Maximum Torque (reverse): 1300 Nm (960 ft.lbs)
Min. hose size: 10 mm (3/8 ")
Net weight: 2 kg (4.4 lb)
Side to center: 39 mm (1 1/2 ")
Socket retainer: Friction ring
Sound Power: 105.3 db(A)
Sound pressure: 94.3 db(A)
Sound uncertainty: 3 db(A)
Square drive: 1/2 "
Vibration: 12 m/s²
Vibration (fwd): 7.57 m/s²
Vibration ISO: ISO 28927-2
Vibration uncertainty (K): 4.5 m/s²
Width: 78 mm (3 ")
Working Torque Range (fwd): 90 - 140 Nm (66 - 103 ft.lbs)
