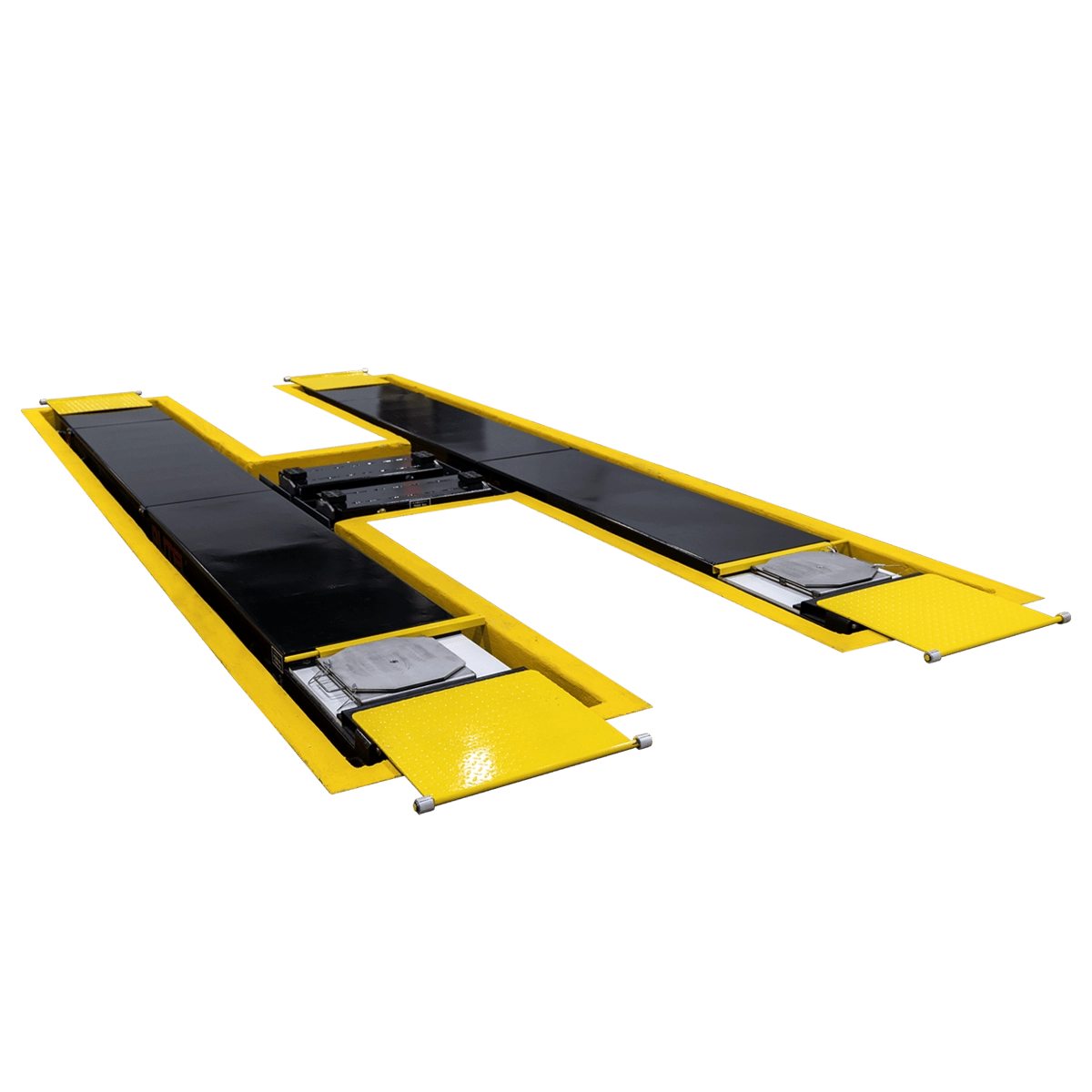

The Autel ADAS Bay Max (AULS14ALOR1T) is a 14,000 lb. capacity, flush-mounted hydraulic alignment scissor lift purposefully engineered to perform mechanical repair, wheel alignment, and 360-degree ADAS calibration within a single standard alignment bay space. Compatible with passenger cars and light trucks, this premium lift features a unique H-shape and table riser configuration with recessed rolling jacking beams that allow for safer, more efficient wheel alignments - and when fully lowered flush with the floor, the same space becomes a flat, open ADAS calibration environment. Double-wide runways with built-in "Z" rails are structurally superior, eliminating sagging or flexing for far more accurate alignments. Made in North America and ALI Certified, the ADAS Bay Max is a 2024 PTEN Innovation Award winner.
Features
Flush-mounted hydraulic alignment scissor lift with recessed rolling jacking beams and table riser for a versatile single-bay workflow
Enables mechanical repair, wheel alignment, and 360-degree ADAS calibration all within a single bay space

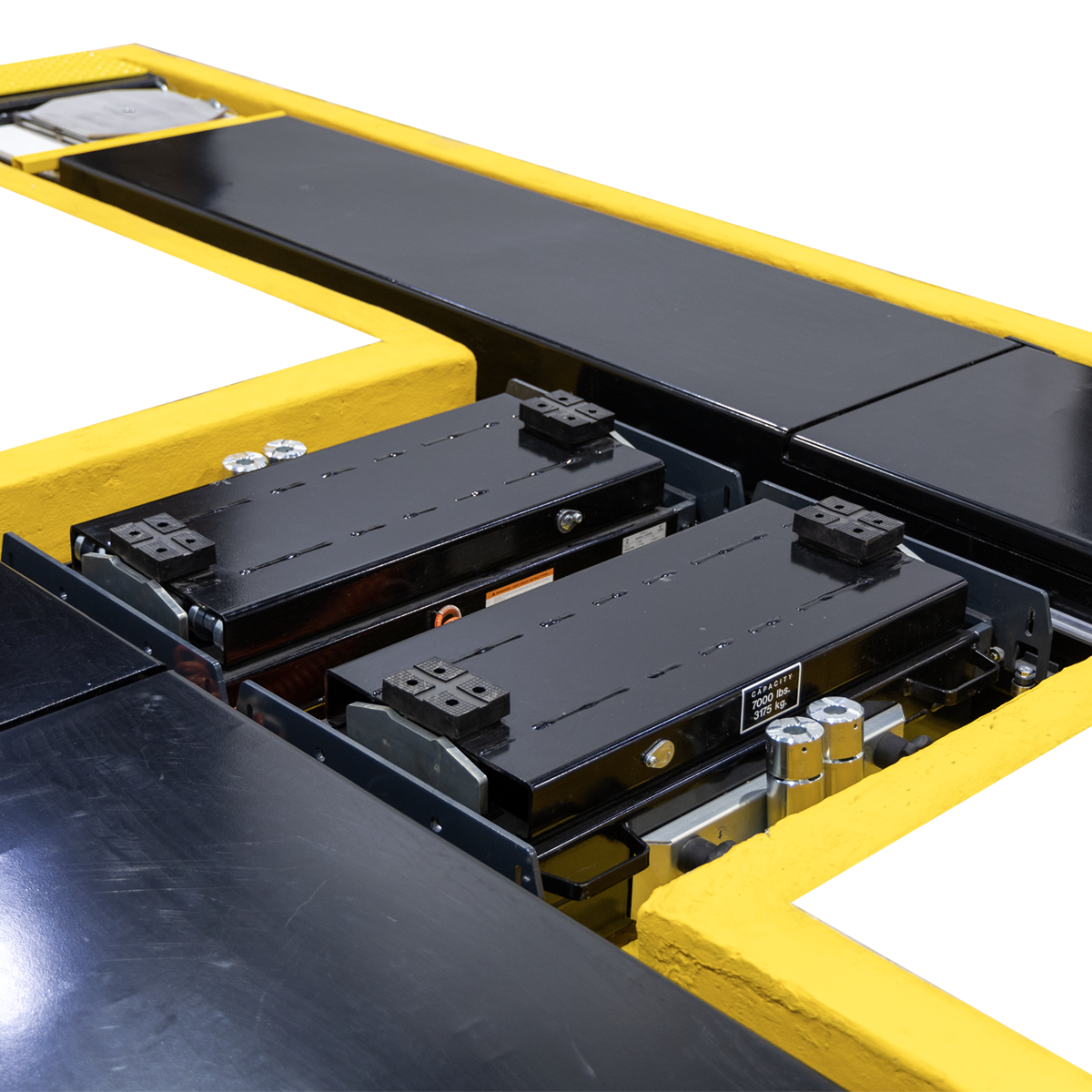

Includes two 7,000 lb. capacity jacking beams stored within the exclusive floor lift table
203" long x 26" double-wide space-saving runways with built-in "Z" rails for structural rigidity and alignment accuracy
Front and rear-opening runways with flip-down wheel stops and low angle approach ramps for easy vehicle access

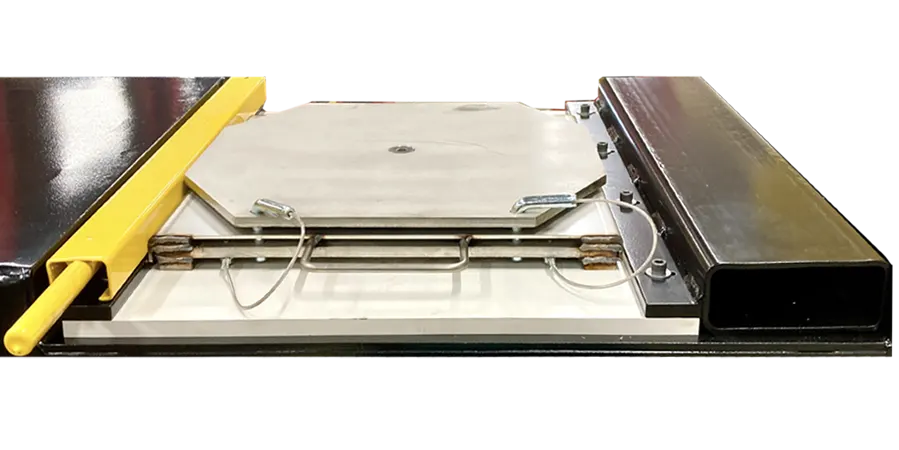

Stainless steel front radius plates and rear slip plates with turn plate pocket protectors for paint protection
Stainless steel air lock release system for extended service life and reduced maintenance

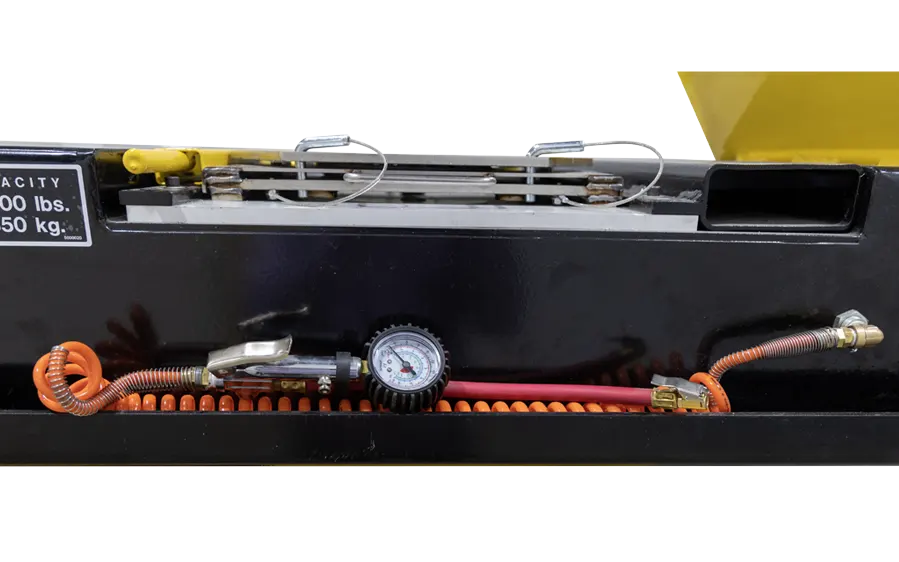

Built-in runway air tire inflation kit at each wheel position

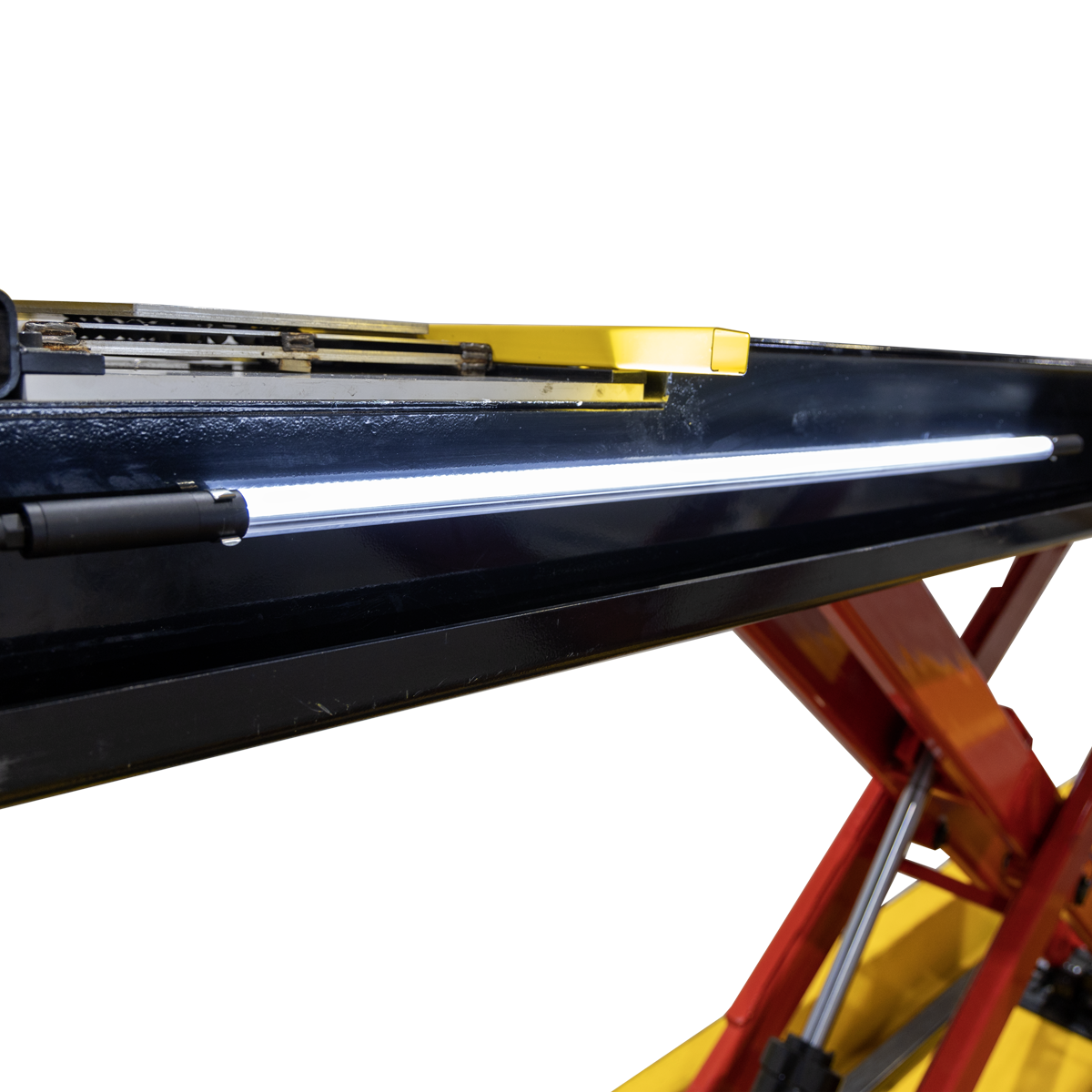

Shatterproof 24" undercarriage LED lighting kits with automatic shutoff

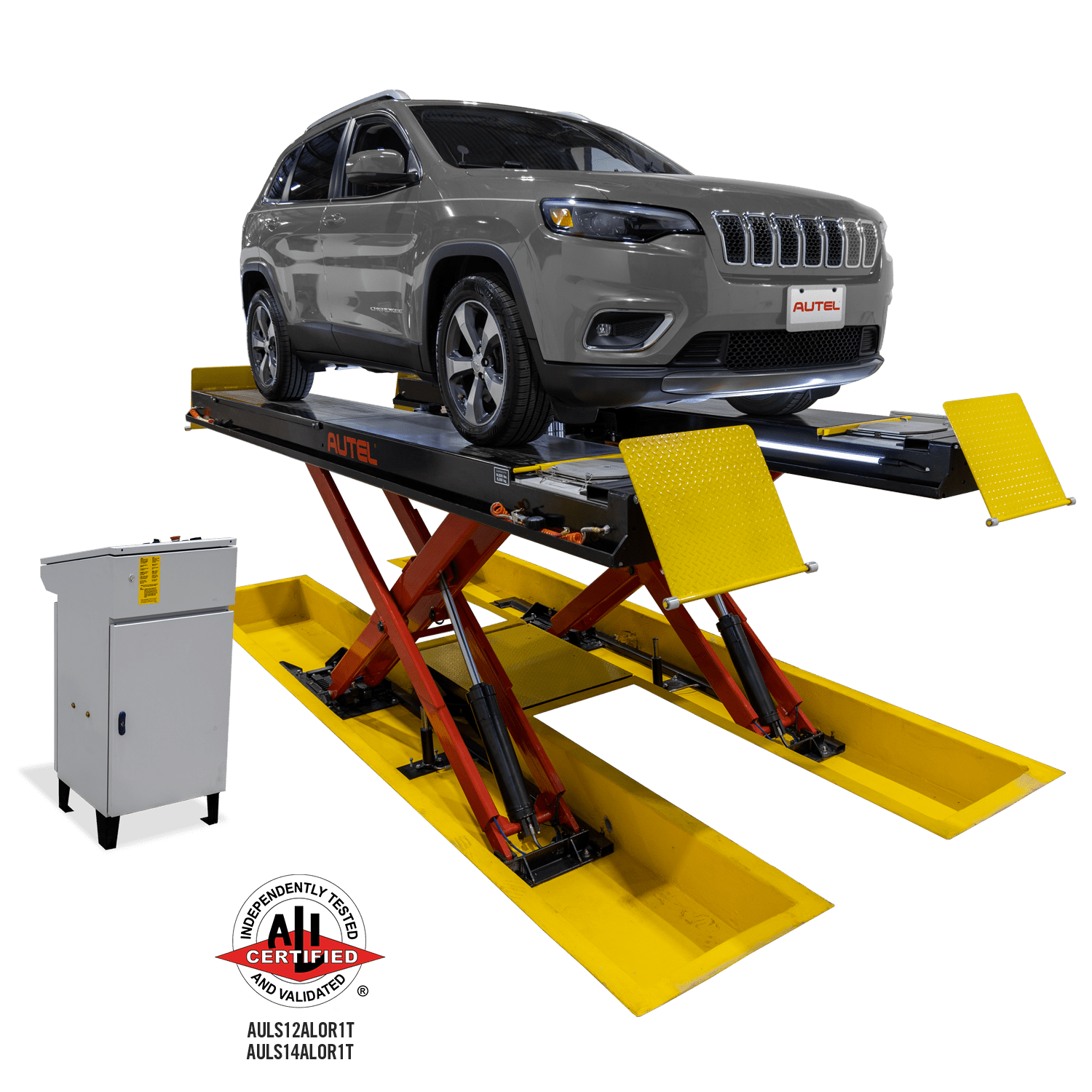

Enclosed console control power unit for a clean and organized bay setup
Premium double baked powder coating finish with Krown industrial-grade rust proofing for ultimate corrosion protection
Made in North America and ALI Certified (AULS14ALOR1T)

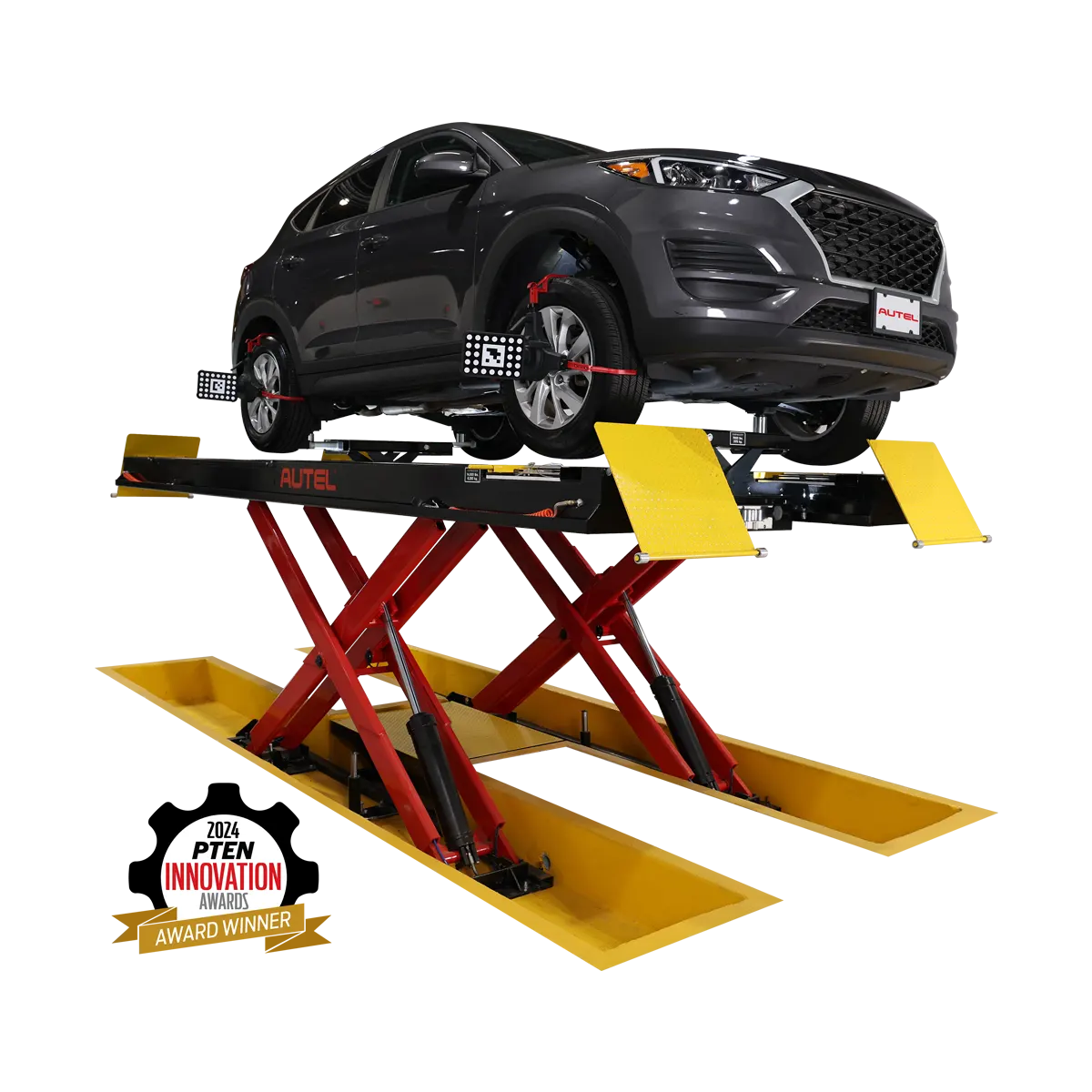

2024 PTEN Innovation Award Winner
Specifications
Lifting Capacity: 14,000 lbs.
Raised Height: 74" (1,880 mm)
Runway Length: 203" (5,156 mm)
Runway Width: 26" (660 mm)
Max 2-Wheel Alignment Wheelbase: 178" (4,521 mm)
Max 4-Wheel Alignment Wheelbase: 164.5" (4,178 mm)
Bundle Weight: 6,250 lbs. (Requires Forklift)
Bundle Dimensions: 210" L x 28" W x 38" H
Additional Skid Weight: 1,200 lbs. (Pallet Jack)
Additional Skid Dimensions: 48" L x 48" W x 36" H
Finish: Premium Double Baked Powder Coat with Krown Industrial-Grade Rust Proofing
Certification: ALI Certified
Origin: Made in North America
Warranty: 1-year limited on lift parts; 5-year on hydraulic jack parts; 90-day on front turn plates, rear slip plates and bearings, air kit, and LED light kits
Includes

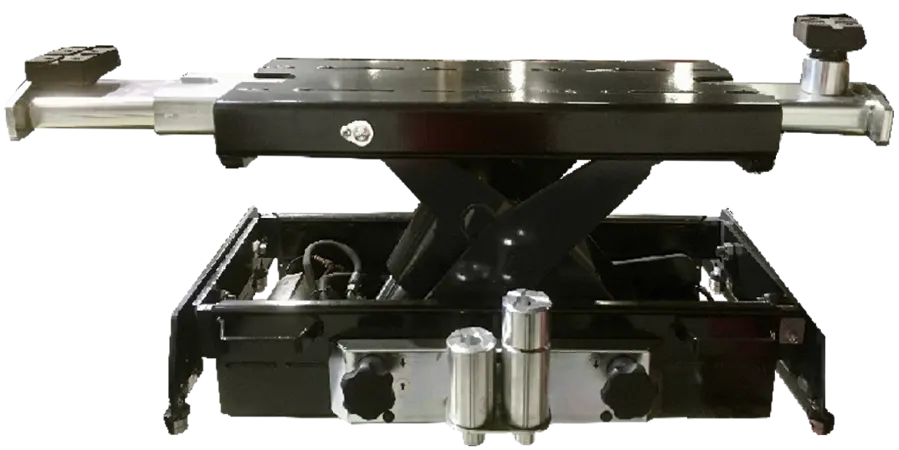

2 x 7,000 lb. capacity jacking beams
1 x enclosed console control power unit
1 x built-in runway air tire inflation kit (one per wheel position)
1 x shatterproof 24" LED lighting kit with automatic shutoff (per runway)
