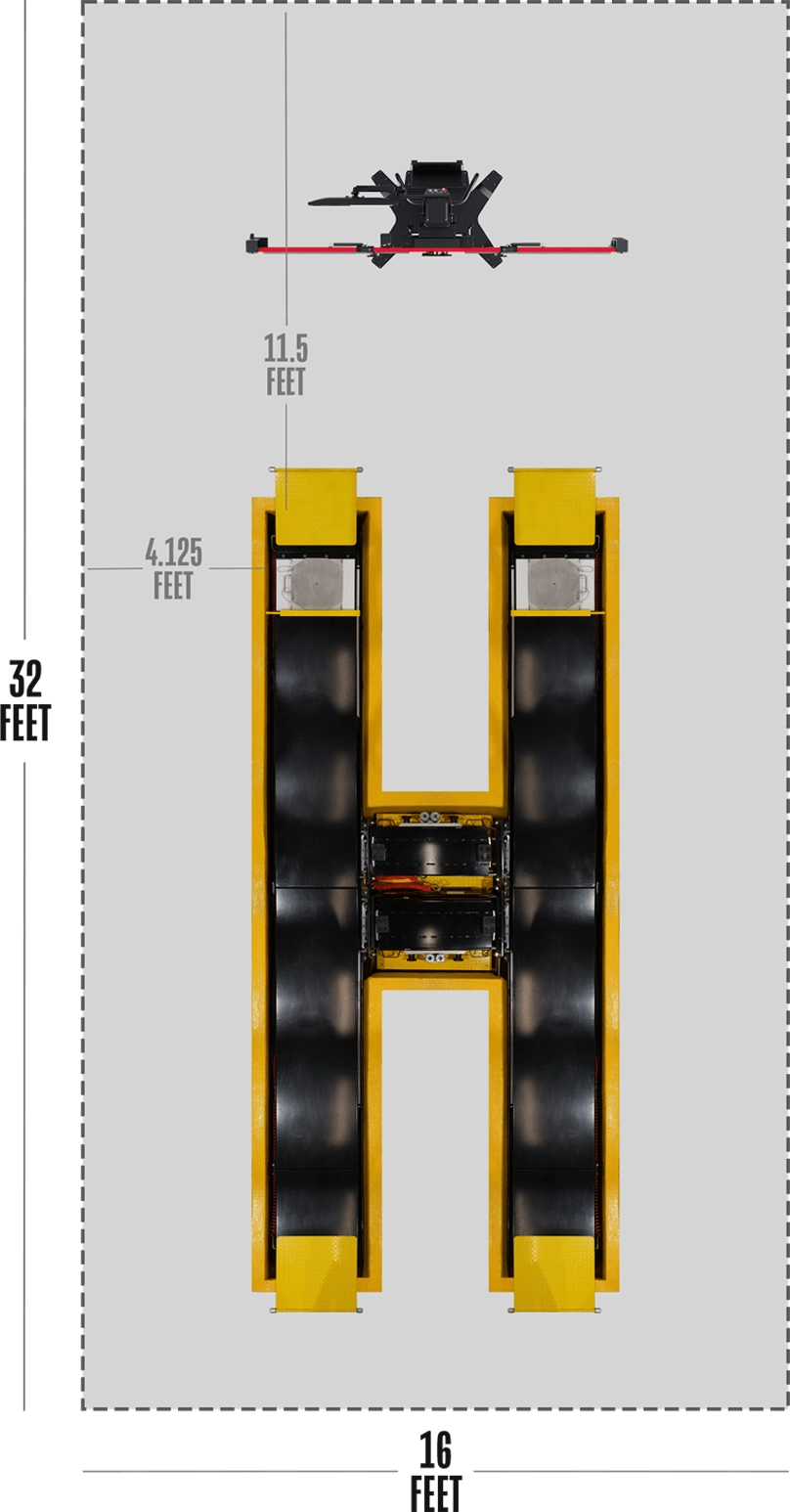

The Autel AULS12ALOR1T ADAS Bay Max is a 12,000 lb. capacity, flush-mounted hydraulic alignment scissor lift purpose-built to perform mechanical repair, wheel alignment, and 360-degree ADAS calibration within a single standard alignment bay space. Compatible with passenger cars and light trucks, this heavy-duty lift features a recessed H-shape design with a floor lift table that transforms the same bay space into a flat, open calibration environment when lowered. Double-wide runways with built-in "Z" rails eliminate sagging and flexing for far more accurate alignments, while the industry-leading construction delivers long-term durability and reduced maintenance demands. Made in North America and ALI Certified, the ADAS Bay Max is engineered for professional shop environments where space efficiency and multi-function capability are critical.
Features

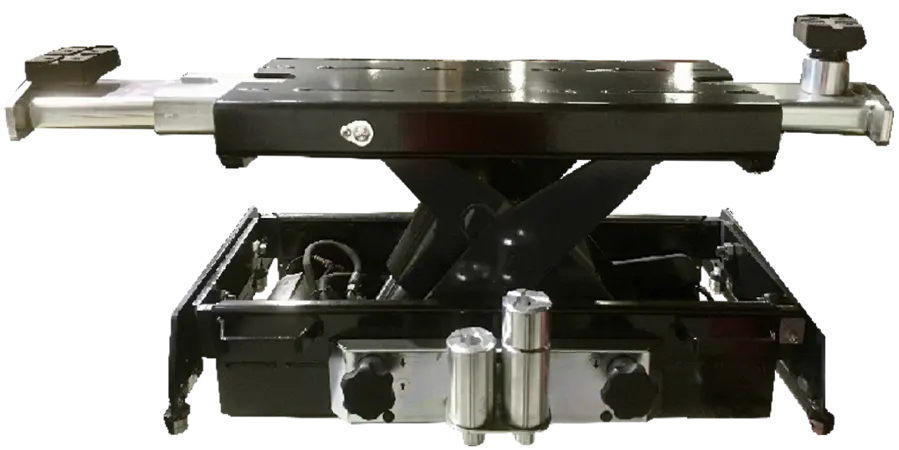

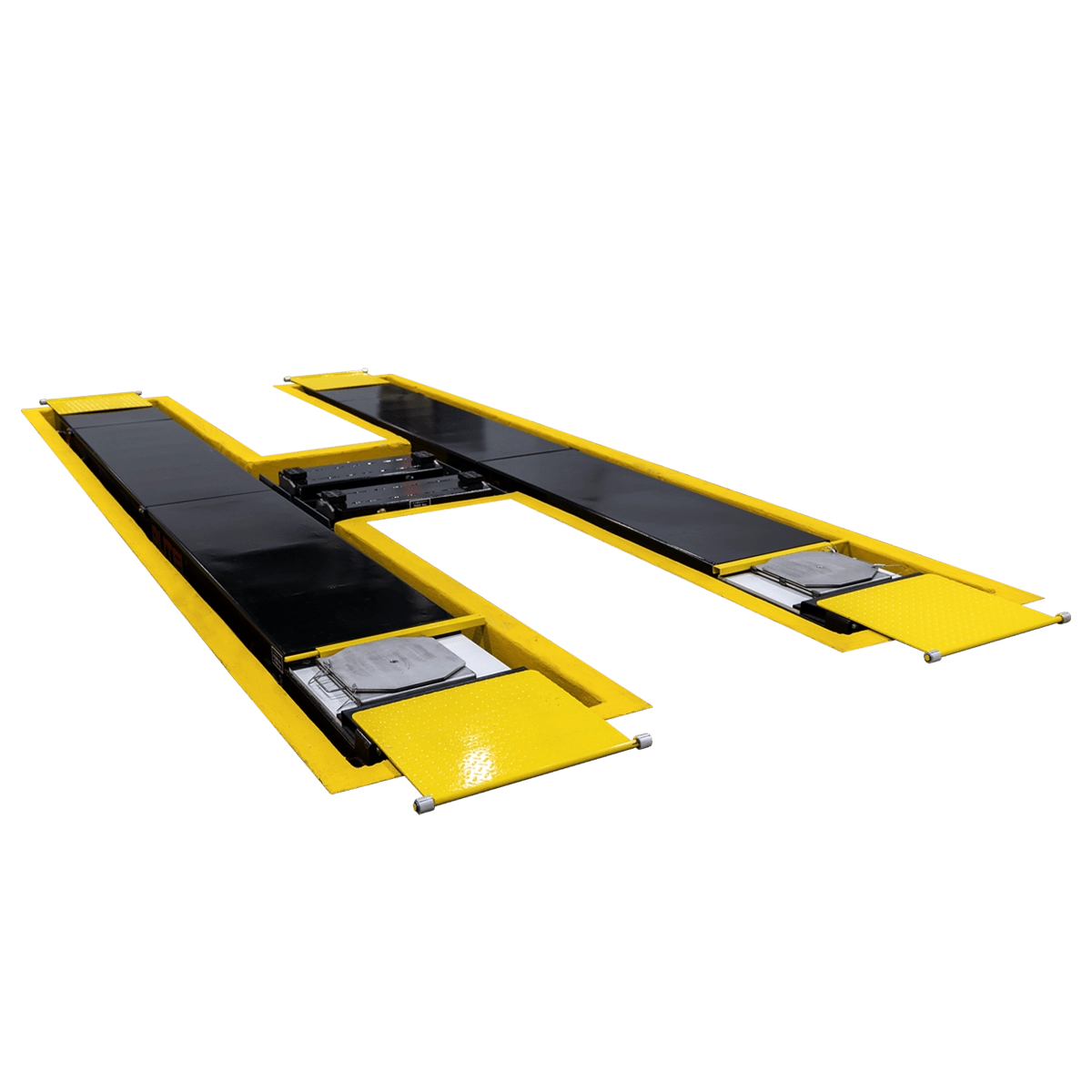

Flush-mounted hydraulic alignment scissor lift with recessed rolling jacking beams and table riser
Enables mechanical repair, wheel alignment, and 360-degree ADAS calibration within a single bay space

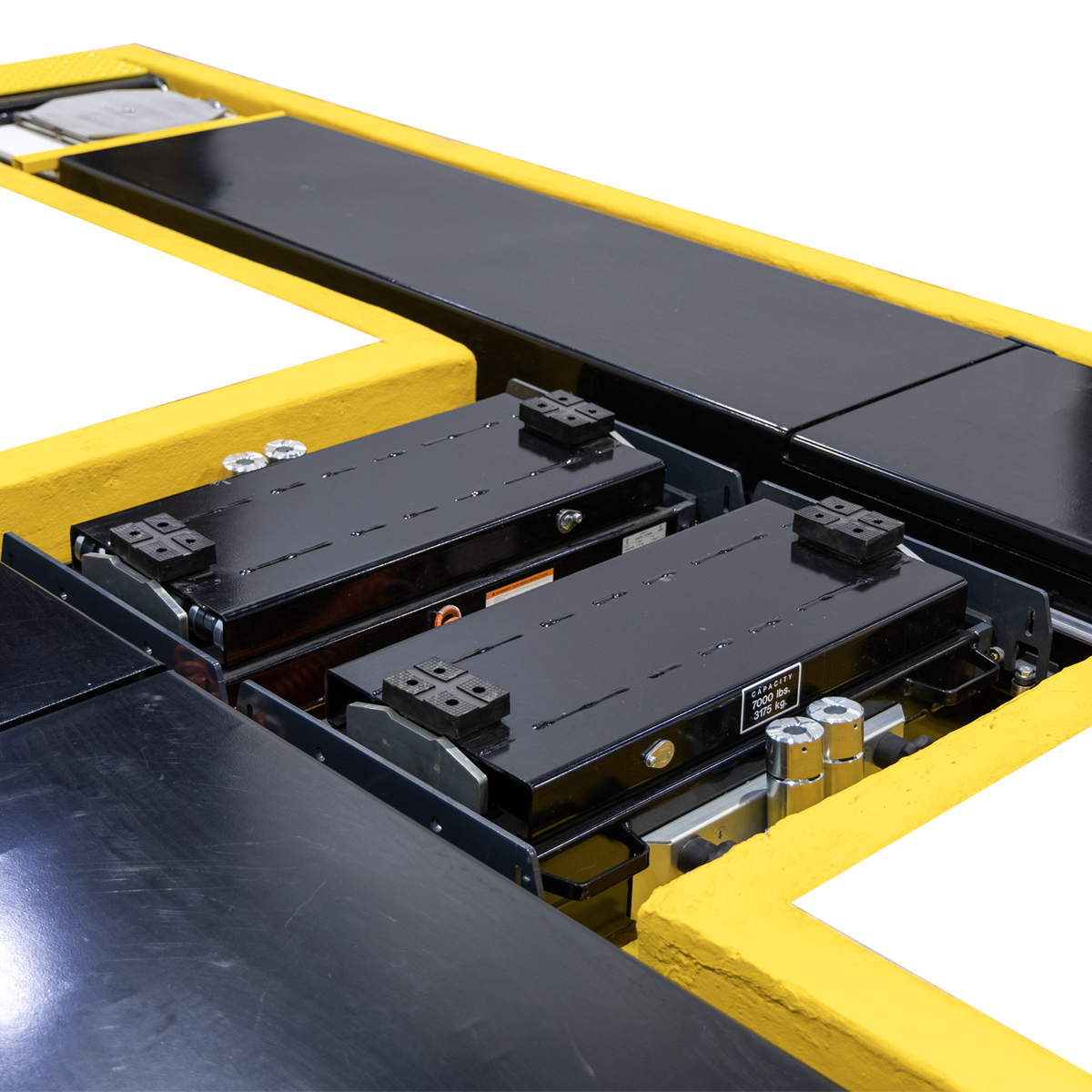

Includes two 6,000 lb. capacity jacking beams for a combined 12,000 lb. lifting capacity
185" long x 26" double-wide space-saving runways with built-in "Z" rails for no sagging or flexing

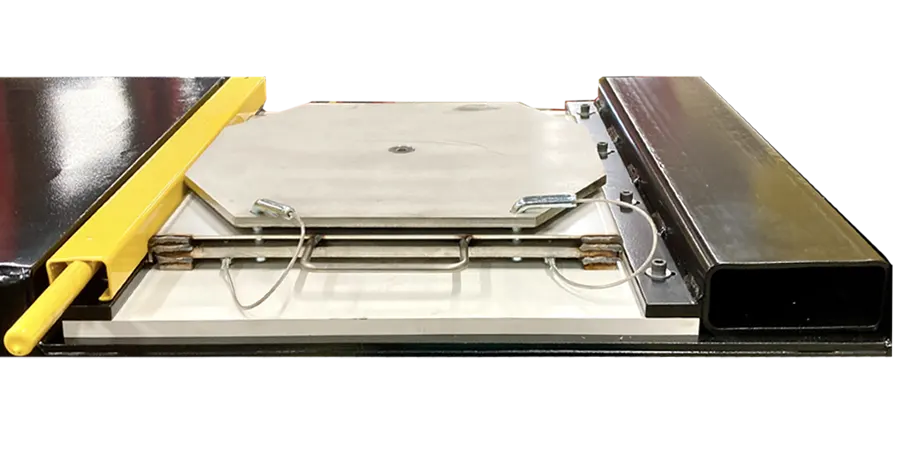

Stainless steel front radius plates and rear slip plates with turn plate pocket protectors for paint protection
Front and rear-opening runways with flip-down wheel stops and low angle approach ramps for easy access
Stainless steel air lock release system for longer service life and reduced maintenance

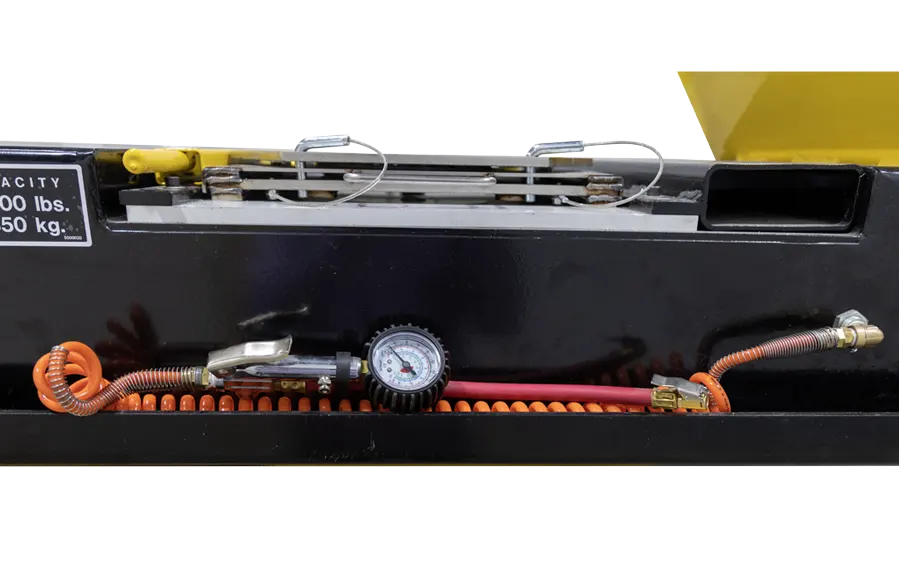

Built-in runway air tire inflation kit at each wheel position

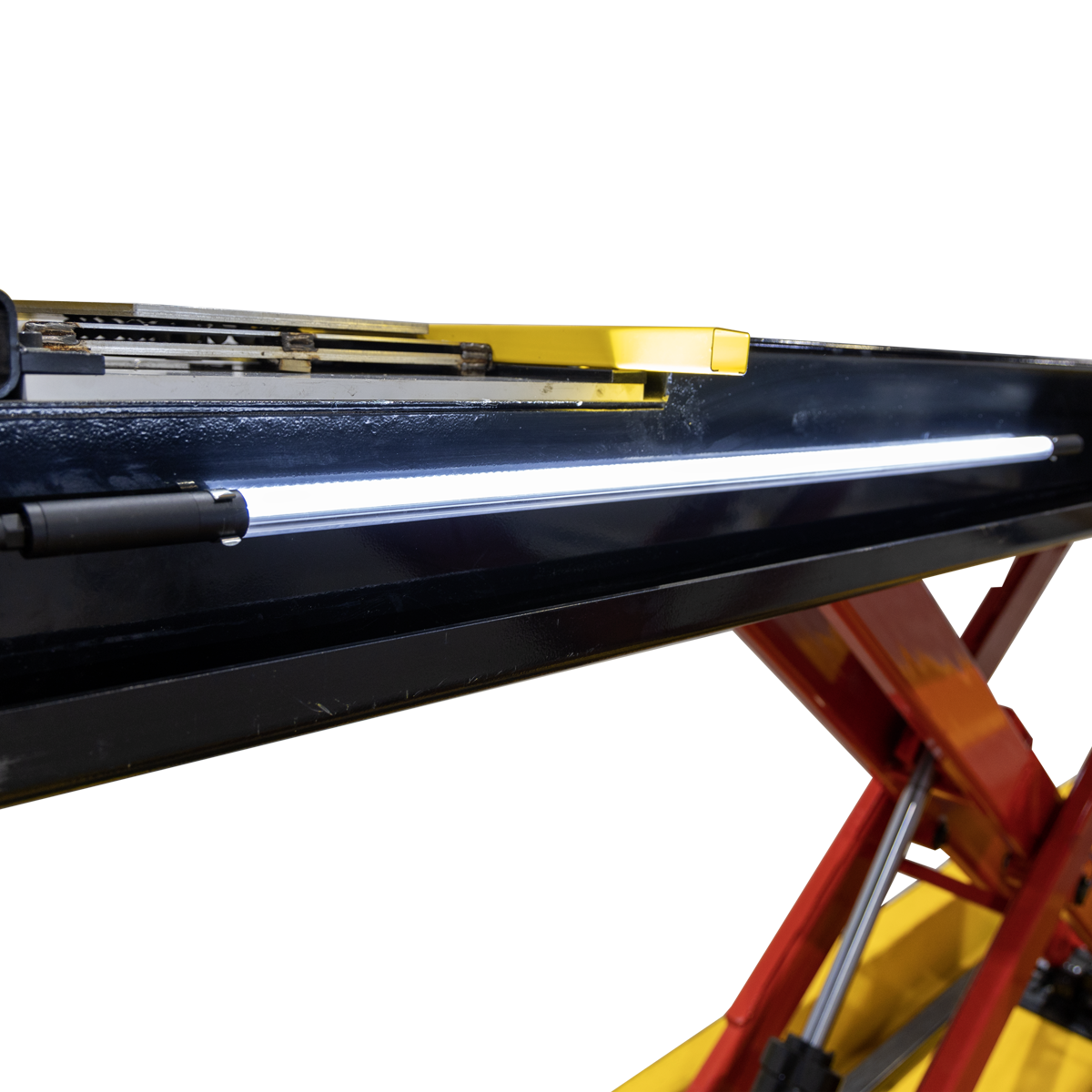

Shatterproof 24" LED lighting kits with automatic shutoff for improved undercarriage visibility

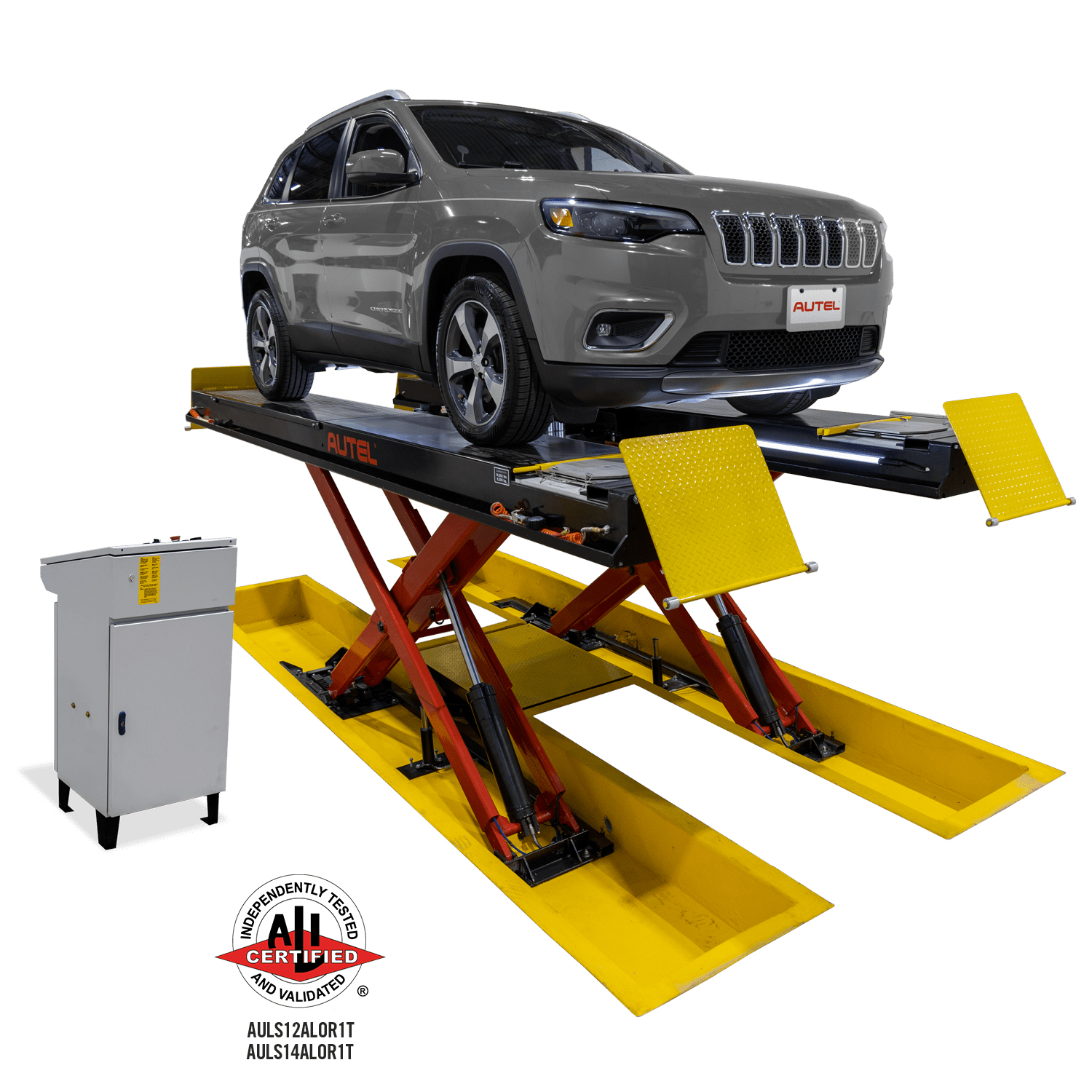

Enclosed console control power unit
Krown industrial-grade rust proofing and premium double baked powder coat finish for ultimate corrosion protection
Made in North America and ALI Certified (AULS12ALOR1T)

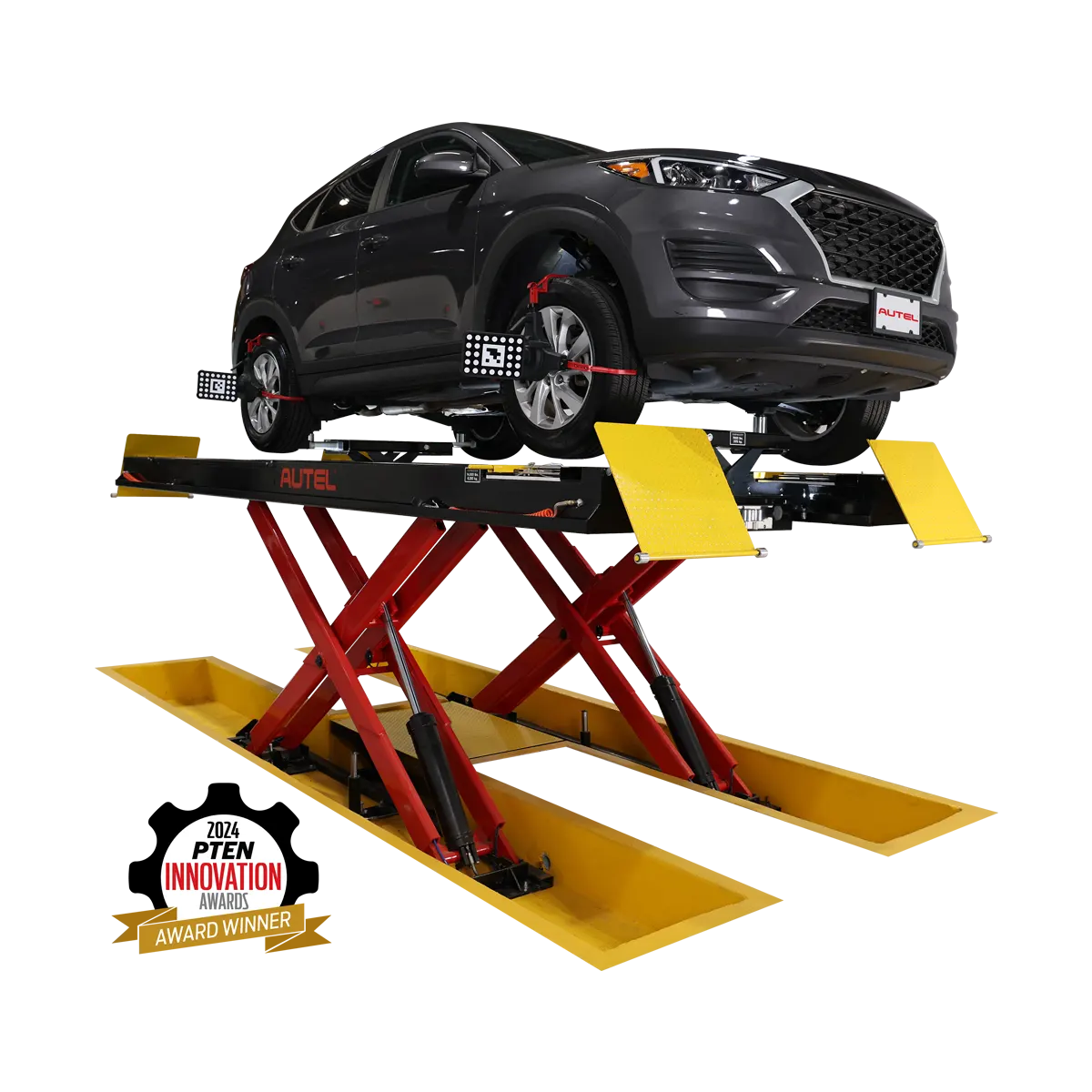

2024 PTEN Innovation Award Winner
Specifications
Lifting Capacity: 12,000 lbs.
Raised Height: 74" (1,880 mm)
Runway Length: 185" (4,700 mm)
Runway Width: 26" (660 mm)
Max 2-Wheel Alignment Wheelbase: 160" (4,064 mm)
Max 4-Wheel Alignment Wheelbase: 160" (4,064 mm)
Bundle Dimensions: 192" L x 28" W x 38" H
Bundle Weight: 5,850 lbs. (Requires Forklift)
Additional Skid Dimensions: 48" L x 48" W x 36" H
Additional Skid Weight: 1,200 lbs. (Pallet Jack)
Finish: Premium Double Baked Powder Coat with Krown Industrial-Grade Rust Proofing
Certification: ALI Certified
Country of Manufacture: North America
Warranty: 1-Year Limited on Lift Parts; 5-Year on Hydraulic Jack Parts; 90-Day on Front Turn Plates, Rear Slip Plates and Bearings, Air Kit, and LED Light Kits
