The Astro Pneumatic PT2-4GH is a 2-1/4 gallon (8517cc) pressure tank spray system designed for both amateur and professional coating applications. Built with sturdy construction and a compact design, this system delivers consistent fluid atomization at a working pressure of 60 psi, making it well-suited for spraying large surface areas such as buses, trucks, and vans. The included black pressure spray gun features a 1.0mm nozzle and is paired with a fluid pressure regulator and pressure gauge for precise, repeatable results. Requiring a minimum 3 hp compressor at 7 cfm, this kit provides the performance and control needed for demanding spray work.
Features
Sturdy, compact 2-1/4 gallon (8517cc) pressure tank suitable for both amateur and professional use
Pressure spray gun equipped with an integrated pressure gauge and fluid pressure regulator for accurate, consistent fluid delivery
12 ft. twin-set hose provides extended reach and easy movement during operation
Ideal for coating large surface areas including buses, trucks, and vans
1/4" NPT air inlet thread for standard compressor connectivity
Specifications
Nozzle Size: 1.0mm
Operation Pressure: 60 psi
Average Air Consumption: 7 cfm
Required Compressor: 3 hp
Air Inlet Thread (NPT): 1/4"
Feed Type: Siphon
Tank Capacity: 2-1/4 gallon (8,517cc)
Dimensions (H x D): 10" x 9-3/4"
Net Weight: 23-1/8 lbs (10.48 kg)
Includes

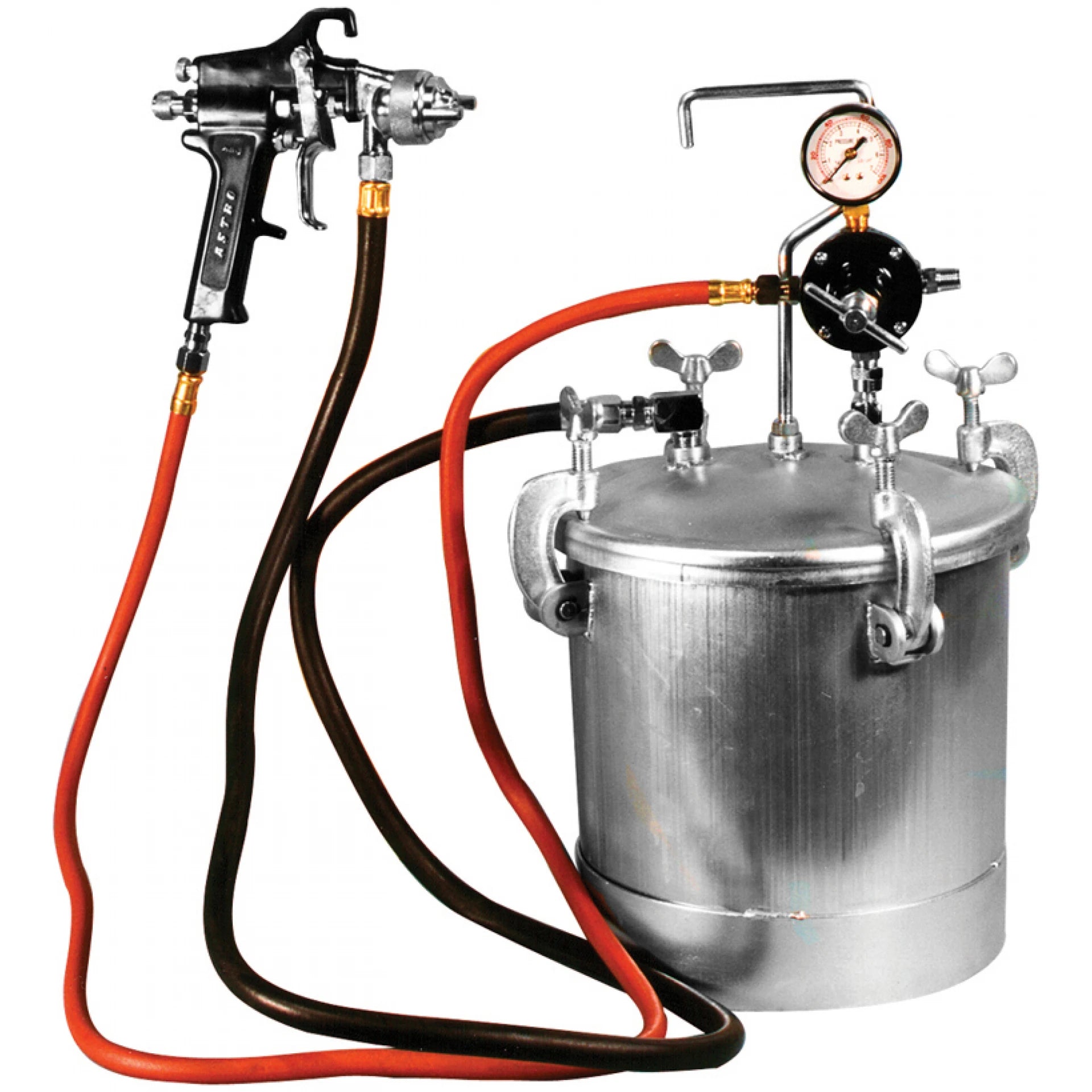

1x 2-1/4 Gallon Pressure Tank with pressure gauge and fluid pressure regulator
1x Black Pressure Spray Gun with 1.0mm nozzle
1x 12 ft. twin-set hose
