The Astro Pneumatic 9478 is a 220-piece Weather Pack Interchangeable Ratcheting Crimping Tool and Accessory Set designed for assembling and crimping the most common Delphi Weather Pack connectors. The kit centers on a quick-change ratchet crimper fitted with two interchangeable 4140 chromoly steel jaw sets, delivering precise, consistent crimps across a wide range of wire gauges from AWG 22 down to AWG 12. Accessories include terminals, wire seals, and connector housings that cover the full spectrum of 1- to 4-pole Weather Pack configurations, making this set a complete solution for automotive electrical harness work. All components are stored in a molded carry case for organized access and portability on the job.
Features
Comprehensive kit for assembling and crimping a wide range of the most common Delphi Weather Pack connectors
Quick interchangeable 4140 chromoly jaws provide two Weather Pack ratcheting pliers in one tool (H6 Jaws: AWG 22 / 20-18, DIN 0.35 / 0.5-0.8 mm² | H7 Jaws: AWG 16-14/12, DIN 1.0-2.0 / 3.0 mm²)
Jaw designed in Germany, made in Taiwan
Specialized terminal release tool included for disassembling connector packs
Crimps the seal and the terminal in a single operation for increased efficiency
Multi-material handle grip on the ratchet crimper for comfortable, secure use
216-piece accessory assortment covering wire seals, male and female terminals, and connector housings

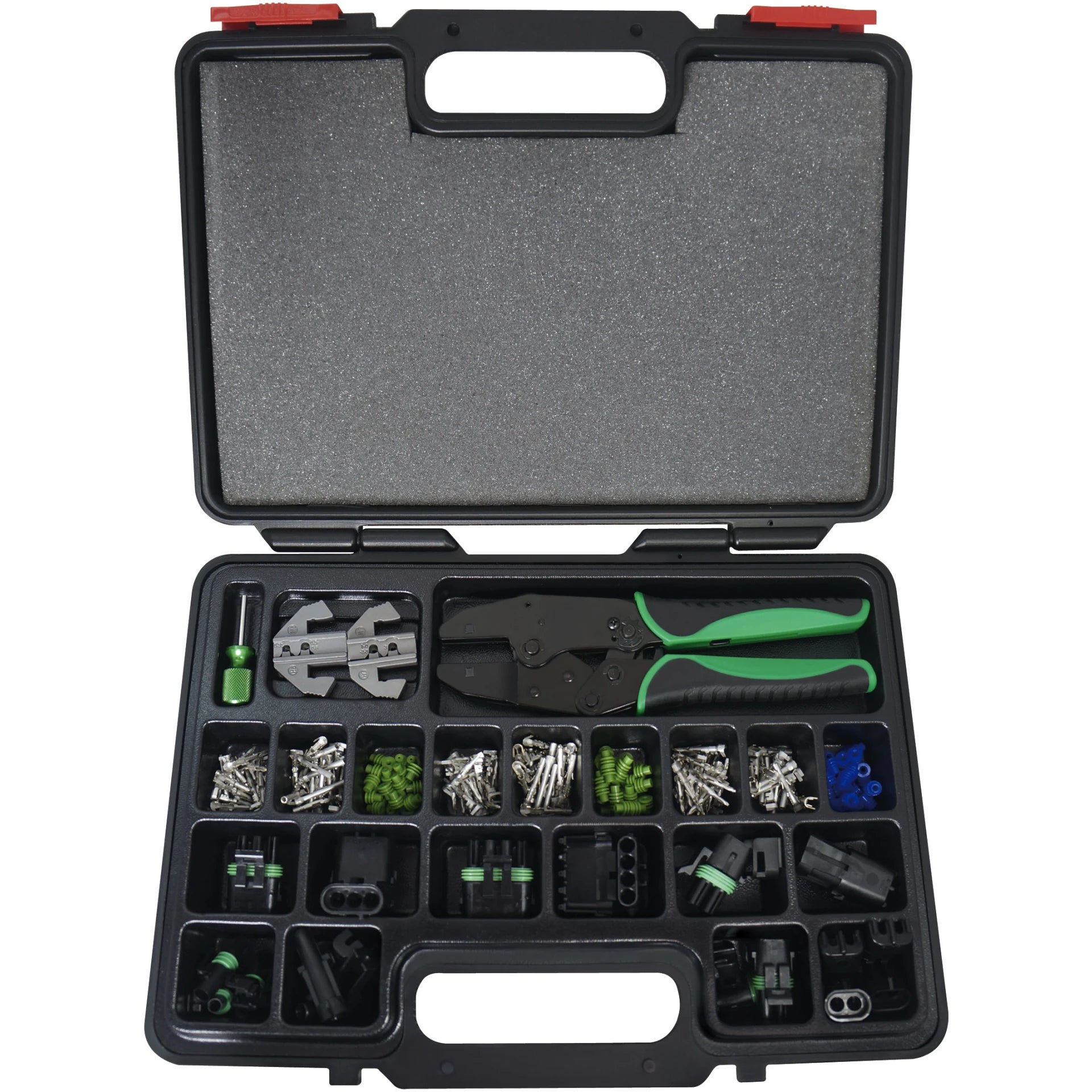

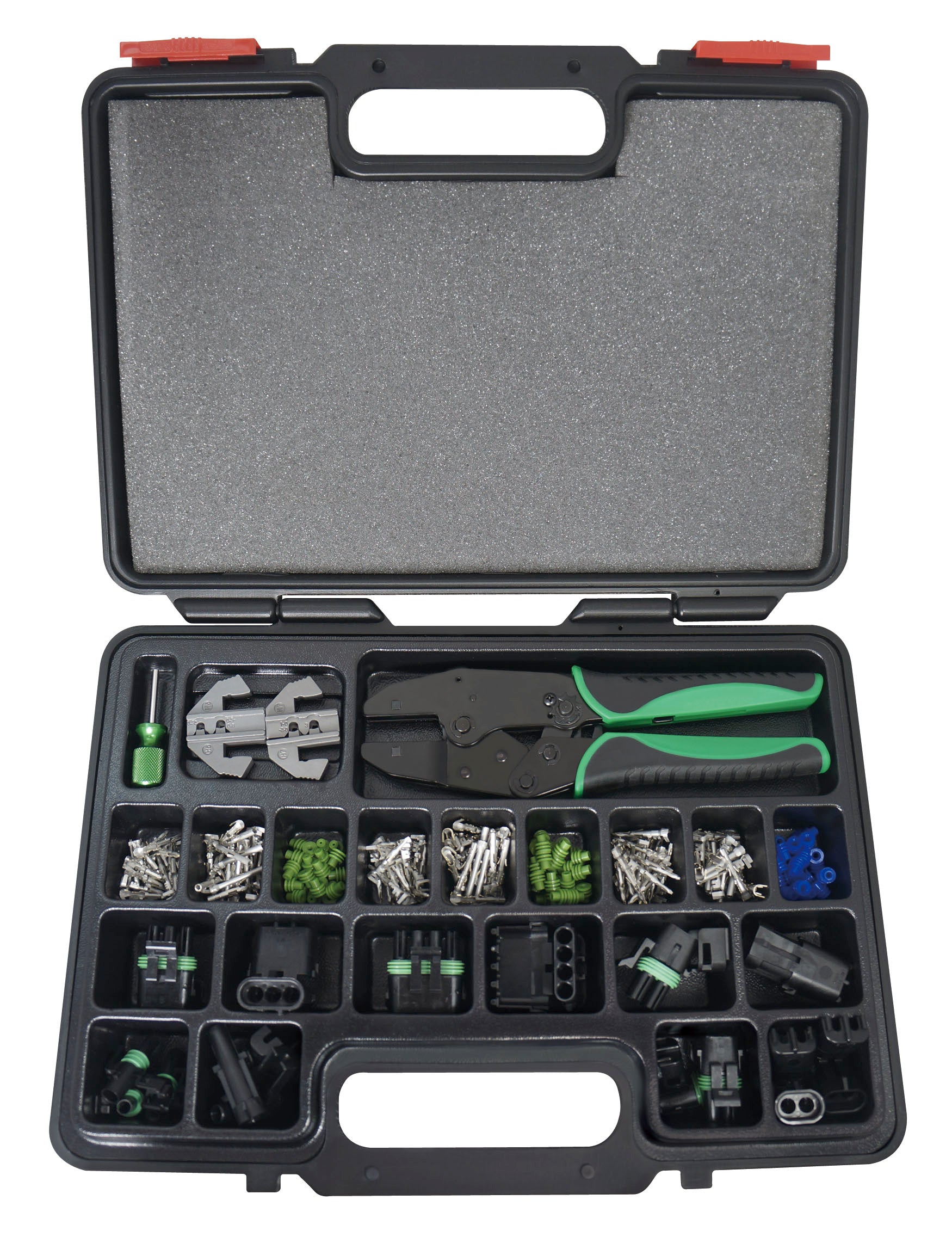

Molded carry case with foam-lined tray keeps all components organized and protected
Specifications
Wire Gauge: 22 to 12 AWG
H6 Jaw Range: AWG 22 / 20-18, DIN 0.35 / 0.5-0.8 mm²
H7 Jaw Range: AWG 16-14/12, DIN 1.0-2.0 / 3.0 mm²
Jaw Material: 4140 Chromoly Steel
Ratcheting Mechanism: Yes
Handle Type: Multi-Material
Terminal Material: Brass, Pre-Matt Tin, Horizontal Feeding
Wire Seal Material: SIR-405 Silicone
Wire Seal Colors: Green (Ø1.4 and Ø2.5), Blue (Ø2.8)
Housing Material: PA6/PA66
Housing Color: Black
Operating Temperature Range: -40°C to 120°C
Total Pieces: 220
UPC: 745227022540

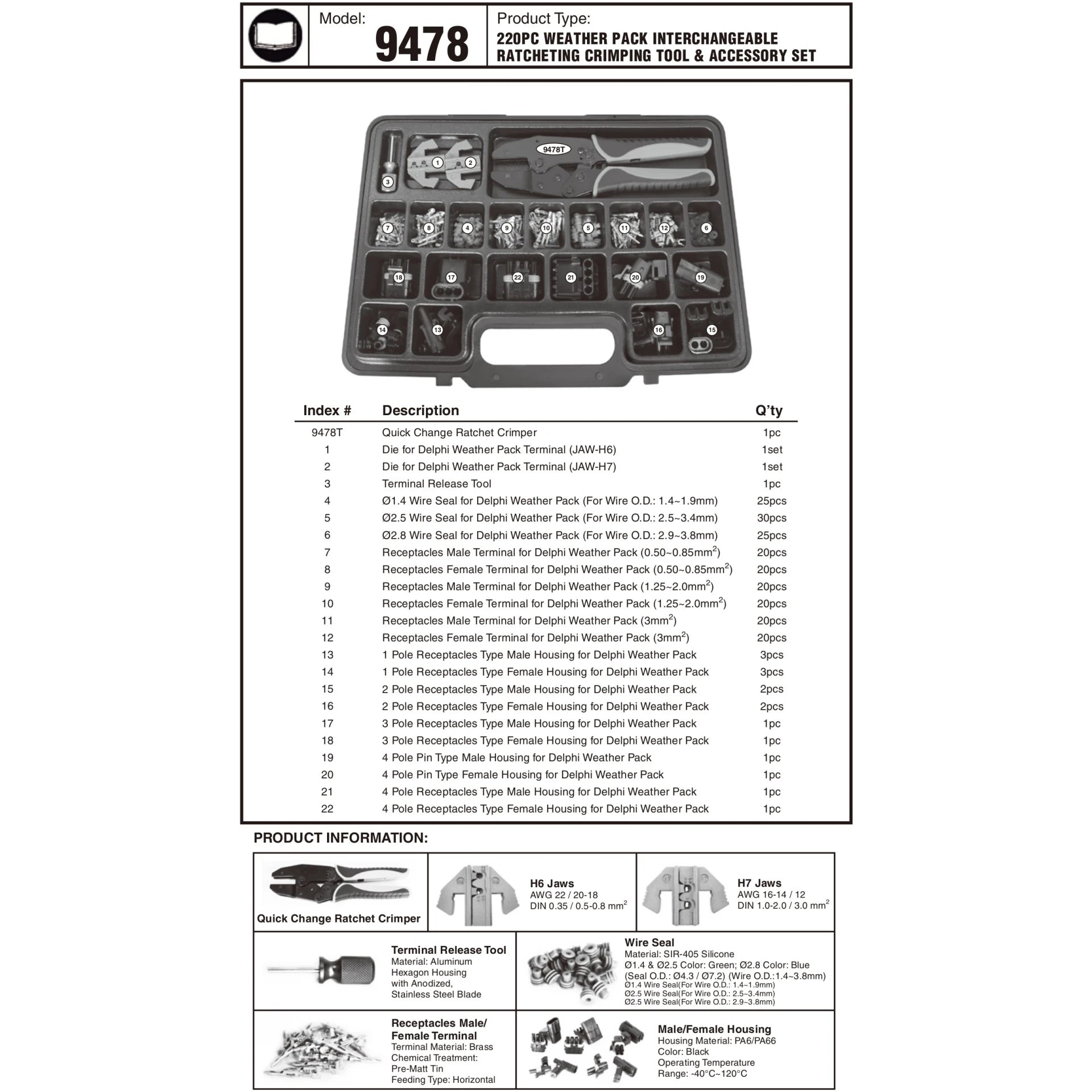

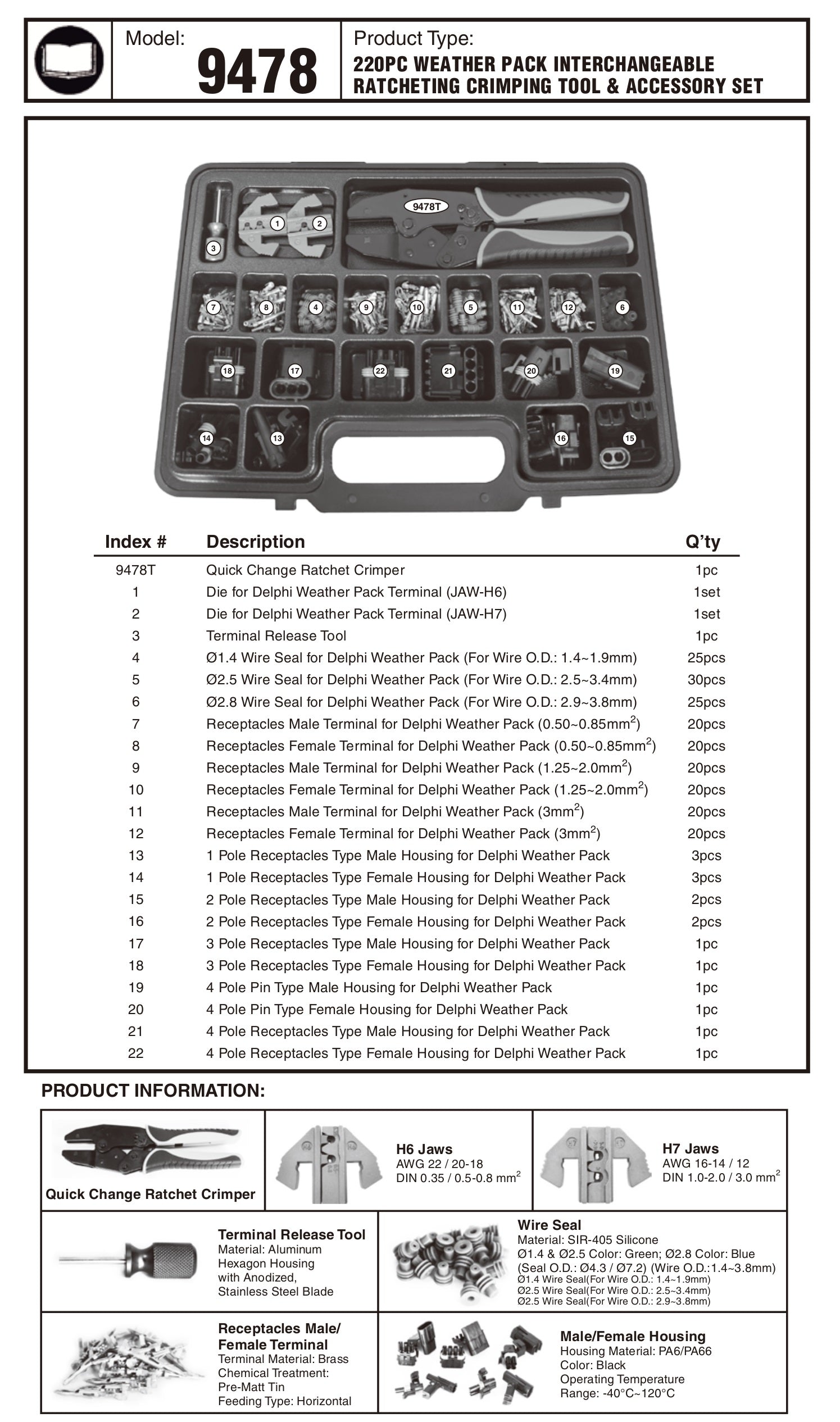

Includes
1 Quick Change Ratchet Crimper (9478T)
1 set Die for Delphi Weather Pack Terminal (JAW-H6)
1 set Die for Delphi Weather Pack Terminal (JAW-H7)
1 Terminal Release Tool
25 Ø1.4 Wire Seals for Delphi Weather Pack (Wire O.D.: 1.4-1.9mm)
30 Ø2.5 Wire Seals for Delphi Weather Pack (Wire O.D.: 2.5-3.4mm)
25 Ø2.8 Wire Seals for Delphi Weather Pack (Wire O.D.: 2.9-3.8mm)
20 Receptacles Male Terminals for Delphi Weather Pack (0.50-0.85mm²)
20 Receptacles Female Terminals for Delphi Weather Pack (0.50-0.85mm²)
20 Receptacles Male Terminals for Delphi Weather Pack (1.25-2.0mm²)
20 Receptacles Female Terminals for Delphi Weather Pack (1.25-2.0mm²)
20 Receptacles Male Terminals for Delphi Weather Pack (3mm²)
20 Receptacles Female Terminals for Delphi Weather Pack (3mm²)
3 1-Pole Receptacles Type Male Housings for Delphi Weather Pack
3 1-Pole Receptacles Type Female Housings for Delphi Weather Pack
2 2-Pole Receptacles Type Male Housings for Delphi Weather Pack
2 2-Pole Receptacles Type Female Housings for Delphi Weather Pack
1 3-Pole Receptacles Type Male Housing for Delphi Weather Pack
1 3-Pole Receptacles Type Female Housing for Delphi Weather Pack
1 4-Pole Pin Type Male Housing for Delphi Weather Pack
1 4-Pole Pin Type Female Housing for Delphi Weather Pack
1 4-Pole Receptacles Type Male Housing for Delphi Weather Pack
1 4-Pole Receptacles Type Female Housing for Delphi Weather Pack
