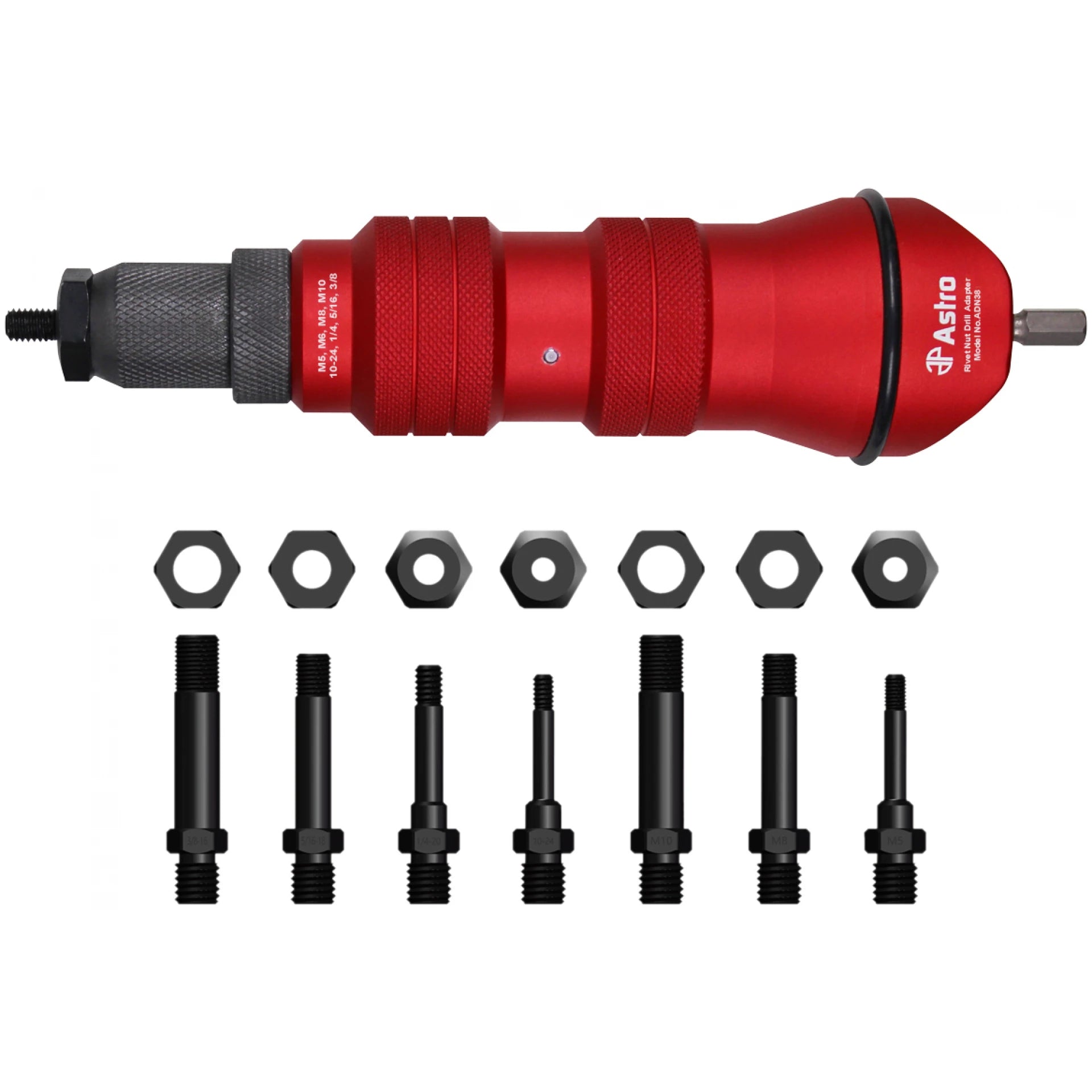

Astro Pneumatic ADN38 XL Rivet Nut Drill Adapter Kit with 8 mandrels and nosepieces laid out

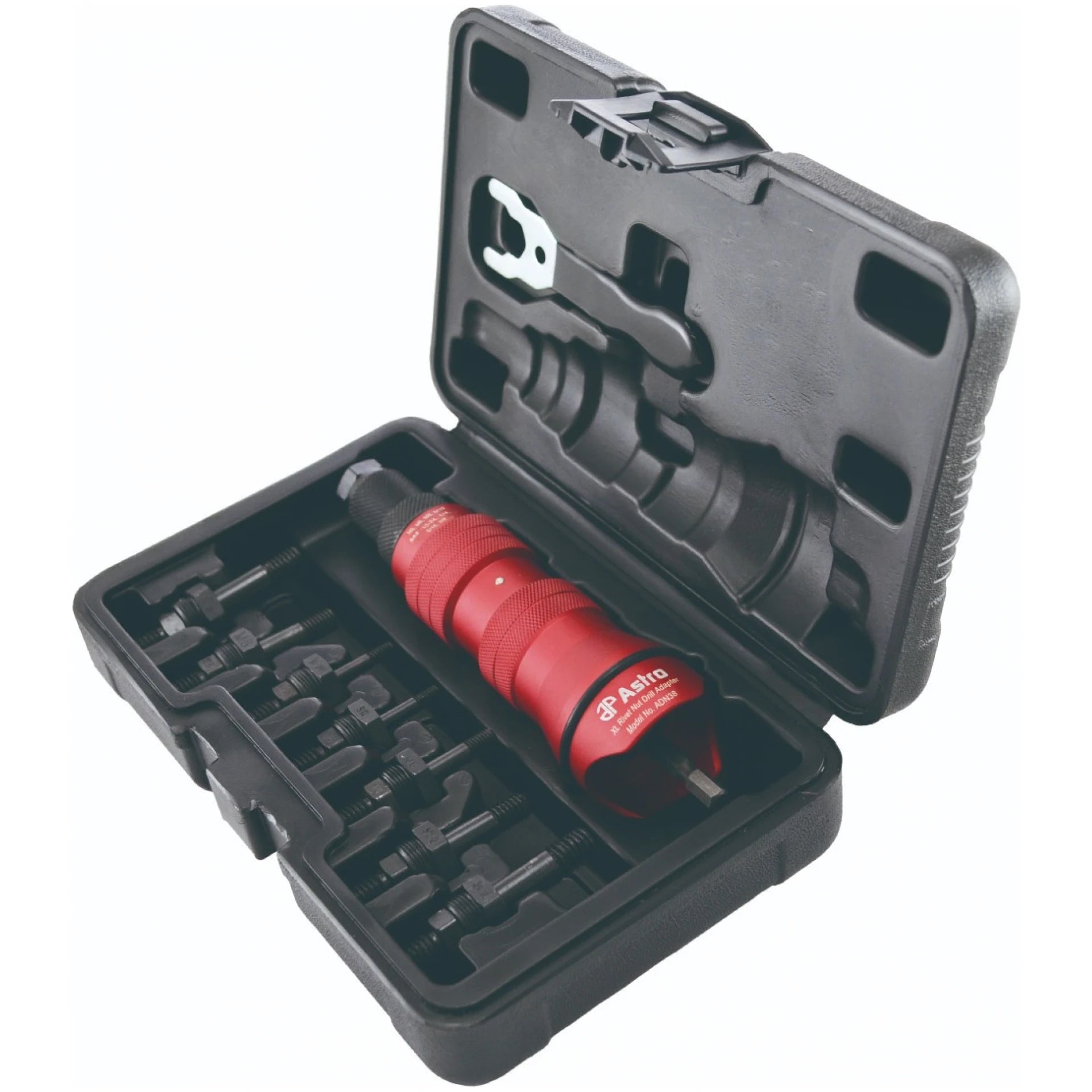

Astro Pneumatic ADN38 XL Rivet Nut Drill Adapter Kit stored in molded carrying case with accessories

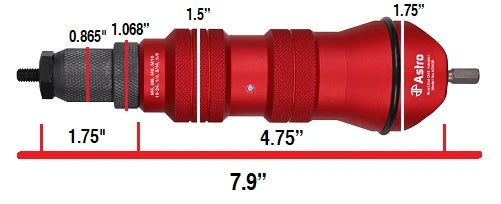

Astro Pneumatic ADN38 XL Rivet Nut Drill Adapter Kit dimension diagram showing 7.9 inch total length

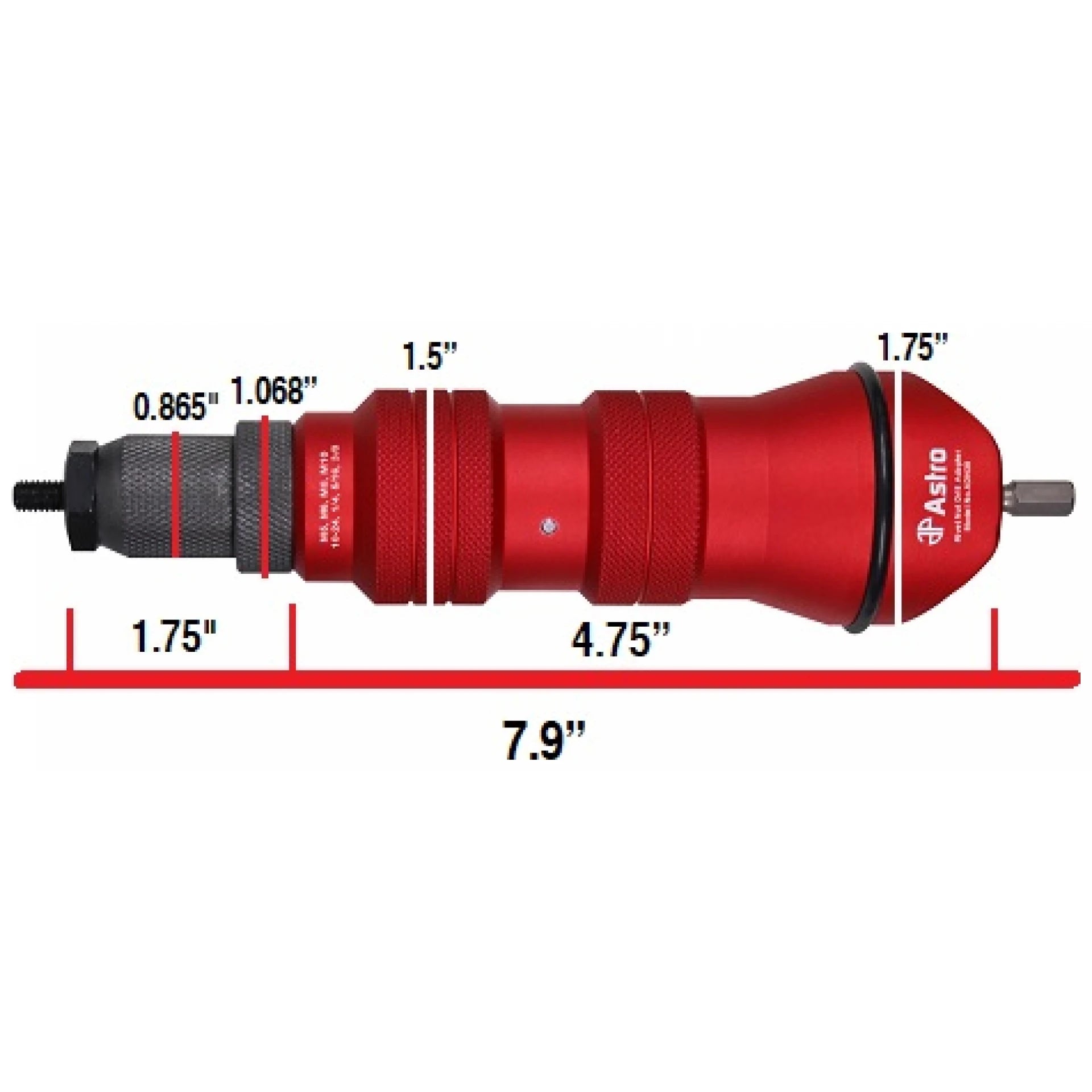

Astro Pneumatic ADN38 XL Rivet Nut Drill Adapter Kit detailed sizing diagram with segment measurements

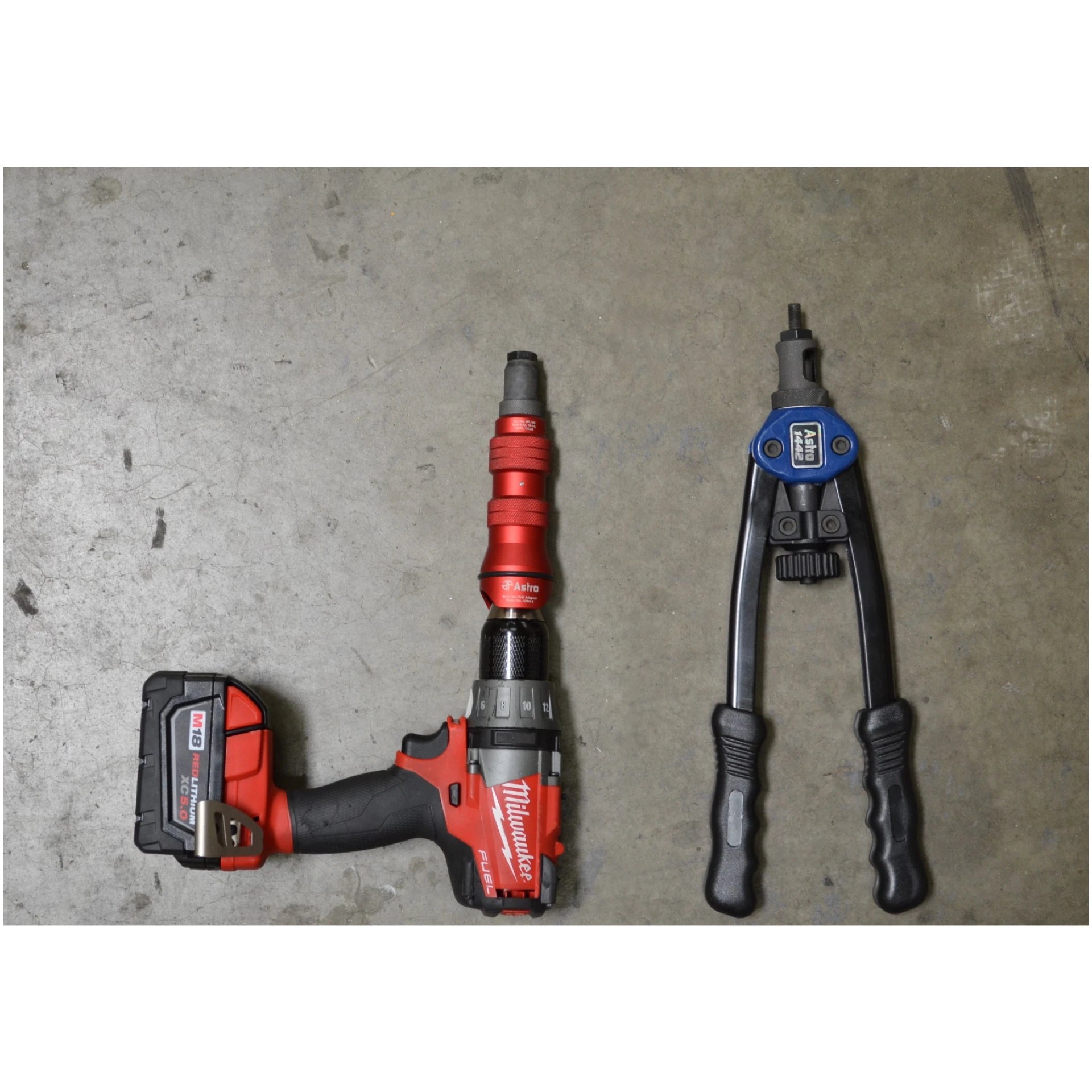

Astro Pneumatic ADN38 XL Rivet Nut Drill Adapter Kit shown mounted in cordless drill alongside rivet tool for scale
Astro Pneumatic ADN38 XL Rivet Nut Drill Adapter Kit with 8 mandrels and nosepieces laid out
Astro Pneumatic ADN38 XL Rivet Nut Drill Adapter Kit stored in molded carrying case with accessories
Astro Pneumatic ADN38 XL Rivet Nut Drill Adapter Kit dimension diagram showing 7.9 inch total length
Astro Pneumatic ADN38 XL Rivet Nut Drill Adapter Kit detailed sizing diagram with segment measurements
Astro Pneumatic ADN38 XL Rivet Nut Drill Adapter Kit shown mounted in cordless drill alongside rivet tool for scale

Astro Pneumatic ADN38 XL Rivet Nut Drill Adapter Kit, 3/8 In

SKU: AST-ADN38
(0)
Sale price
$170.20 CAD
Regular price
$212.74 CAD
You save
$42.54 CAD (20%)

In stock! Usually ships in 24 to 48 hours.
Est. Arrival Nov 17 - Nov 19
Pickup available at Edmonton Warehouse

Usually ready in 4 hours

Check availability at other locations
Get Free

Order over the phone? Call us now.

1-800-905-0410
Found a better price elsewhere? Request Price Match
END-TO-END CUSTOMER SUPPORT
1-YEAR PRICE MATCH GUARANTEE
FREE SHIPPING WITH $199+ ORDERS
30-DAY MONEY-BACK GUARANTEE

The Astro Pneumatic ADN38 XL Rivet Nut Drill Adapter Kit with 3/8" capacity is a precision-engineered tool that quickly converts any compatible cordless, pneumatic, or corded drill into a full-function power rivet nut setter. CNC machined from solid billet aluminum and equipped with durable bearings, this adapter delivers the structural integrity and long-term reliability demanded by professional users. The kit supports both SAE and metric rivet nut sizes, making it one of the most versatile drill adapters available. Designed for aluminum, steel, and stainless steel rivet nuts, it scales effortlessly with drill power across a wide range of applications.

Features

  • Converts cordless, pneumatic, or corded drills into a power rivet nut setter

  • CNC machined from solid billet aluminum for maximum durability and precision

  • Equipped with durable bearings for smooth, reliable operation

  • Adjustable torque setting accommodates a wide range of rivet nut materials and sizes

  • Clutch provides a felt and/or audible indication when maximum torque setting is reached

  • Compatible with 12V and up cordless drills for aluminum and steel rivet nuts; 18V+ required for M10, 3/8", and stainless steel rivet nuts

  • Chuck accepts 6.35 mm (1/4") shank for broad drill compatibility

  • Includes 8 mandrels and nosepieces in SAE and metric sizes: 10-24, 1/4-20, 5/16-18, 3/8-16 and M5, M6, M8, M10

  • Comes packaged in a molded storage case for organized transport and storage

Specifications

Material: CNC Machined Solid Billet Aluminum
Chuck Shank Capacity: 6.35 mm (1/4")
Maximum Rivet Nut Capacity: 3/8"
Included Sizes (SAE): 10-24, 1/4-20, 5/16-18, 3/8-16
Included Sizes (Metric): M5, M6, M8, M10
Minimum Voltage (Aluminum or M5/10-24 Steel): 12V
Minimum Voltage (Steel M6, M8, 1/4", 5/16" or Stainless M5/10-24): 14.4V
Minimum Voltage (M10, 3/8" and All Stainless): 18V+ (full-size)
Minimum Torque for Electric/Pneumatic (Aluminum and Smaller Steel): 190 in/lbs
Minimum Torque for Electric/Pneumatic (Stainless Steel): 400 in/lbs
Overall Length: 7.9"
Weight: 1.8 lbs
Color: Red

Includes

1x XL Rivet Nut Drill Adapter Body
8x Mandrels and Nosepieces (10-24, 1/4-20, 5/16-18, 3/8-16, M5, M6, M8, M10)
1x Molded Storage Case
