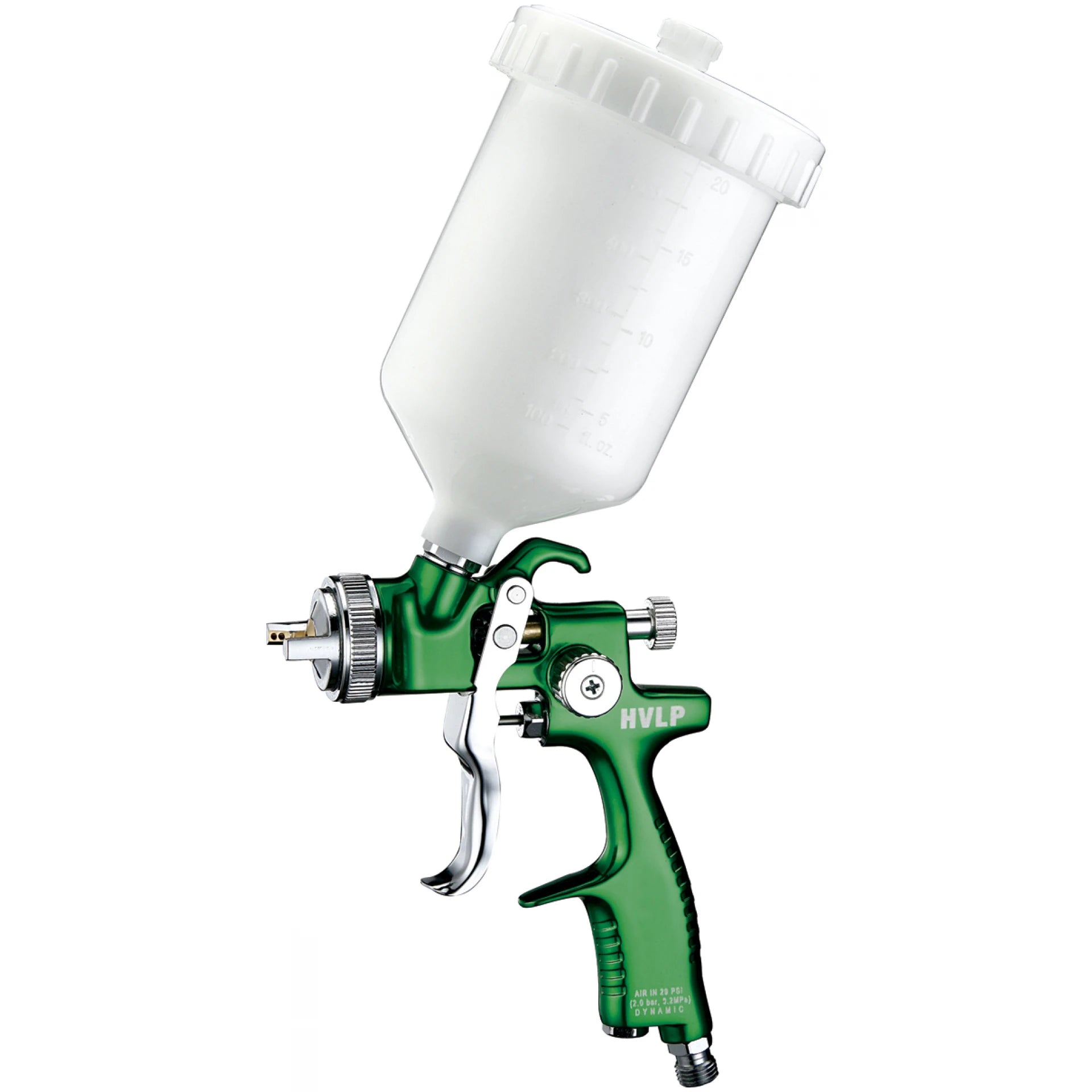

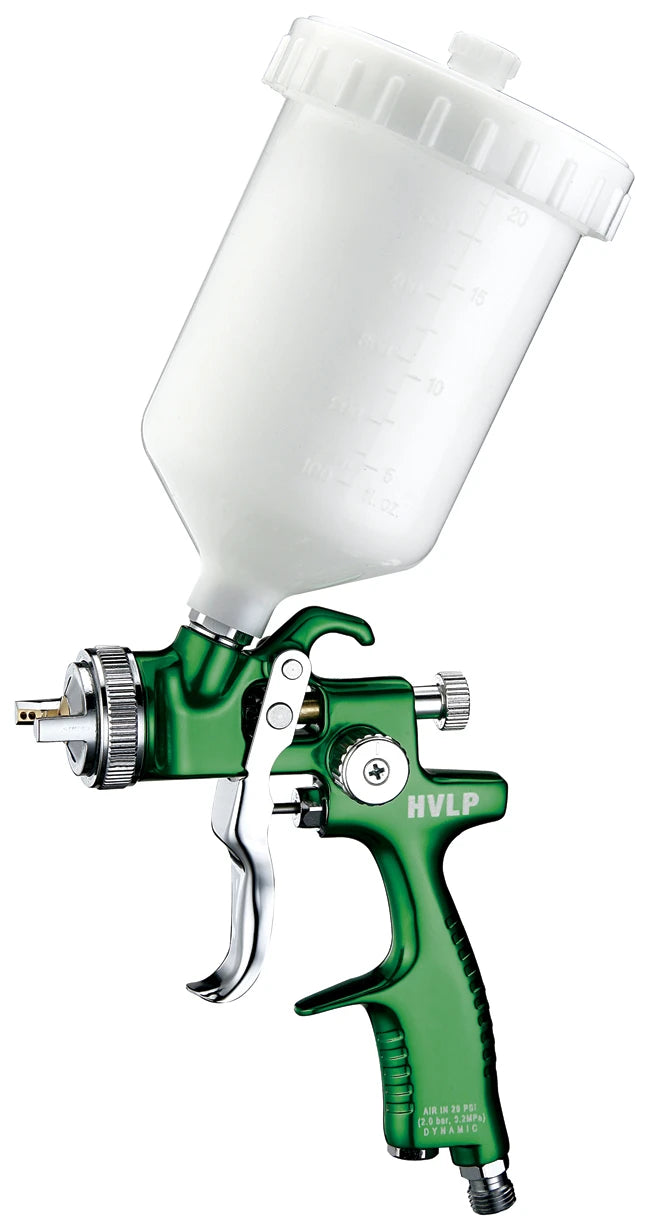

The Astro Pneumatic EuroPro EUROHV103 is a professional-grade forged HVLP gravity-feed spray gun engineered for superior atomization and high transfer efficiency in automotive and industrial painting applications. Built with an anodized forged body, it delivers exceptional durability and corrosion resistance for long-lasting performance in demanding shop environments. Its innovative HVLP technology achieves up to 86% transfer efficiency, dramatically reducing overspray and material waste. Weighing just 325 grams (0.7 lbs), this gun is designed for all-day use with minimal operator fatigue while delivering consistent, professional-quality results.
Features
Forged body construction provides longer tool life and increased structural integrity
Anodized body finish for corrosion protection in harsh working conditions
Internal coated passages for improved fluid flow and easier maintenance
Stainless steel needle and fluid tip for chemical resistance and durability
Slick exterior finish enables faster and easier cleaning between uses
Lightweight design at 325 grams (0.7 lbs) reduces operator fatigue during extended use
86% transfer efficiency rate minimizes overspray and material waste
Unique spray pattern engineered for great coverage and optimal overlapping
Low overspray (bounce back) for a cleaner work environment and better finish quality
Superior atomization powered by advanced innovative HVLP technology
Quick Thread Technology: 1 turn to lock/unlock the air cap, 3 turns to lock/unlock the fluid tip
Wide threads on fluid tip and air cap for quick disassembly and thorough cleaning
M16 x P1.5 female thread fluid joint compatible with most traditional and disposable cup systems
Soft trigger pull reduces hand fatigue during long painting sessions
Precisely lubricated adjustment knobs deliver fine control over fluid and fan pattern
Innovative CNC machining eliminates the need for gaskets behind the fluid tip
Specifications
Nozzle Size: 1.3mm
Cup Capacity: 600ml
Operation Pressure: 29 psi
Air Cap Output: 10 psi
Avg. Air Consumption: 9-10 cfm
Max. Pattern (at 4" to 7" distance): 9" - 10-14" (230-260mm)
Gun Dimensions (W x H): 7" x 5-3/4" (175mm x 145mm)
Weight: 0.7 lbs (325g)
Air Inlet Thread (NPT): 1/4"
Required Compressor: 2-5 HP
Fluid Joint Thread: M16 x P1.5 female
Includes
1x HVLP Spray Gun Body
1x 1.3mm Fluid Tip
1x 1.3mm Nozzle
1x Stainless Steel Needle
1x 600ml Plastic Cup
Gaskets
1x Wrench for Nozzle Changes
1x Instruction Guide
