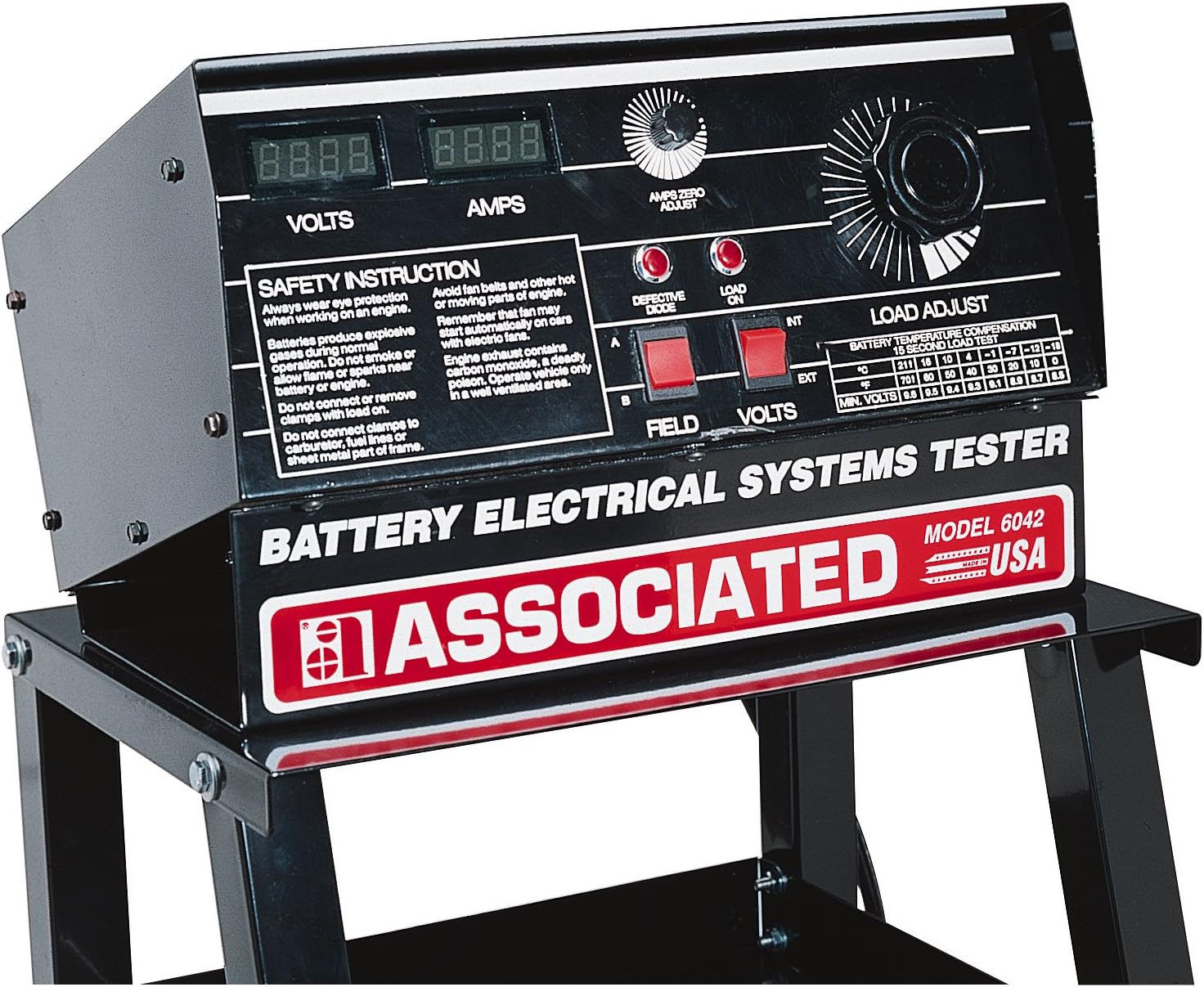

The Associated Equipment Model 6042 is a professional-grade 12/24V 500 Amp Digital Battery Electrical Systems Tester designed for comprehensive vehicle electrical diagnostics. Built with heavy-duty steel construction and manufactured in the USA, this unit delivers reliable performance in demanding shop environments. Dual digital displays for volts and amps provide precise, easy-to-read measurements for thorough battery and electrical system analysis. With a voltage range of 0 to 32V and cold cranking amp capacity of 100 to 1000 CCA, the Model 6042 is engineered to handle a wide range of 12V and 24V automotive and commercial vehicle applications.
Features
Dual digital displays for simultaneous volts and amps readout
Shows positive and negative amps for easy diagnosis of current leakage problems
Heavy-duty single extruded leads for testing up to 15 feet apart
Unique curved discs to prevent hot spots during load testing
Defective diode indicator for alternator diagnostics
Amps zero adjust and load adjust controls for accurate calibration
Battery temperature compensation chart for precise 15-second load test results
Compatible with 12V and 24V electrical systems
Made in the USA
Specifications
Brand: Associated Equipment
Model: 6042
Voltage Compatibility: 12V / 24V
Voltage Range: 0 to 32.0V
Maximum Load Capacity: 500 Amps
Load Ranges: 50 to 500
Cold Cranking Amps (CCA) Range: 100 to 1000
Display Type: Digital
Resolution: High
Accuracy: 50 CCA
Lead Length: 8 ft.
Construction: Steel
Dimensions (D x W x H): 19 in. x 36 in. x 8 in.
Item Weight: 48 lbs.
Country of Origin: USA
Manufacturer Warranty: 1 Year
Includes
1 Associated Equipment Digital Battery Electrical Systems Tester (Model 6042)
1 Instruction Manual
