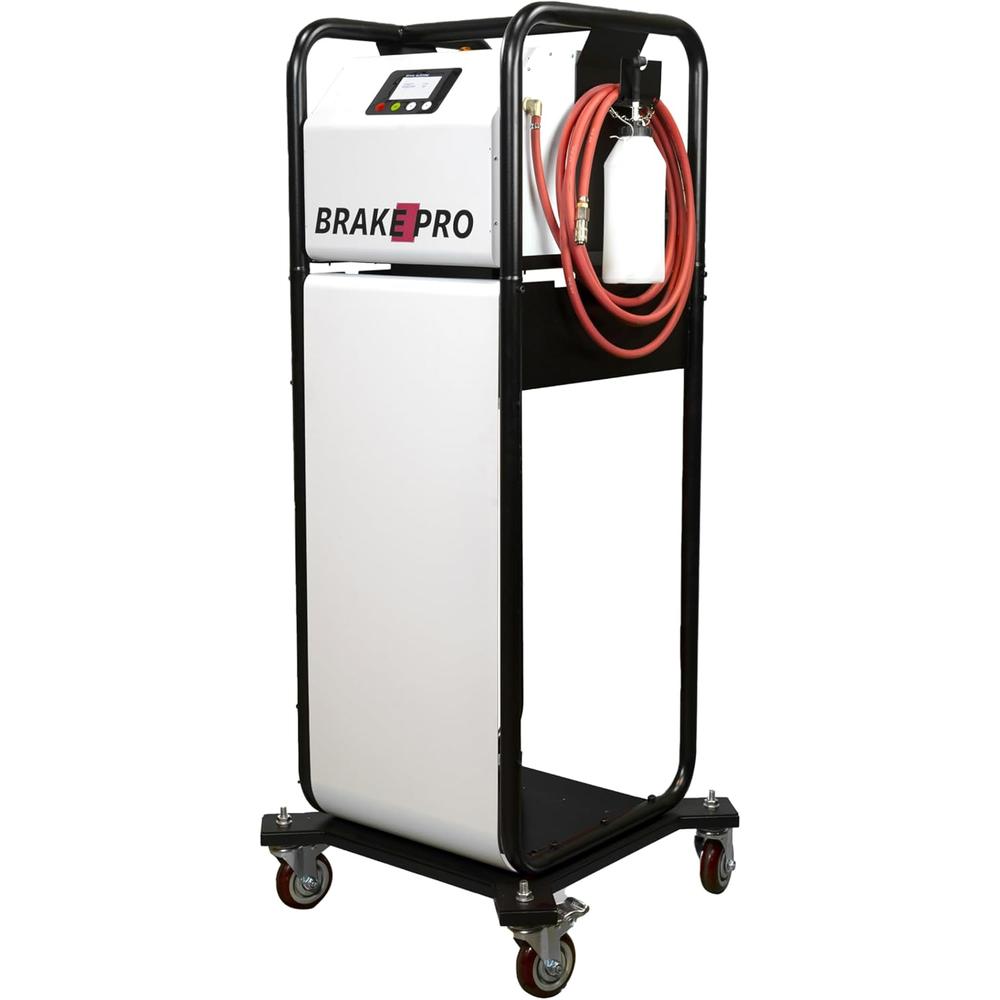

CTA Tools 8488 Brake-Pro Electric Pressure Brake Bleeder w/ Trolley

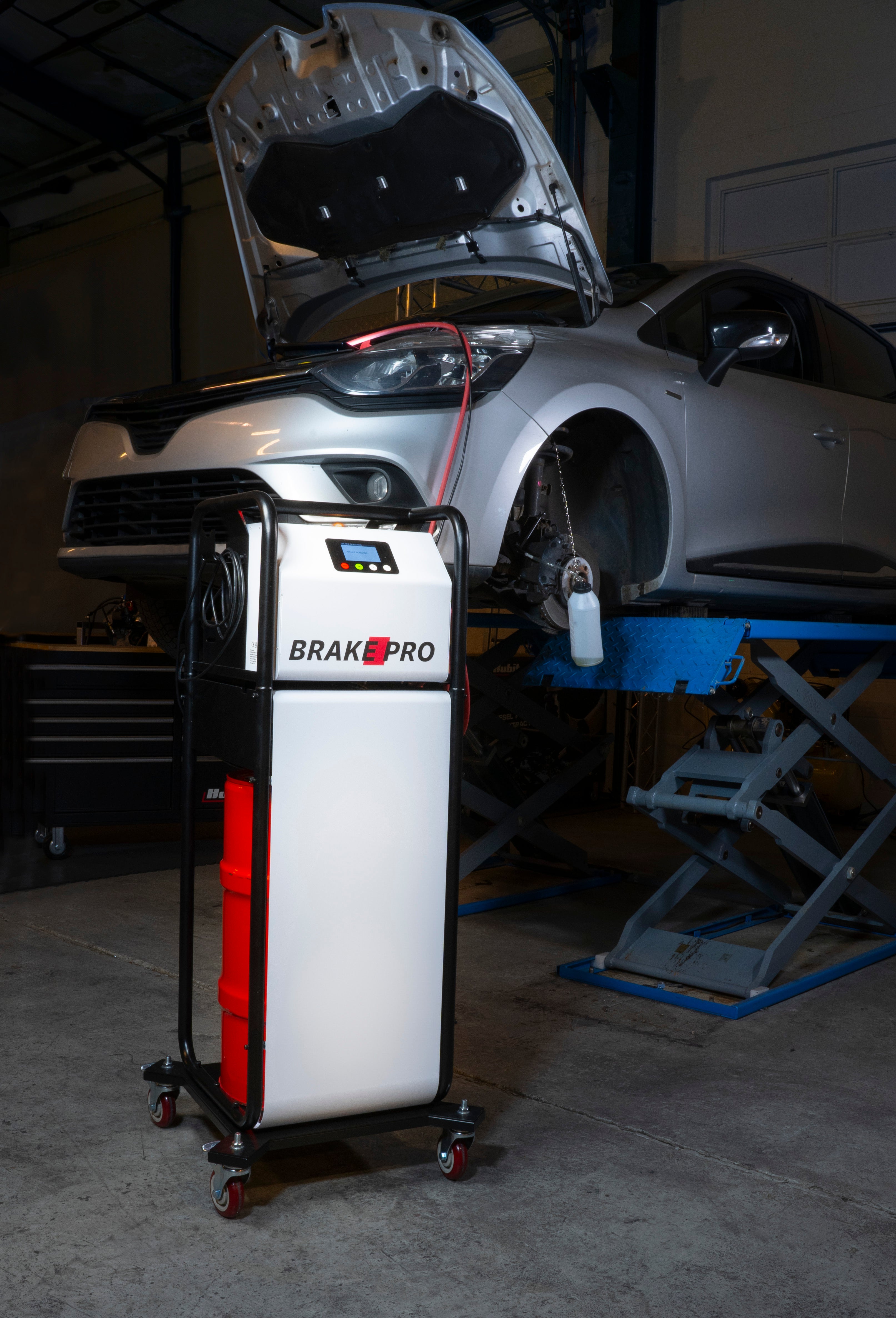

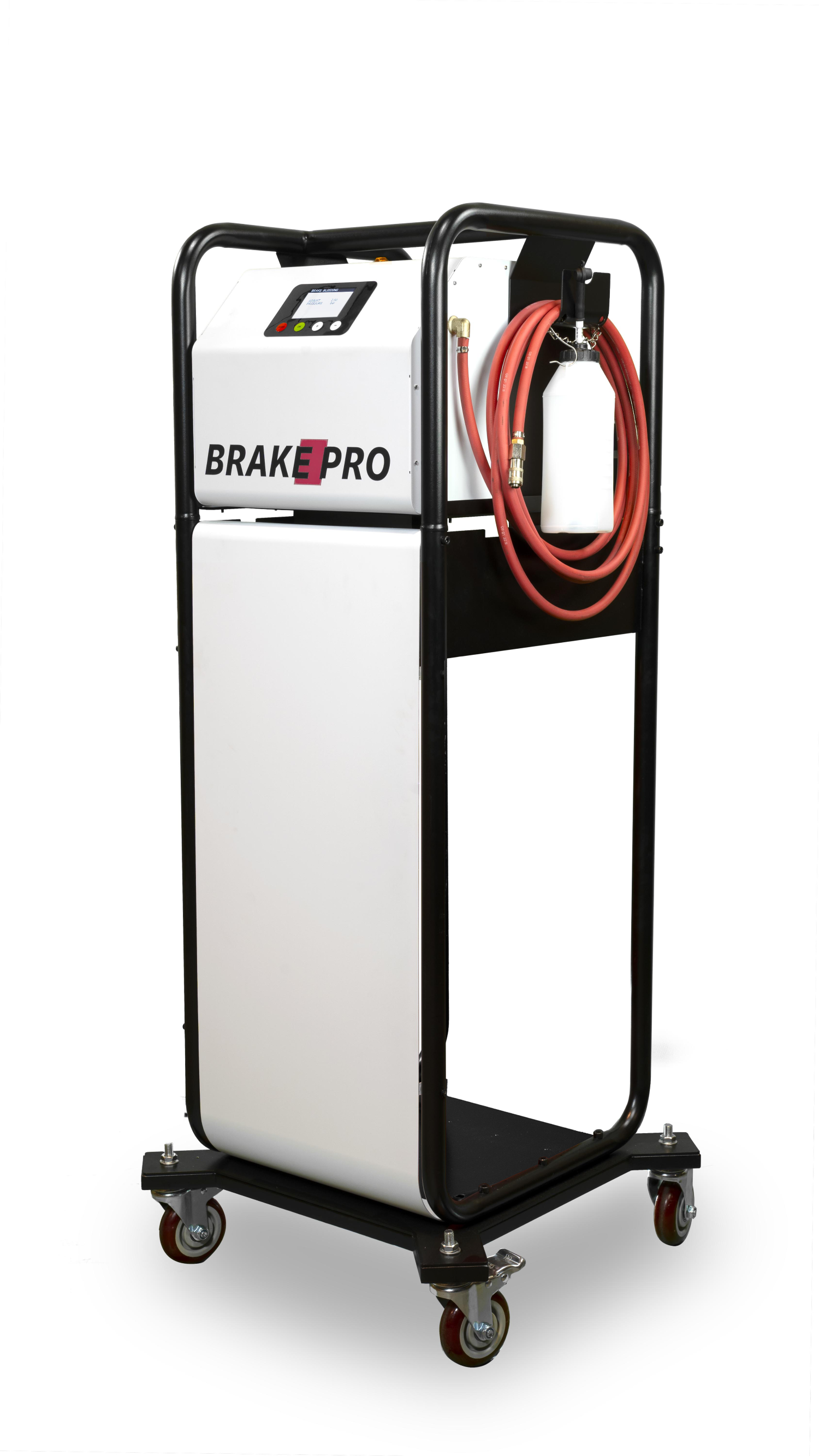

The CTA Tools 8488 Brake-Pro Electric Pressure Brake Bleeder with Trolley is a professional-grade, tall-frame brake service station designed for both brake bleeding and full fluid flushing tasks in automotive shop environments. Built around a top-tier digitally controlled sealless gear pump and robust hydraulic system, this unit delivers precise, repeatable results with minimal operator effort. A fully digital LCD touchscreen interface provides intuitive control, multi-language support, and real-time PSI/bar readings for maximum versatility. Mounted on a heavy-duty wheeled trolley with a tall frame, the 8488 accommodates large-volume fluid containers and moves effortlessly around the shop floor.

Features

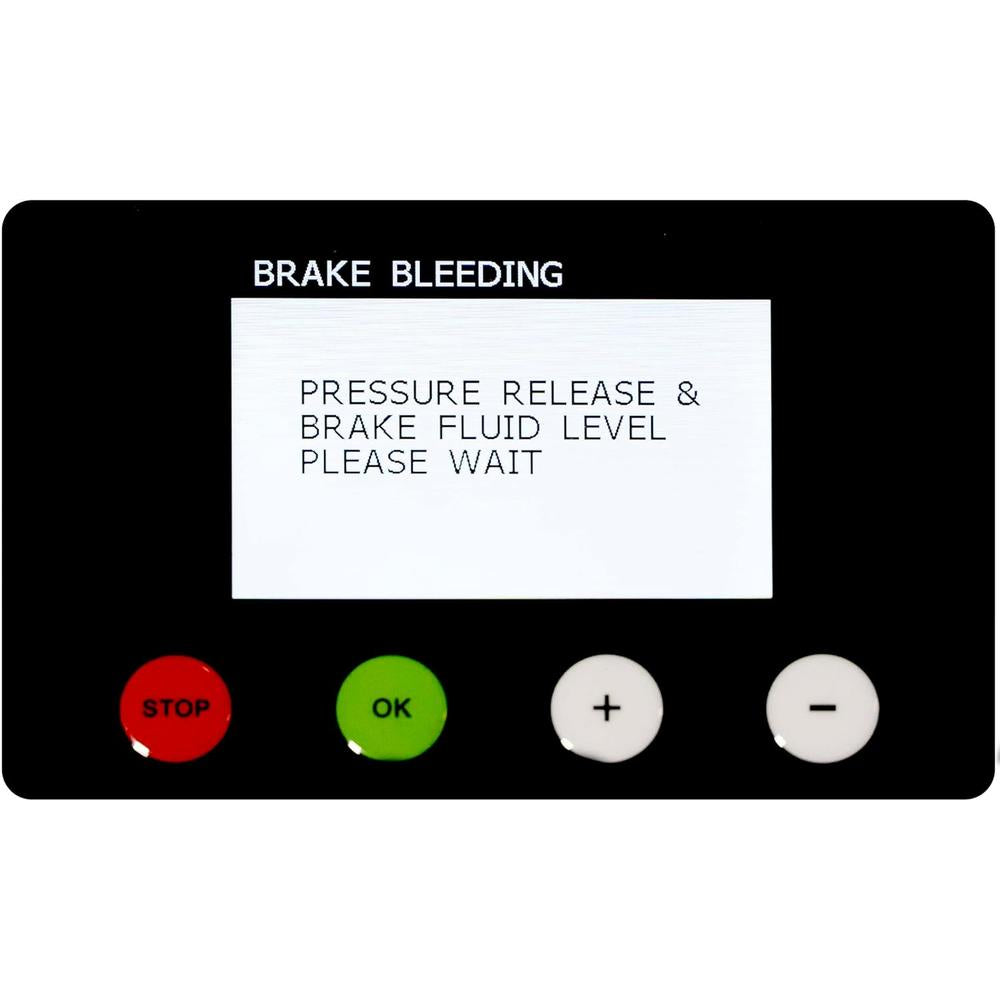

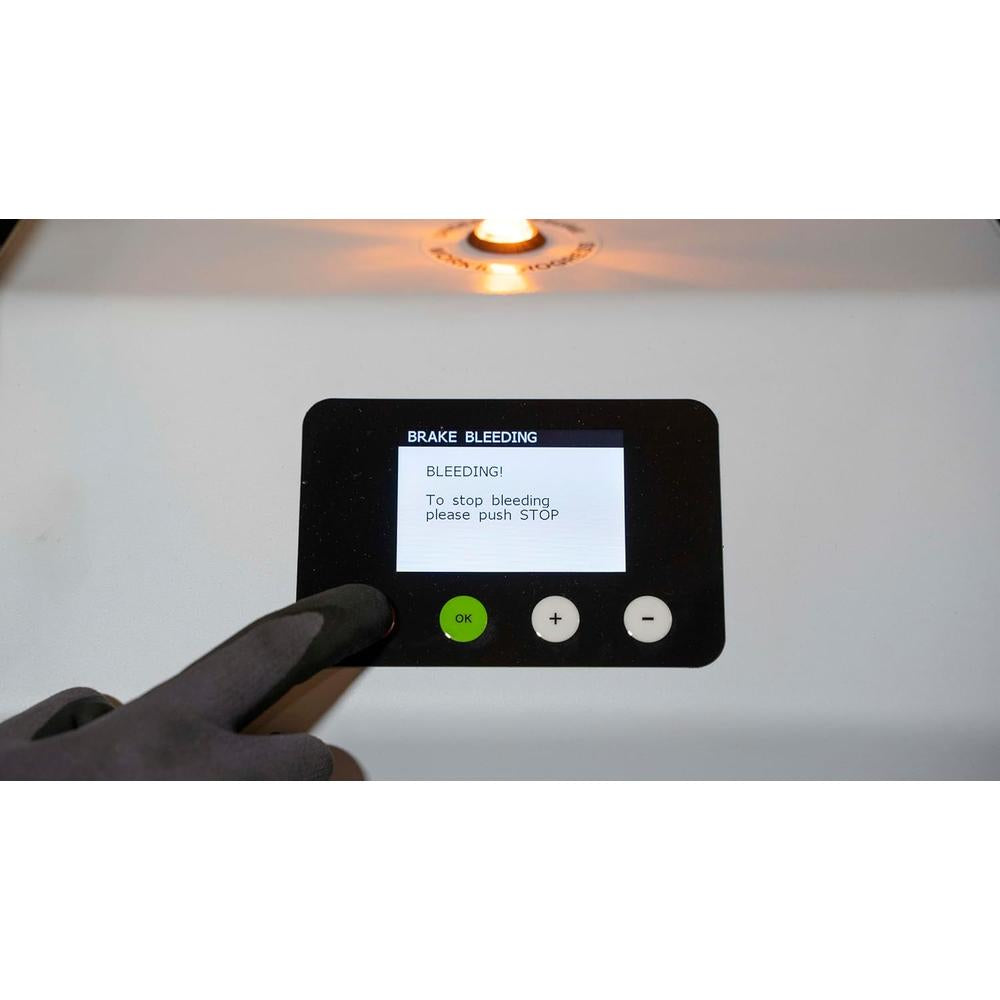

• Fully digital LCD screen and touch panel for user-friendly operation and precise pressure control

• Pressure range of 7.2 to 65.2 PSI (0.5 to 4.5 bar), adjustable in 7.2 PSI (0.5 bar) increments, suitable for both bleeding and flushing

• Multi-language display with selectable PSI/bar unit readings

• Auto leveling of the brake fluid reservoir within the same circuit allows the hydraulic system to work bidirectionally

• Internal flushing mode enables complete brake fluid swap without external equipment

• Digitally controlled sealless gear pump paired with a robust hydraulic system for long-lasting, reliable performance

• 16.5 ft (5 m) hose length provides extended reach to all wheel positions

• Compatible with DOT3, DOT4, DOT4+, and DOT5.1 brake fluid types

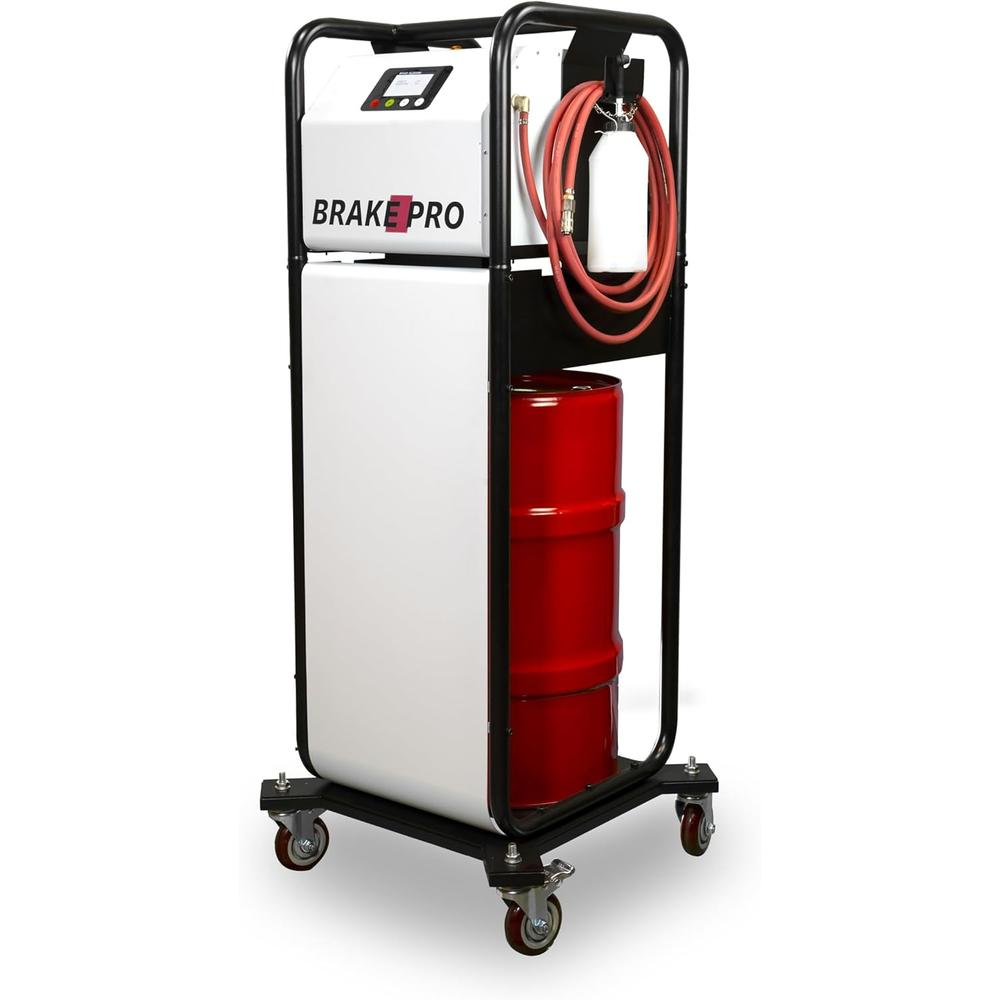

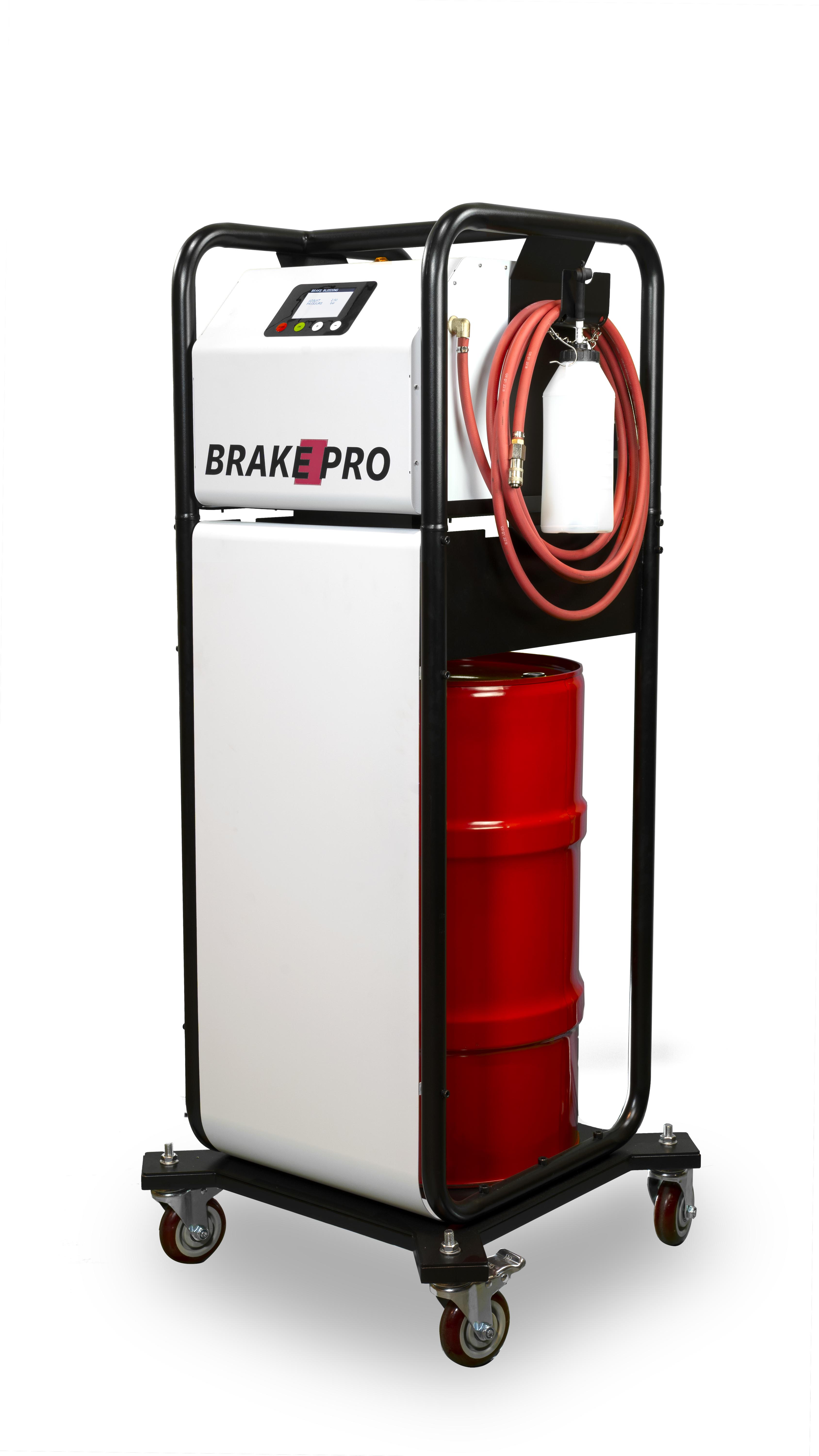

• Holds up to a 15-gallon (60L) container within the unit; container size is unlimited when kept outside the tool holding area

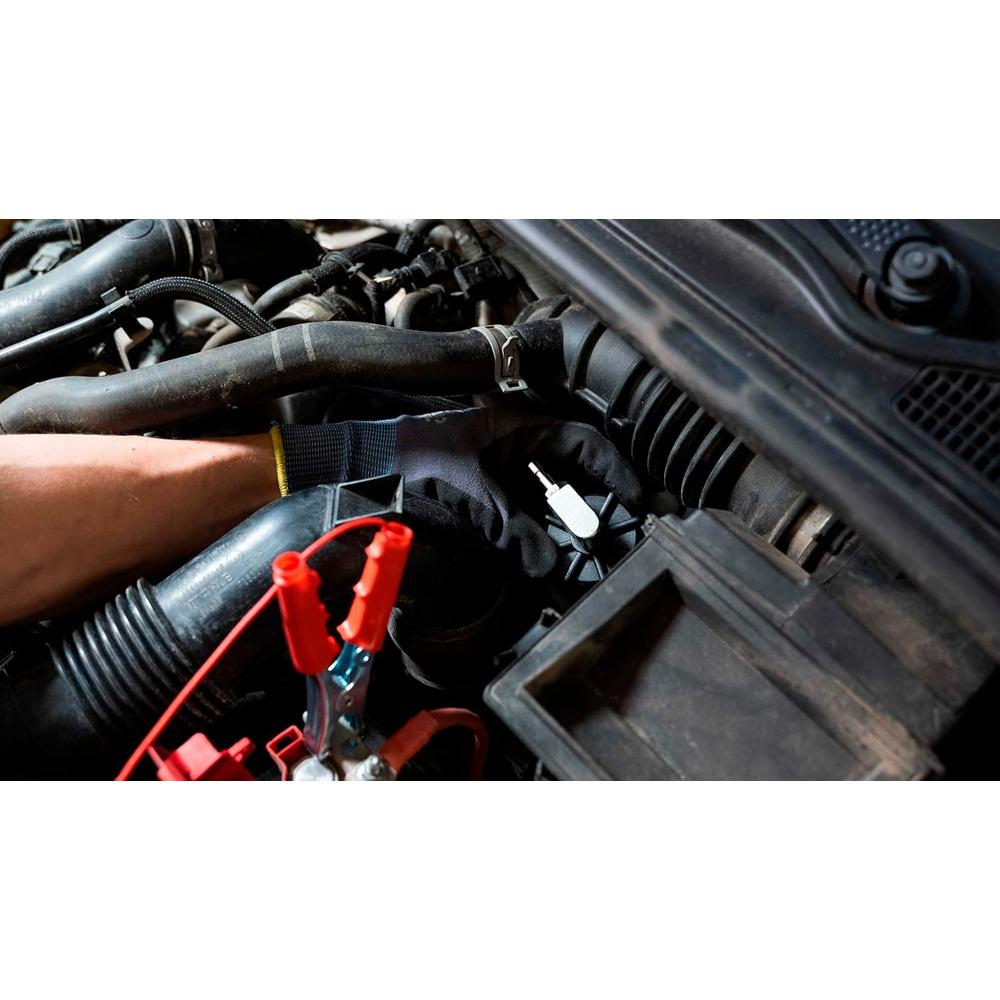

• Dual power supply options: 12V DC (battery clamps) or 110V AC for workshop or mobile use

• 4 rotating caster wheels provide stability and effortless maneuverability throughout the shop

Specifications

Brand: CTA Tools
Model: 8488
Series: Brake-Pro
Frame Style: Tall Frame with Trolley
Pressure Range: 7.2-65.2 PSI (0.5-4.5 bar)
Pressure Increment: 7.2 PSI (0.5 bar)
Max Container Capacity (Internal): 15 gallons (60L)
Hose Length: 16.5 ft (5 m)
Power Supply: 12V DC or 110V AC
Fluid Compatibility: DOT3, DOT4, DOT4+, DOT5.1
Display: Fully digital LCD touchscreen, multi-language with PSI/bar readings
Mobility: 4 rotating caster wheels
Pump Type: Digitally controlled sealless gear pump

Includes

1x Brake-Pro Electric Pressure Brake Bleeder with Tall Frame Trolley

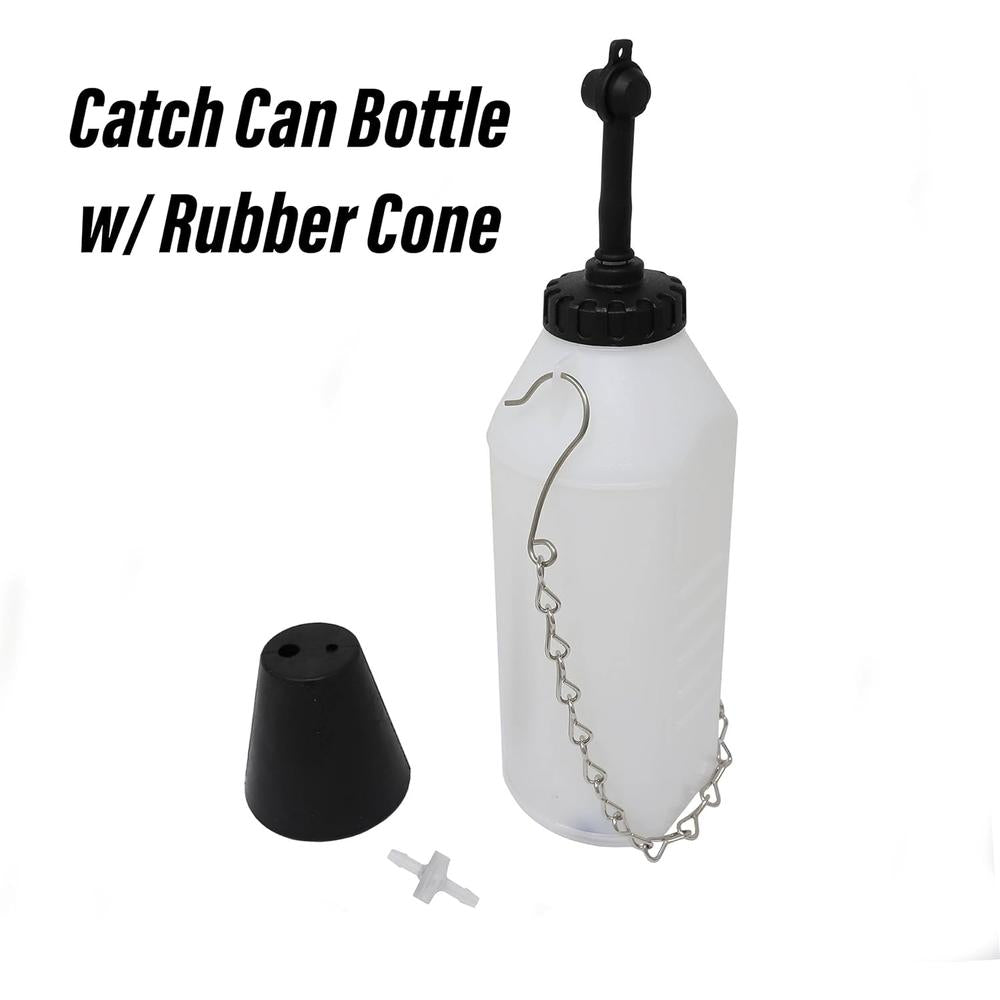

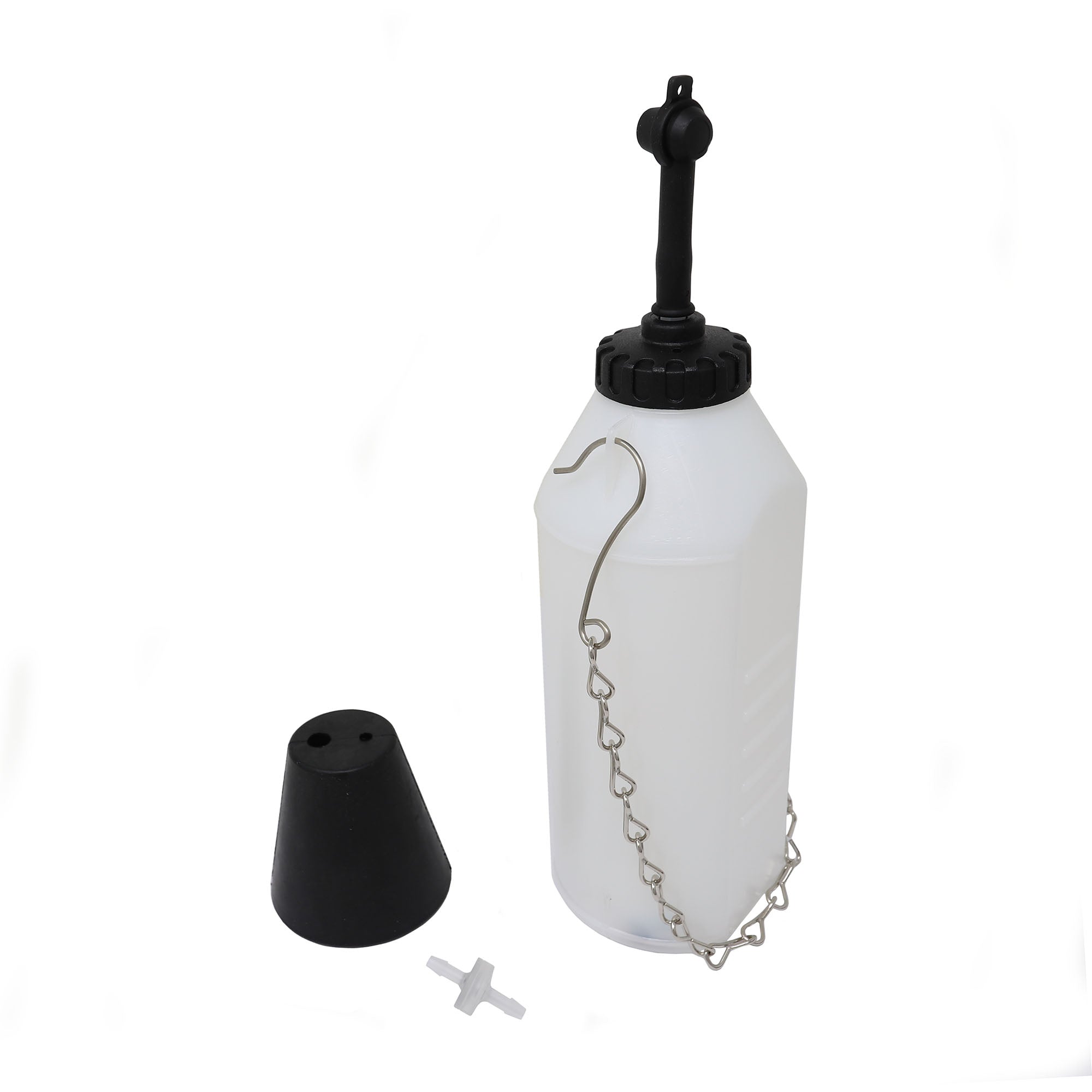

1x Catch can bottle
1x Rubber cone for tanks with one-way valve

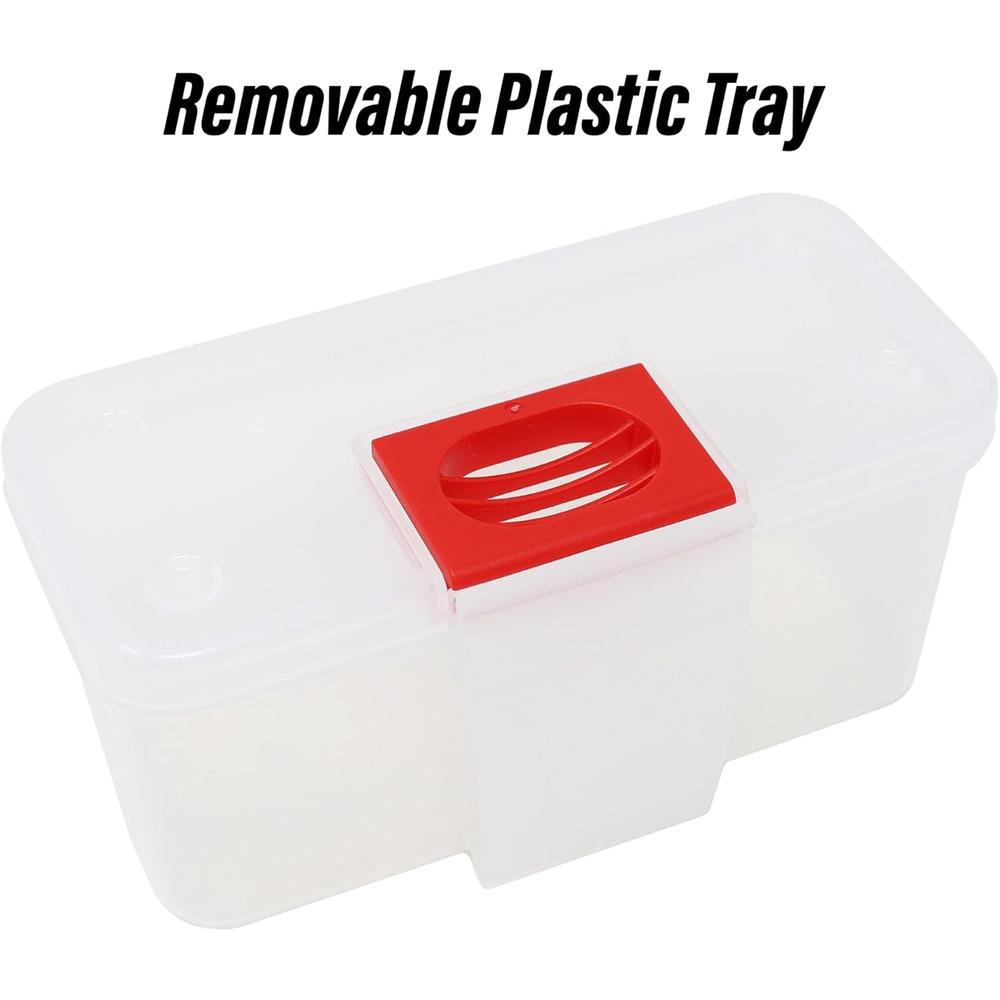

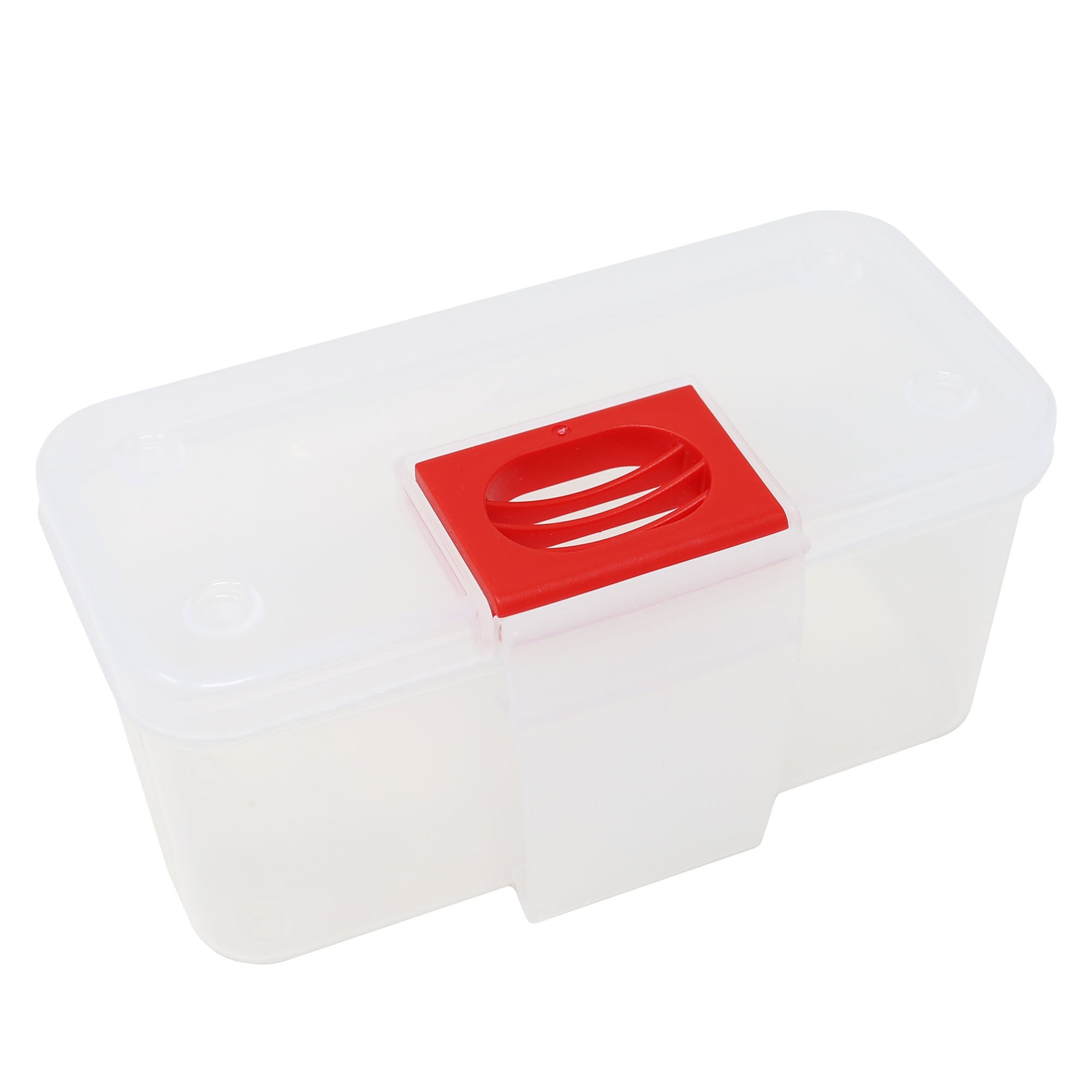

1x Removable plastic tray

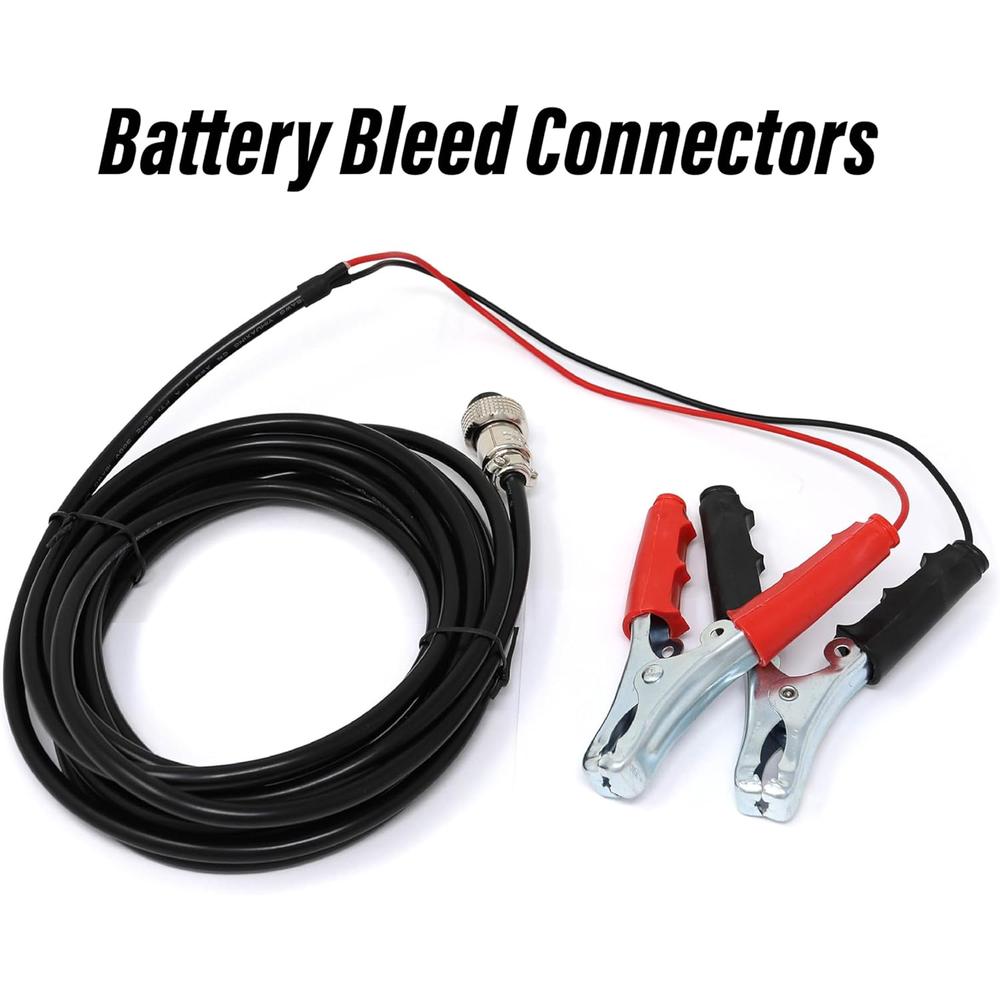

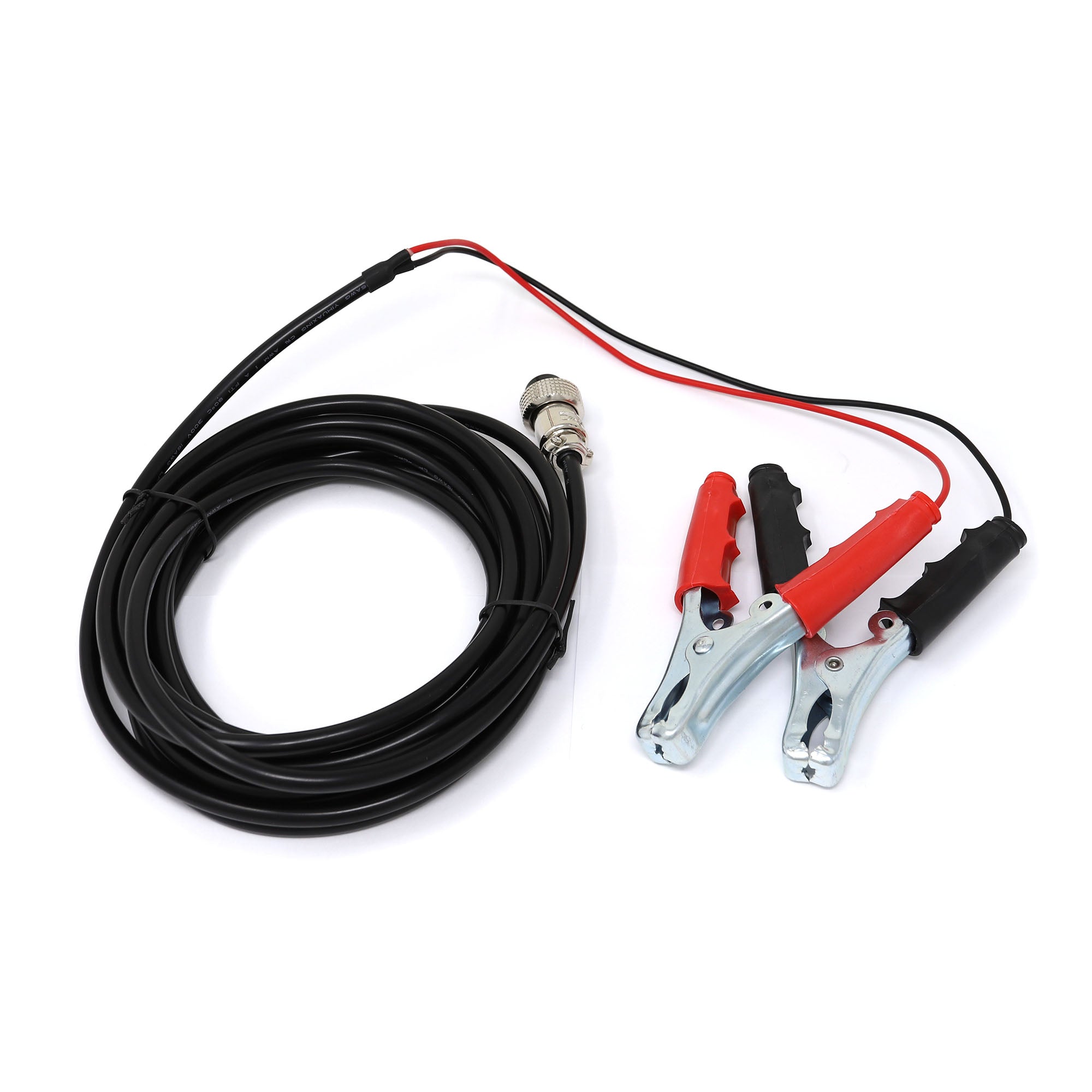

1x 12V DC battery clamp power cable

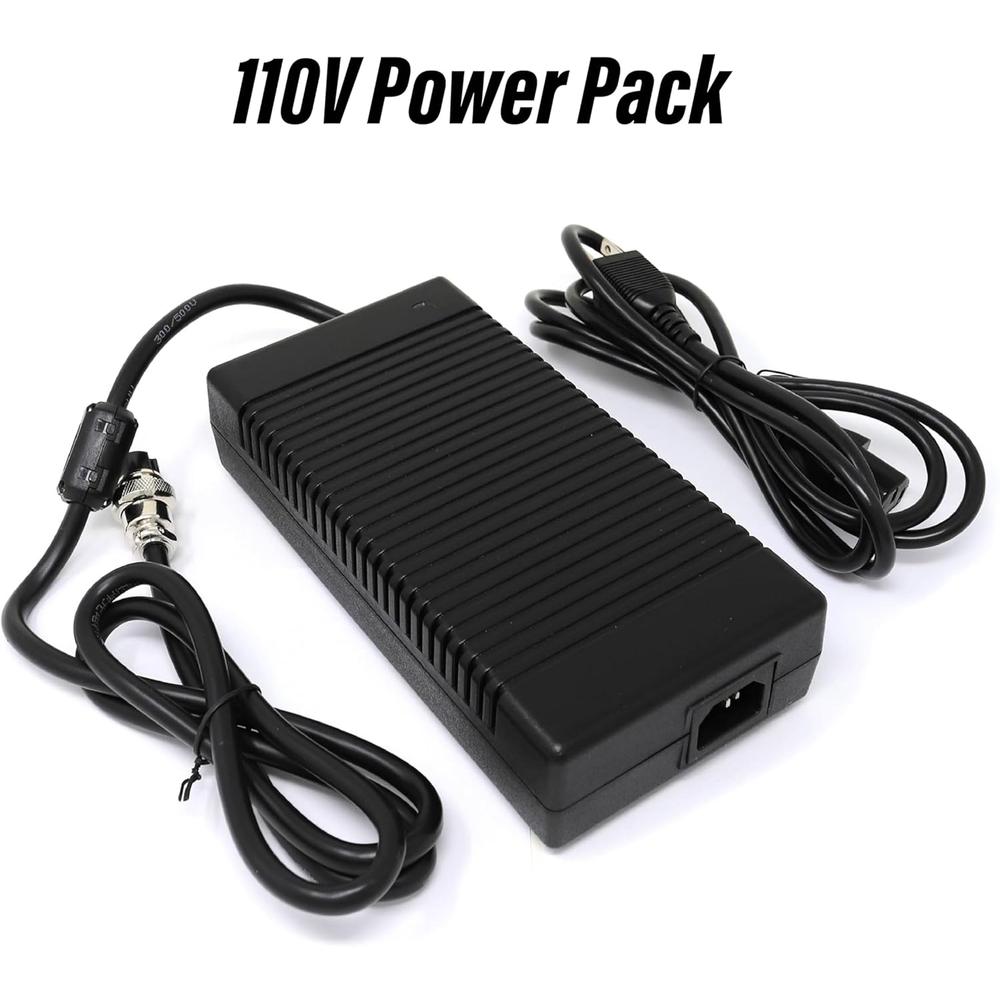

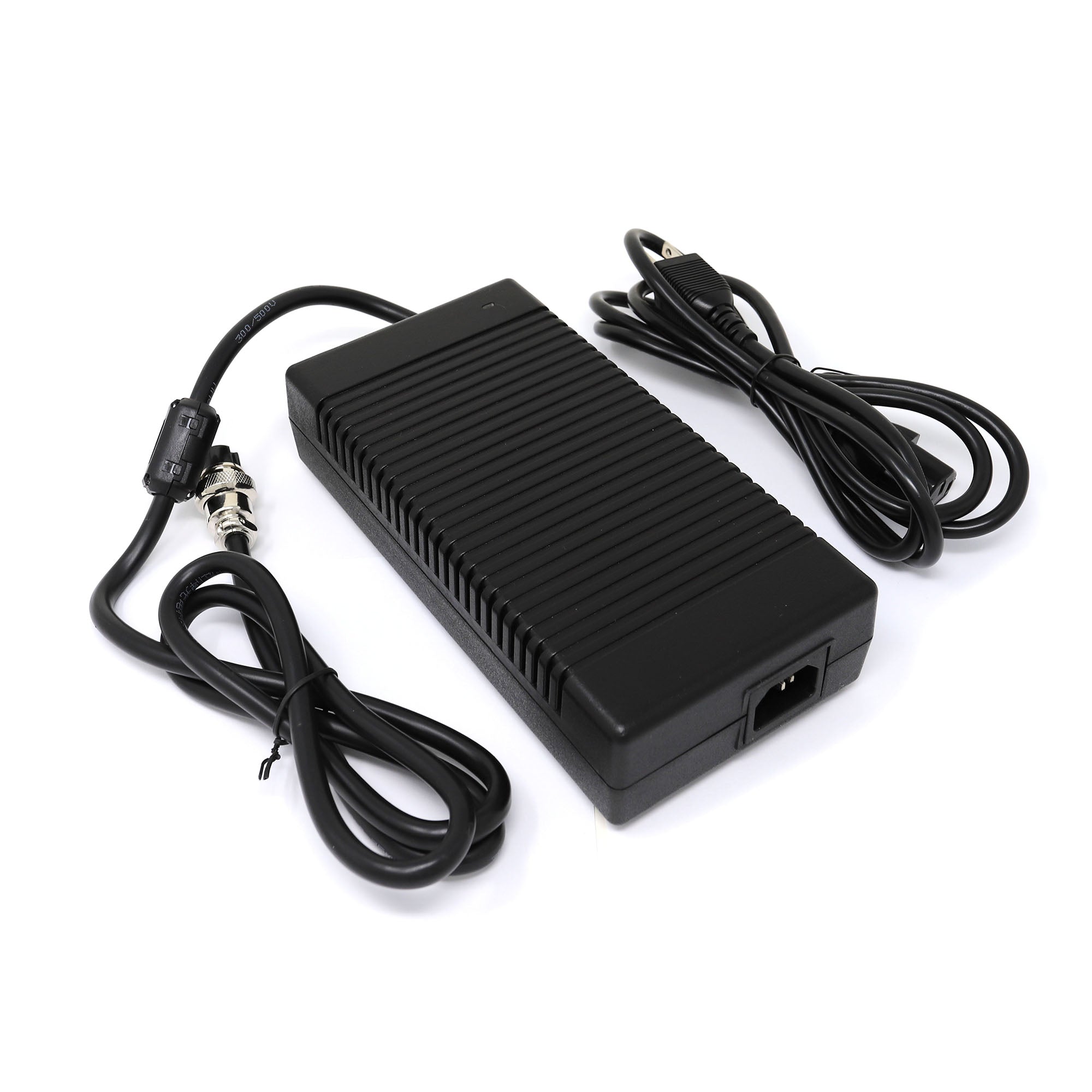

1x 110V AC power adapter
