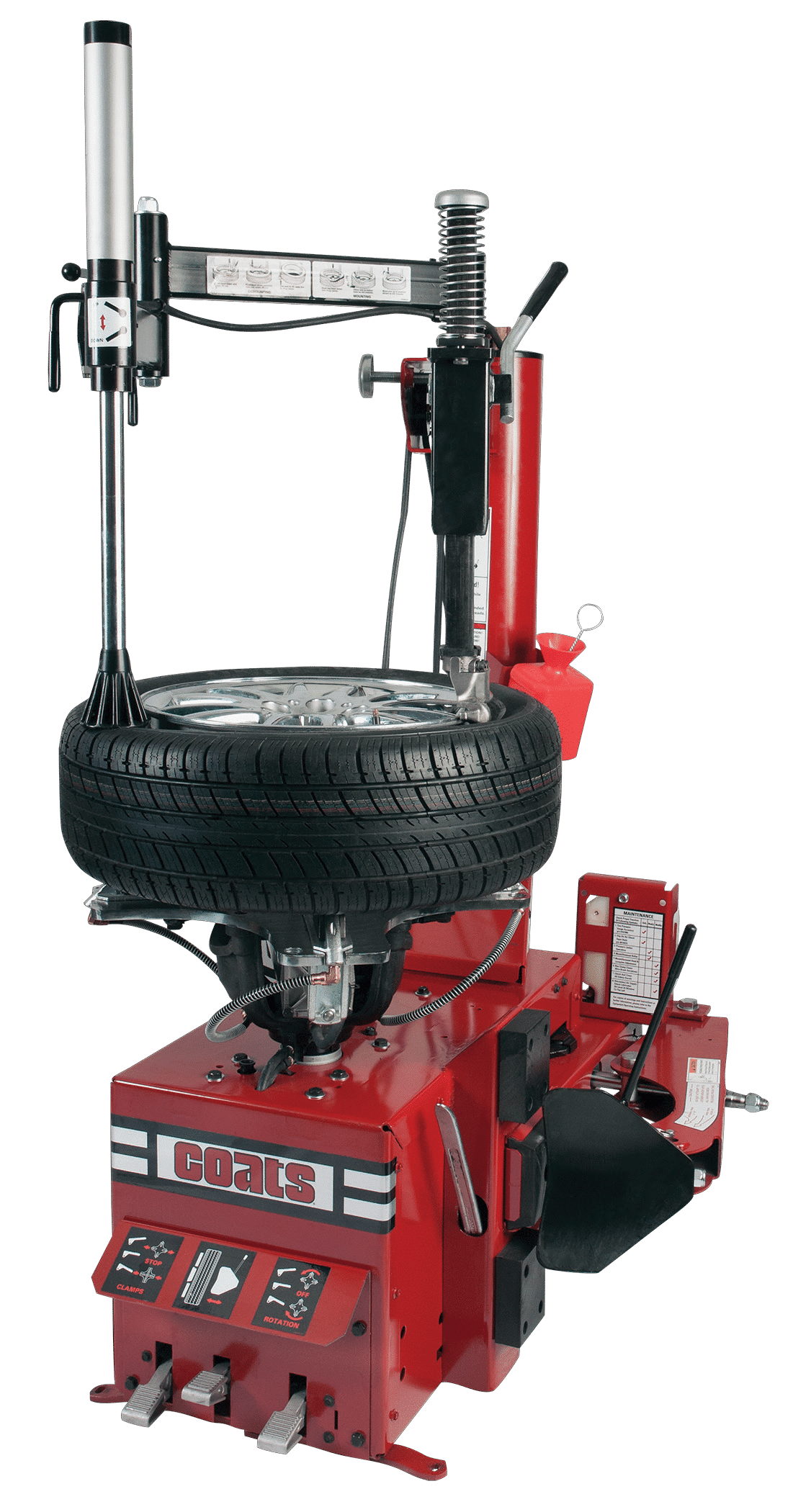

Coats RC-55 Rim Clamp Tire Changer full product view

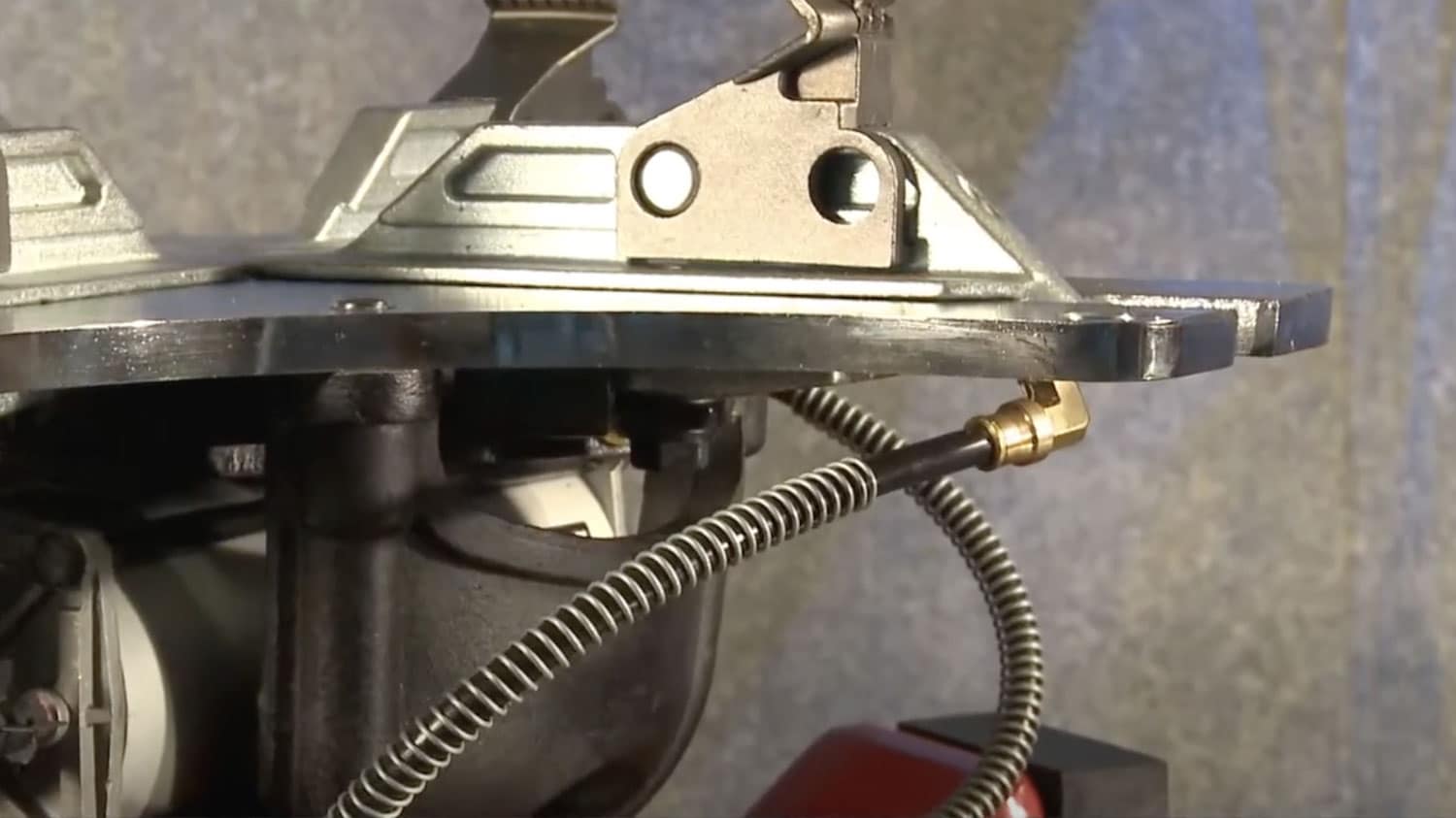

Coats RC-55 built-in bead sealing jets close-up detail

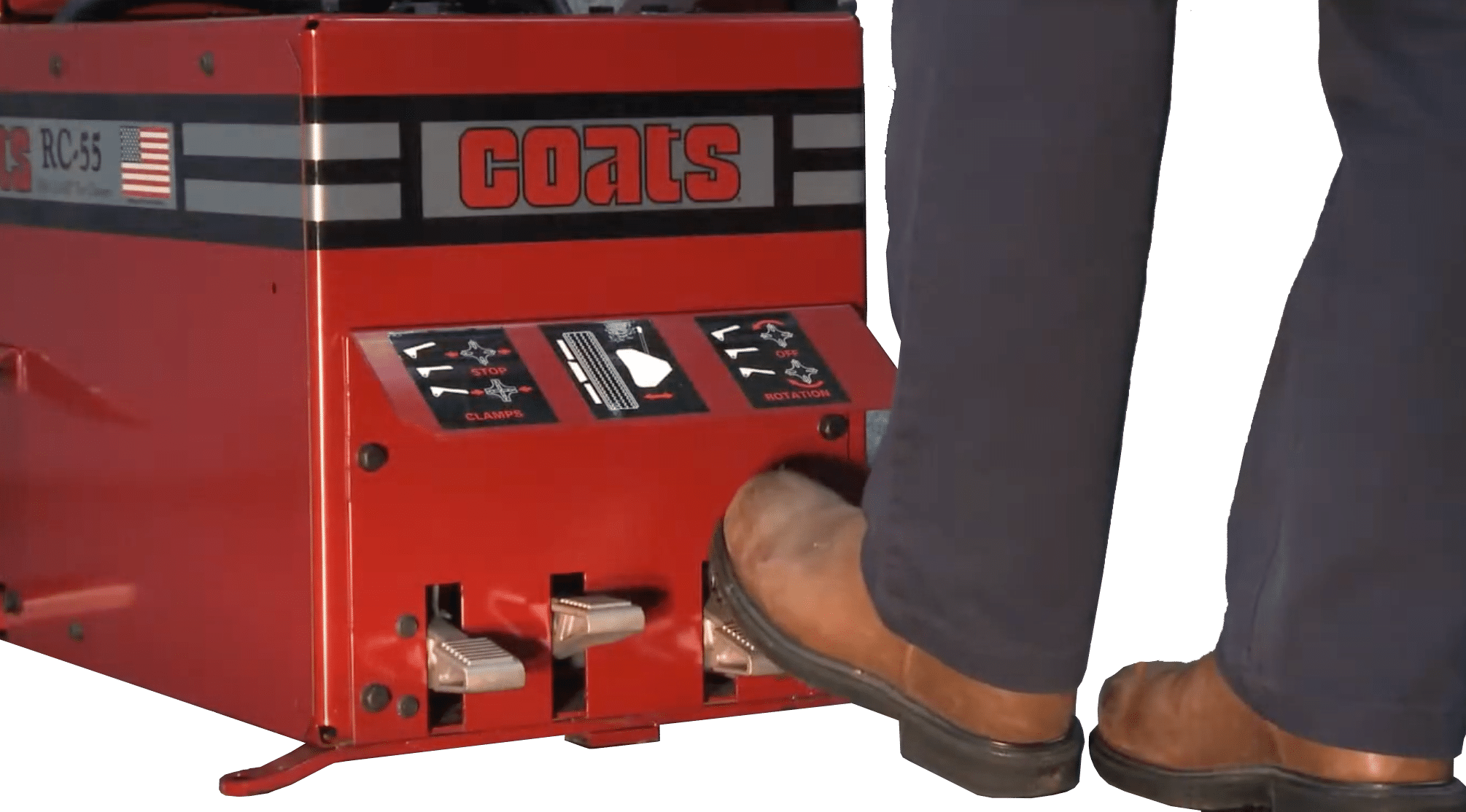

Coats RC-55 foot pedal controls with clamp and rotation functions

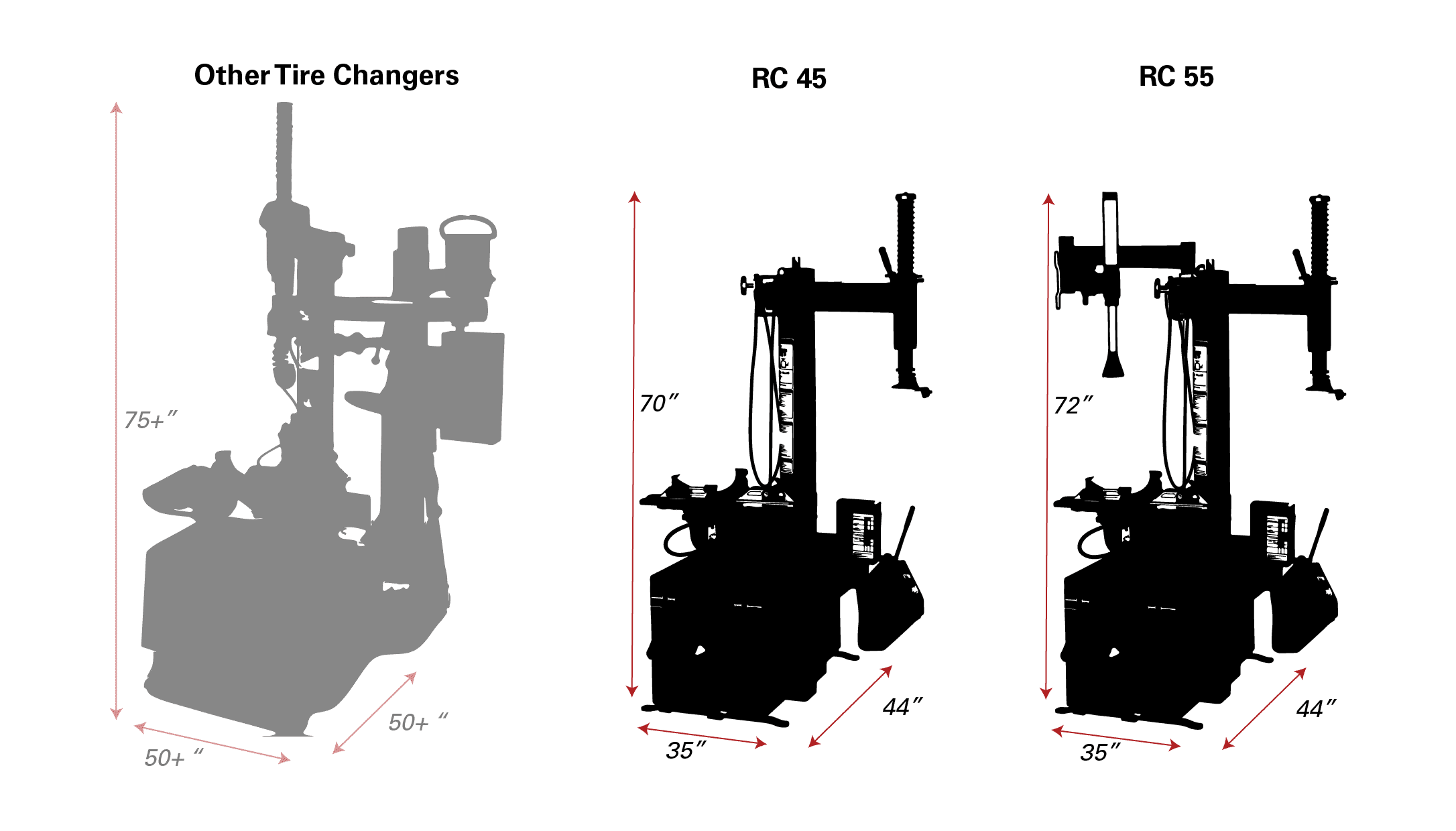

Coats RC-55 compact chassis size comparison diagram showing 35in x 44in x 72in dimensions

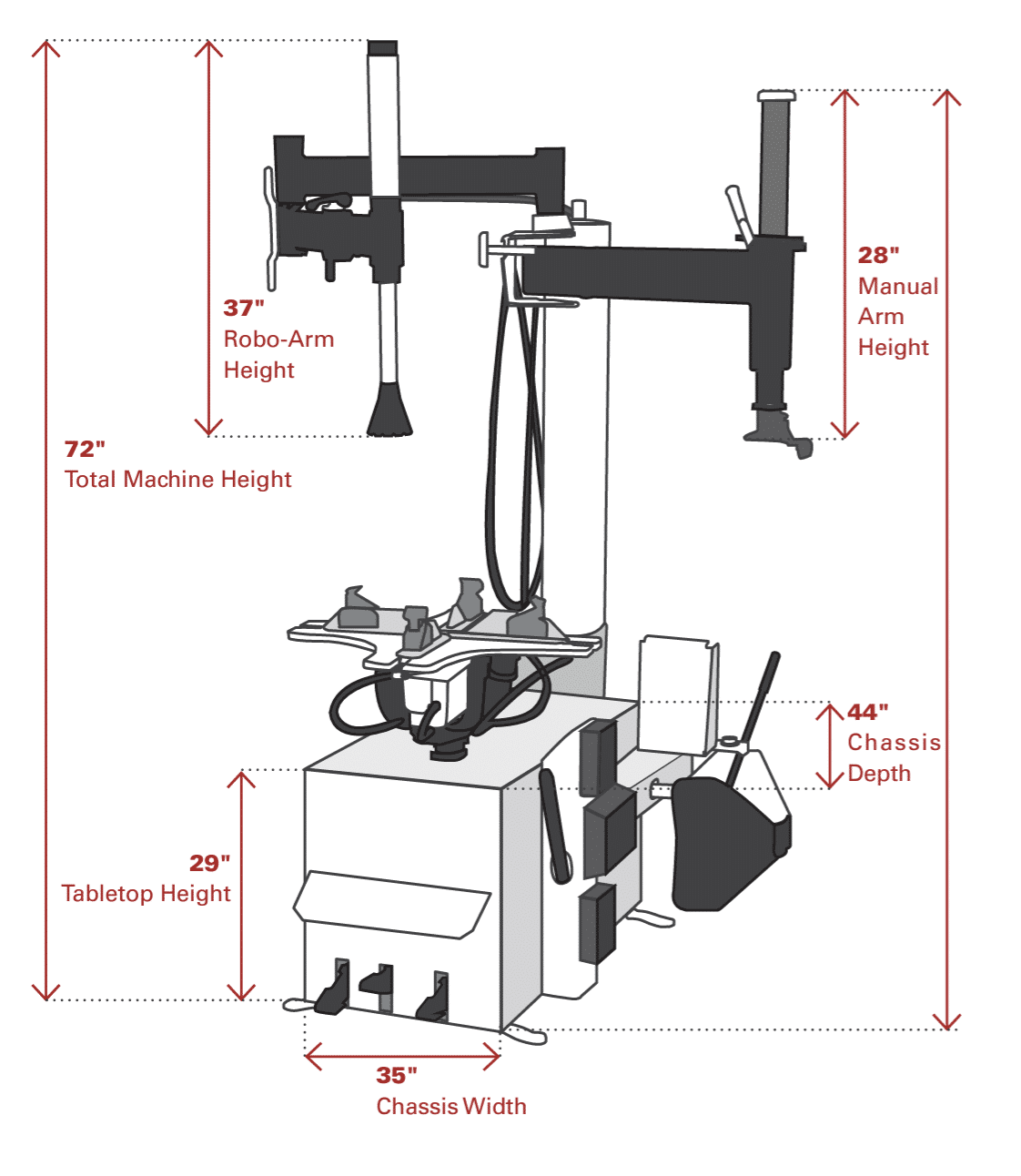

Coats RC-55 footprint dimensions diagram showing 72in height, 35in chassis width, and 44in chassis depth

Coats 85609950 RC-55 Rim Clamp Tire Changer

SKU: HEN-85609950
(0)
Sale price
$15,316.11 CAD
Regular price
$21,804.18 CAD
You save
$6,488.07 CAD (30%)

Only 1 left! Usually ships in 24 to 48 hours.
Est. Arrival Nov 17 - Nov 19
Pickup available at Montreal Warehouse

Usually ready in 4 hours

Check availability at other locations
Get Free

Order over the phone? Call us now.

1-800-905-0410
Found a better price elsewhere? Request Price Match
END-TO-END CUSTOMER SUPPORT
1-YEAR PRICE MATCH GUARANTEE
FREE SHIPPING WITH $199+ ORDERS
30-DAY MONEY-BACK GUARANTEE

The Coats RC-55 Rim Clamp Tire Changer is a professional-grade automotive service machine engineered for reliable, high-volume tire changing in shop environments. Designed by Coats (Hennessy Industries), this rim clamp changer secures the wheel by the rim rather than the center bore, reducing the risk of wheel damage and expanding compatibility across a wide range of wheel types. Its compact chassis footprint of just 35" wide by 44" deep allows it to fit comfortably in space-constrained bays while delivering the performance of a full-sized machine. Built with durability at its core, the RC-55 is a dependable solution for automotive service professionals demanding consistent, long-term performance.

Features

  • Rim clamp wheel retention system secures the wheel at the rim to protect alloy and custom wheels during service

  • Built-in bead sealing jets integrated directly into the turntable for fast and efficient bead seating

  • Robo-Arm provides powered assistance for tire mounting and demounting operations

  • Manual arm included as a secondary assist tool for added versatility during service

  • Foot pedal controls for clamp operation and turntable rotation allow hands-free, intuitive machine operation

  • Compact chassis design measures significantly smaller than conventional tire changers, maximizing usable shop floor space

  • Available in air-operated and electric-operated configurations to suit different shop setups

Specifications

Brand: Coats (Hennessy Industries)
Model: RC-55
Air Model Number: 85609950
Electric Model Number: 85609950 01
Total Machine Height: 72"
Chassis Width: 35"
Chassis Depth: 44"
Tabletop Height: 29"
Robo-Arm Height: 37"
Manual Arm Height: 28"
Shipping Weight: 620 lbs
Bead Loosening System: Foot Control
Product Type: Rim Clamp Tire Changer
