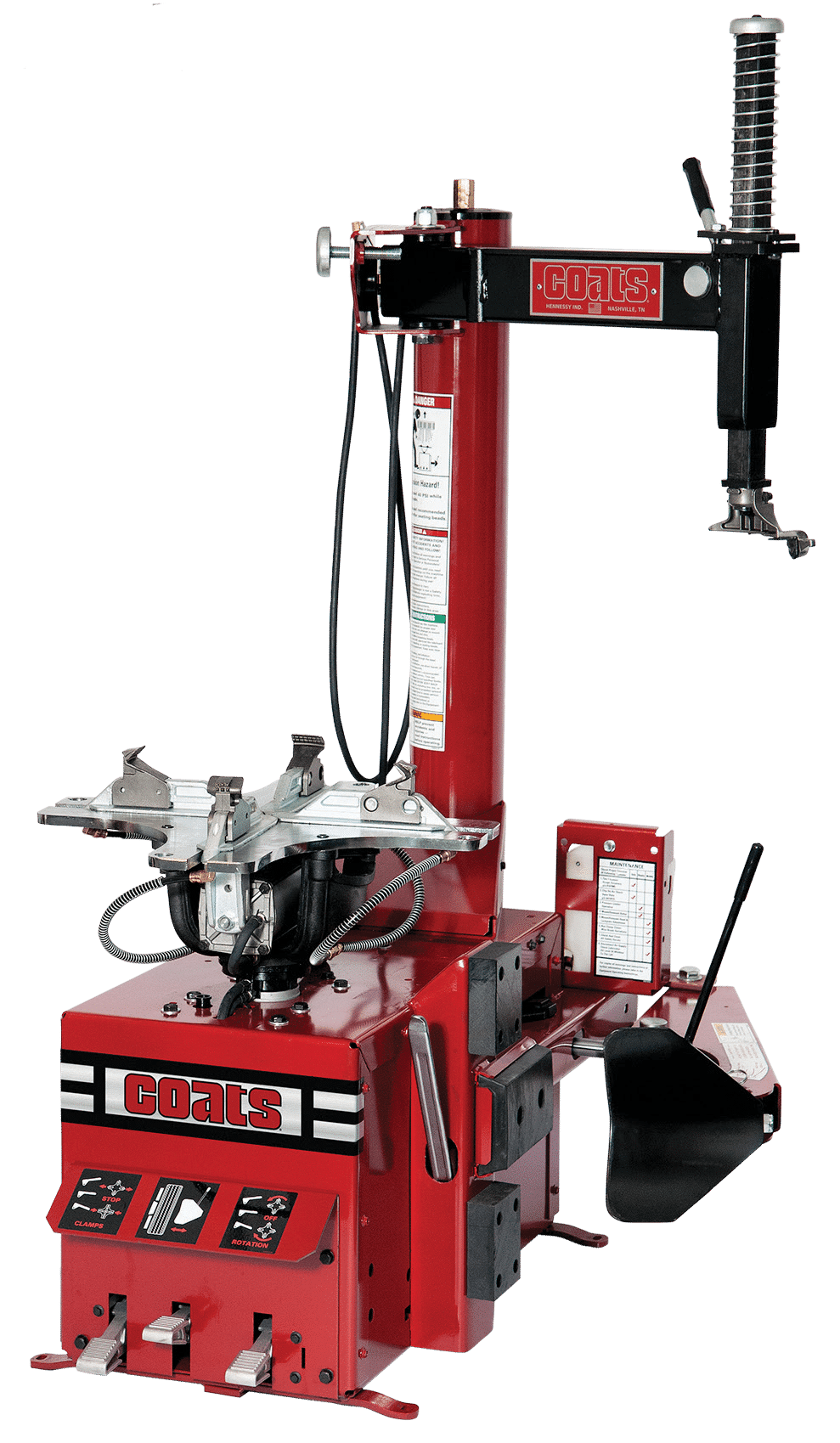

The Coats RC45E Rim Clamp Tire Changer is a professional-grade, electric-drive tire service machine engineered for high-volume automotive shops demanding speed, precision, and reliability. Powered by a 110V, 15A single-phase electric drive system, it handles steel wheels, many alloy applications, and select performance fitments with consistent, repeatable results. Built on the legendary Coats Rim Clamp platform, the RC45E delivers an industry-standard level of durability and operational efficiency in a compact chassis footprint that saves valuable shop floor space. Its purpose-built design enables faster floor-to-floor times while safeguarding costly wheels from damage throughout the entire tire changing process.
Features
"X"-shaped tabletop provides rigid perimeter support of the wheel during operation
Four self-centering clamps in the tabletop actuated by a pneumatic cylinder for secure, consistent wheel clamping
Foot-controlled bead loosening system actuates a cylinder capable of handling wheels up to 10.5" wide

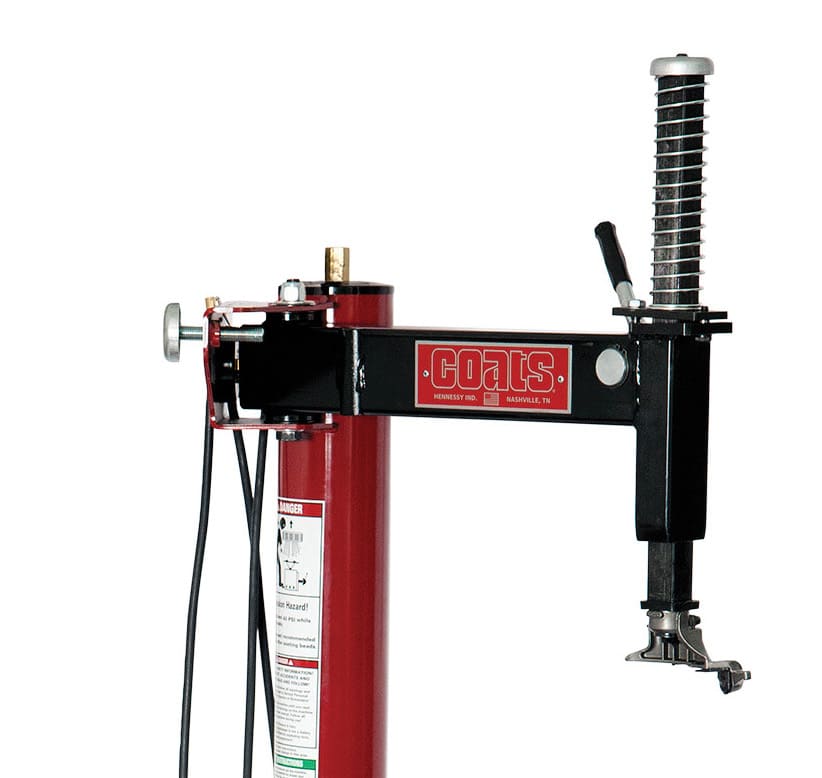

Spring-assisted tool head lift with manual set back and lock for precise offset adjustment

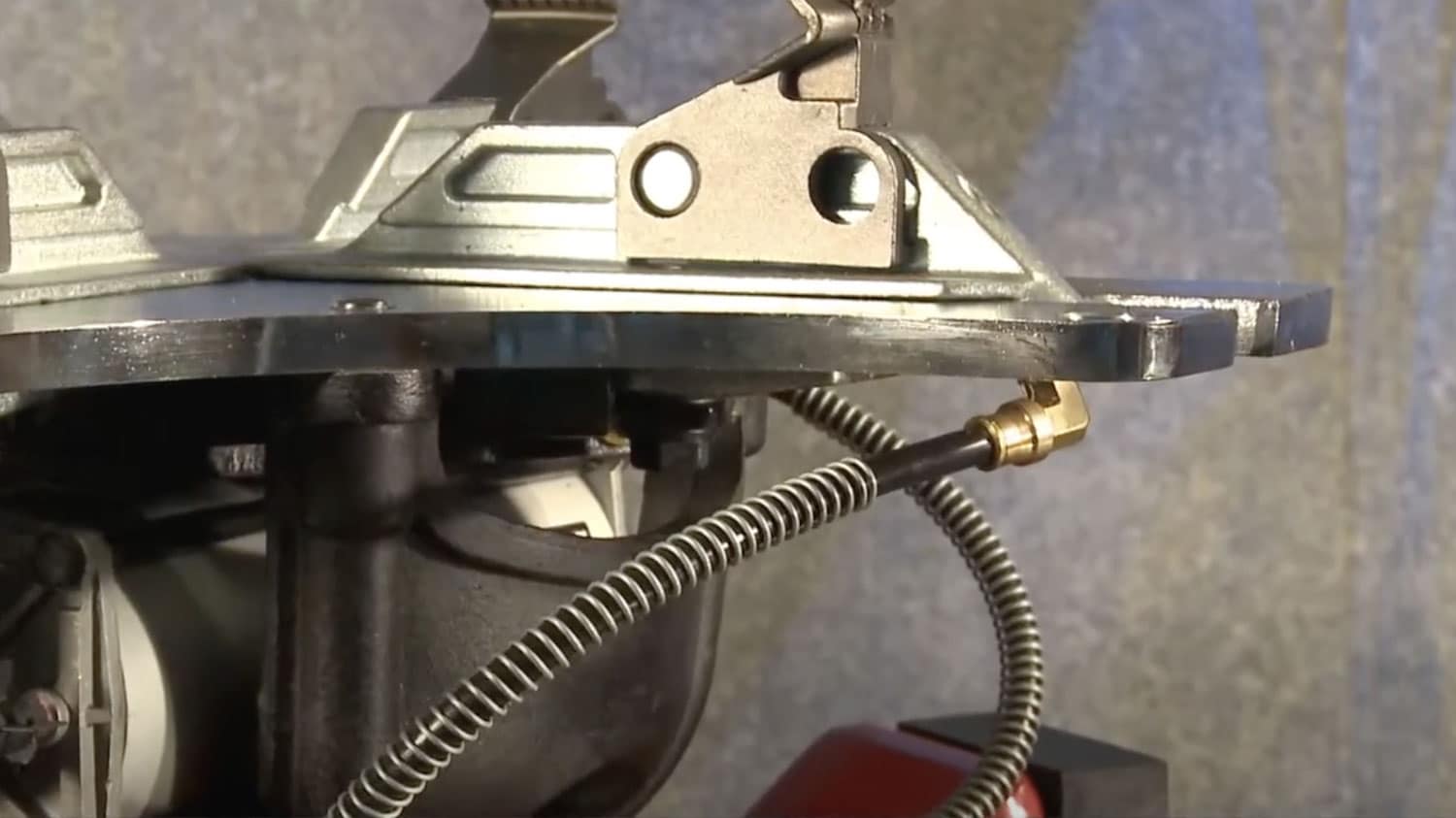

Built-in bead seating reservoir (3.4 gal. tank) with pressure protection for reliable bead seating
Easily calibrated inflation gauge (0-60 PSI) with protection to 200 PSI and a damage-resistant Lexan faceplate
Standard filter lubricator with automatic drain and large-capacity lubricator bowl
Standard pressure limiter for consistent, controlled air delivery

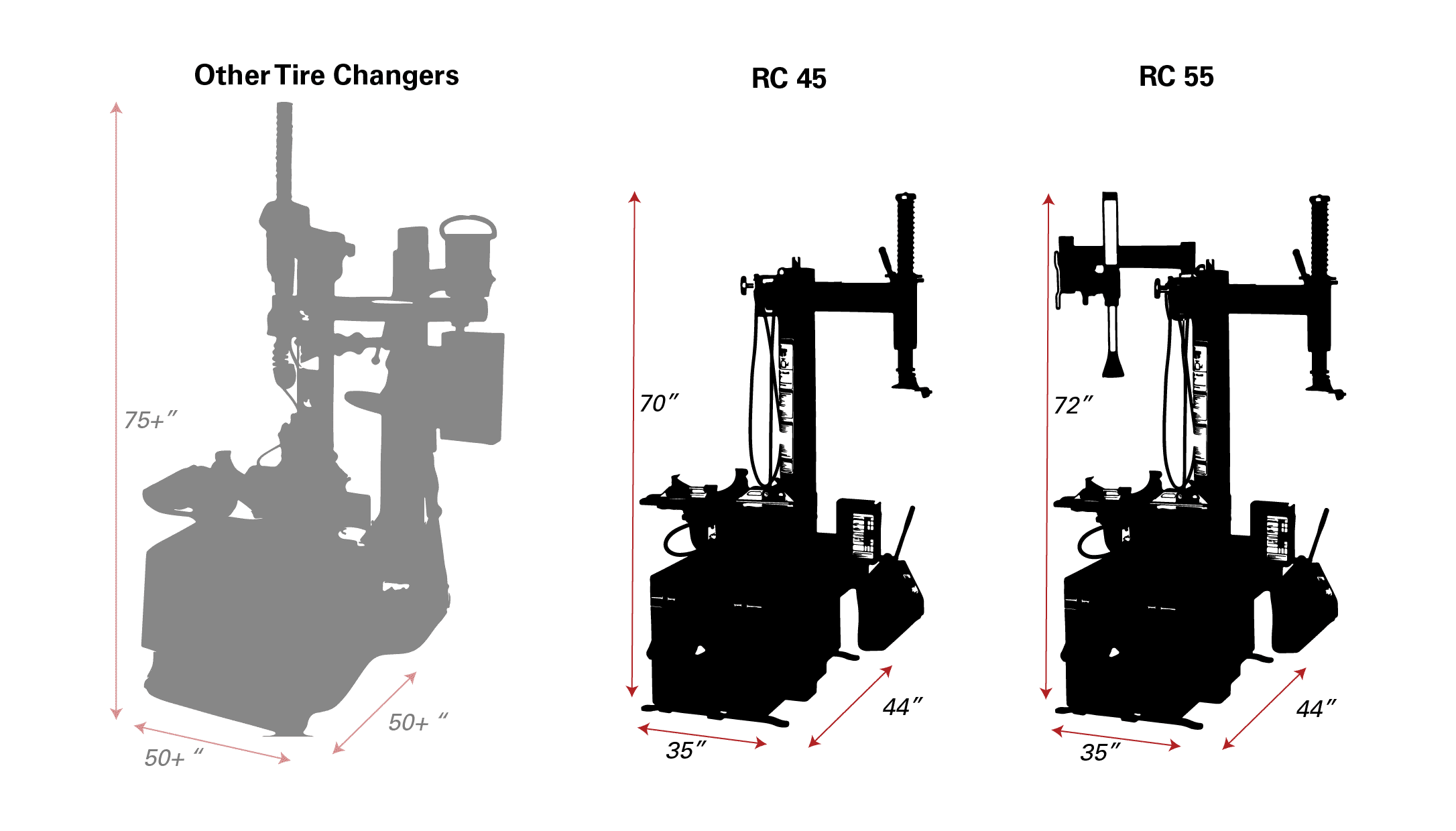

Compact chassis footprint (35" wide x 44" deep x 70" high) significantly smaller than conventional tire changers

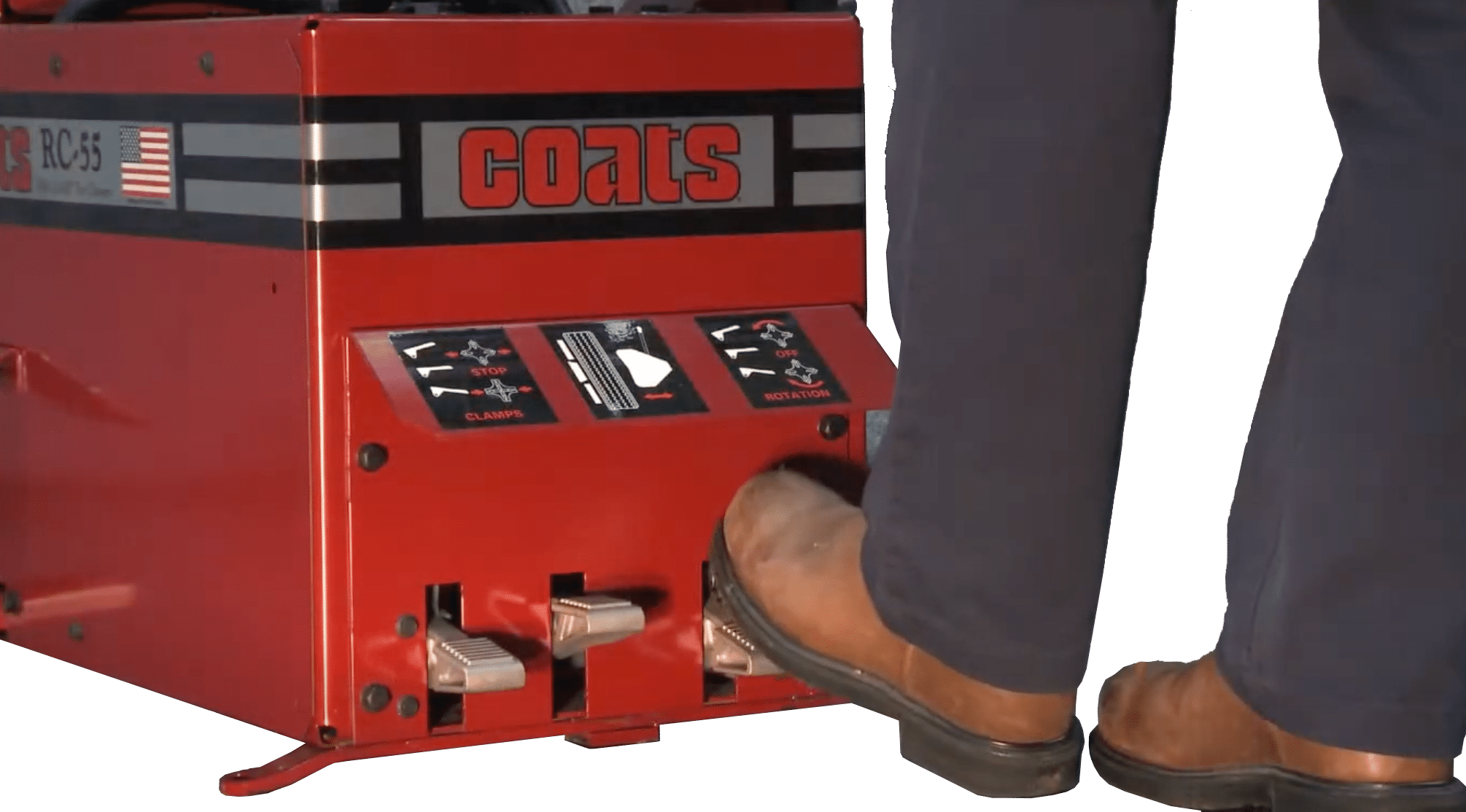

Conveniently placed foot pedals provide precise operator control over every step of the changing process
Specifications
Model: RC45E (Electric Drive)
Part Number: 8560994901
Drive System: Electric - 110V, 15A, single phase
Required Air Source (Electric Drive): 110-175 PSI, 2 HP compressor, 5 SCFM at 150 PSI
Required Air Source (Air Drive): 110-175 PSI, 5 HP compressor, 14-15 SCFM at 150 PSI
Wheel Capability: Steel, many alloys, and some performance applications
Clamping Range (External): 10" - 21"
Clamping Range (Internal): 12" - 24"
Maximum Tire Width: 10.5 inches
Maximum Tire Diameter: 50 inches
Bead Seating Reservoir: 3.4 gal. tank, pressure protected
Inflation Gauge: 0-60 PSI, protection to 200 PSI, Lexan faceplate

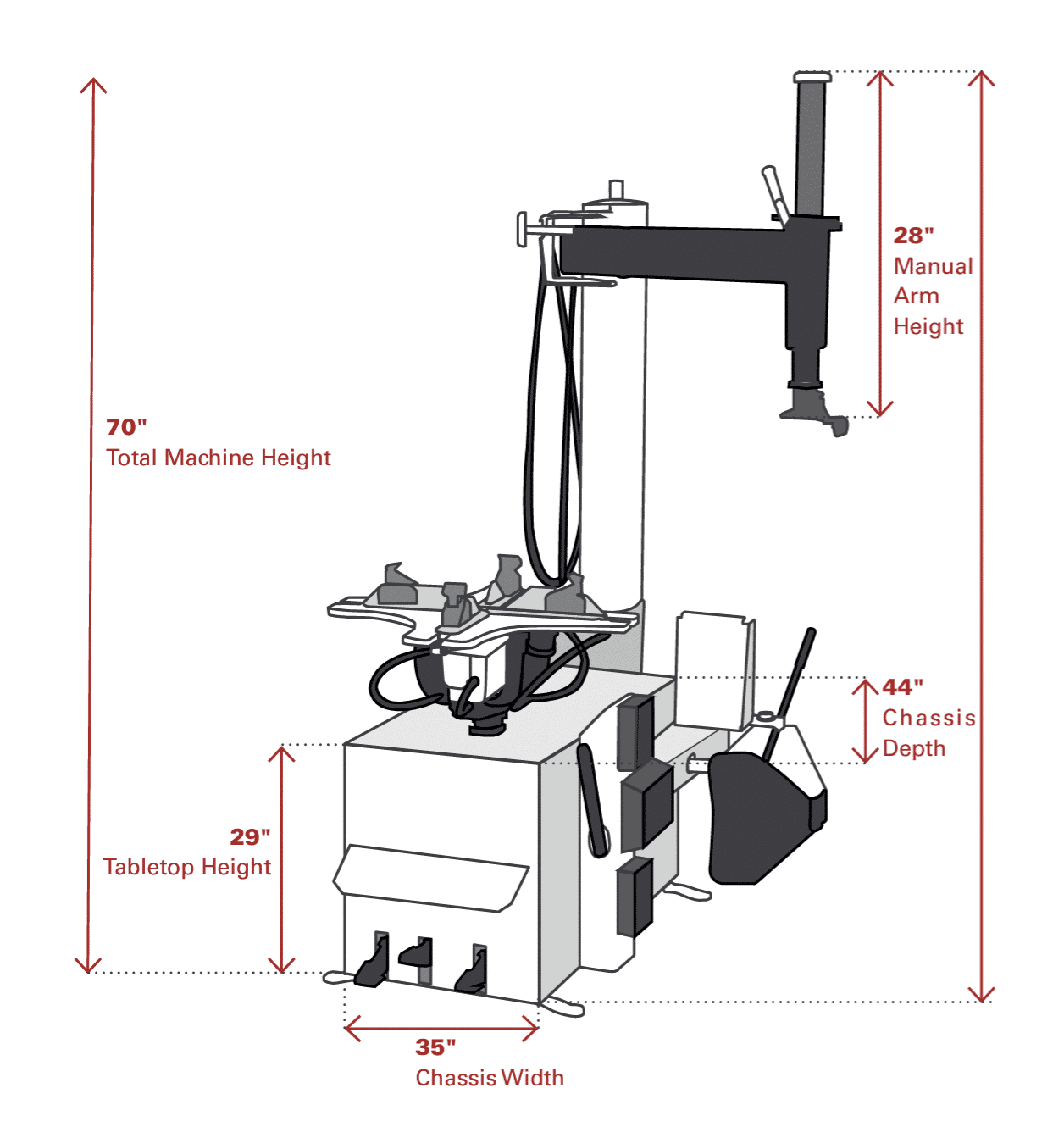

Chassis Footprint: 35" wide x 44" deep x 70" high
Shipping Weight: 585 lbs
Brand: Coats (Hennessy Industries)
