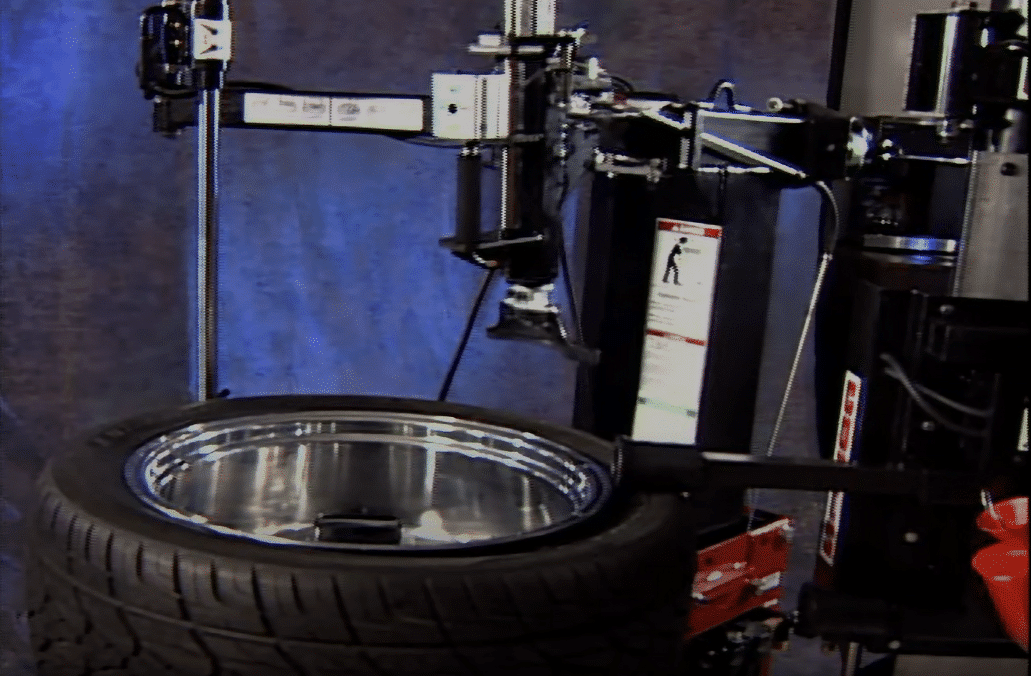

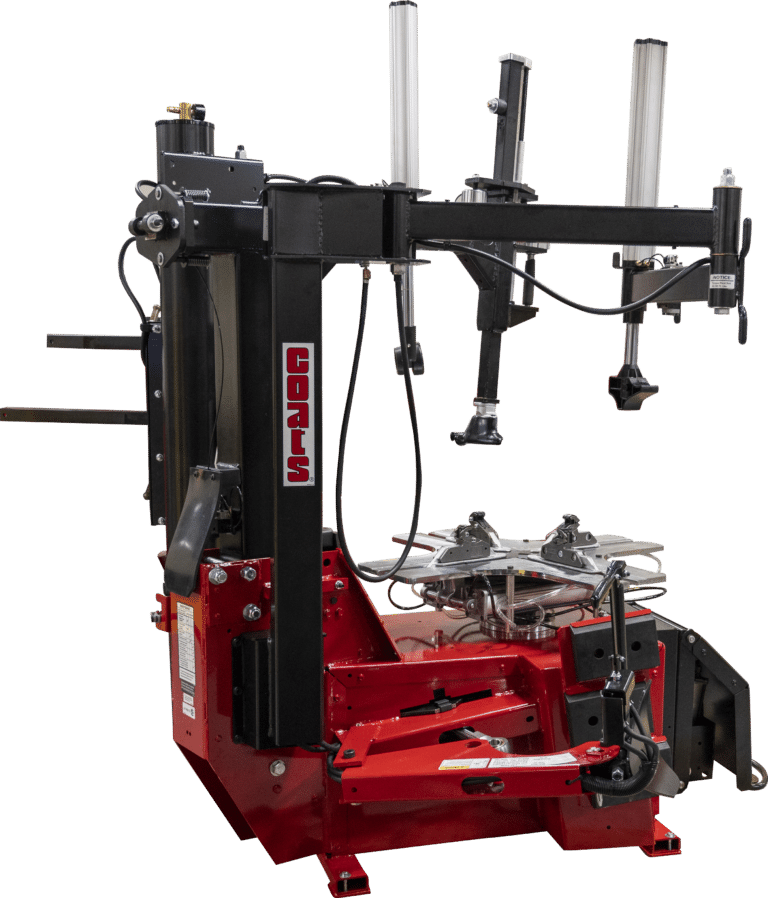

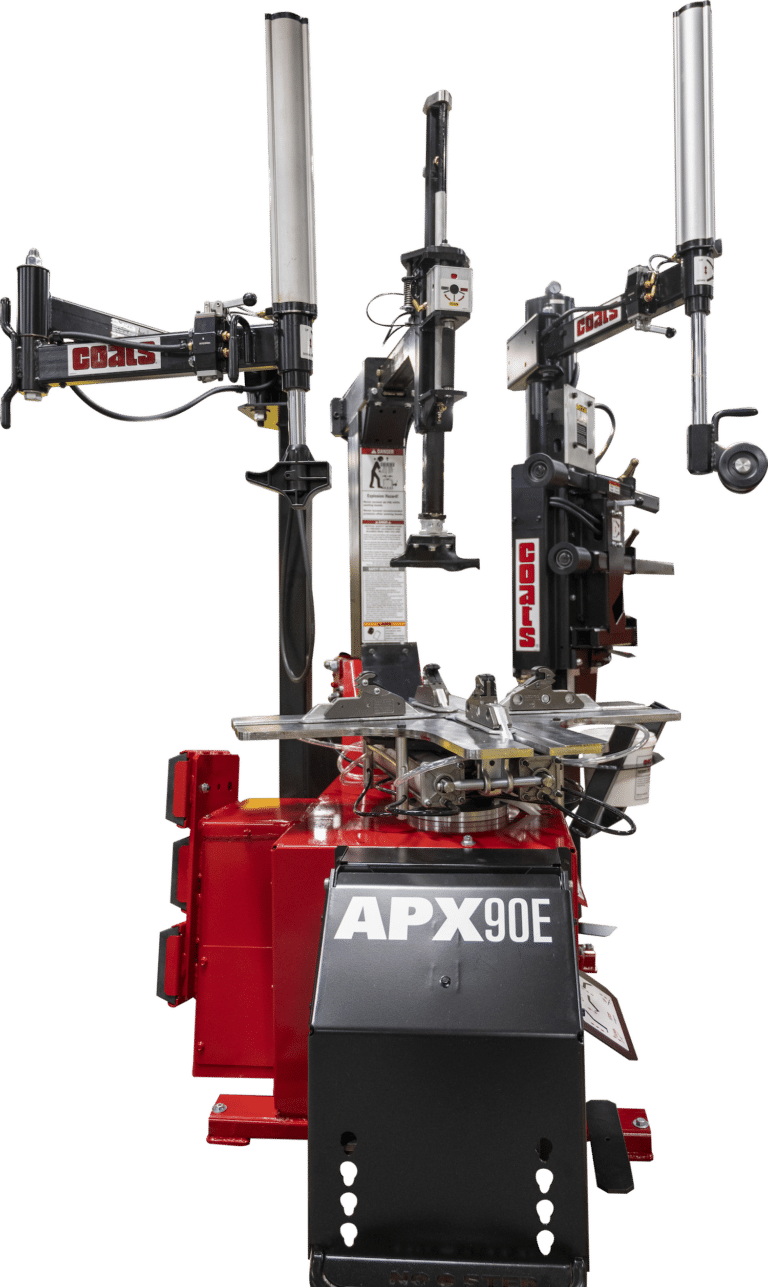

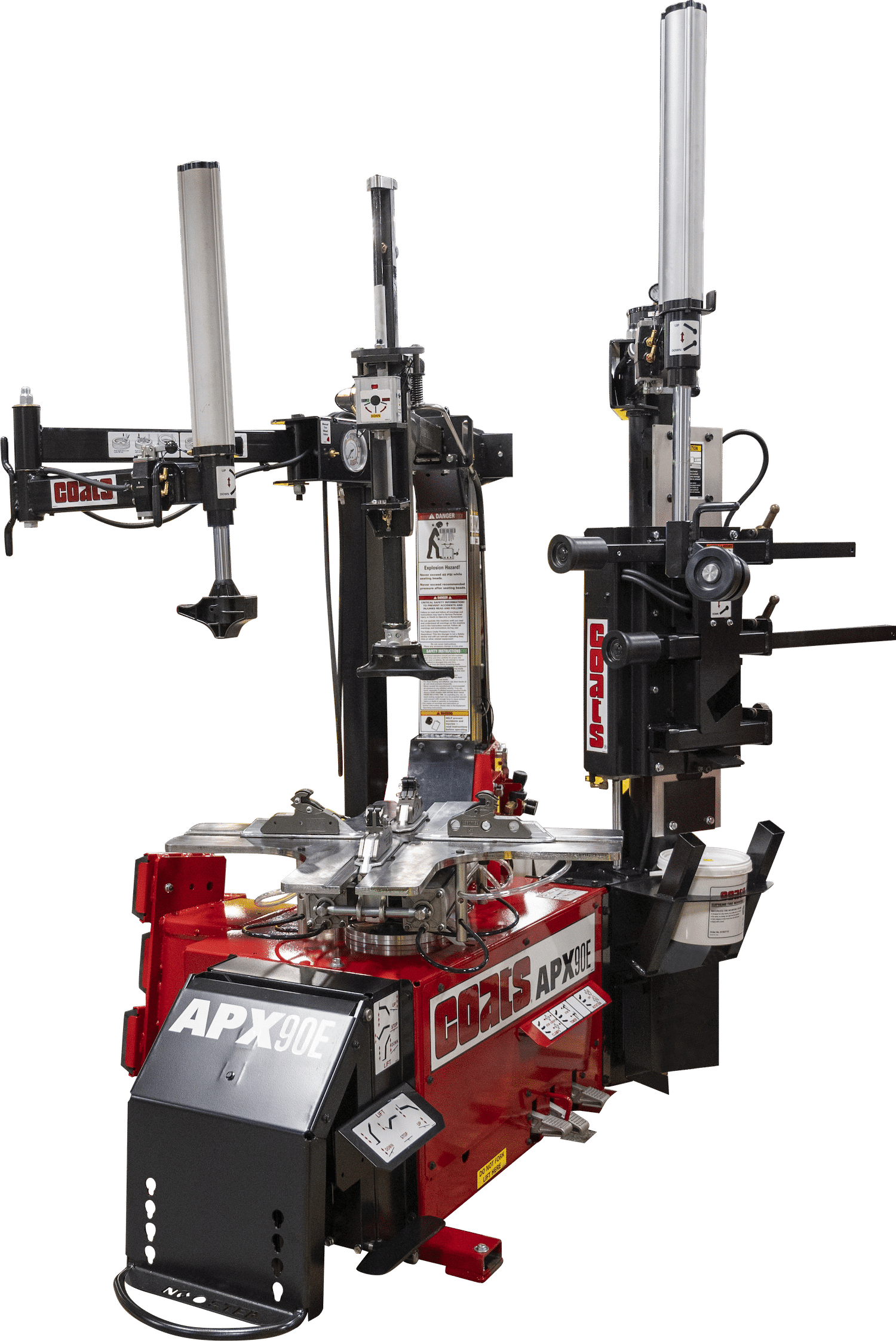

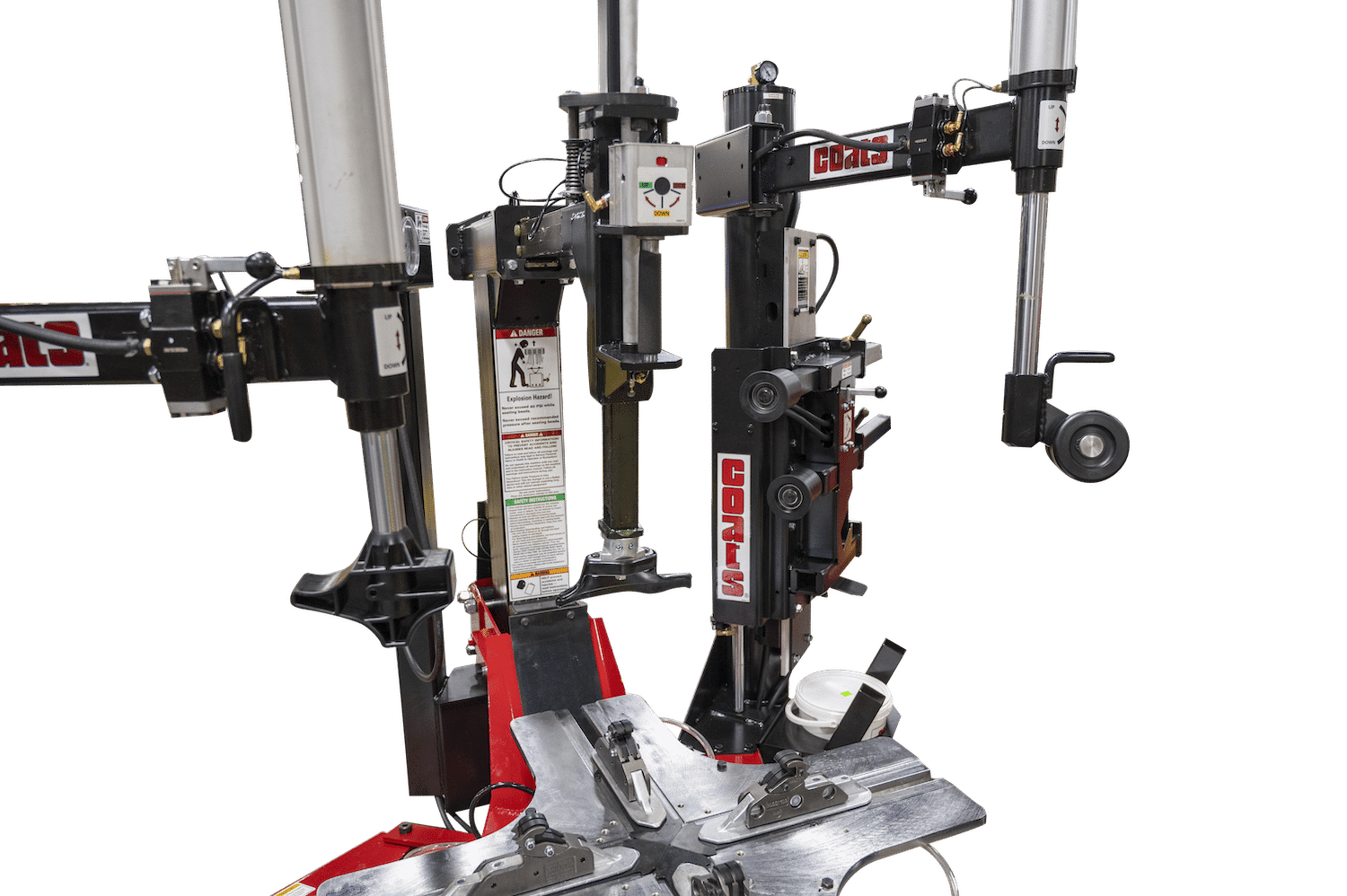

The Coats APX 90 Rim Clamp Tire Changer is a heavy-duty, professional-grade tire servicing machine engineered for high-volume shops demanding superior performance and versatility. Designed as the tire changer platform for the future, it handles a wide range of tire and wheel sizes with precision and efficiency. The APX 90 combines the proven Duckhead® Mount/Dismount System with the innovative Robo-Arm® Bead Depressor to dramatically reduce operator effort and risk of wheel damage. Built with robust air-cylinder-operated rim clamping and a hand-control bead loosening system, this machine delivers consistent, reliable results on today's most challenging tire and wheel combinations.
Features
Duckhead® Mount/Dismount System for controlled, damage-free tire mounting and dismounting
Robo-Arm® Bead Depressor assists with low-profile and run-flat tire servicing by holding the bead in the drop center during operation
Hand control bead loosening system provides precise, operator-driven bead breaking

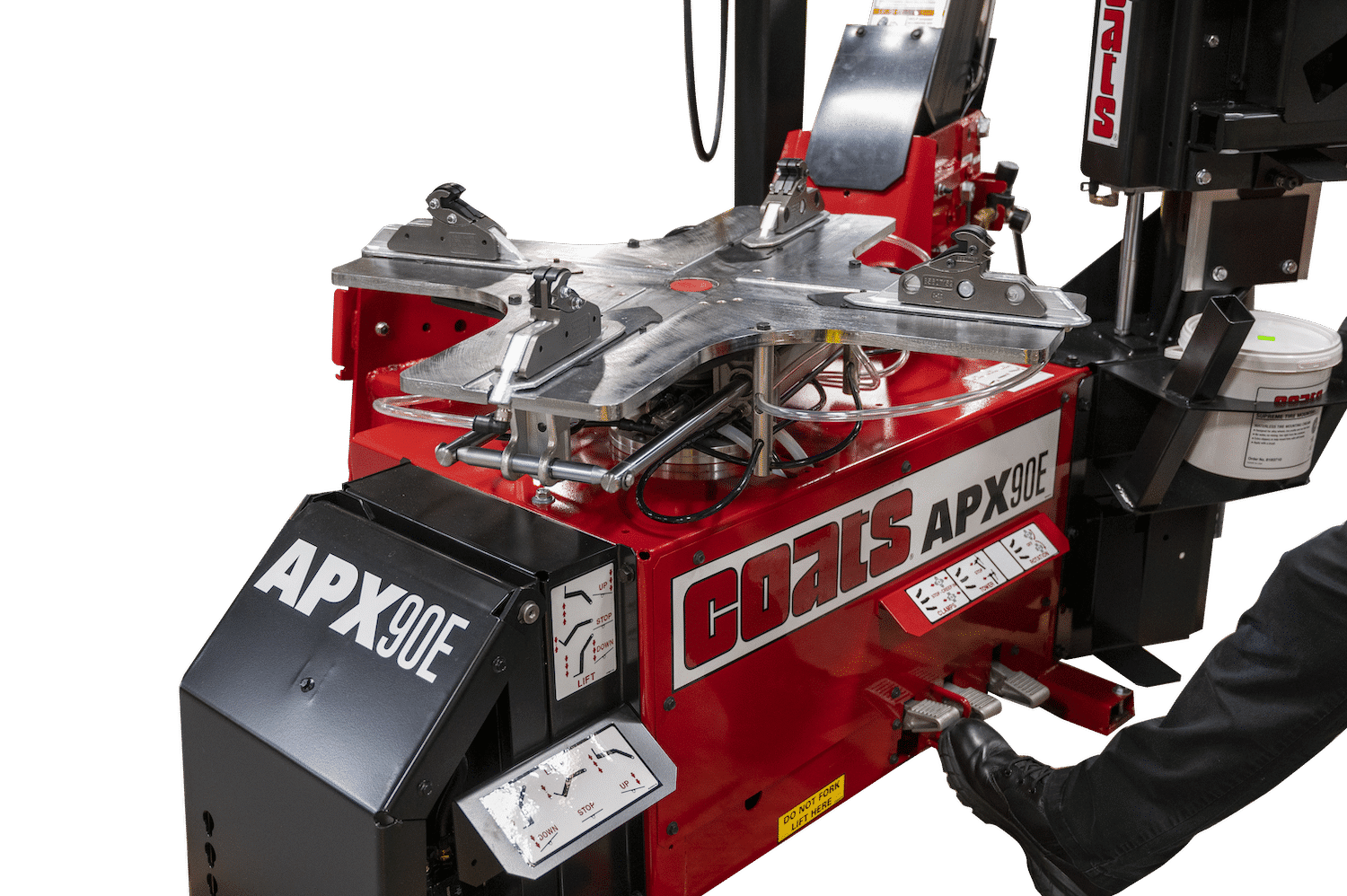

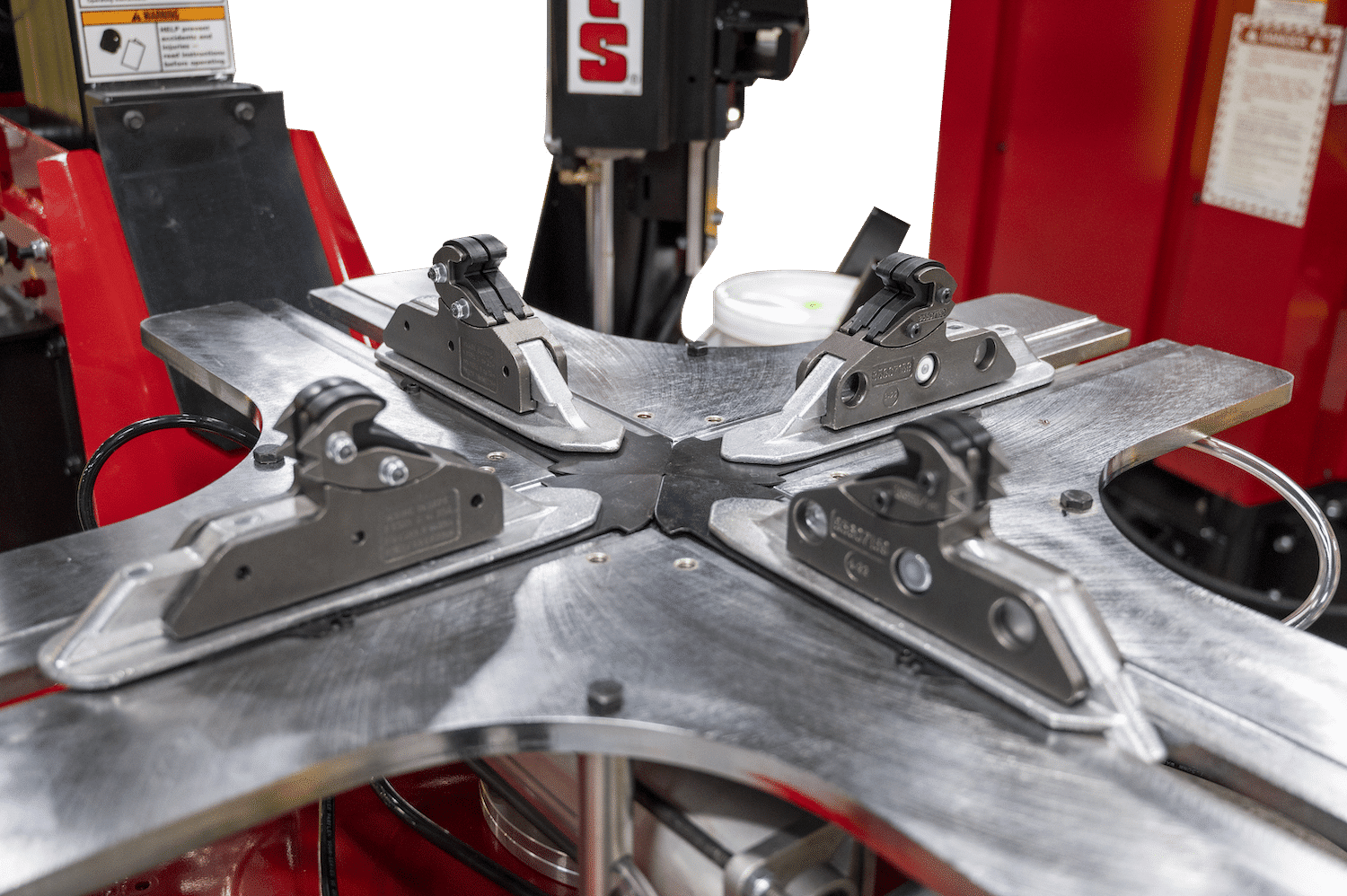

Air-cylinder-operated 4-jaw rim clamp with adjustable jaws accommodates a wide range of rim sizes

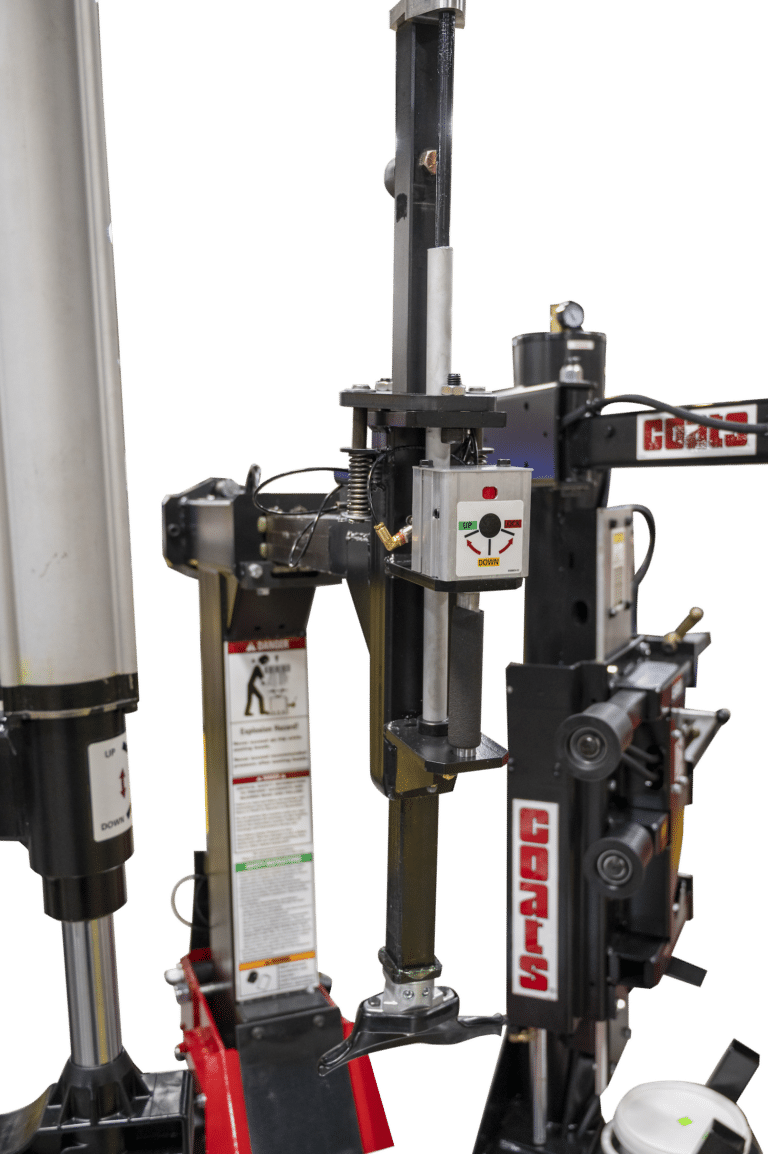

Telescoping column allows for flexible positioning to accommodate varying tire and wheel diameters

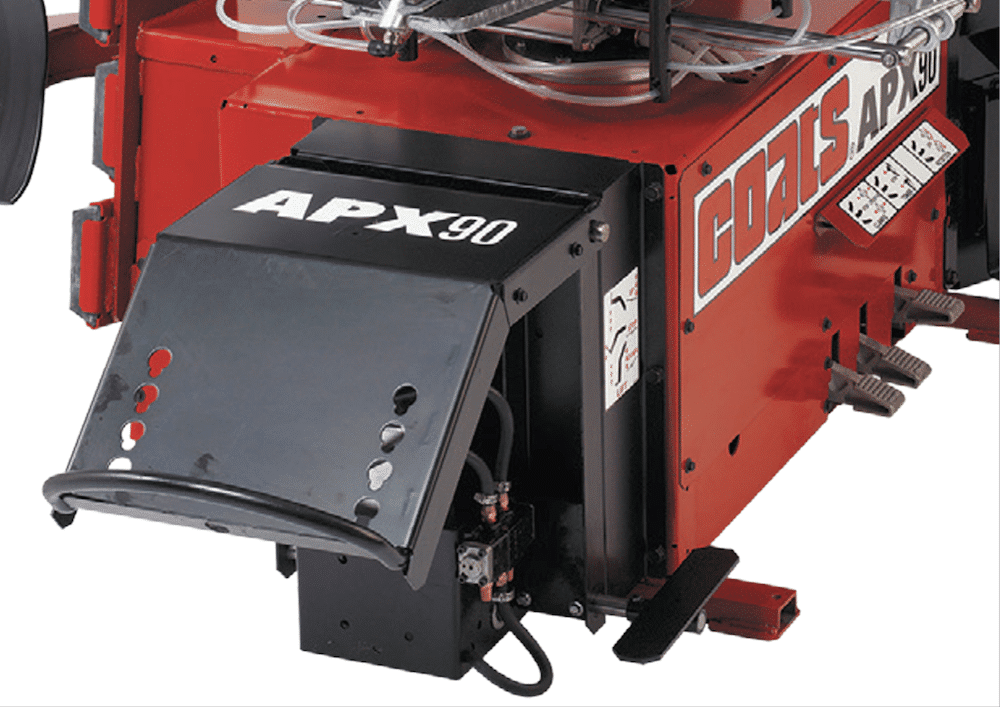

Built-in wheel lift integrated into the machine base for easier wheel loading and unloading
Wide external rim diameter range of 9" to 30" supports passenger, light truck, and select commercial wheel applications
Accepts tires up to 44" in diameter and rims up to 16" in width
Specifications
External Rim Diameter: 9" - 30"
Maximum Tire Diameter: 44"
Maximum Rim Width: 16"
Maximum Clamping Diameter: 30"
Rim Clamp Operation: Air cylinder operated, 4-jaw
Bead Loosening System: Hand control
Bead Depressor: Robo-Arm®
Mount/Dismount System: Duckhead®
Air Motor: 1.5 HP, 110-175 PSI
Electric Motor: 110V, 2 HP
Adjustable Jaws: Yes
Telescoping Column: Yes
Footprint (W x D x H): 74" x 65" x 88"
Ship Weight: 1,510 lbs
