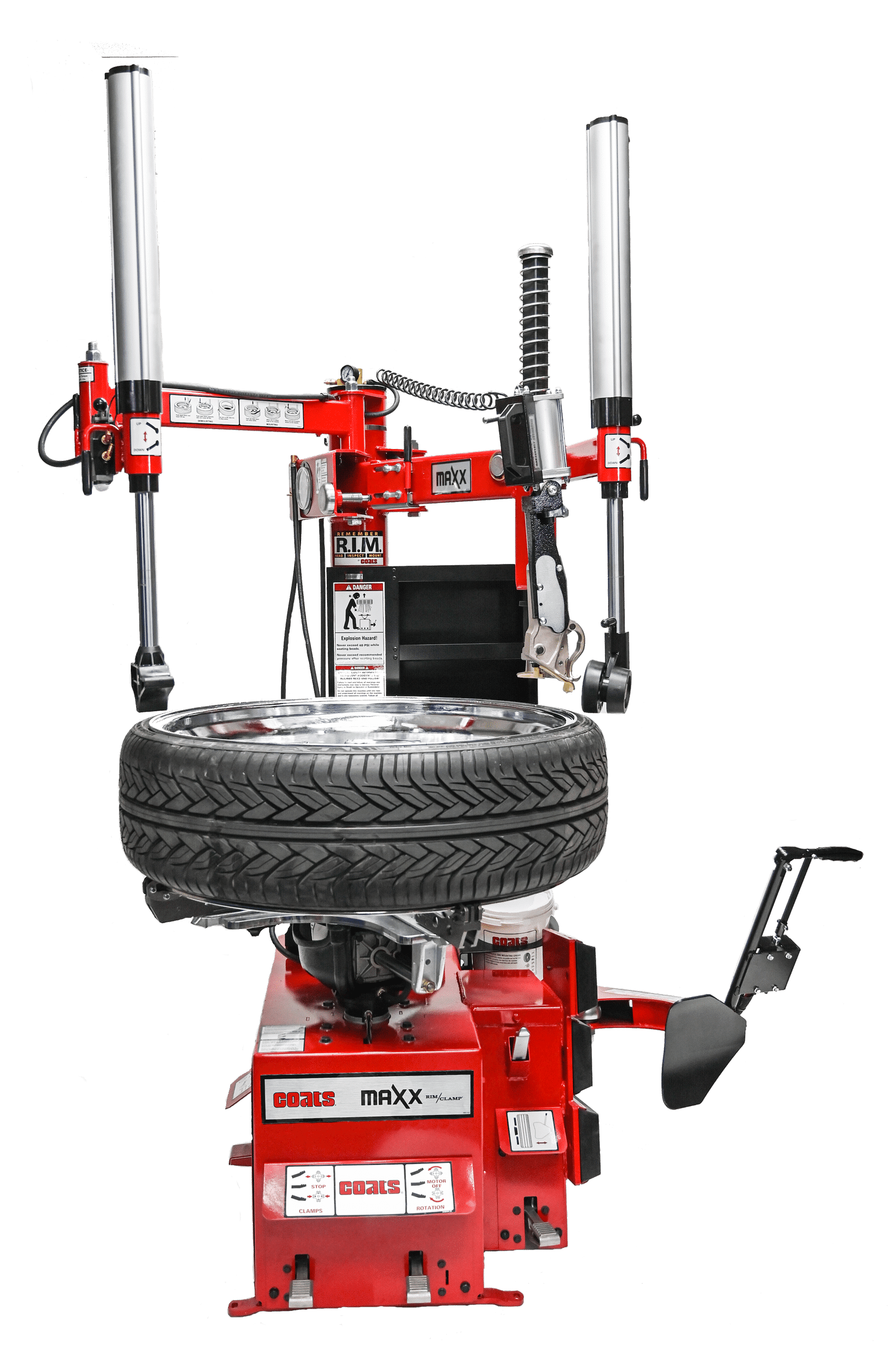

The Coats MAXX 90 Rim Clamp Tire Changer (PN 800MAXX90220) is a professional-grade, leverless tabletop rim clamp tire changing machine engineered for high-volume tire dealers, general repair shops, and street performance operations. Powered by a 220V 2-speed electric motor and built on a chassis tested to 250,000 bead-breaking cycles, this machine is designed to handle everything from standard passenger vehicles to extreme wheel assemblies with speed and precision. Its leverless design removes the tire bar from the technician's hands, dramatically reducing the risk of wheel and tire damage. Built in Nashville, Tennessee, the Maxx 90 delivers brick-house rugged construction combined with intuitive, workflow-optimized controls.
Features
Best-in-class clamping range handles wheels from 6-30" in diameter and up to 16" wide, accommodating OE Passenger, Pickup Truck/SUV, Extreme Performance, Light Duty Truck, Ultra Low Profile, and Run-Flat tire types
Dual nozzle bead sealing system delivers more air more quickly for faster job completion
Dual mode hand and foot control bead loosener for versatile operator ergonomics

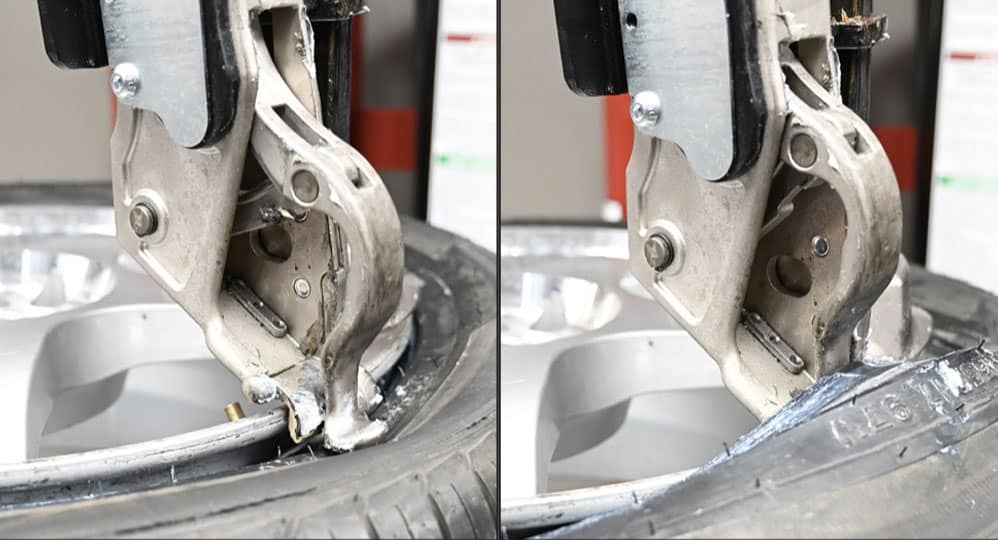

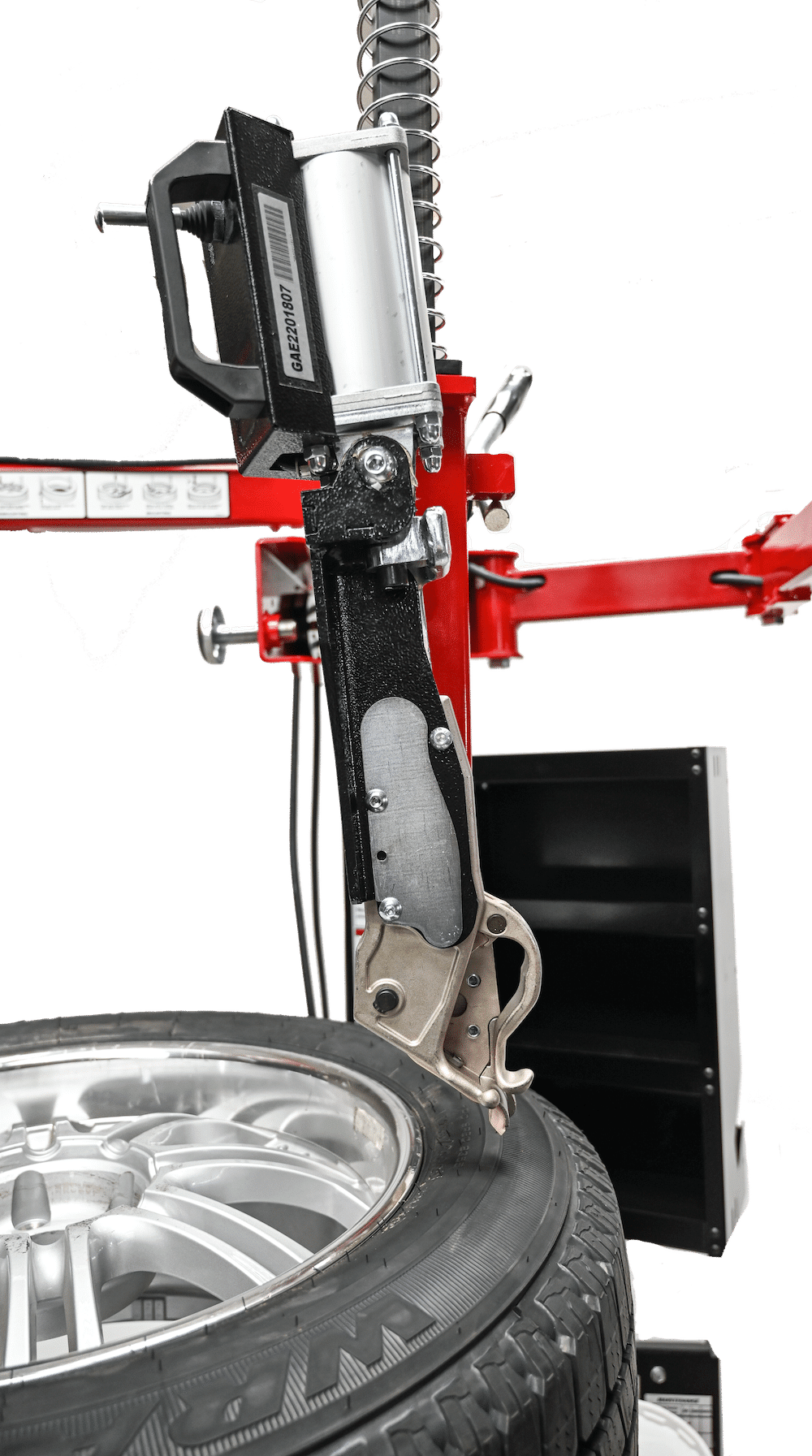

Leverless bead lifter tool head eliminates the tire bar, reducing risk of wheel and tire damage

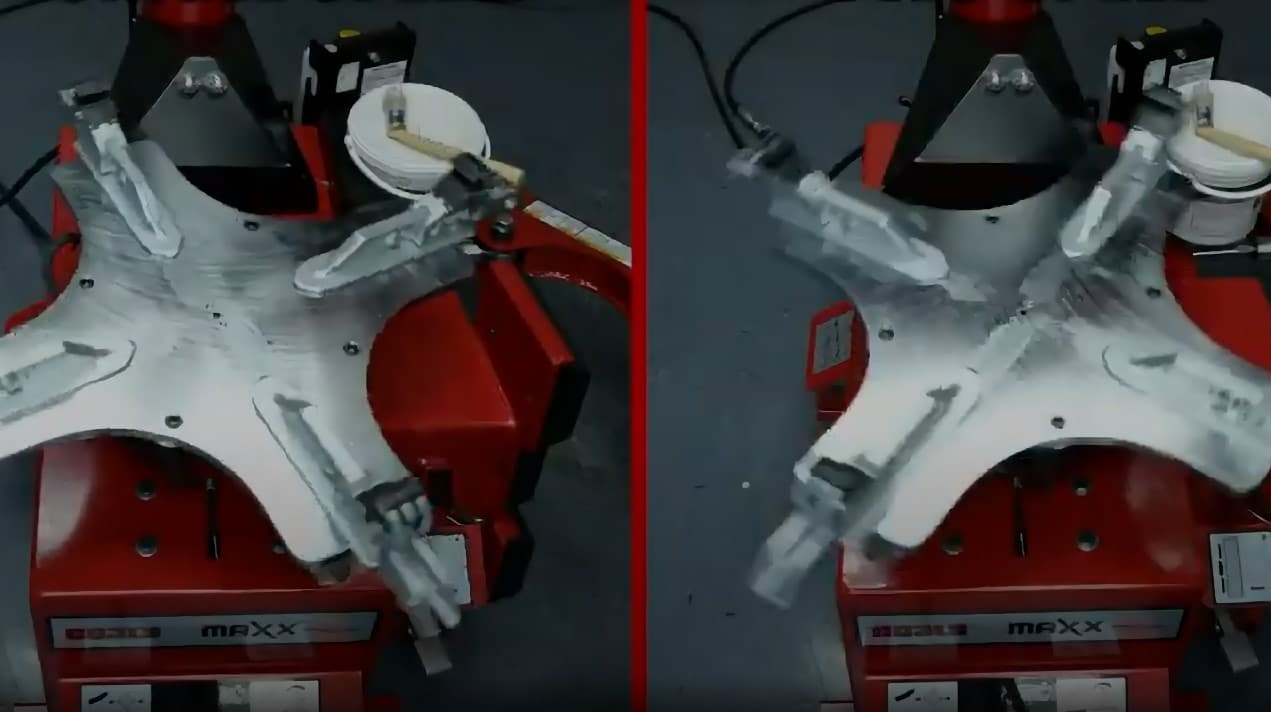

220V 2-speed motor provides the power and speed needed to keep up with the busiest shop environments
Durable chassis tested to 250,000 bead-breaking cycles for long-term reliability under demanding conditions
No-index tabletop design enables time-saving large wheel assembly work

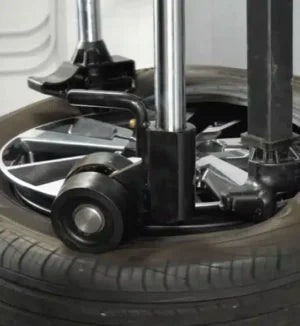

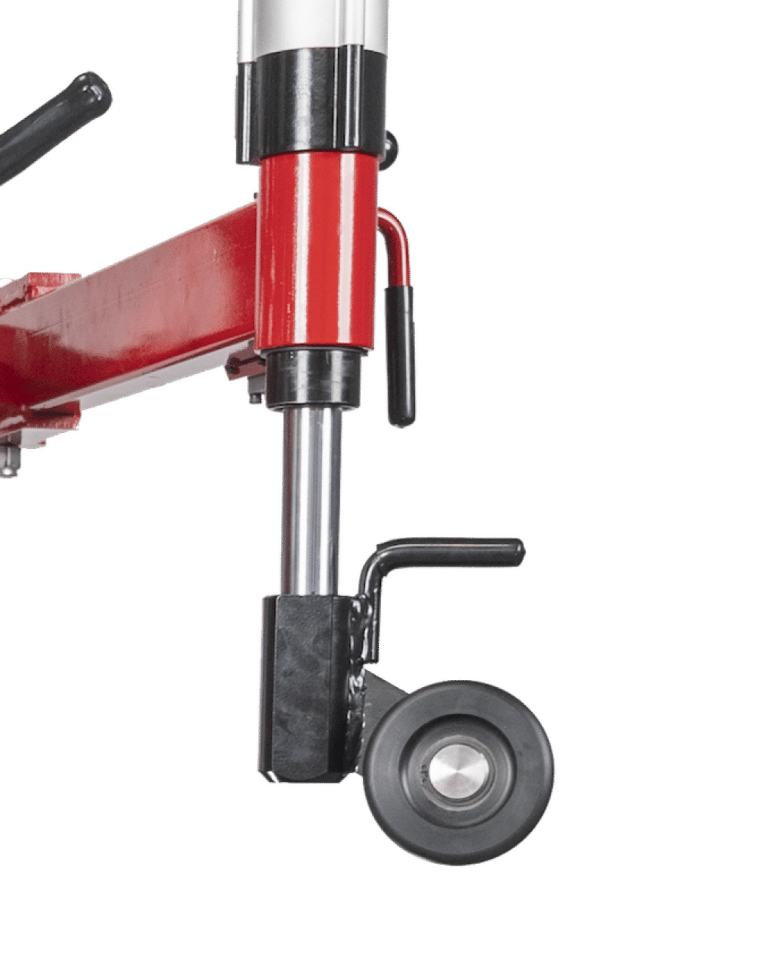

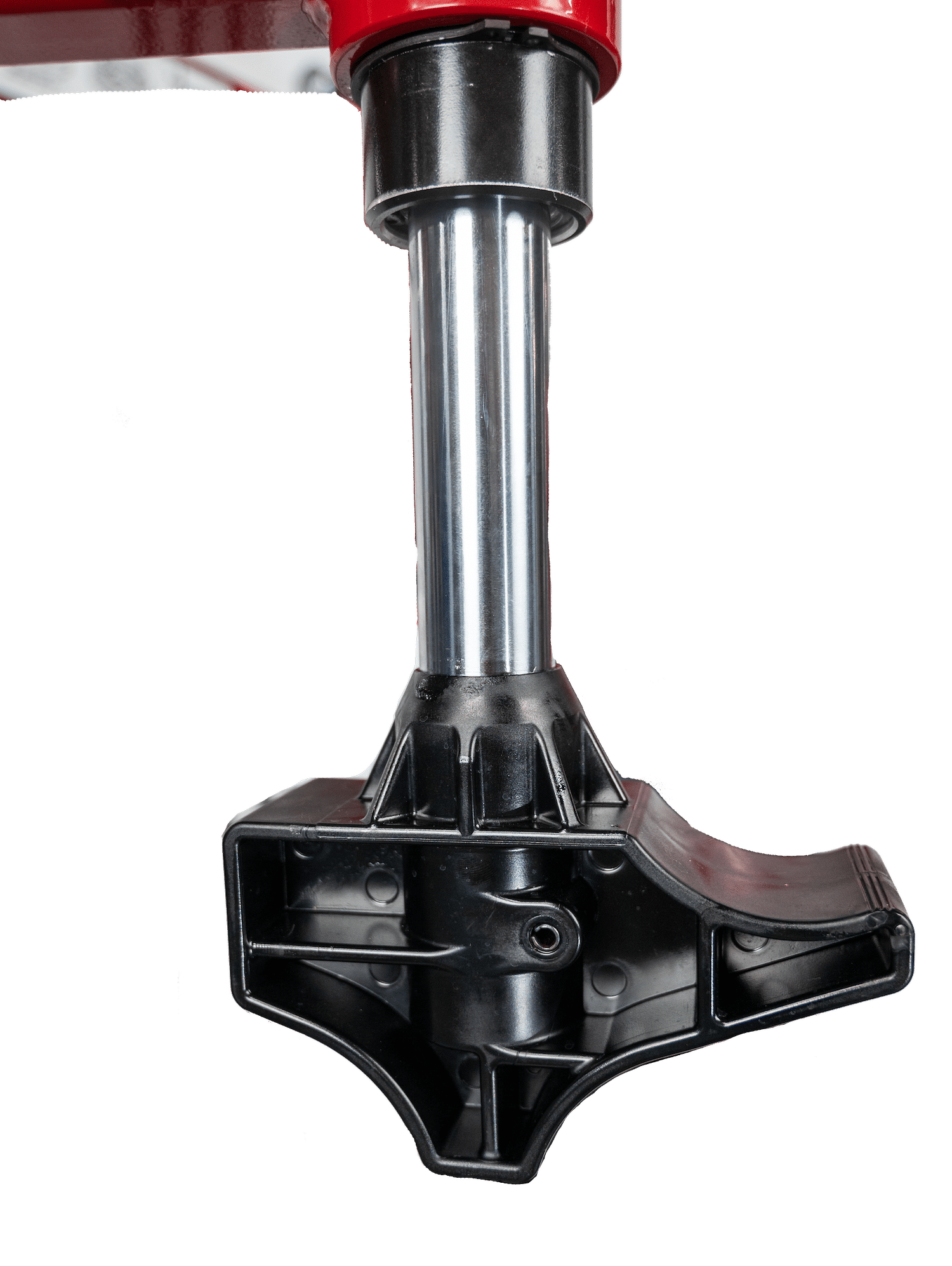

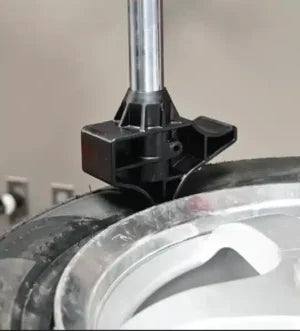

Robo-Arm bead depressor and Robo-Roller helper devices included for efficient, damage-free operation
4-clamp, air cylinder operated wheel clamping system ensures secure and consistent wheel retention
Compatible with alloy and steel wheels for cars and light/medium trucks
Optional Maxx Wheel Lift raises assemblies up to 150 lbs to a 29" tabletop height with foot-pedal-controlled operation to minimize technician strain
Built in Nashville, Tennessee with premium materials and quality workmanship
Specifications
Machine Style: Tabletop Rim Clamp
Rim Diameter: 6-30 in External
Max Rim Width: 16 in
Tire Max Diameter: 50 in
Bead Loosening Type: Dual Mode Hand/Foot Control
Bead Loosener Width: Up to 22 in Wide
Inflation System: Dual Nozzle
Wheel Clamping System: 4 Clamps, Air Cylinder Operated
Helper Devices: Robo-Arm, Robo-Roller, Leverless Bead Lifter Tool Head
Bead Seating Air Volume: 5.4 Gallons in Tower
Secondary Inflation: Double Single Point
Electric Motors: 220V, 2 Speed

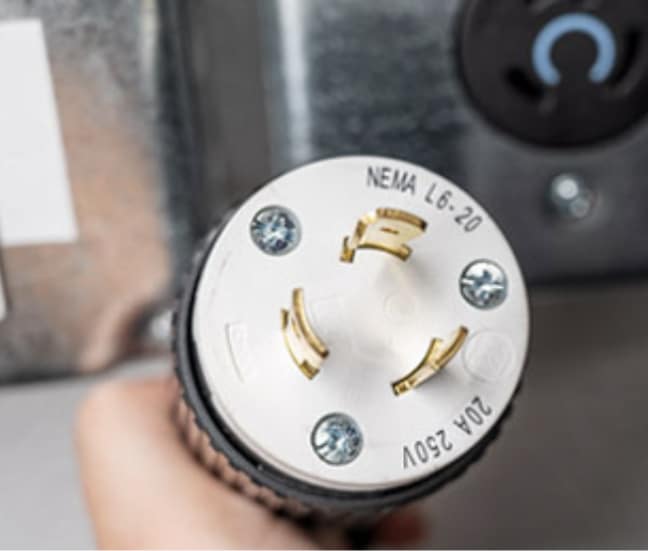

Power Requirements: 220V, 10 Amps, 1PH, NEMA L6-20
Electric Plug Type: NEMA L6-20 (220V, 10 Amp, 1 Phase)
Footprint: 74" W x 44" D x 88" H
Shipping Weight: 874 lbs
Wheel Compatibility: Alloy and Steel for Car and Light/Medium Truck
Part Number: 800MAXX90220
Includes
2 x Bead Loosener Shoe Socks
1 x Paste Lube Bracket and Brush
1 x High Spoke Duckhead Mount/Demount Tool
1 x Steel Duckhead Mount/Demount Tool

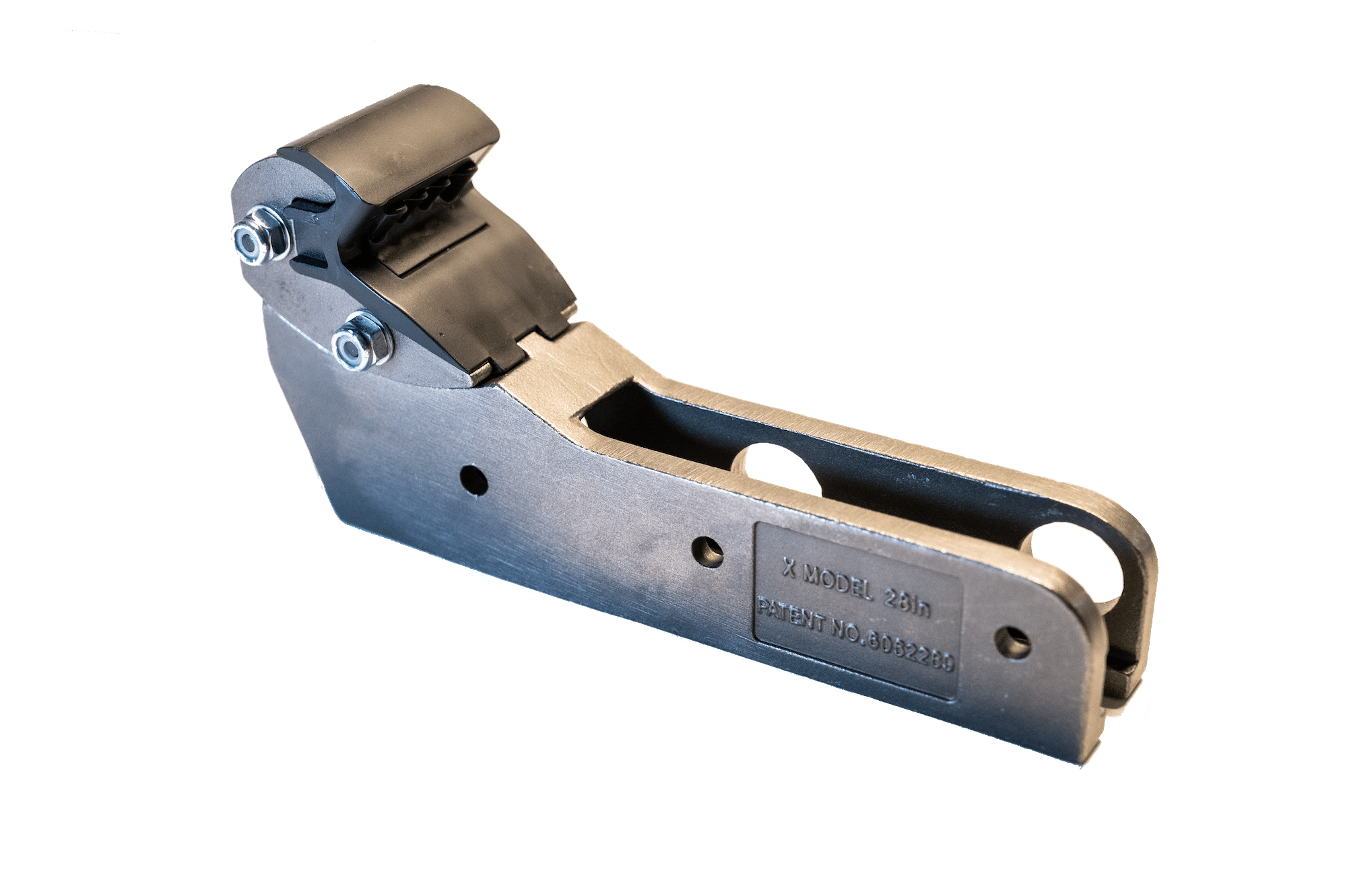

4 x GripMax 30" Extended Clamps
4 x GripMax 2.0 Clamps
1 x Steel Clamps
10 x Lift Tool Socks
1 x Premium Storage Cabinet
