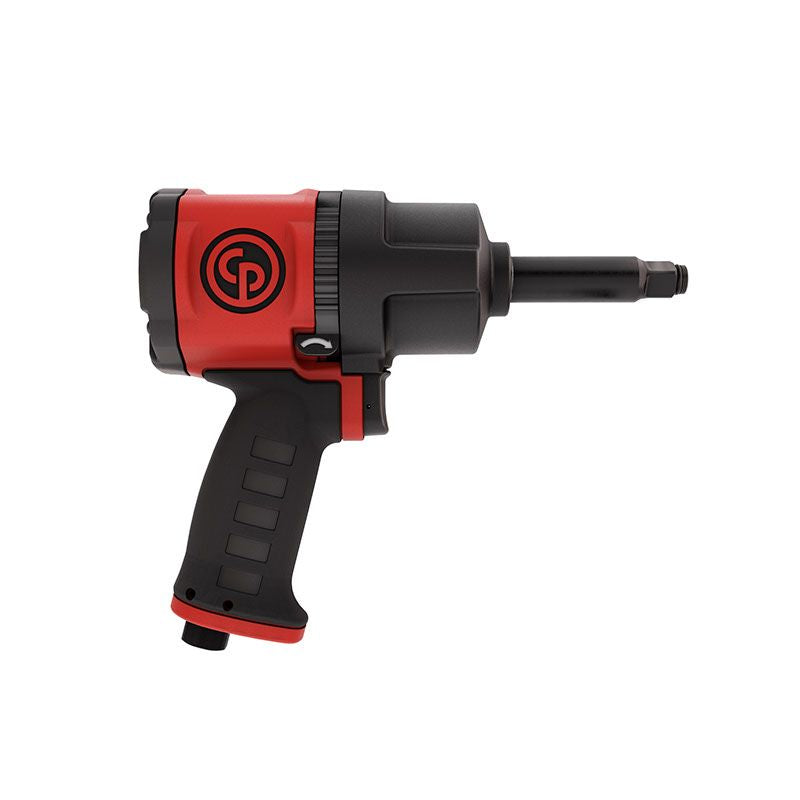

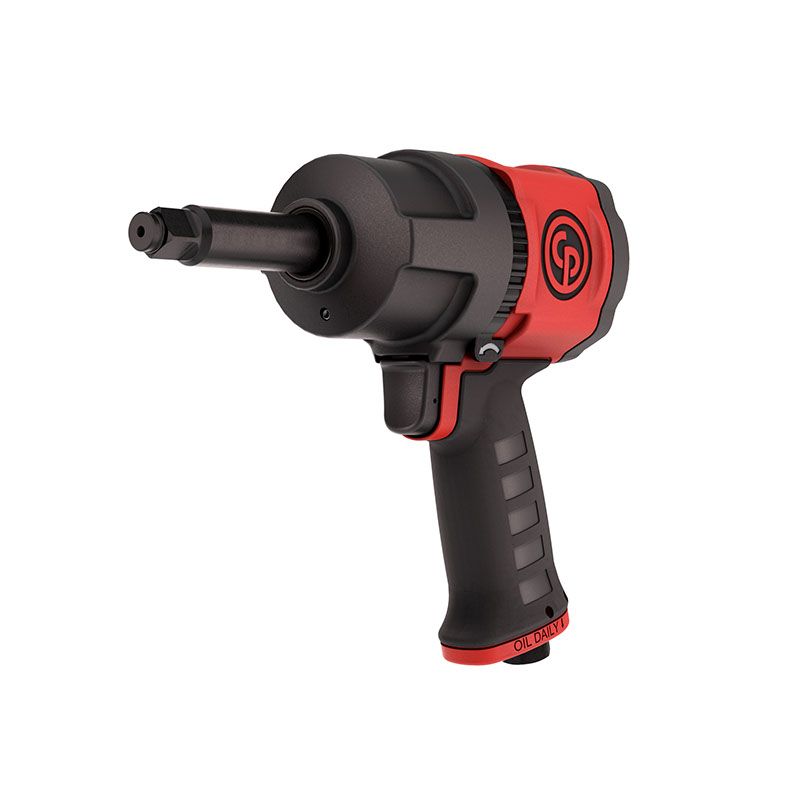

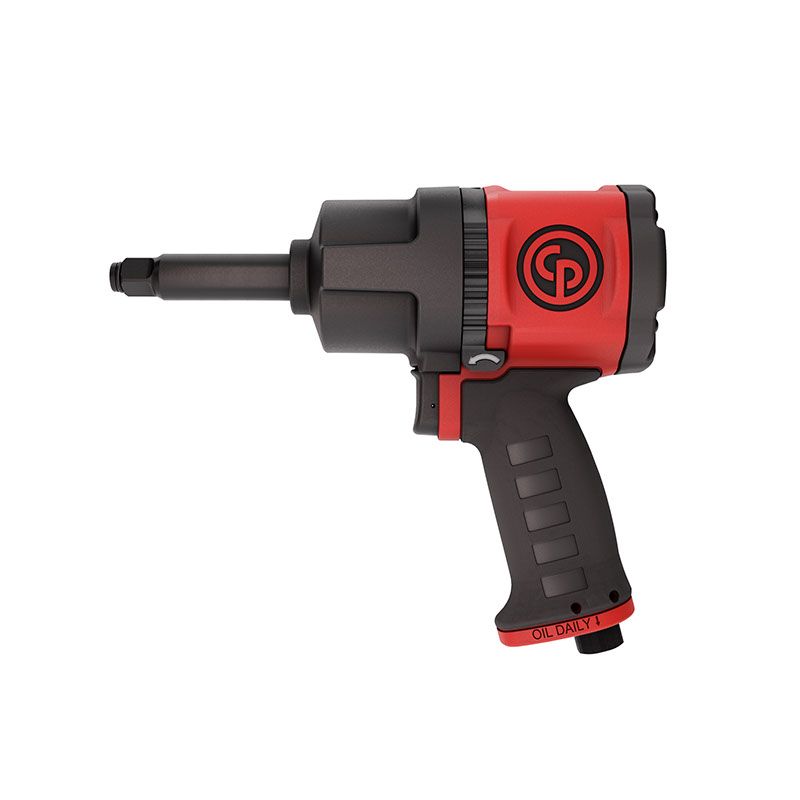

The Chicago Pneumatic CP7748-2 is a 1/2" composite pneumatic impact wrench featuring a 2" extended anvil and a twin hammer impact mechanism that delivers up to 1,300 Nm (960 ft.lbs) of maximum reverse torque. Designed for tire shops, general vehicle maintenance, and light industrial applications, this tool combines a durable composite body with an aluminium clutch housing for lasting performance under demanding conditions. The forward/reverse system with integrated power control ring and thermo-plastic rubber overmolded grip enhance operator comfort and control. With a free speed of 7,000 RPM and 1,350 blows per minute, the CP7748-2 offers fast and efficient bolting and unbolting in a compact, well-balanced pistol-handle design.
Features
Twin hammer impact mechanism for universal, reliable performance
1,300 Nm (960 ft.lbs) maximum reverse torque for efficient fastener removal
Composite body with durable aluminium clutch housing for a lightweight yet robust construction
Forward/reverse system with power control ring for improved functionality and operator comfort
Thermo-plastic rubber injected housing for a comfortable, insulated grip
360° swivel air inlet for flexible hose positioning and reduced fatigue
1/2" square drive output with friction ring retainer for secure socket retention
2" extended anvil for improved access in recessed or hard-to-reach applications
Trigger starting system for precise control
Specifications
Drive Size: 1/2 in
Drive Type: Square
Retainer Type: Friction Ring
Handle Type: Pistol
Impact Mechanism: Twin Hammer
Max Torque (Reverse): 1,300 Nm
Max Working Torque (Forward): 750 Nm
Min Working Torque (Forward): 95 Nm
Free Speed: 7,000 RPM
Blows Per Minute: 1,350
Air Consumption at Load: 12 l/s
Max Dynamic Air Working Pressure: 6.3 bar
Air Inlet Thread Size: 1/4 in
Min Hose Diameter (5 m hose length): 10 mm
Min Hose Diameter (16 ft hose length): 0.38 in
Body Material: Composite
Clutch Housing Material: Aluminium
Clutch Lubrication Type: Grease
Length: 225 mm
Height: 200 mm
Width: 78 mm
Side to Center: 39 mm
Weight: 2.11 kg
Sound Pressure Level: 94.3 dB(A)
Sound Power Level: 105.3 dB(A)
Vibration: 11.3 m/s²
Vibration Uncertainty (K): 3.8 m/s²
Torque Limited: No
