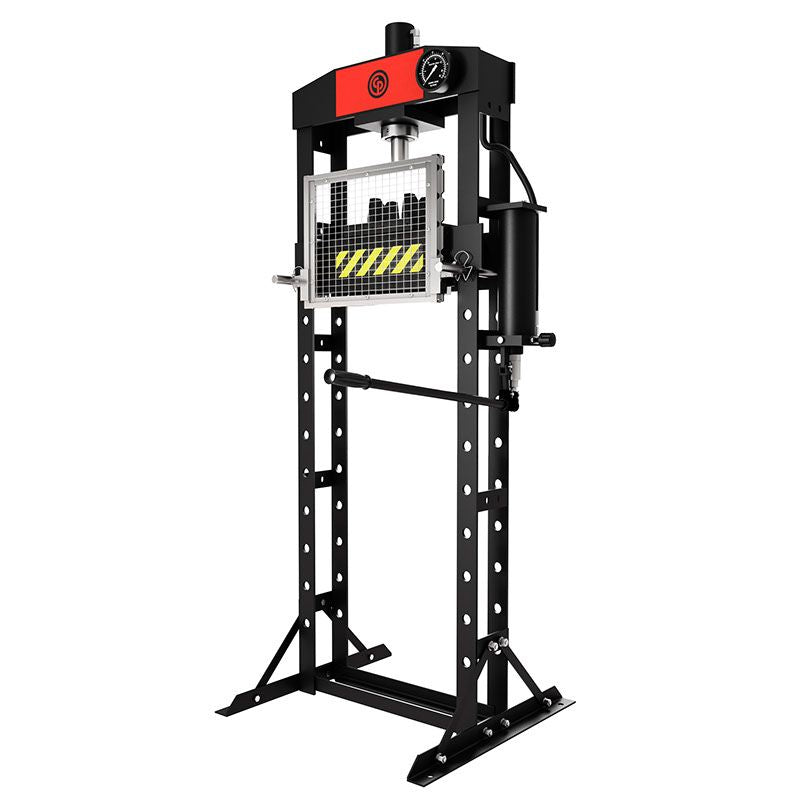

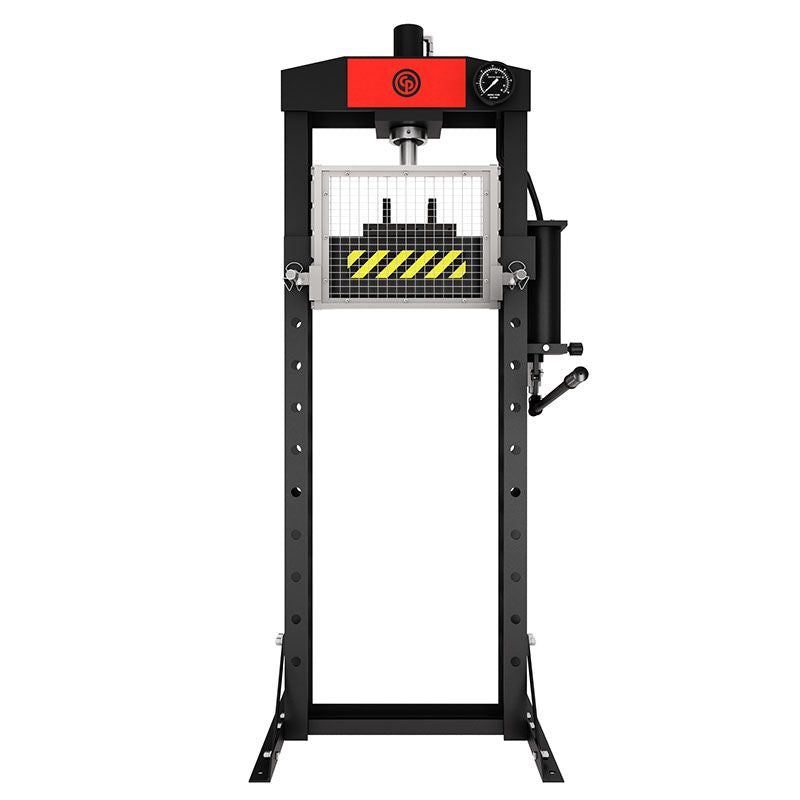

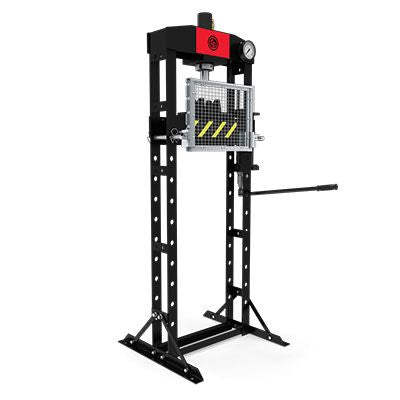

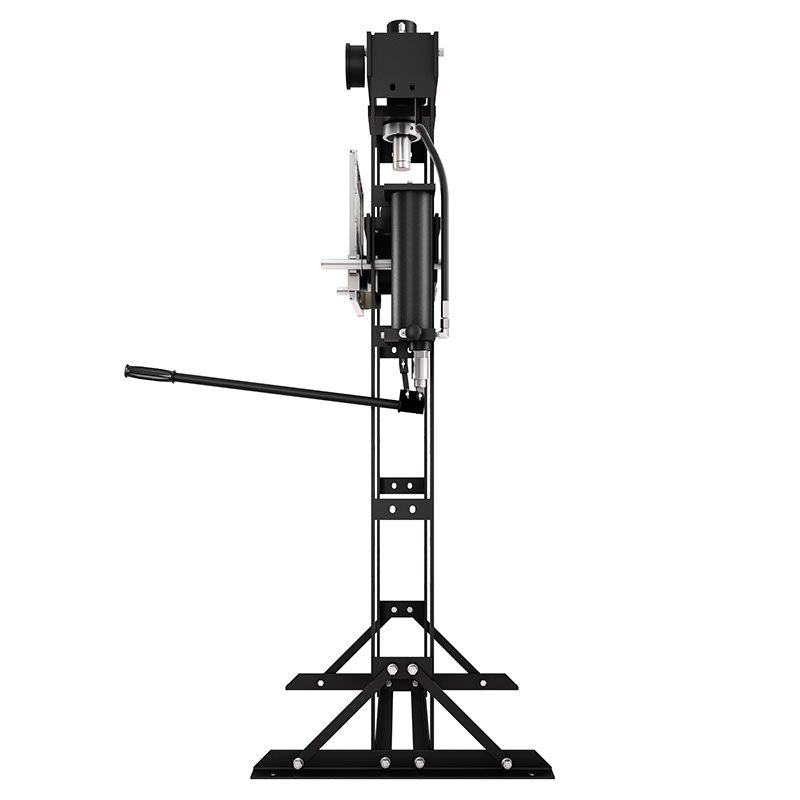

The Chicago Pneumatic CP86201 is a 20-ton hydraulic workshop press engineered for vehicle service workshop professionals demanding reliable, high-force pressing operations. Built from heavy-duty steel, this floor-standing press delivers a compression force of 44,000 lb, making it well suited for pressing bearings, bushings, pins, and other automotive components. The moveable cylinder design provides added flexibility across a wide range of workpiece sizes and configurations. The CP86201 is CE, TUV, and ASME certified, ensuring it meets rigorous international safety and performance standards.
Features
Moveable hydraulic cylinder for enhanced positioning flexibility during pressing operations
Adjustable workbench with multiple height positions to accommodate various workpiece dimensions
Large gauge displays both short and metric ton readings for easy pressing force monitoring
Stable steel frame construction for durability and long-term workshop use
CE, TUV, and ASME certified for compliance with international safety standards
Part of the CP86 series, available in models ranging from 15 to 50 tons
Protection cage integrated into the press head area for improved operator safety (additional protection cage accessory available separately)
Specifications
Compression Force: 44,000 lb (20 tons)
Hydraulic Stroke: 7.32 in
Oil Capacity: 0.1 in³
Weight: 231 lb
Main Material: Steel
Certifications: CE, TUV, ASME
Part Number: CP86201
Includes
2 x V-Blocks
